Keyless Entry Key-Pad: Service and Repair

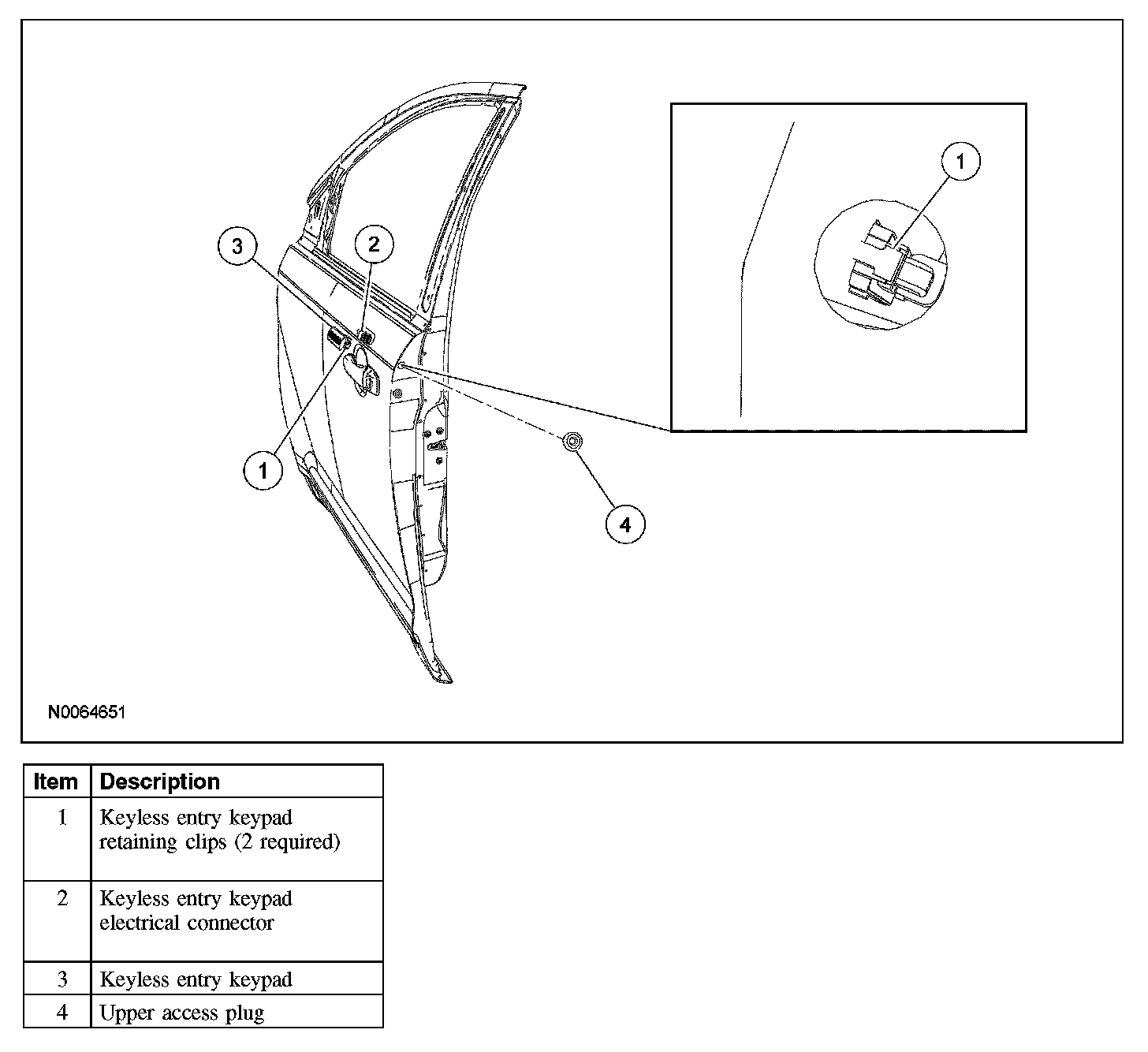

KEYLESS ENTRY KEYPAD







Removal and Installation
1. Remove the upper access plug.
2. Using a long, flat blade screwdriver, or suitable tool through the upper access hole, release the rear keyless entry keypad retaining clip and position the keyless entry keypad aside.
3. Remove the keyless entry keypad.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
