Connector Views
>>
Seat Temperature Control Module
>>
Climate Controlled Seat Backrest Module
>>
Driver Side
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Driver Side

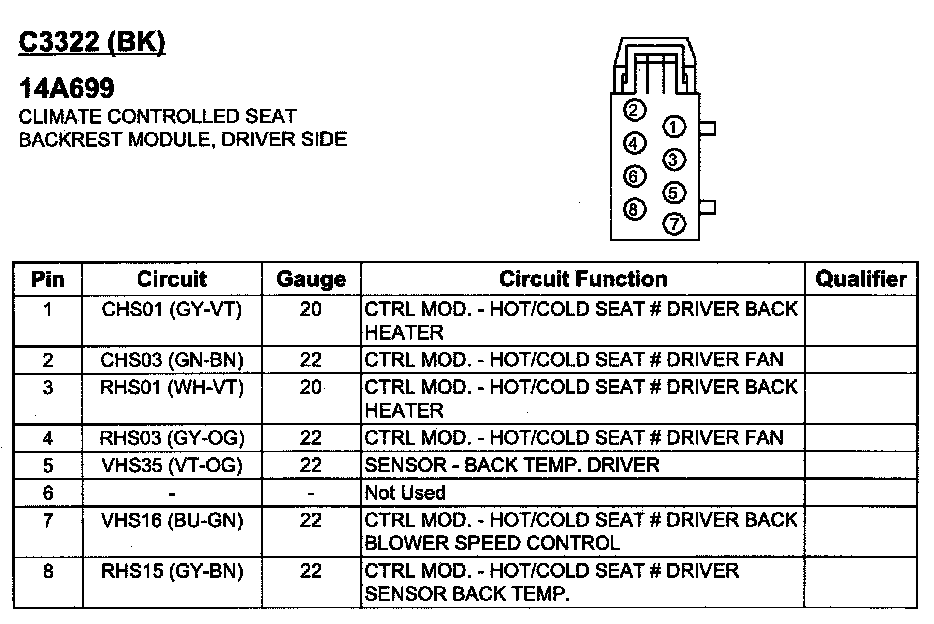

C3322:
