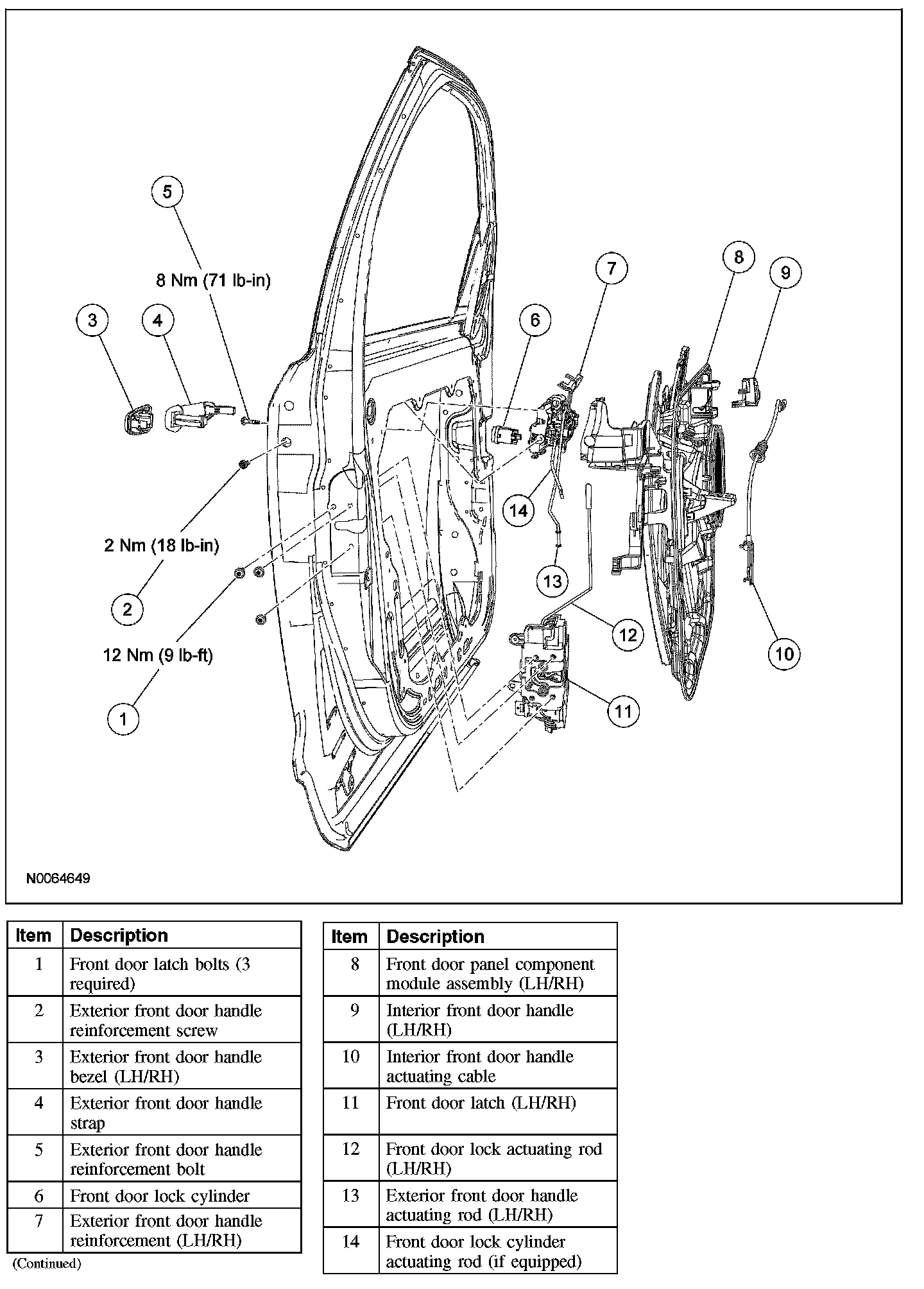

Front Door Handles, Locks and Latches - Exploded View

FRONT DOOR HANDLES, LOCKS AND LATCHES - EXPLODED VIEW







Removal and Installation
1. For additional information, refer to the procedures.
