Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Battery Junction Box (BJB)

G00439997

Courtesy of FORD MOTOR CO.

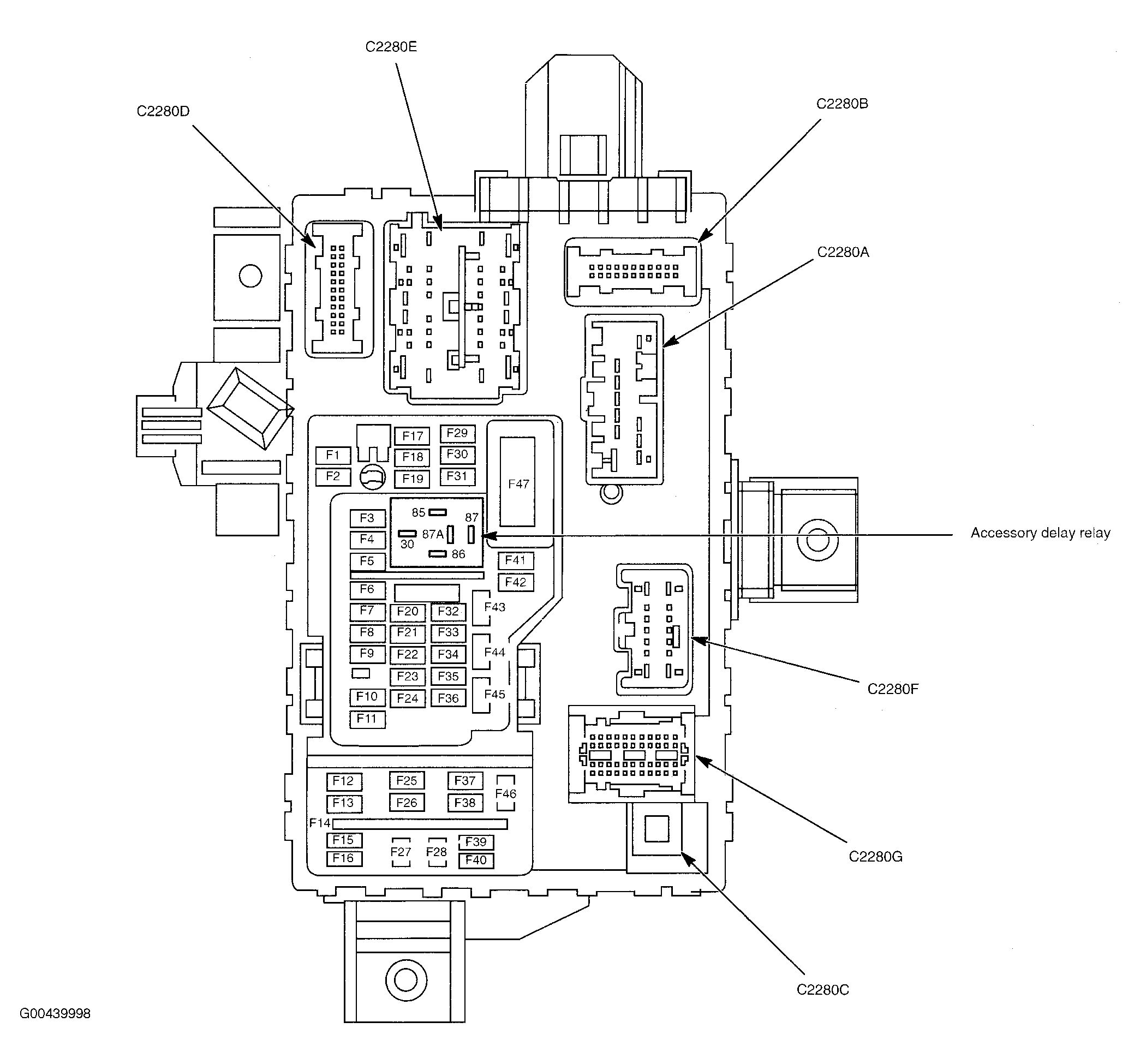

Fig 2: Smart Junction Box (SJB)

G00439998

Courtesy of FORD MOTOR CO.

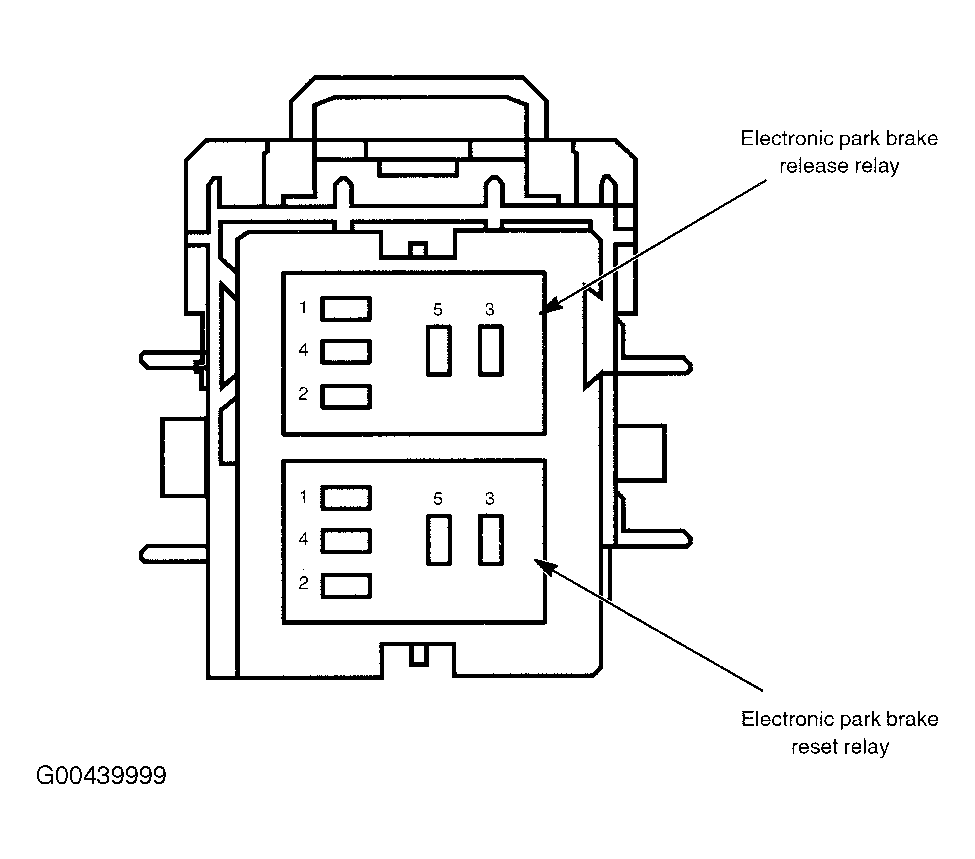

Fig 3: Auxiliary Relay Box 1

G00439999

Courtesy of FORD MOTOR CO.

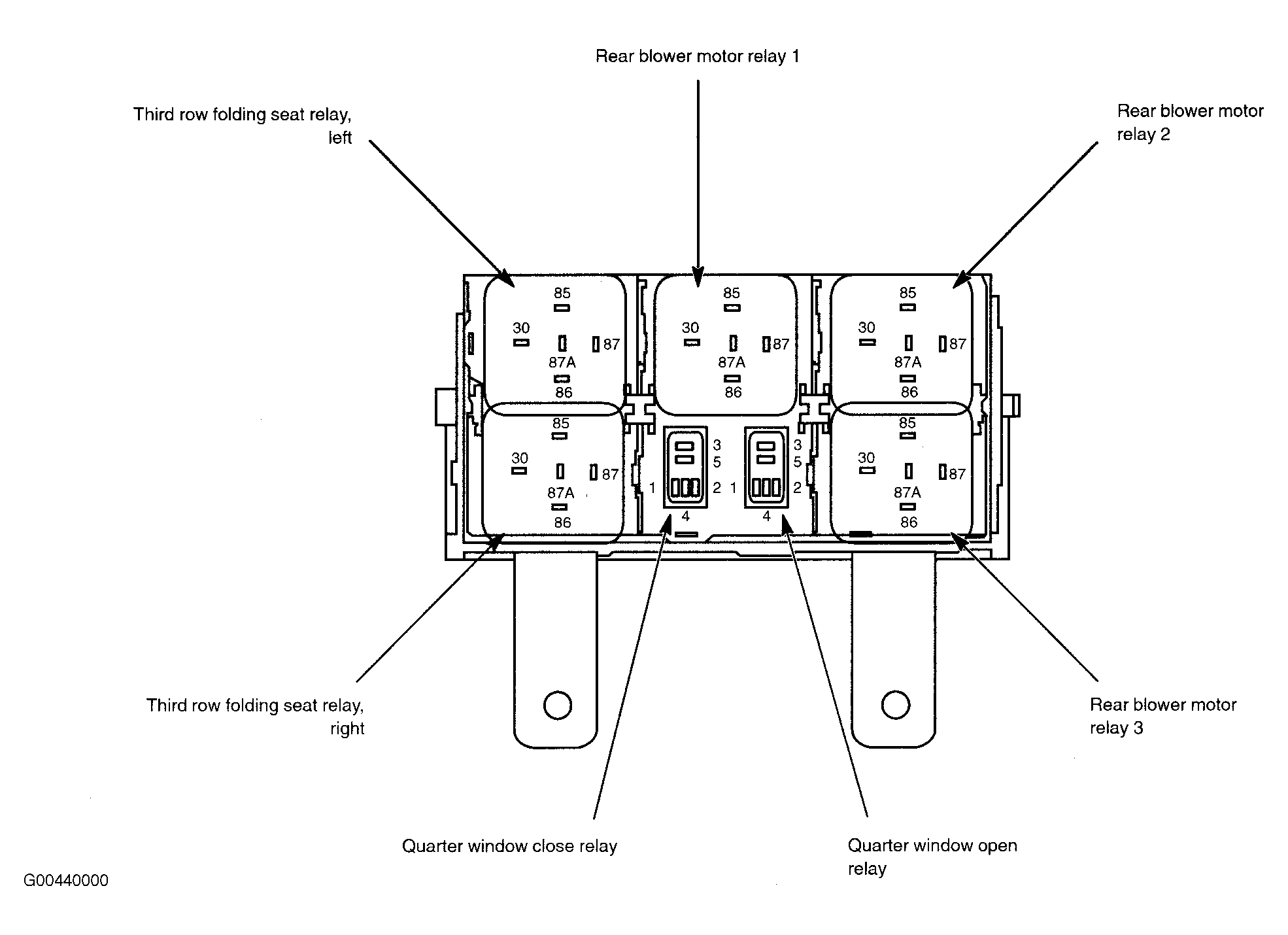

Fig 4: Auxiliary Relay Box 2

G00440000

Courtesy of FORD MOTOR CO.

Fig 5: Engine Compartment (Expedition)

G00440001

Courtesy of FORD MOTOR CO.

Fig 6: Engine Compartment (Expedition)

G00440002

Courtesy of FORD MOTOR CO.

Fig 7: Engine Compartment (Navigator)

G00440003

Courtesy of FORD MOTOR CO.

Fig 8: Engine Compartment (Navigator)

G00440004

Courtesy of FORD MOTOR CO.

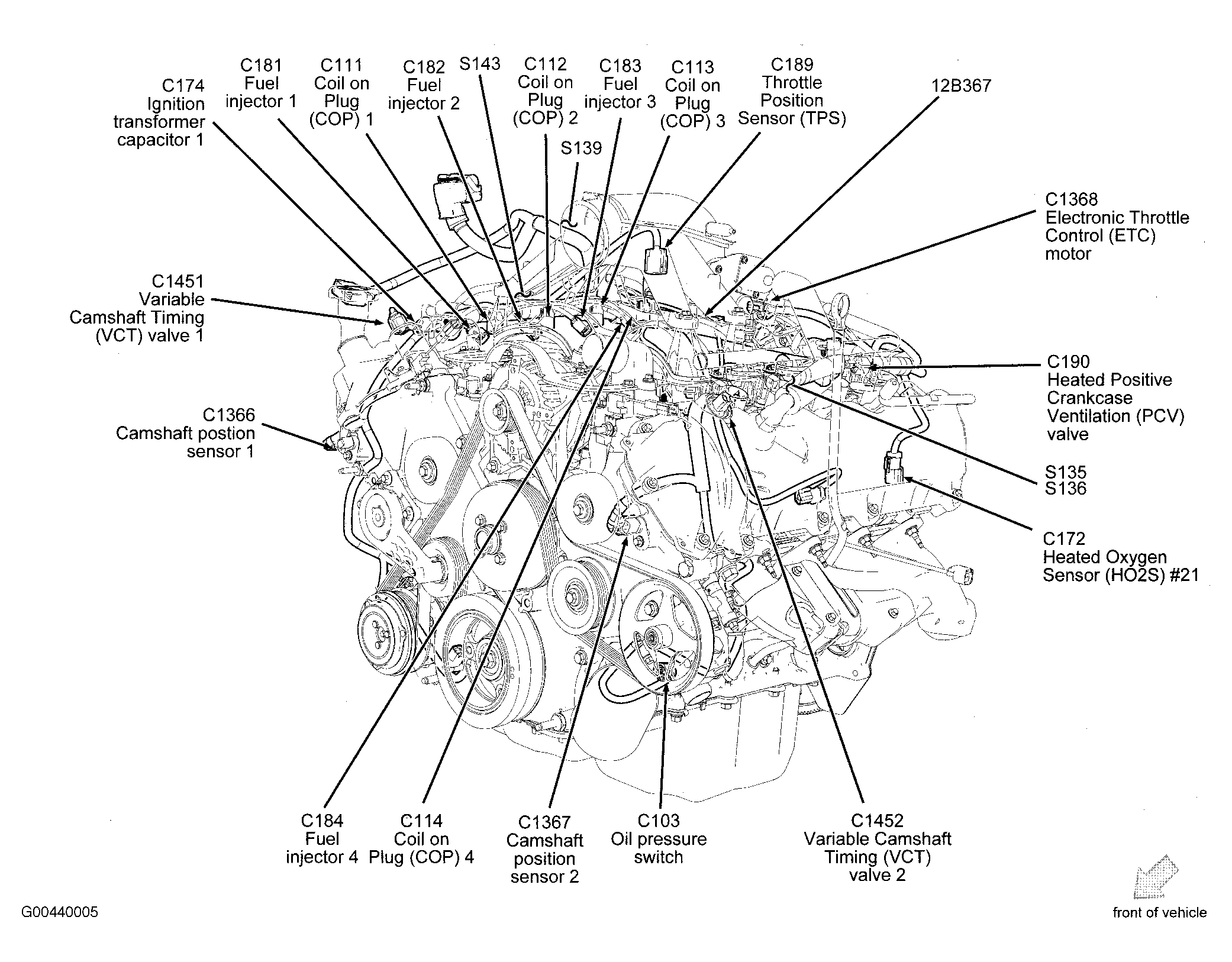

Fig 9: Front Of Engine

G00440005

Courtesy of FORD MOTOR CO.

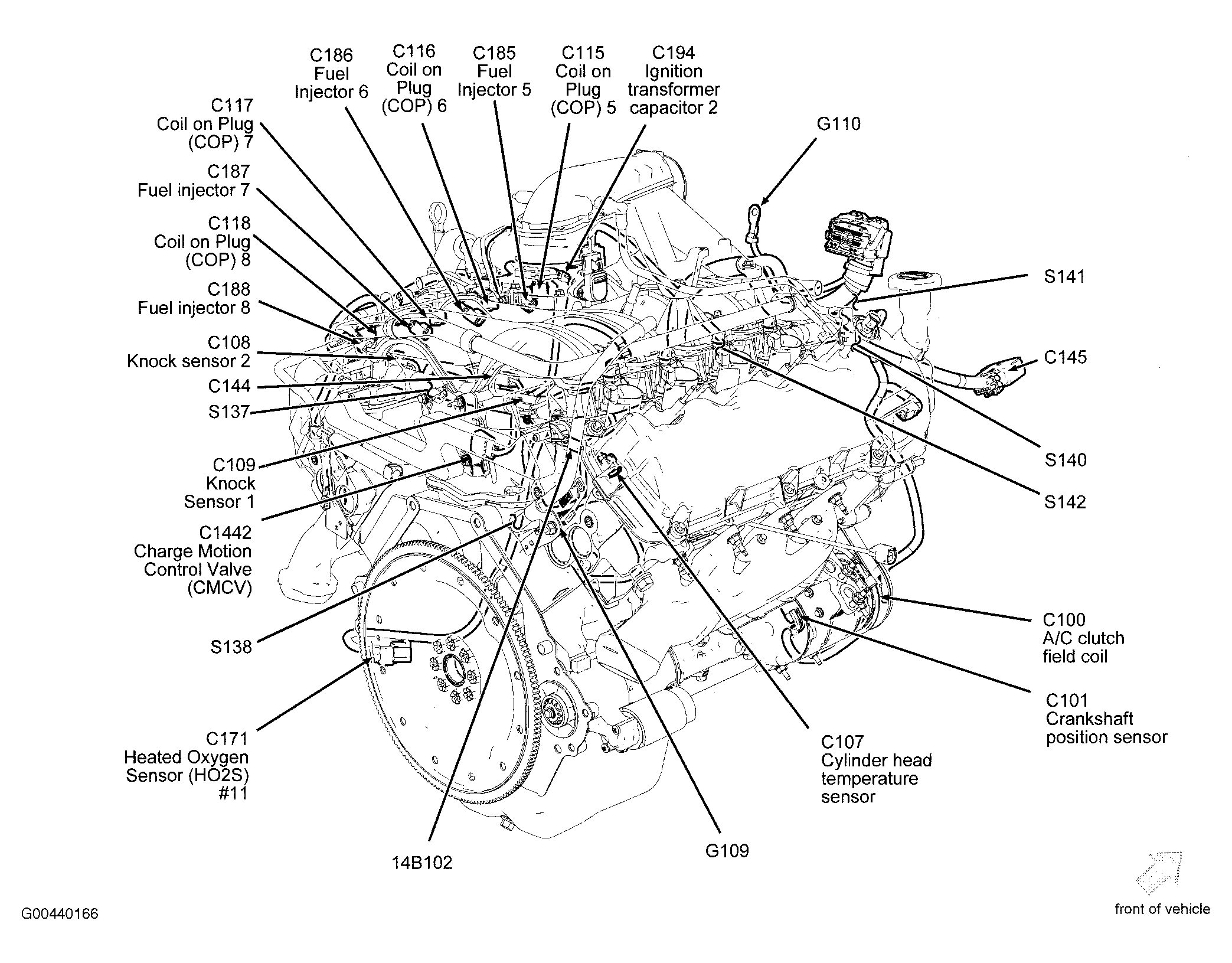

Fig 10: Rear Of Engine

G00440166

Courtesy of FORD MOTOR CO.

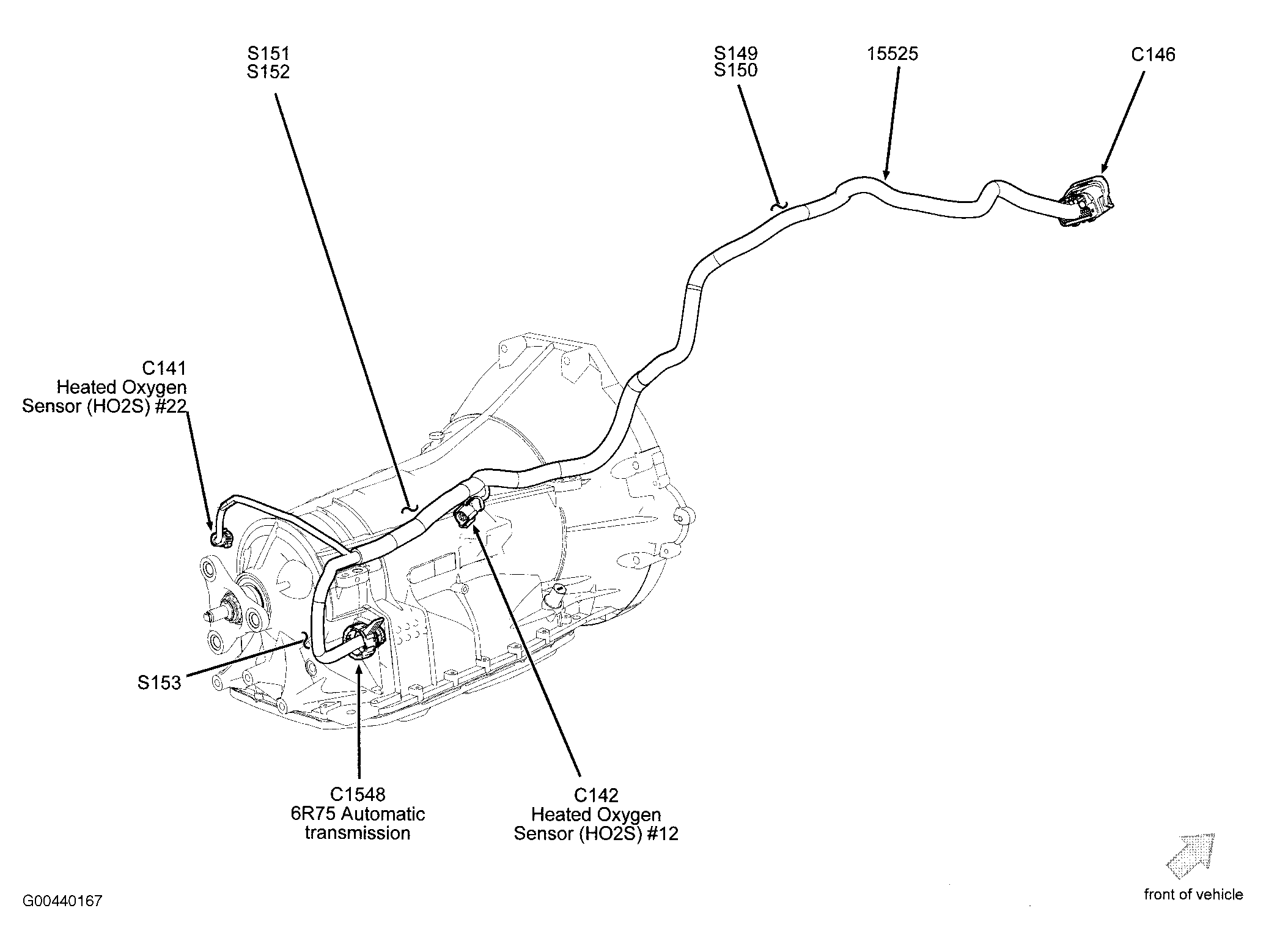

Fig 11: Automatic Transmission (6R75 2WD)

G00440167

Courtesy of FORD MOTOR CO.

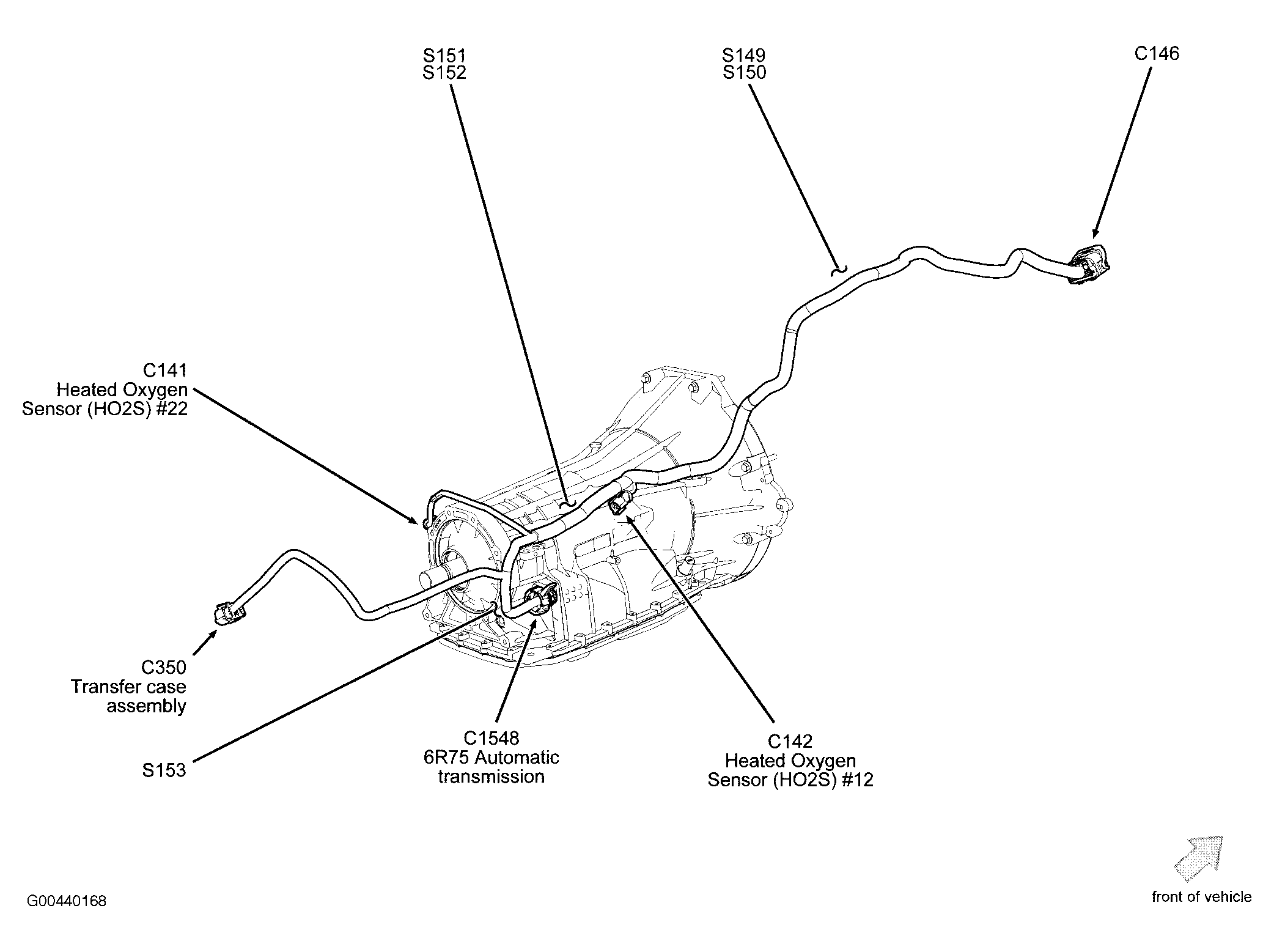

Fig 12: Automatic Transmission (6R75 4WD)

G00440168

Courtesy of FORD MOTOR CO.

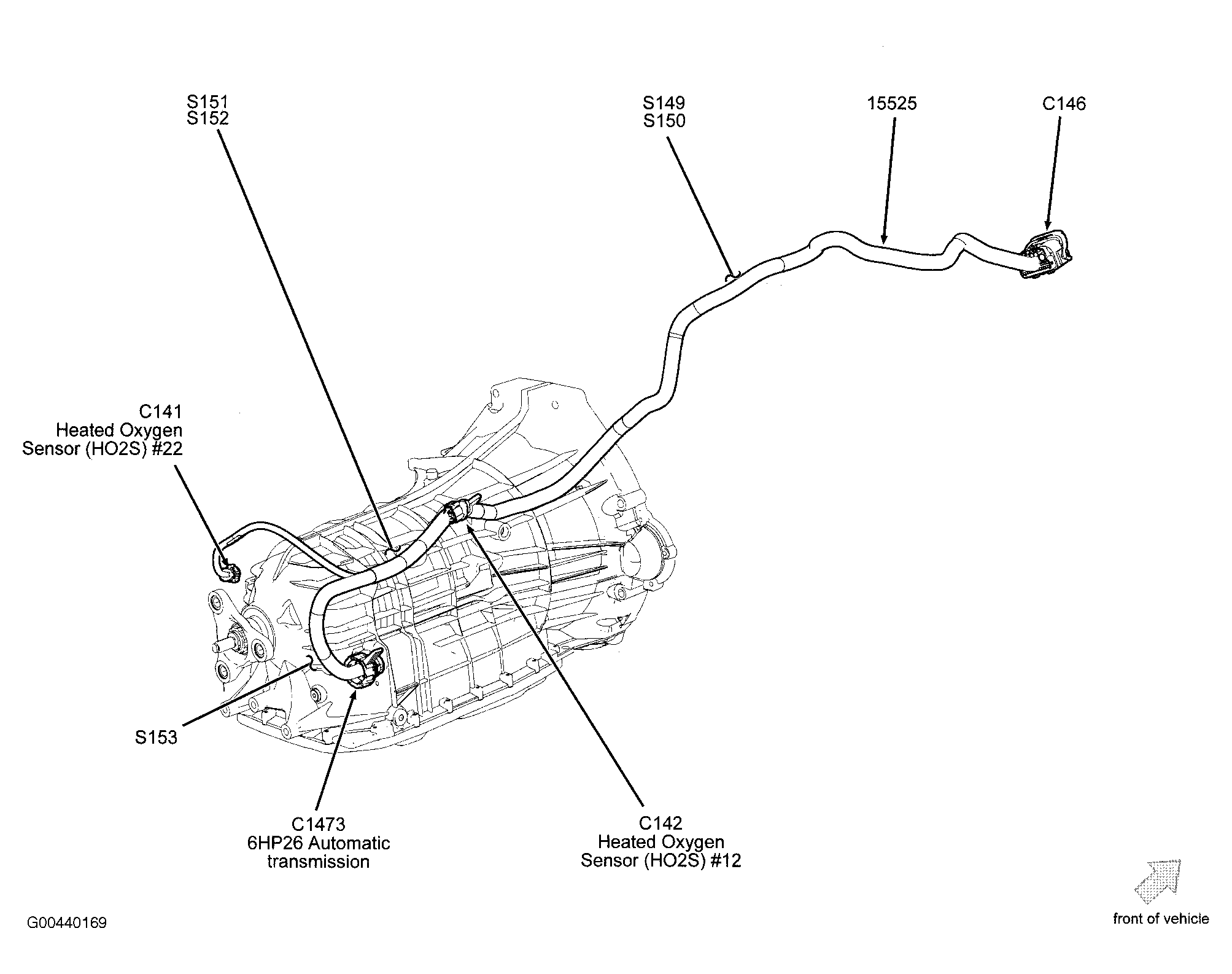

Fig 13: Automatic Transmission (6HP26 2WD)

G00440169

Courtesy of FORD MOTOR CO.

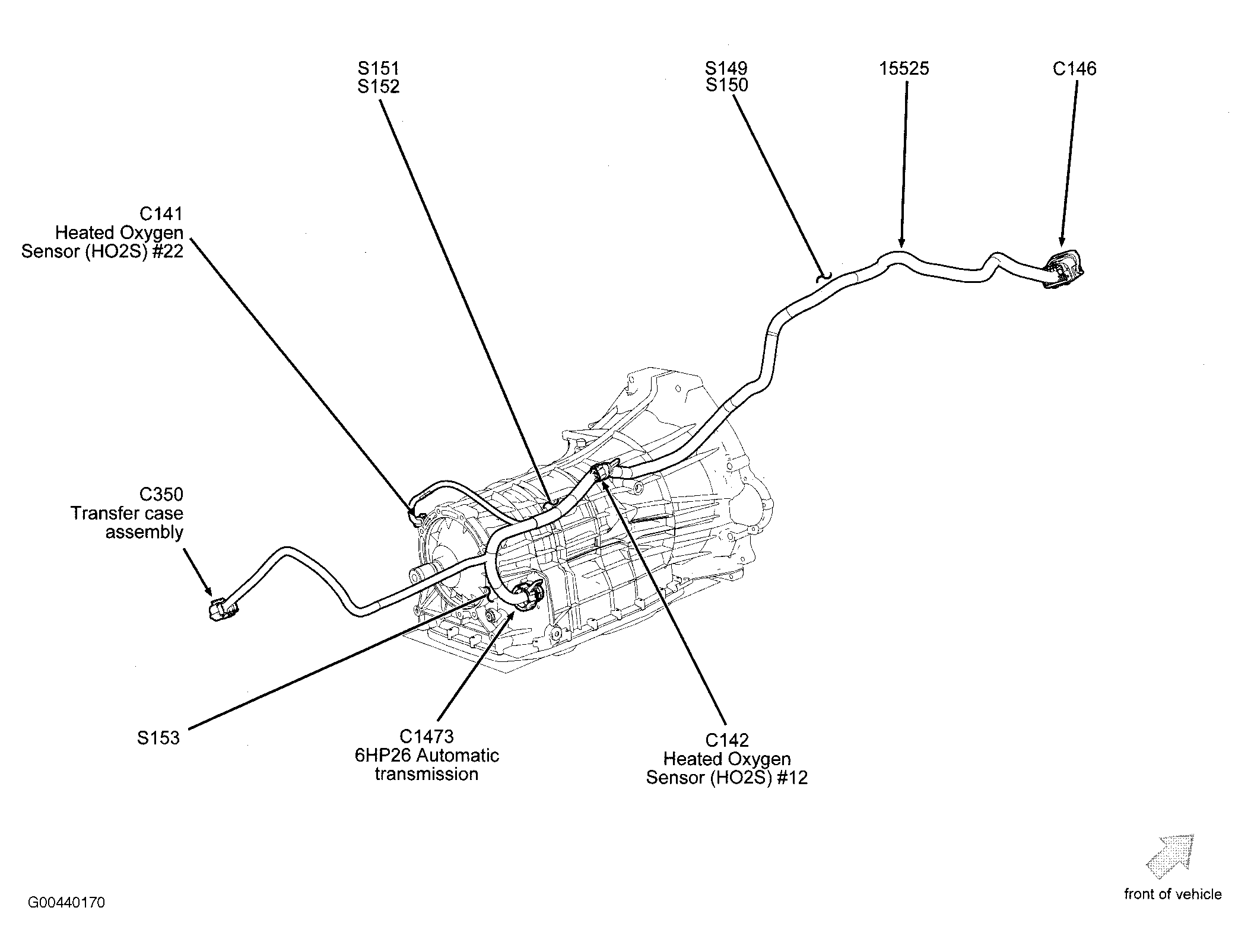

Fig 14: Automatic Transmission (6HP26 4WD)

G00440170

Courtesy of FORD MOTOR CO.

Fig 15: Rear Of Dash (Expedition)

G00440171

Courtesy of FORD MOTOR CO.

Fig 16: Front Of Dash (Expedition)

G00440172

Courtesy of FORD MOTOR CO.

Fig 17: Rear Of Dash (Navigator)

G00440173

Courtesy of FORD MOTOR CO.

Fig 18: Front Of Dash (Navigator)

G00440174

Courtesy of FORD MOTOR CO.

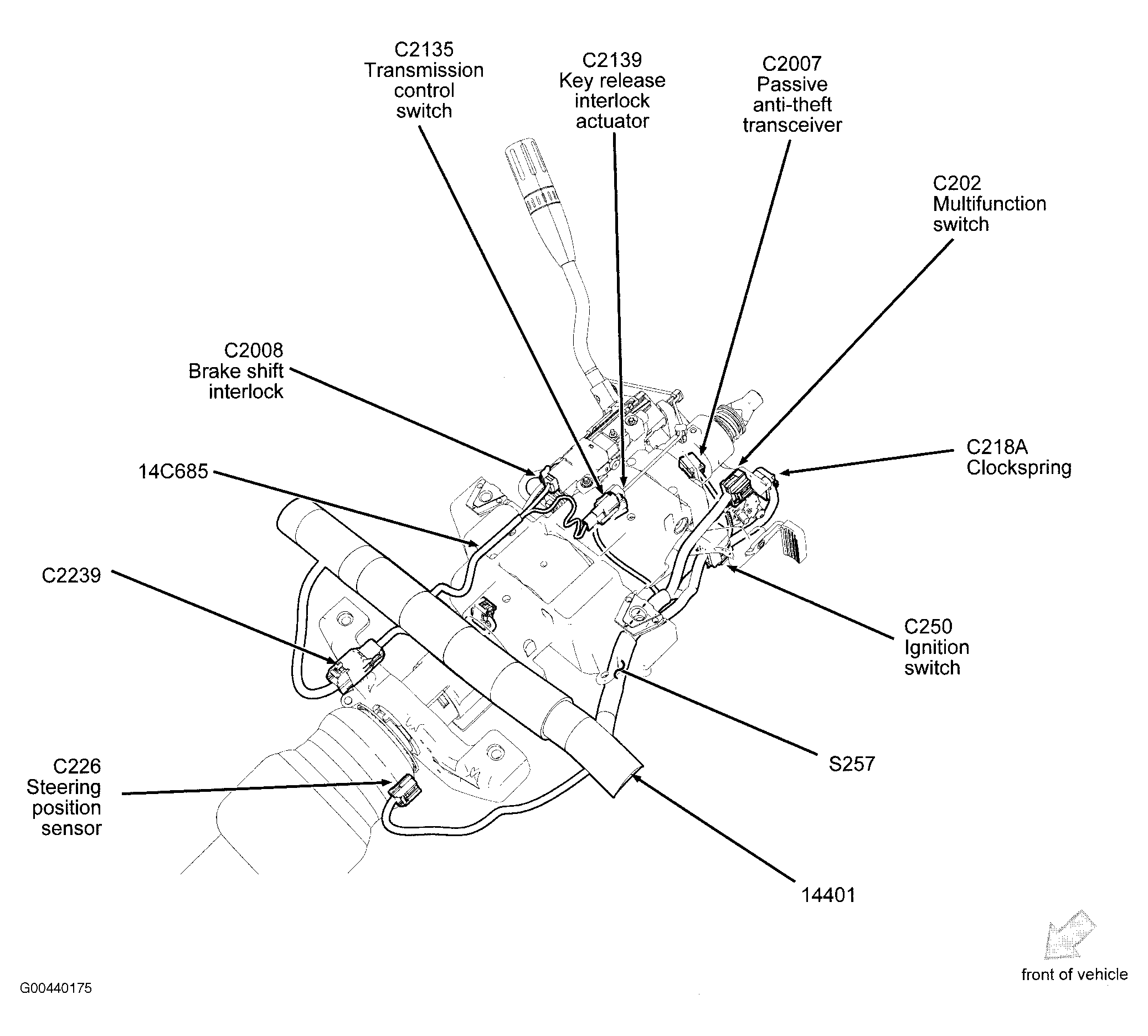

Fig 19: Steering Column (Expedition)

G00440175

Courtesy of FORD MOTOR CO.

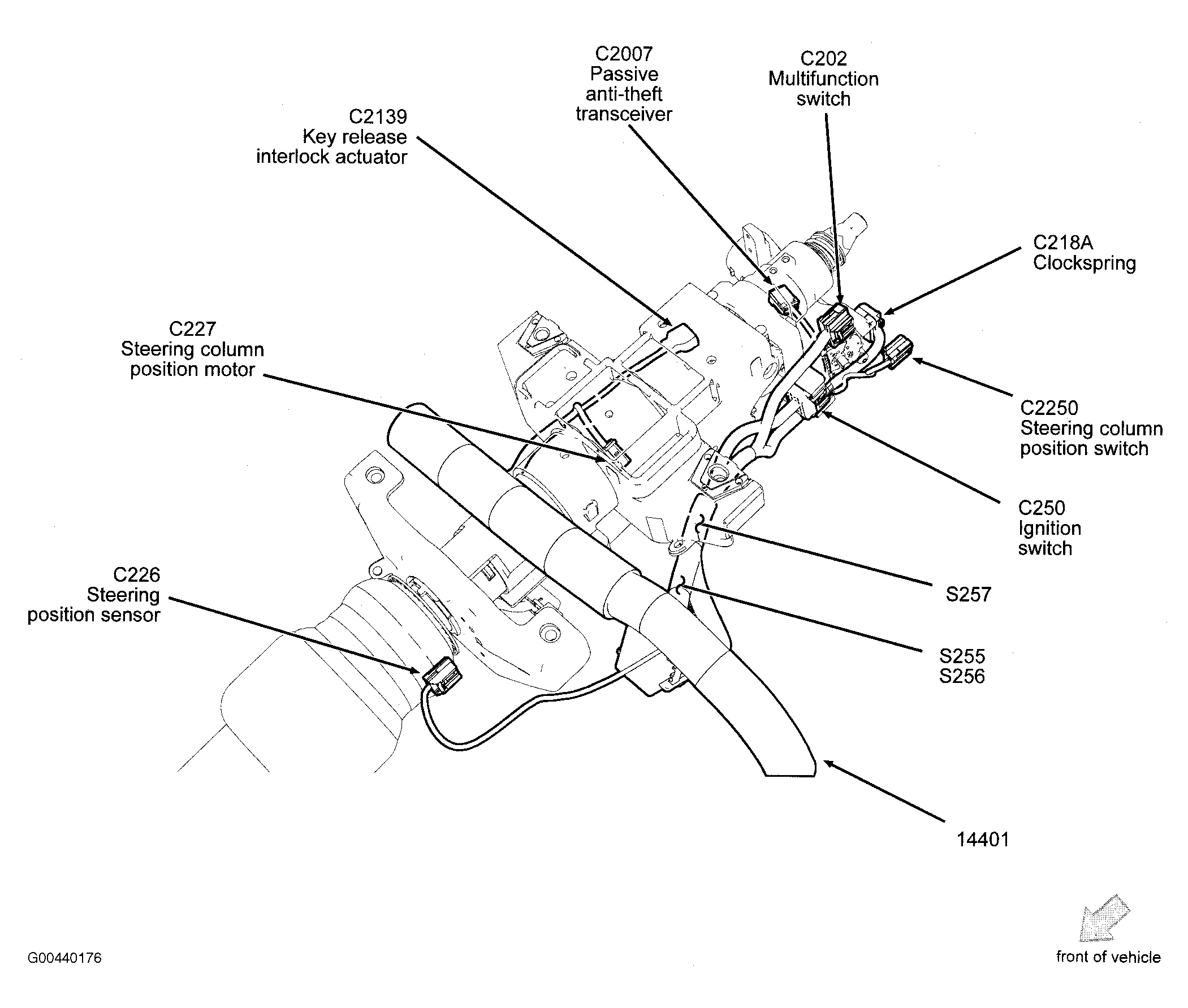

Fig 20: Steering Column (Navigator)

G00440176

Courtesy of FORD MOTOR CO.

Fig 21: Steering Wheel

G00440177

Courtesy of FORD MOTOR CO.

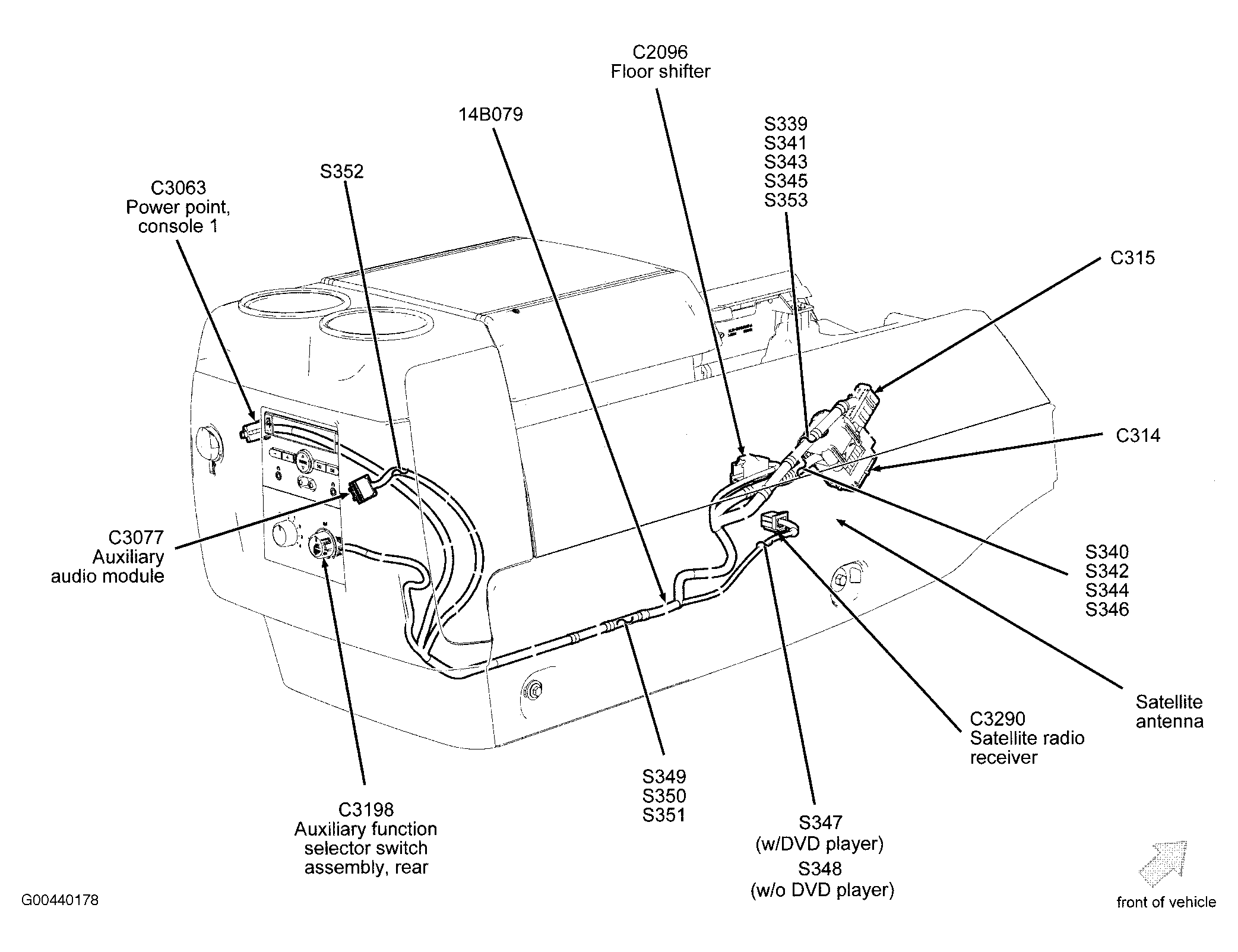

Fig 22: Center Console (Expedition)

G00440178

Courtesy of FORD MOTOR CO.

Fig 23: Center Console (Navigator)

G00440179

Courtesy of FORD MOTOR CO.

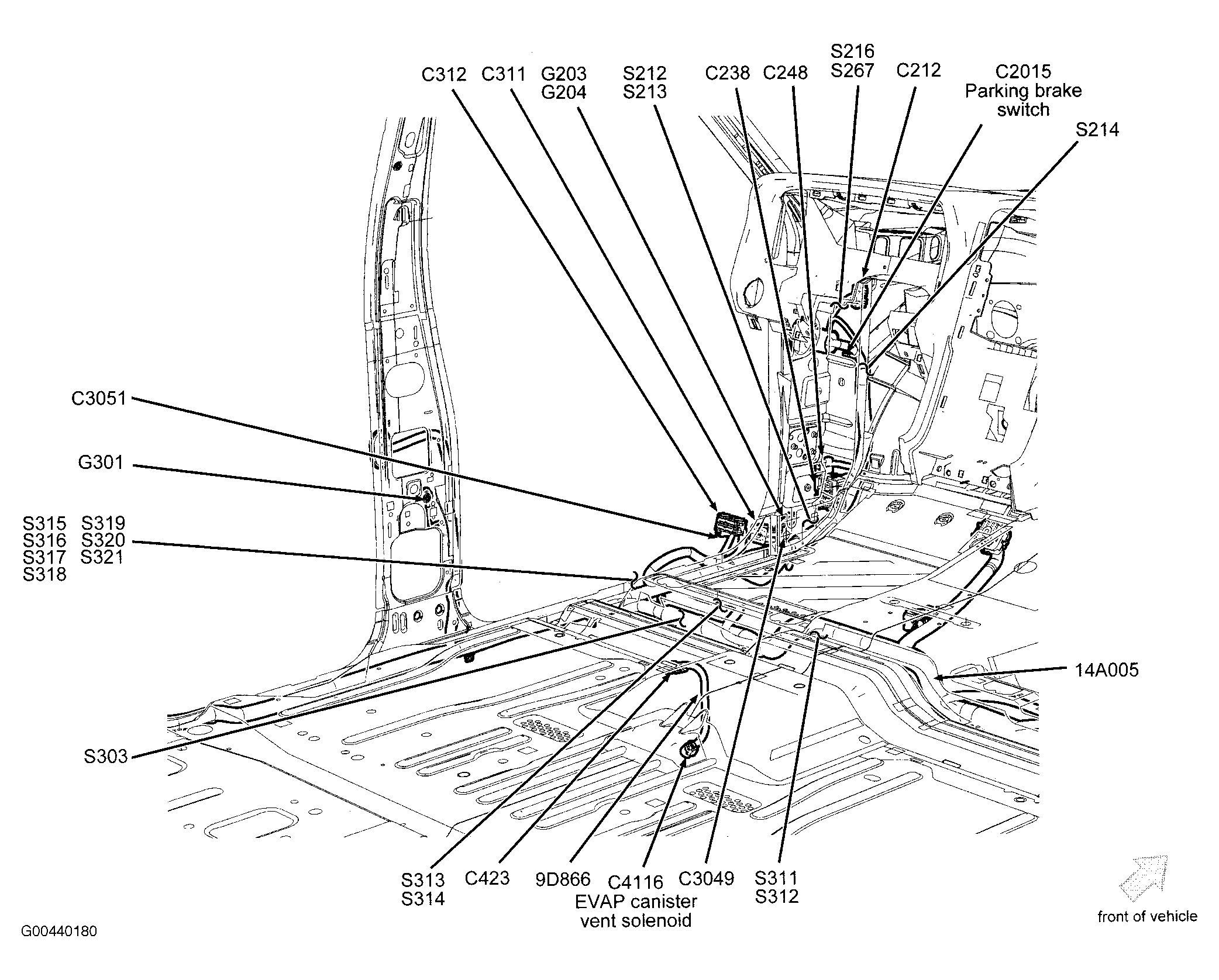

Fig 24: Left Front Of Vehicle Interior (Expedition)

G00440180

Courtesy of FORD MOTOR CO.

Fig 25: Right Front Of Vehicle Interior (Expedition)

G00440181

Courtesy of FORD MOTOR CO.

Fig 26: Left Front Of Vehicle Interior (Navigator)

G00440182

Courtesy of FORD MOTOR CO.

Fig 27: Right Front Of Vehicle Interior (Navigator)

G00440183

Courtesy of FORD MOTOR CO.

Fig 28: Left Rear Of Vehicle Interior (Expedition)

G00440184

Courtesy of FORD MOTOR CO.

Fig 29: Right Rear Of Vehicle Interior (Expedition)

G00440185

Courtesy of FORD MOTOR CO.

Fig 30: Left Rear Of Vehicle Interior (Navigator)

G00440186

Courtesy of FORD MOTOR CO.

Fig 31: Right Rear Of Vehicle Interior (Navigator)

G00440187

Courtesy of FORD MOTOR CO.

Fig 32: Left Rear Of Vehicle Interior (Expedition-EL & Navigator-L)

G00440188

Courtesy of FORD MOTOR CO.

Fig 33: Right Rear Of Vehicle Interior (Expedition-EL & Navigator-L)

G00440189

Courtesy of FORD MOTOR CO.

Fig 34: Rear Of Vehicle (Expedition & Navigator)

G00440190

Courtesy of FORD MOTOR CO.

Fig 35: Rear Of Vehicle (Expedition-EL & Navigator-L)

G00440191

Courtesy of FORD MOTOR CO.

Fig 36: Driver's Seat

G00440192

Courtesy of FORD MOTOR CO.

Fig 37: Front Passenger's Seat

G00440193

Courtesy of FORD MOTOR CO.

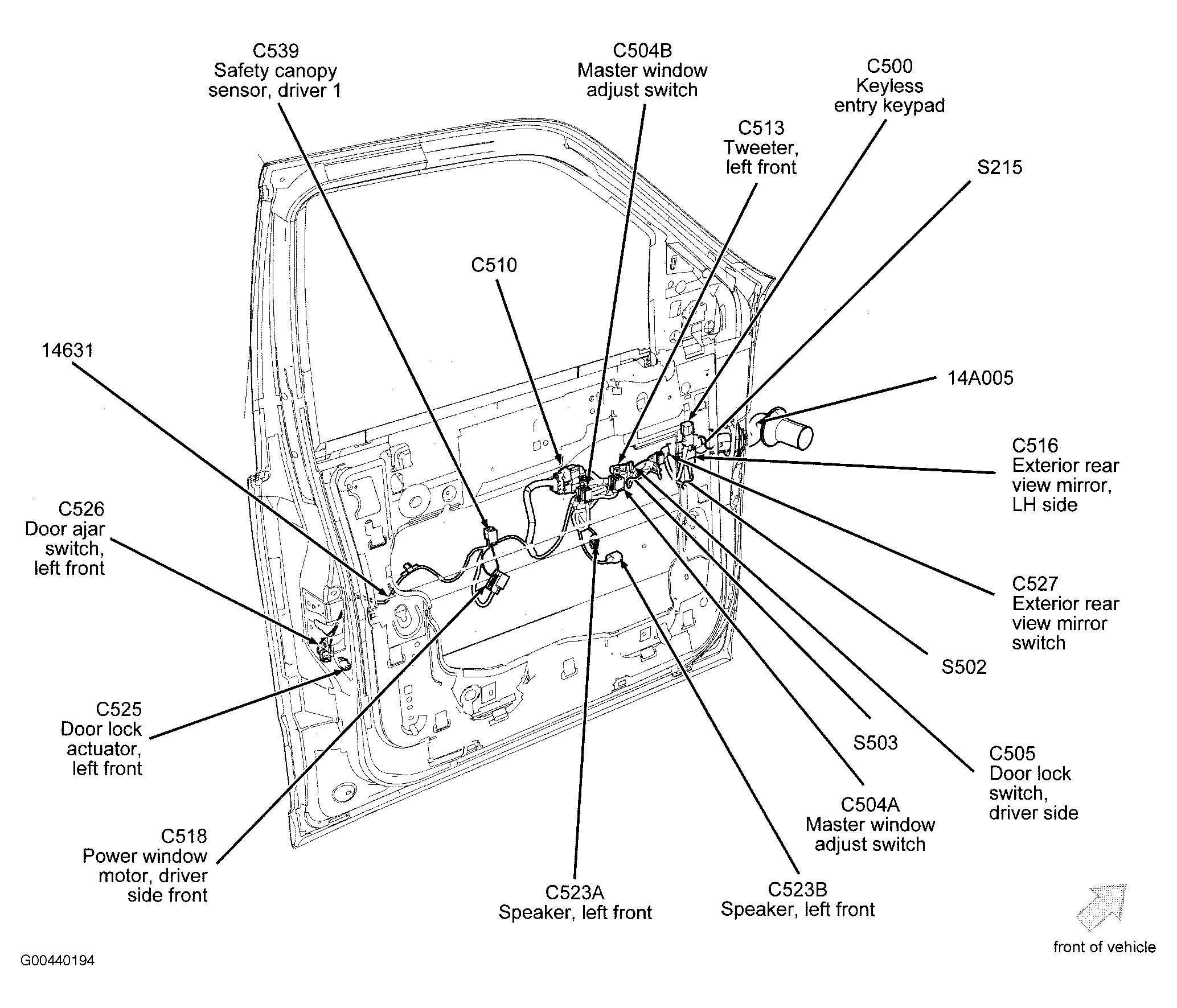

Fig 38: Driver's Door (Expedition)

G00440194

Courtesy of FORD MOTOR CO.

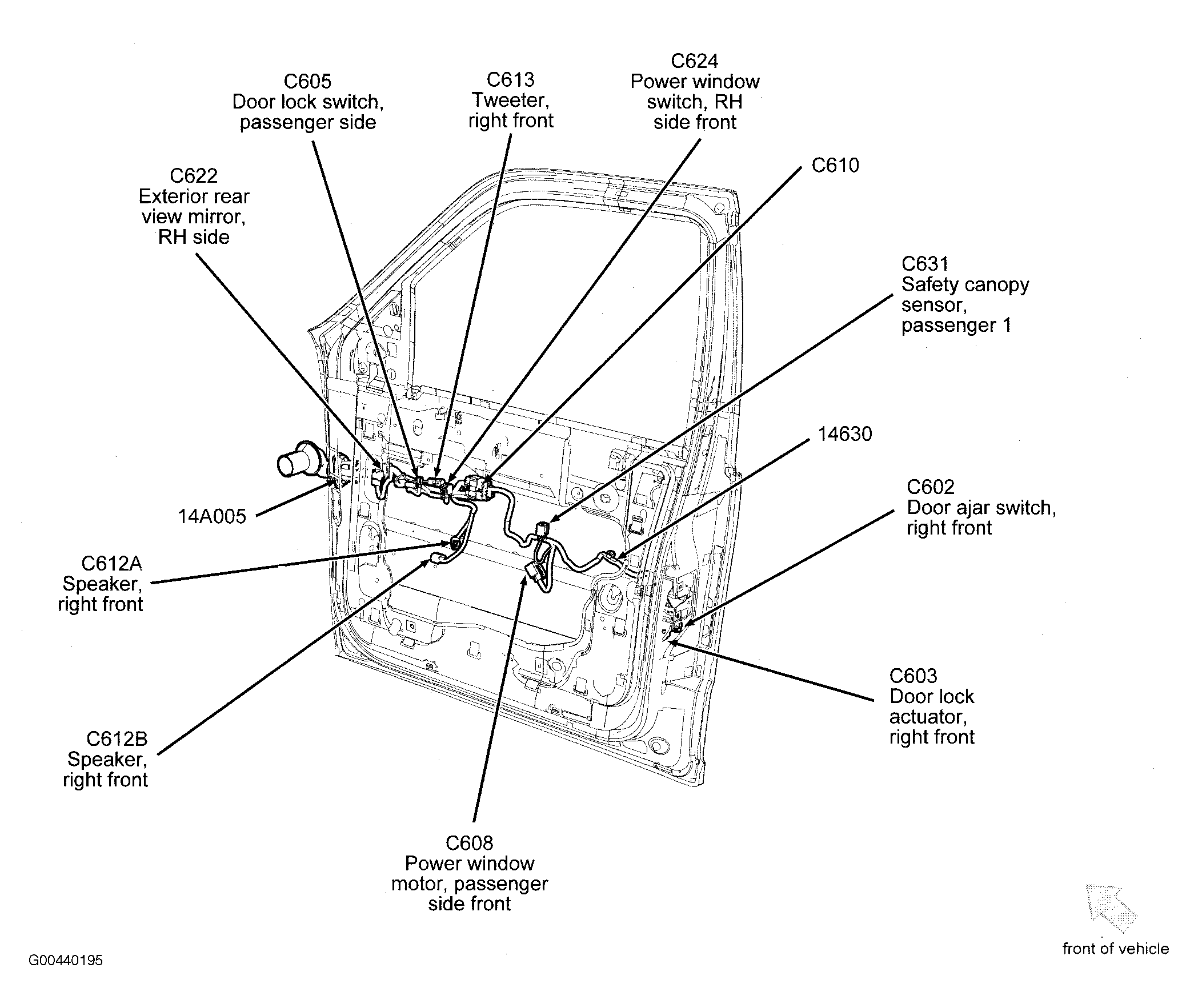

Fig 39: Front Passenger's Door (Expedition)

G00440195

Courtesy of FORD MOTOR CO.

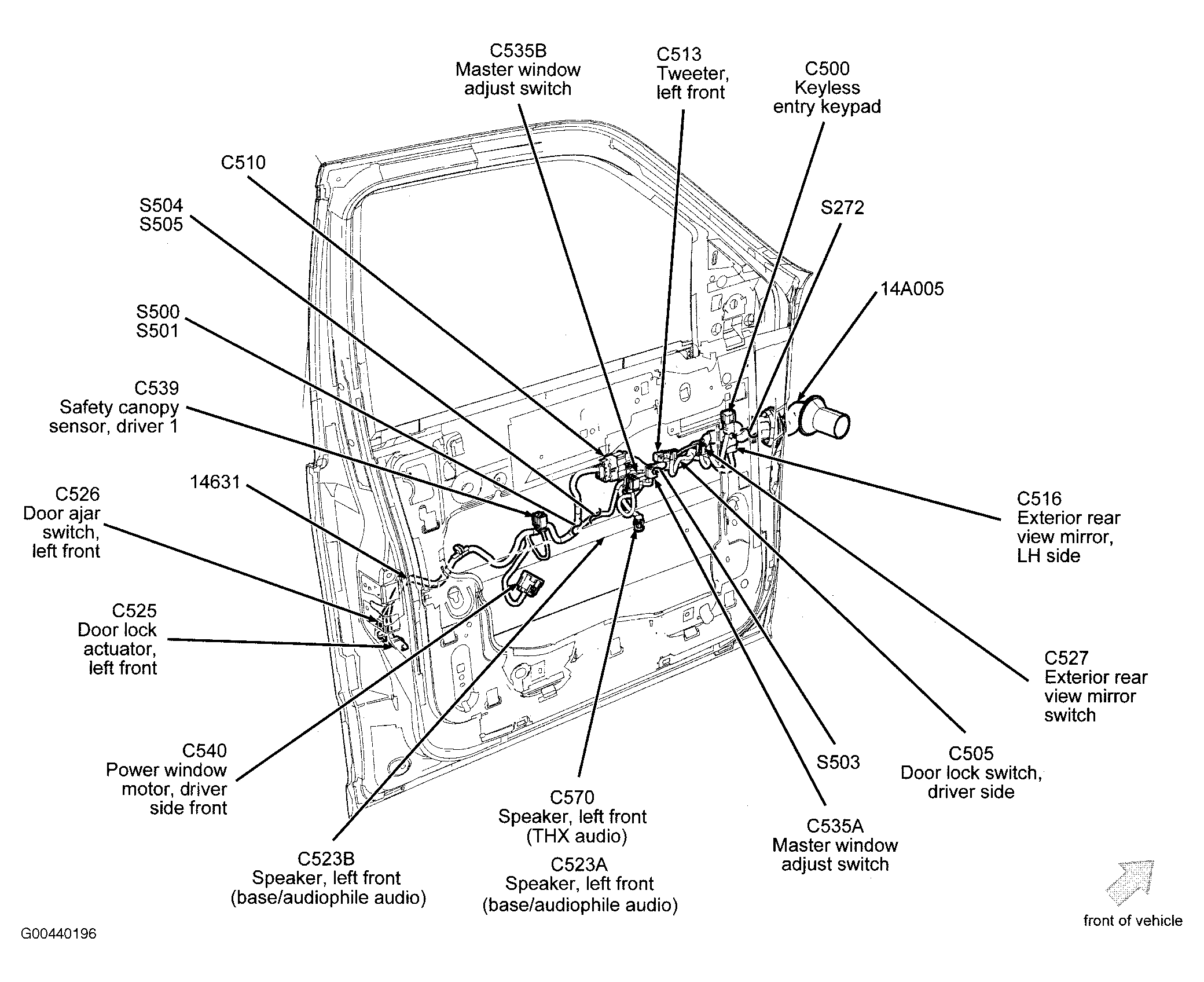

Fig 40: Driver's Door (Navigator)

G00440196

Courtesy of FORD MOTOR CO.

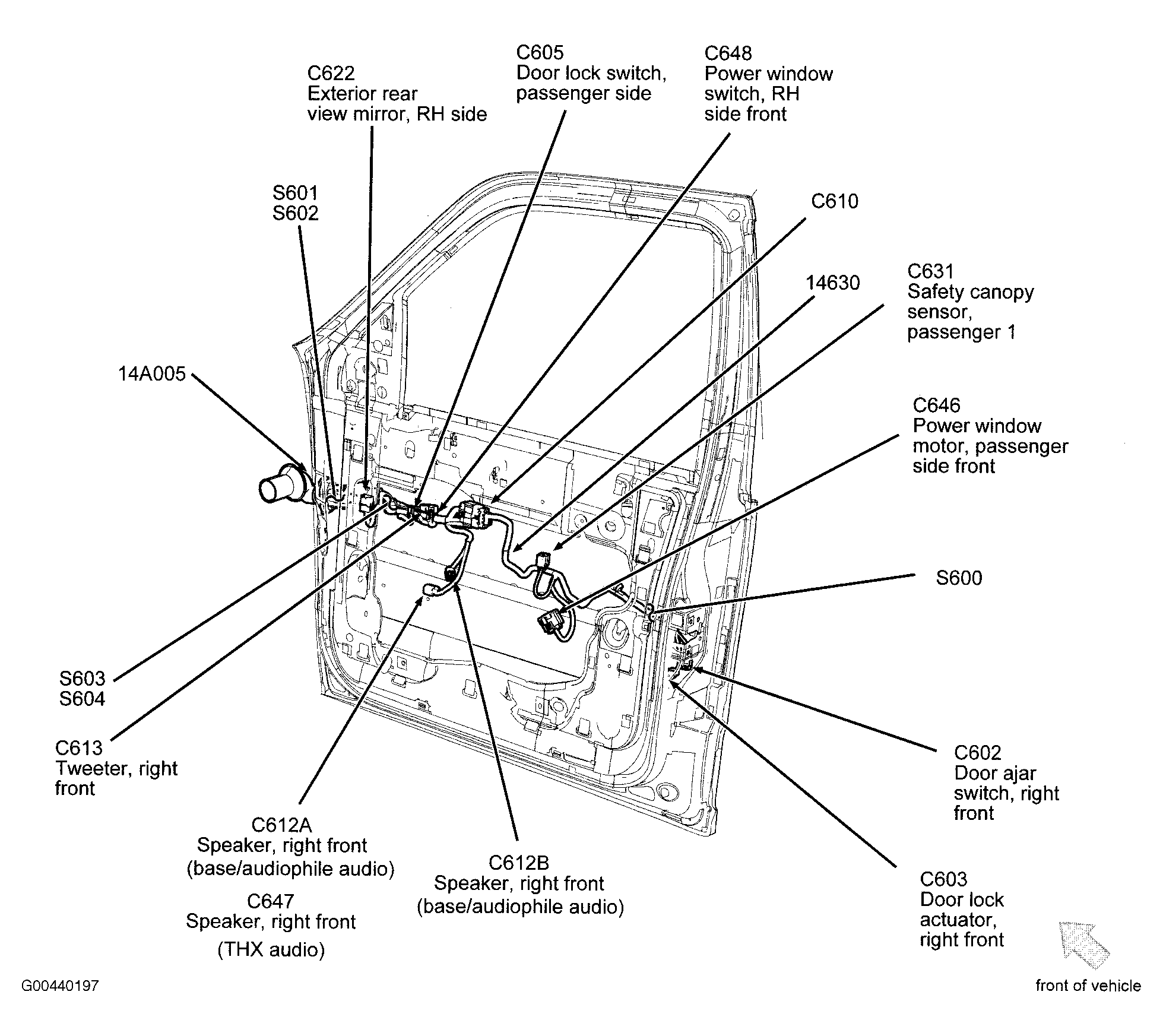

Fig 41: Front Passenger's Door (Navigator)

G00440197

Courtesy of FORD MOTOR CO.

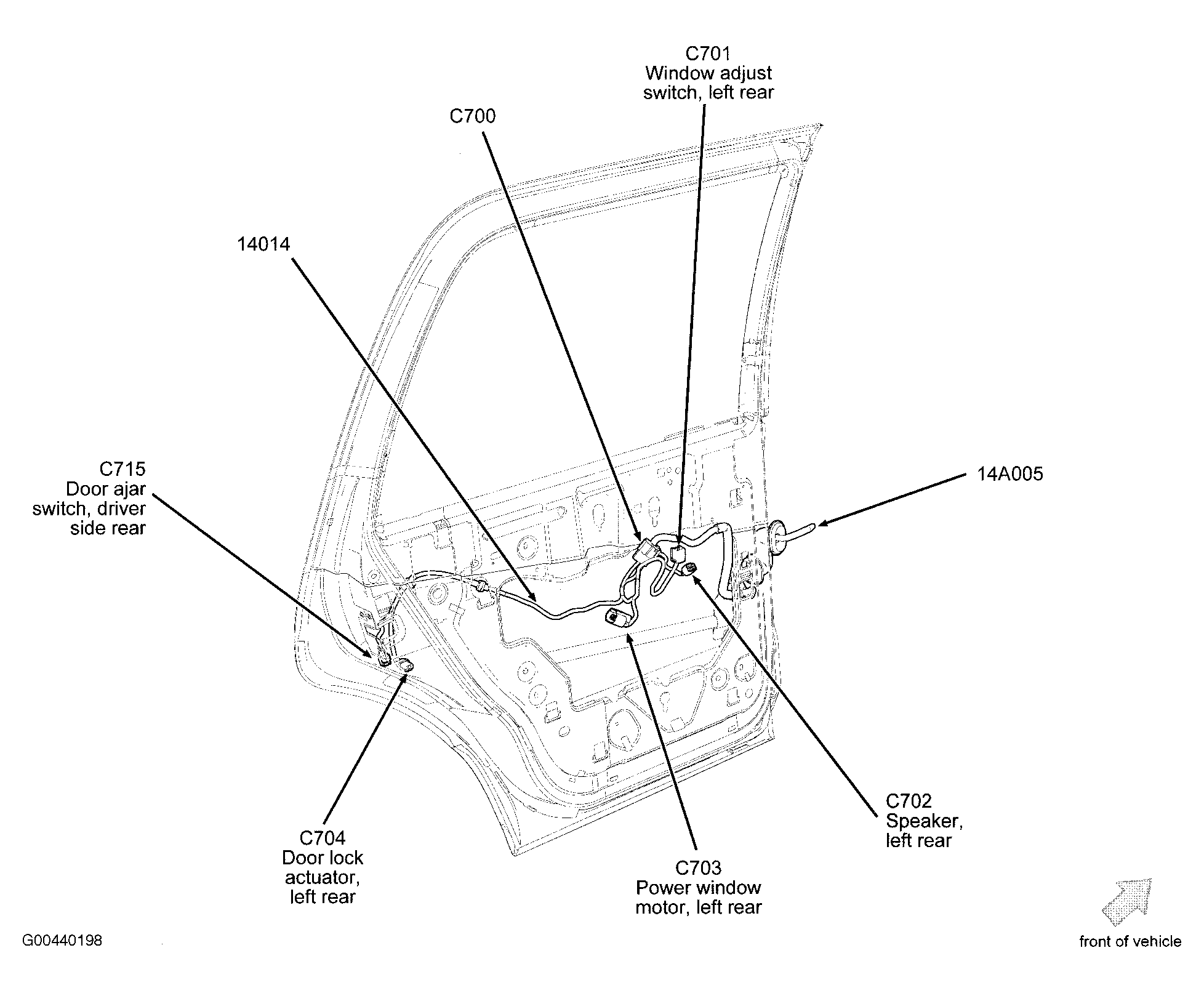

Fig 42: Left Rear Door

G00440198

Courtesy of FORD MOTOR CO.

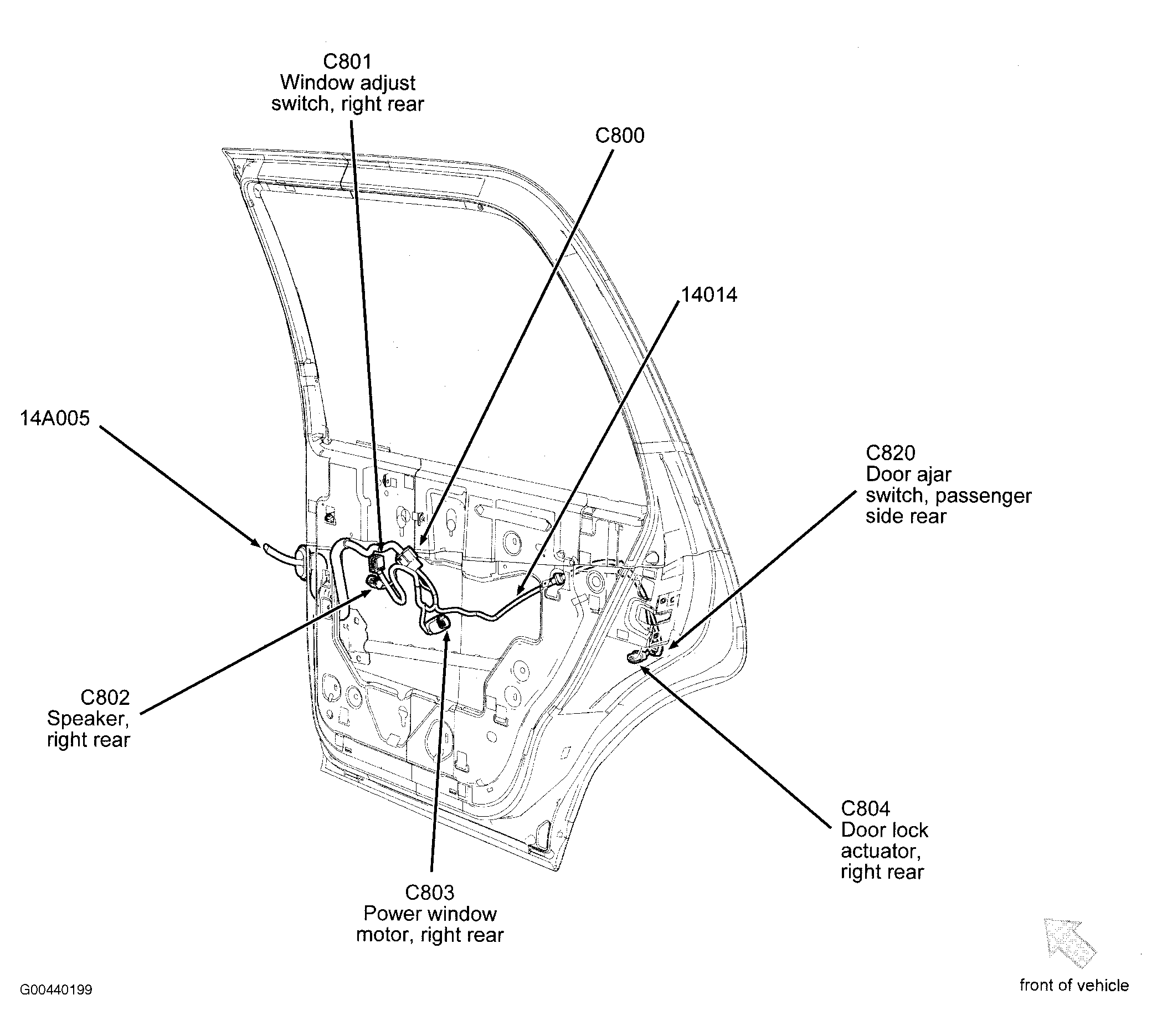

Fig 43: Right Rear Door

G00440199

Courtesy of FORD MOTOR CO.

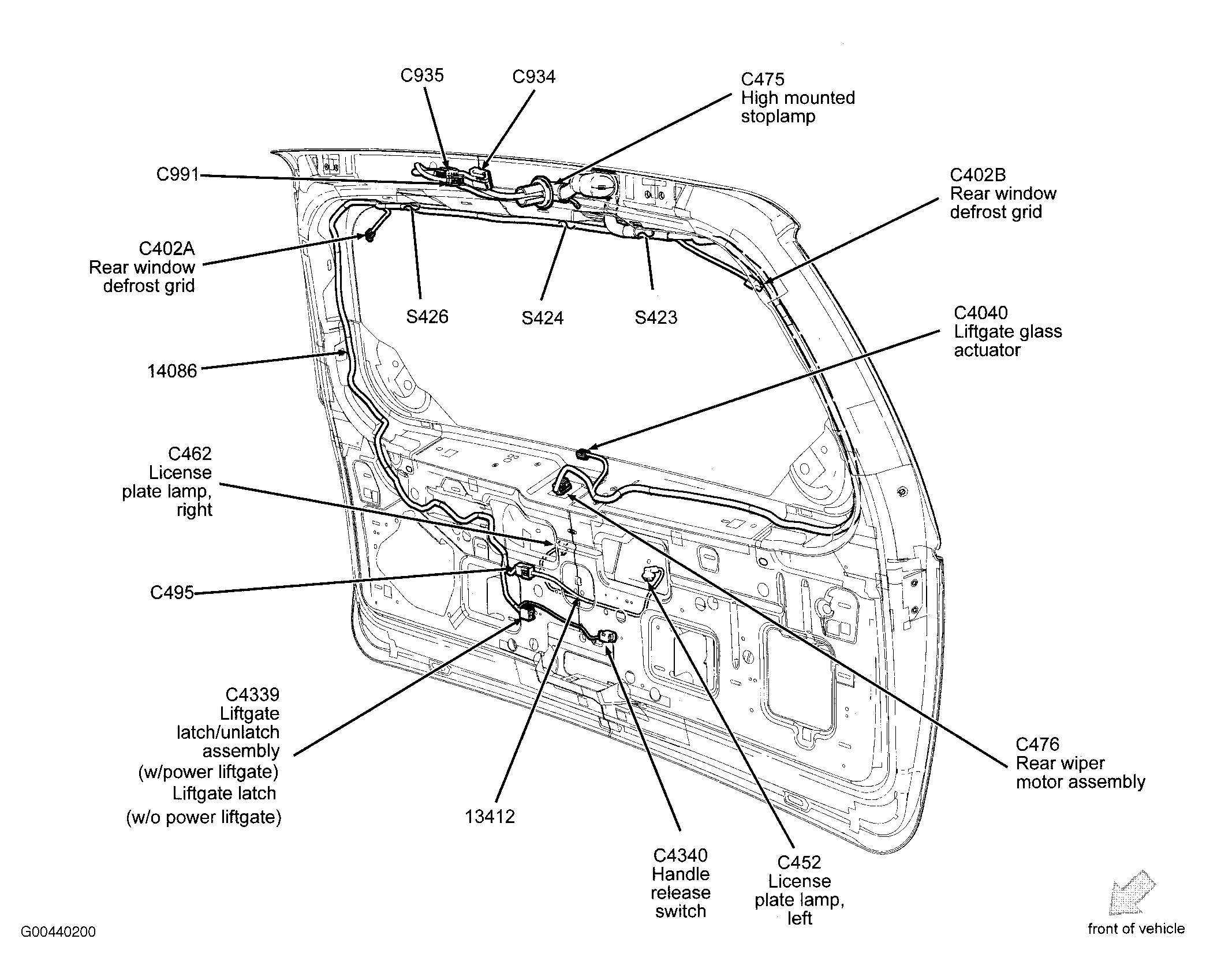

Fig 44: Liftgate (Expedition)

G00440200

Courtesy of FORD MOTOR CO.

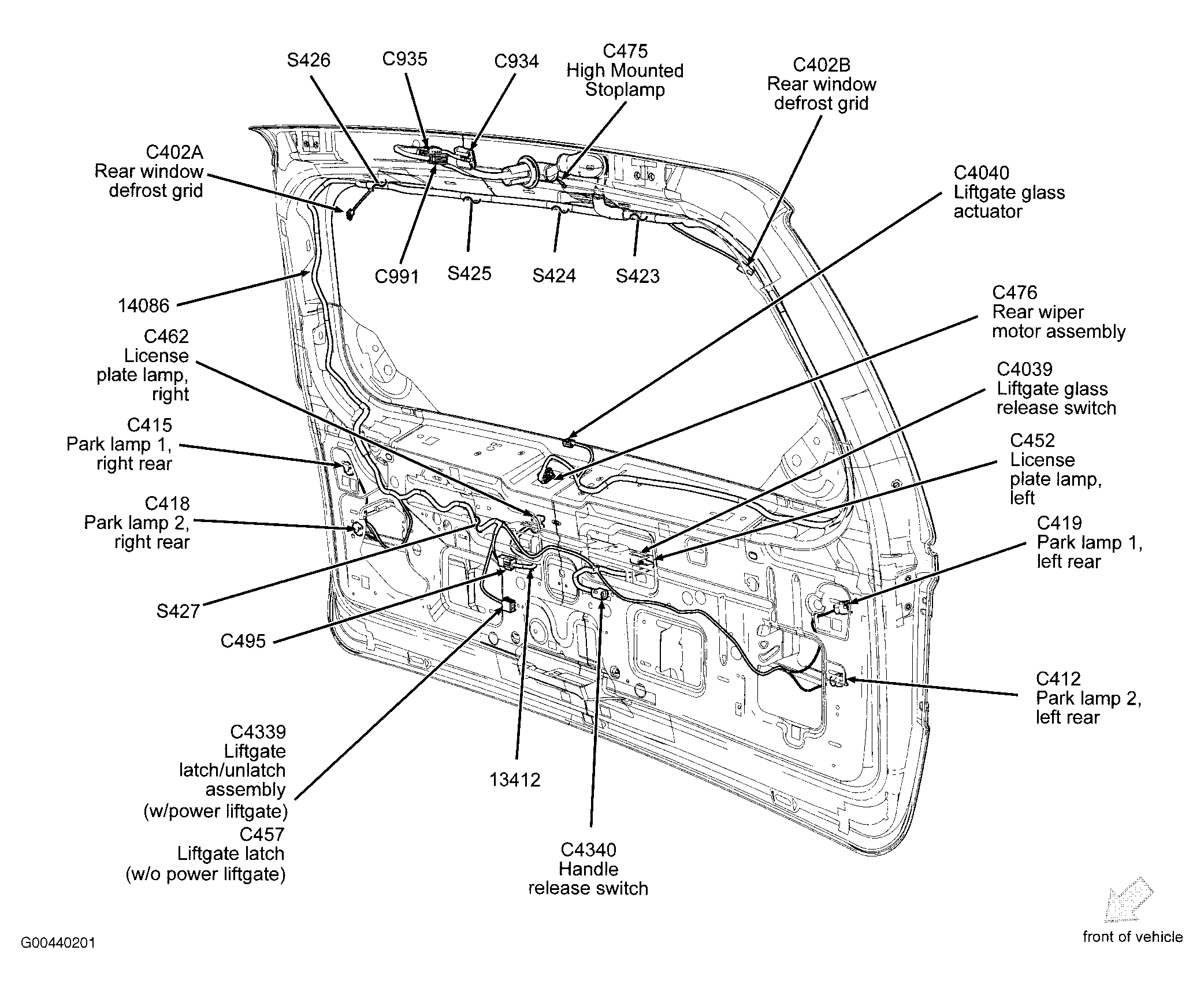

Fig 45: Liftgate (Navigator)

G00440201

Courtesy of FORD MOTOR CO.

Fig 46: Roof (Expedition)

G00440202

Courtesy of FORD MOTOR CO.

Fig 47: Roof (Navigator)

G00440203

Courtesy of FORD MOTOR CO.

Fig 48: Roof (Expedition-EL & Navigator-L)

G00440204

Courtesy of FORD MOTOR CO.

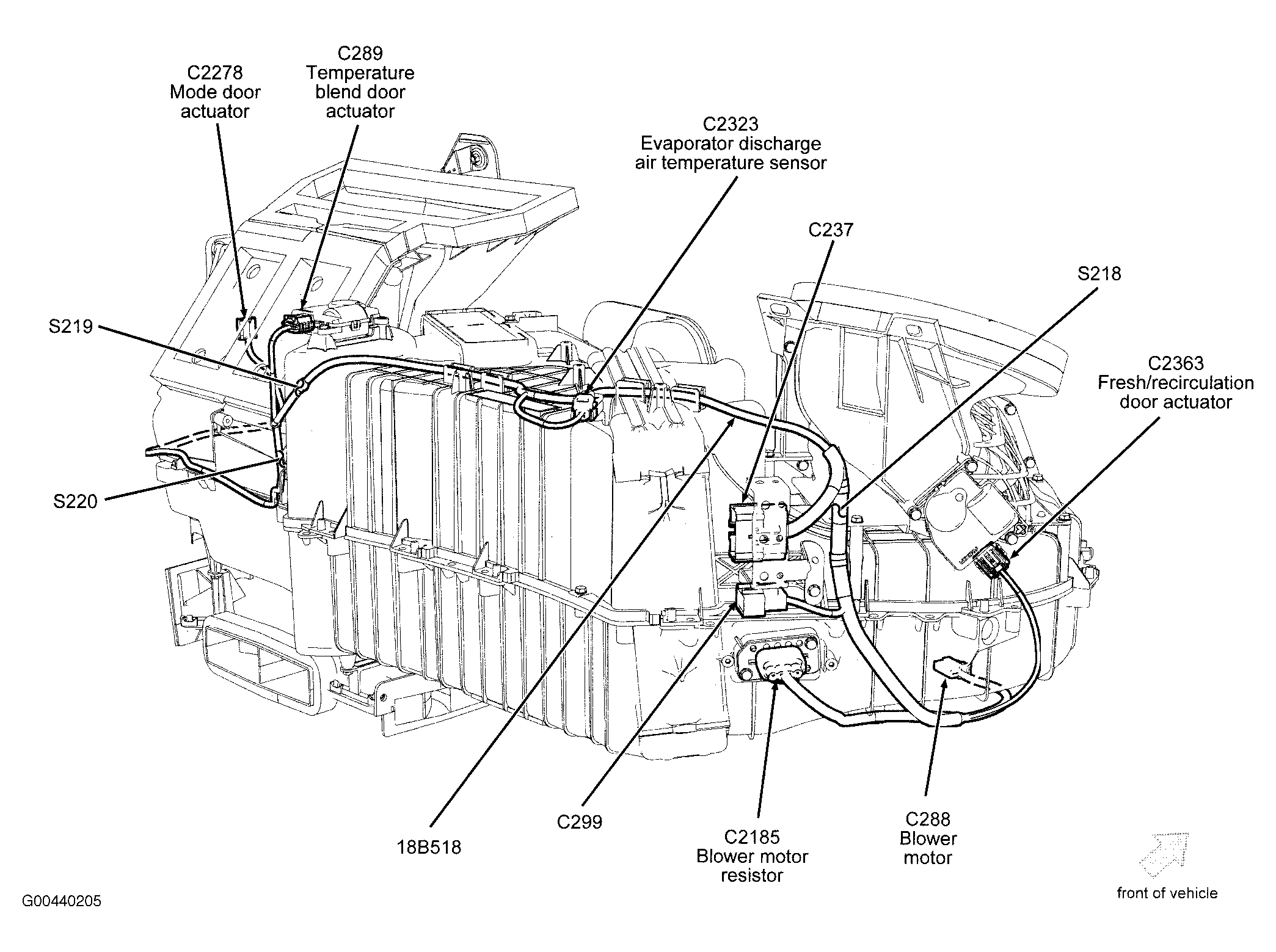

Fig 49: HVAC (Manual A/C)

G00440205

Courtesy of FORD MOTOR CO.

Fig 50: HVAC (EATC) (Auto A/C)

G00440206

Courtesy of FORD MOTOR CO.

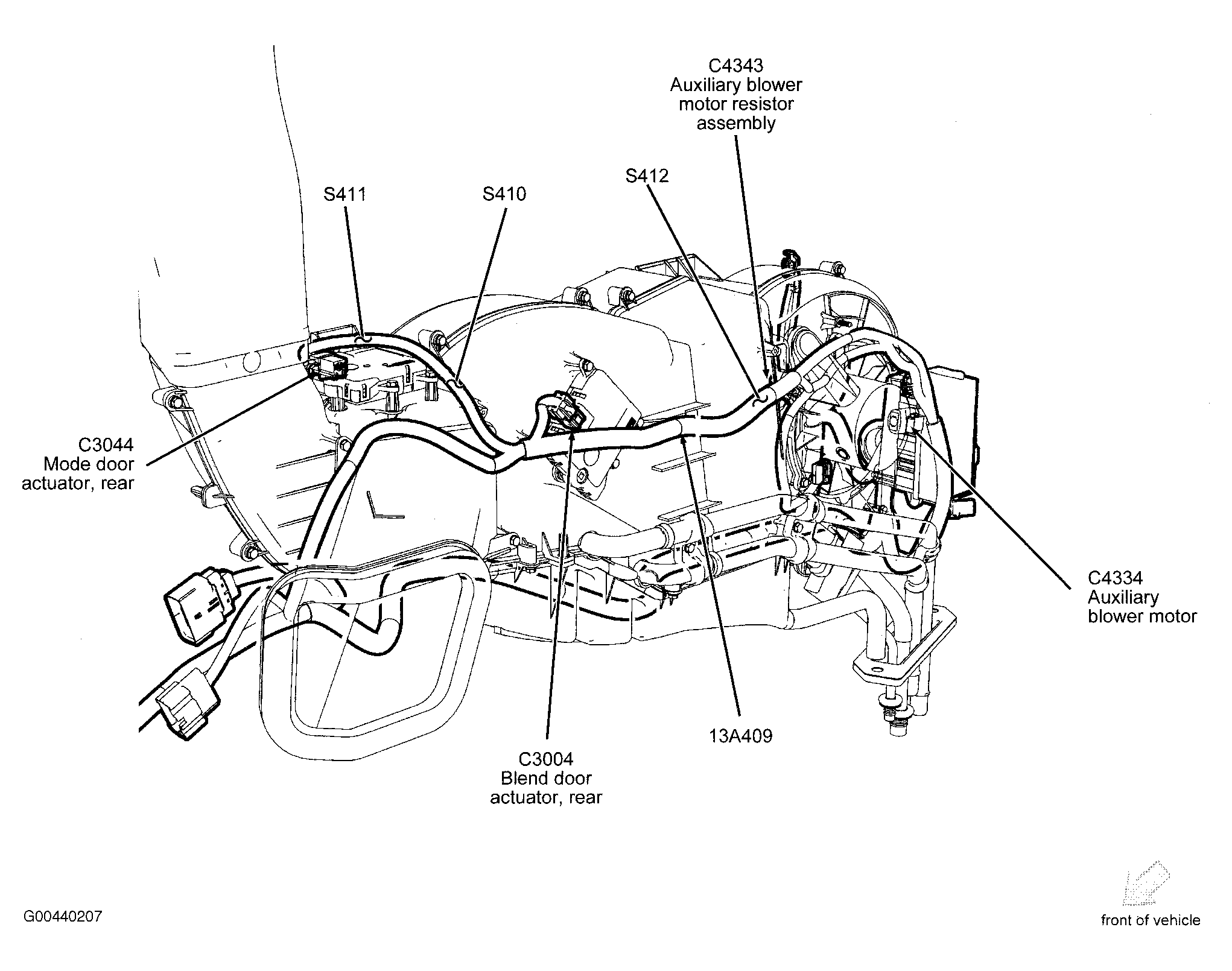

Fig 51: Auxiliary HVAC (Expedition & Navigator)

G00440207

Courtesy of FORD MOTOR CO.

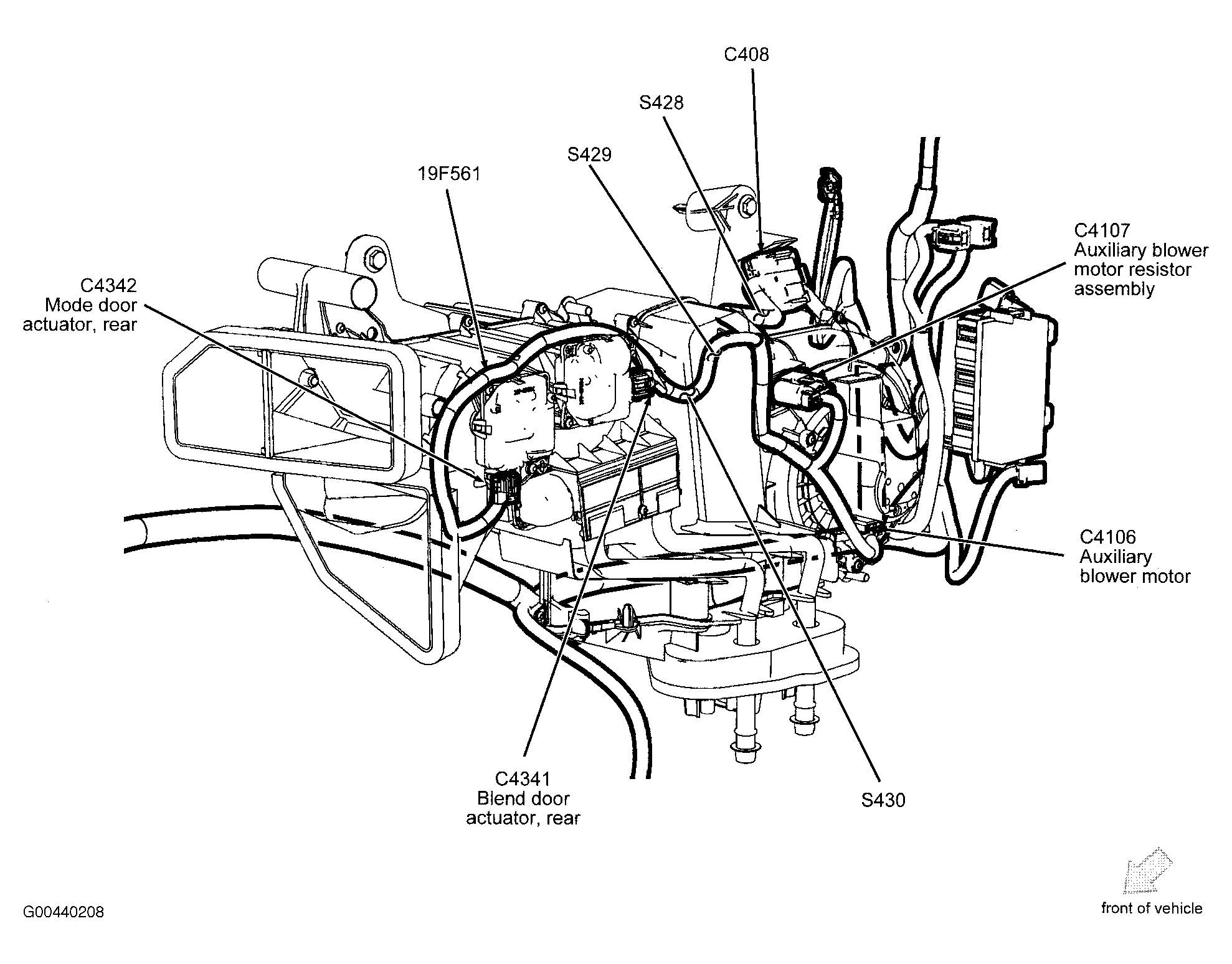

Fig 52: Auxiliary HVAC (Expedition-EL & Navigator-L)

G00440208

Courtesy of FORD MOTOR CO.
