Safety Belt - Front, Center: Notes

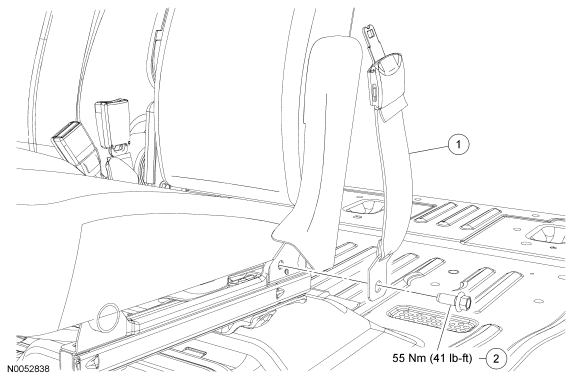

Fig 1: Exploded View Of Front Center Safety Belt With Torque Specifications
GF0021822Courtesy of FORD MOTOR CO.
Item Part Number Description
1 611B60 Safety belt
2 W710482 Bolt, safety belt
