Safety Belt Retractor - Second Row, Center: Notes

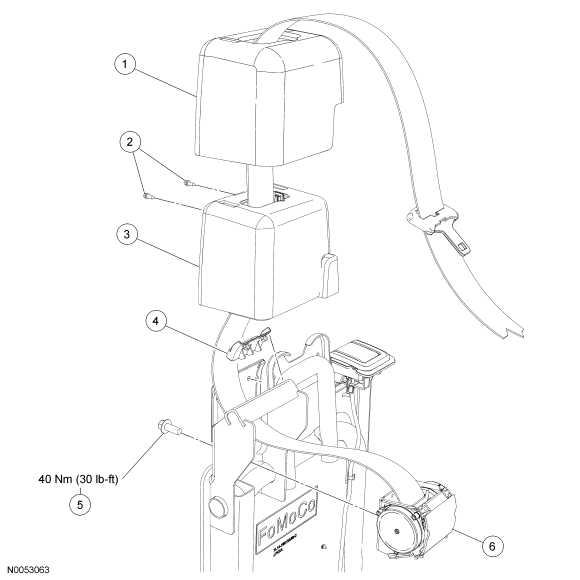

Fig 1: Exploded View Of Second Row Center Safety Belt Retractor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	611D52	Foam, safety belt retractor cover
2	W504042	Screws, safety belt retractor cover (2 required)
3	613C46	Safety belt retractor cover
4	-	Safety belt retractor guide (part of 611B64)
5	W505274	Bolt, safety belt retractor
6	611B64	Safety belt retractor
