Automatic Transmission External Controls: Notes

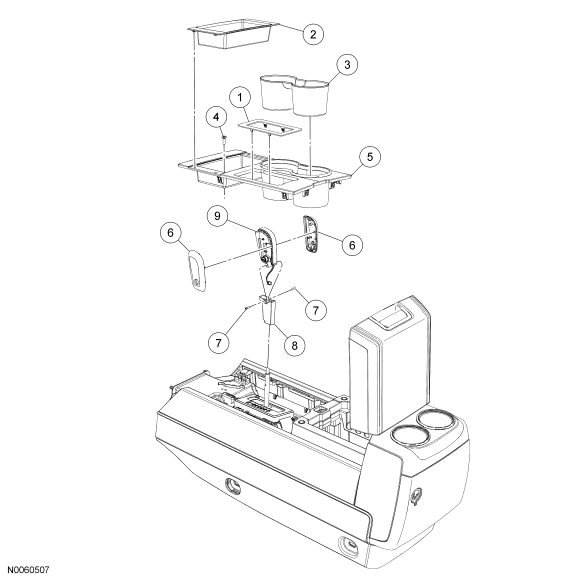

Fig 1: Exploded View Of Selector Lever Knob - Vehicles Equipped With 6R75 Transmission With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | PRNDL trim plate |
| 2 | 78045G34-B | Console tray |
| 3 | 78046B94-B | Console cup holder insert |
| 4 | - | Console upper trim panel screw |
| 5 | 78045A76-A | Console upper trim panel |
| 6 | 7L468-A/B | Selector lever knob covers |
| 7 | W790088 | Selector lever knob screws |
| 8 | 7E026-A/B | Selector lever shroud |
| 9 | 7L010-A/B | Selector lever knob |

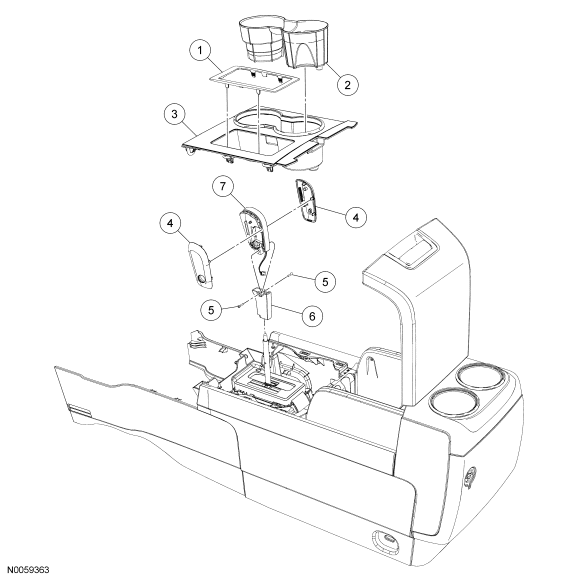

Fig 2: Exploded View Of Selector Lever Knob - Vehicles Equipped With 6HP26 Transmission With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | PRNDL trim plate |
| 2 | 78046B94-B | Console cup holder insert |
| 3 | 78044J76-A | Console upper trim panel |
| 4 | 7L468-A | Selector lever knob covers |
| 5 | W790088 | Selector lever knob screws (part of 7L010-A) |
| 6 | 7E026-B | Selector lever shroud |
| 7 | 7L010-A | Selector lever knob |
