Intermediate Clutch Assembly: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Dial Indicator Gauge with Holding Fixture | 100-002 (TOOL-4201-C) or equivalent | |
| Piston Spring Compressor | 307-525 | |
| Clutch Pack End Play Gauge | 307-555 |
Material
| Item | Specification |
|---|---|
| MERCON® SP Automatic Transmission Fluid XT-6-QSP (US); CXT-6-LSP12 (Canada) |
MERCON® SP |

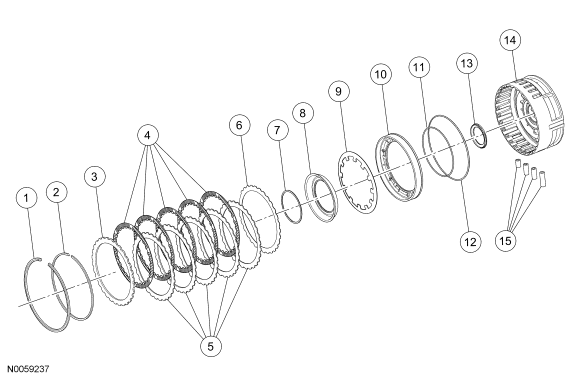

| Item | Part Number | Description |
|---|---|---|
| 1 | 7L327 | Center support retaining ring |
| 2 | 7B421 | Intermediate clutch pack retaining ring |
| 3 | 7E314 | Intermediate clutch pressure plate |
| 4 | 7B164 | Intermediate clutch internal splined friction plates |
| 5 | 7E314 | Intermediate clutch external splined steel plates |
| 6 | 7H136 | Intermediate clutch cushion spring |
| 7 | 7N169 | Intermediate clutch snap ring |
| 8 | 7B043 | Intermediate clutch return spring retaining ring |
| 9 | 7C151 | Intermediate clutch piston return spring |
| 10 | 7J015 | Intermediate clutch piston |
| 11 | 7F225 | Intermediate clutch piston inner seal |
| 12 | 7F224 | Intermediate clutch piston outer seal |
| 13 | 7F373 | Bearing (T6) |
| 14 | 7G033 | Intermediate/low/reverse clutch center support |
| 15 | 7J135 | Center support seals (4 required) |
