Mechatronic Assembly: Notes

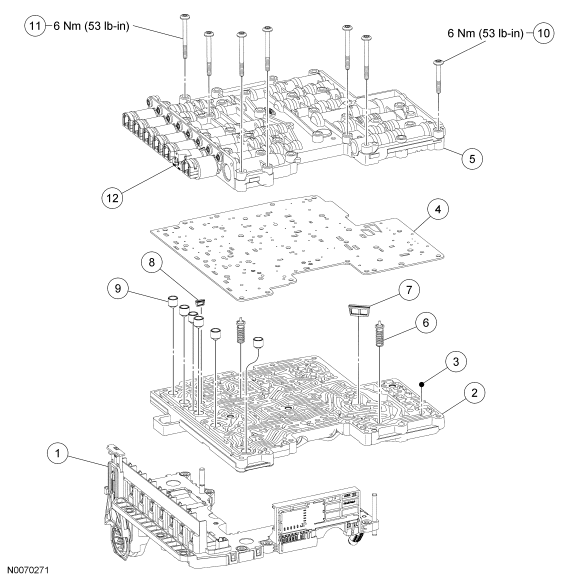

Fig 1: Exploded View Of Mechatronic Assembly With Torque Specifications
GF0022788Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7Z369 Transmission control module (TCM)
2 7A092 Transmission control valve body (upper)
3 7E195 Transmission control valve check ball (8 required)
4 7Z490 Transmission control valve body separator plate
5 7A101 Transmission control valve body (lower)
6 7D142 Transmission control valve assembly
7 7K221 Transmission control filter assembly
8 7K172 Transmission fluid filter
9 7J191 Transmission solenoid damper valve assembly
10 W707886 Bolt - connects upper and lower half together (19 required)
11 W707884 Bolt - connects TCM to transmission control valve assembly (6 required)
12 7G484 Transmission shift control solenoid (SS1)

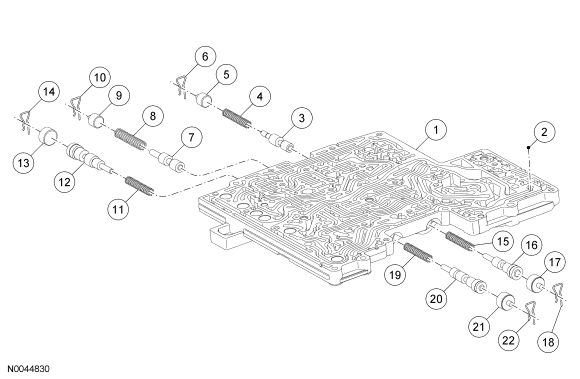

Fig 2: Exploded View Of Mechatronic Upper Half
GF0022789Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7A092 Transmission control valve assembly (ditch plate) (upper half)
2 7E395 Transmission control valve check ball (8 required)
3 7J186 Transmission clutch valve
4 7L389 Transmission clutch valve spring
5 7F187 Transmission clutch valve spring plug
6 7J199 Transmission clutch valve spring plug retainer clip
7 7J183 Transmission clutch valve
8 7J196 Transmission clutch valve spring
9 7F187 Transmission clutch valve spring plug
10 7J199 Transmission clutch valve spring plug retainer clip
11 7L389 Transmission clutch valve
12 7J181 Transmission clutch valve spring
13 7F187 Transmission clutch valve spring plug
14 7J199 Transmission clutch valve spring plug retainer clip
15 7L389 Transmission clutch valve
16 7D102 Transmission clutch valve spring
17 7F187 Transmission clutch valve spring plug
18 7J199 Transmission clutch valve spring plug retainer clip
19 7L389 Transmission clutch valve
20 7J182 Transmission clutch valve spring
21 7F187 Transmission clutch valve spring plug
22 7J199 Transmission clutch valve spring plug retainer clip

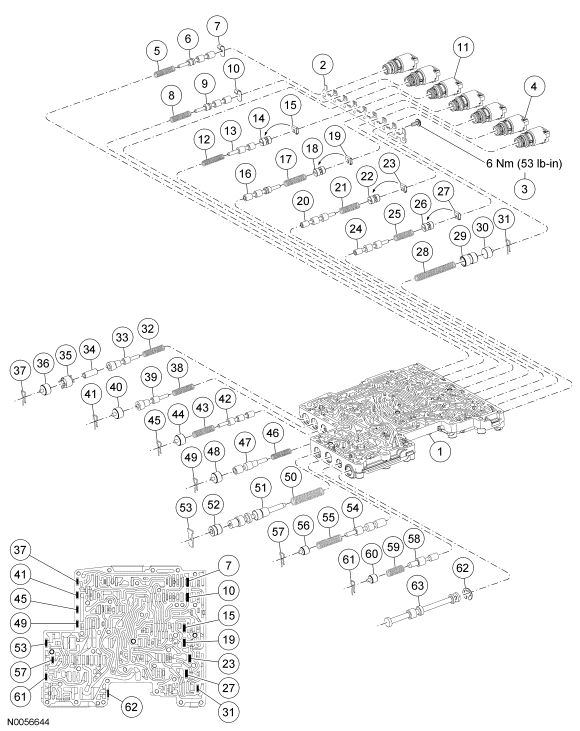

Fig 3: Exploded View Of Mechatronic Lower Half
GF0022790Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7A101 Transmission control valve assembly (lower half)
2 7H186 Transmission shift control solenoid hold down bracket
3 W707885-S Transmission shift control solenoid hold down bracket bolt M5 x 0.80 x 12
4 7G484 Transmission shift control solenoid
5 7J197 Transmission clutch valve spring
6 7J187 Transmission clutch valve
7 7F194 Transmission spring retainer plate
8 7J197 Transmission clutch valve spring
9 7J187 Transmission clutch valve
10 7F194 Transmission spring retainer plate
11 7G383 Electronic pressure control (EPC) solenoid
12 7G411 Transmission solenoid regulator valve spring
13 7G473 Transmission solenoid pressure regulator valve
14 7J185 Transmission solenoid plug
15 7G007 Transmission valve plug retainer
16 7J187 Transmission clutch valve
17 7J197 Transmission clutch valve spring
18 7J185 Transmission solenoid plug
19 7G007 Transmission valve plug retainer
20 7H392 Transmission solenoid valve
21 7H258 Transmission solenoid valve spring
22 7J185 Transmission solenoid plug
23 7G007 Transmission valve plug retainer
24 7H392 Transmission solenoid valve
25 7H258 Transmission solenoid valve spring
26 7J185 Transmission solenoid plug
27 7G007 Transmission valve plug retainer
28 7L389 Transmission accumulator valve spring
29 7H022 Transmission manual control oil accumulator
30 7F187 Transmission valve return plug
31 7J199 Transmission valve plug return clip
32 7L389 Transmission clutch valve spring
33 7D102 Transmission clutch control pressure regulator valve
34 7H571 Transmission clutch regulator valve sleeve
35 7J184 Transmission
36 7F187 Transmission valve return plug
37 7J199 Transmission valve plug return clip
38 7L389 Transmission clutch valve spring
39 7D102 Transmission control pressure regulator valve
40 7F187 Transmission valve return plug
41 7J199 Transmission valve plug return clip
42 7J194 Transmission clutch valve
43 7J196 Transmission clutch control valve spring
44 7F187 Transmission valve return plug
45 7J199 Transmission valve plug return clip
46 7H140 Transmission bypass clutch control valve spring
47 7H019 Transmission bypass clutch control valve
48 7F187 Transmission valve return plug
49 7J199 Transmission valve plug return clip
50 7A270 Transmission manual oil pressure regulator valve spring
51 7C388 Transmission manual oil pressure regulator valve
52 7D002 Transmission manual oil pressure regulator valve sleeve
53 7J199 Transmission valve plug return clip
54 7G307 Transmission converter regulator valve
55 7G316 Transmission converter regulator valve spring
56 7F187 Transmission valve return plug
57 7J199 Transmission valve plug return clip
58 7G413 Transmission lube control valve
59 7H143 Transmission lube control valve spring
60 7F187 Transmission valve return plug
61 7J199 Transmission valve plug return clip
62 W527007-S Retaining ring
63 7C389 Transmission control manual valve

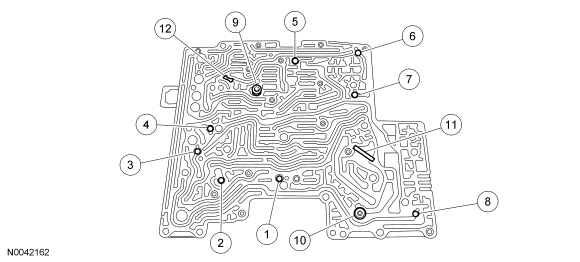

Fig 4: Check Ball Locations
GF0022791Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Reverse/drive control check ball
2 - Shift solenoid control check ball
3 - Intermediate clutch exhaust control check ball
4 - Direct clutch exhaust control check ball
5 - Low/reverse clutch exhaust control check ball
6 - Forward clutch exhaust control check ball
7 - Overdrive clutch exhaust control check ball
8 - Reverse exhaust control check ball
9 - Clutch exhaust valve
10 - Converter drain back valve
11 - Large screen
12 - Small screen
