Overdrive Clutch Assembly: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Dial Indicator Gauge with Holding Fixture | 100-002 (TOOL-4201-C) or equivalent | |
| Compressor, Spring Washer | 307-209 | |
| Clutch Pack End Play Gauge | 307-555 |
Material
| Item | Specification |
|---|---|
| MERCON® SP Automatic Transmission Fluid XT-6-QSP (US); CXT-6-LSP12 (Canada) |
MERCON® SP |

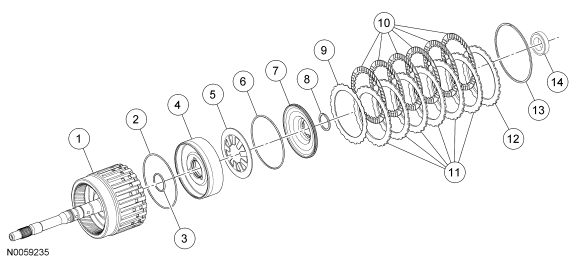

| Item | Part Number | Description |
|---|---|---|
| 1 | 7J006 | Input shaft |
| 2 | 7J008 | Overdrive clutch piston outer seal |
| 3 | 7G007 | Overdrive clutch piston inner seal |
| 4 | 7G418 | Overdrive clutch piston |
| 5 | 7N529 | Overdrive clutch piston spring |
| 6 | 7J009 | Overdrive balance piston outer seal |
| 7 | 7J029 | Overdrive balance piston |
| 8 | 7J010 | Overdrive balance piston snap ring |
| 9 | 7N572 | Overdrive clutch cushion plate |
| 10 | 7B164 | Overdrive clutch internal splined clutch plates (friction) |
| 11 | 7B442 | Overdrive clutch external splined clutch plates (steel) |
| 12 | 7C576 | Overdrive pressure plate |
| 13 | 7M157 | Overdrive clutch retaining ring |
| 14 | 7A453 | Bearing T3 |
