Wheel Speed Sensor - Front: Notes

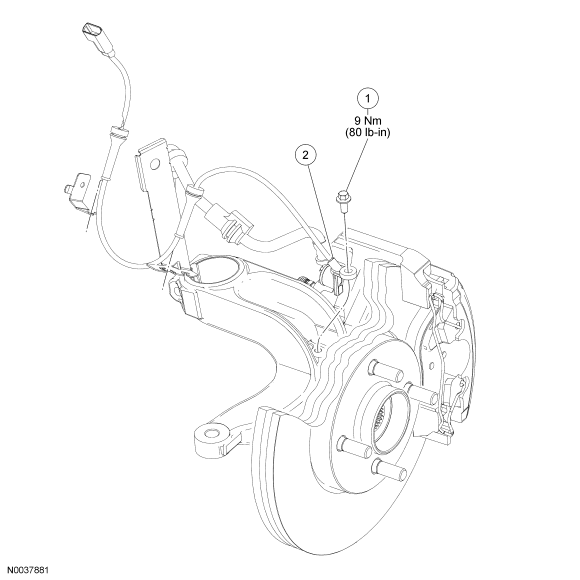

Fig 1: Wheel Speed Sensor -- Front Components With Torque Specifications
GF0039669Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Wheel speed sensor bolt
2 2C204 Wheel speed sensor
