Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

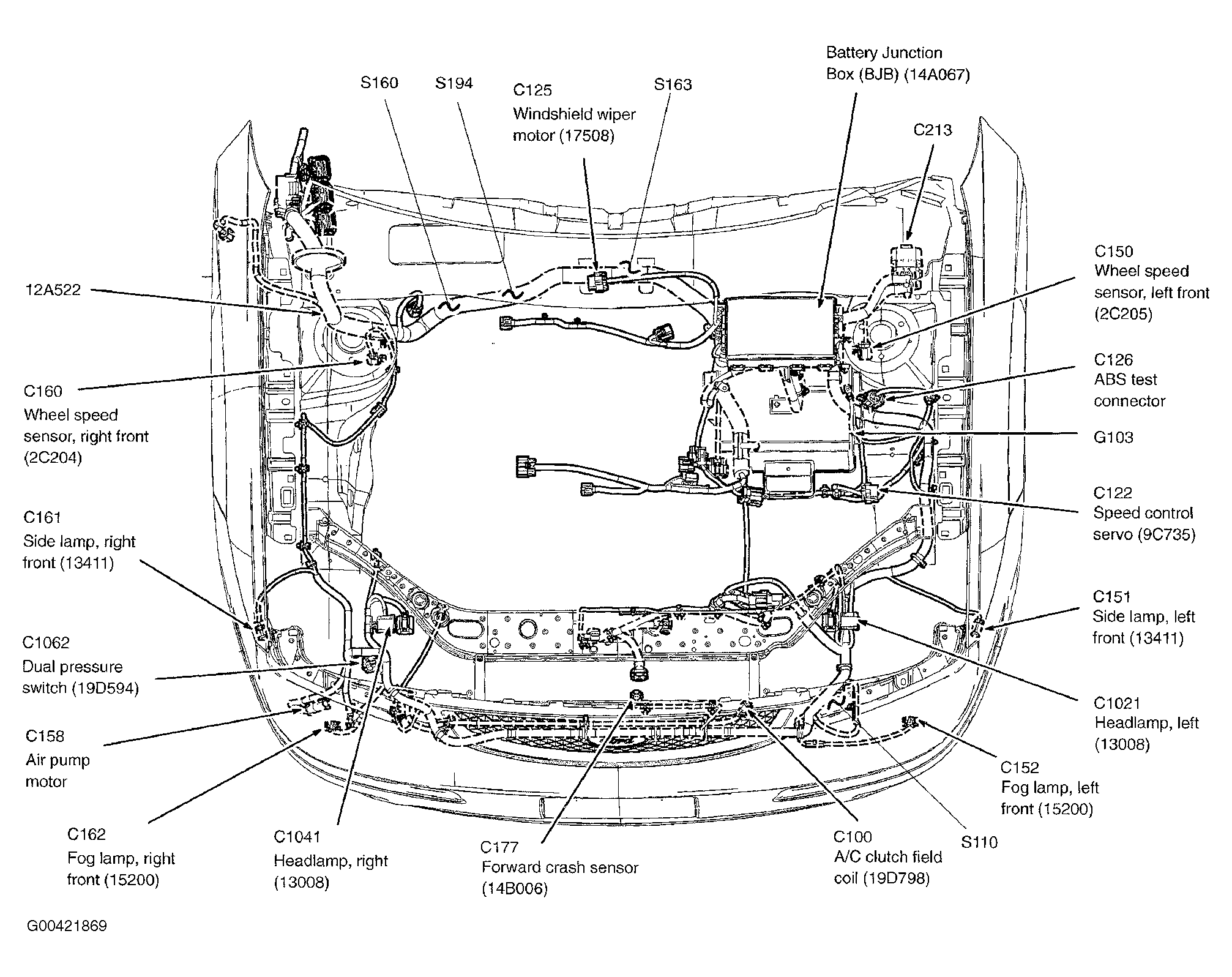

Battery Junction Box (BJB) Left rear corner of engine compartment. See Figure.

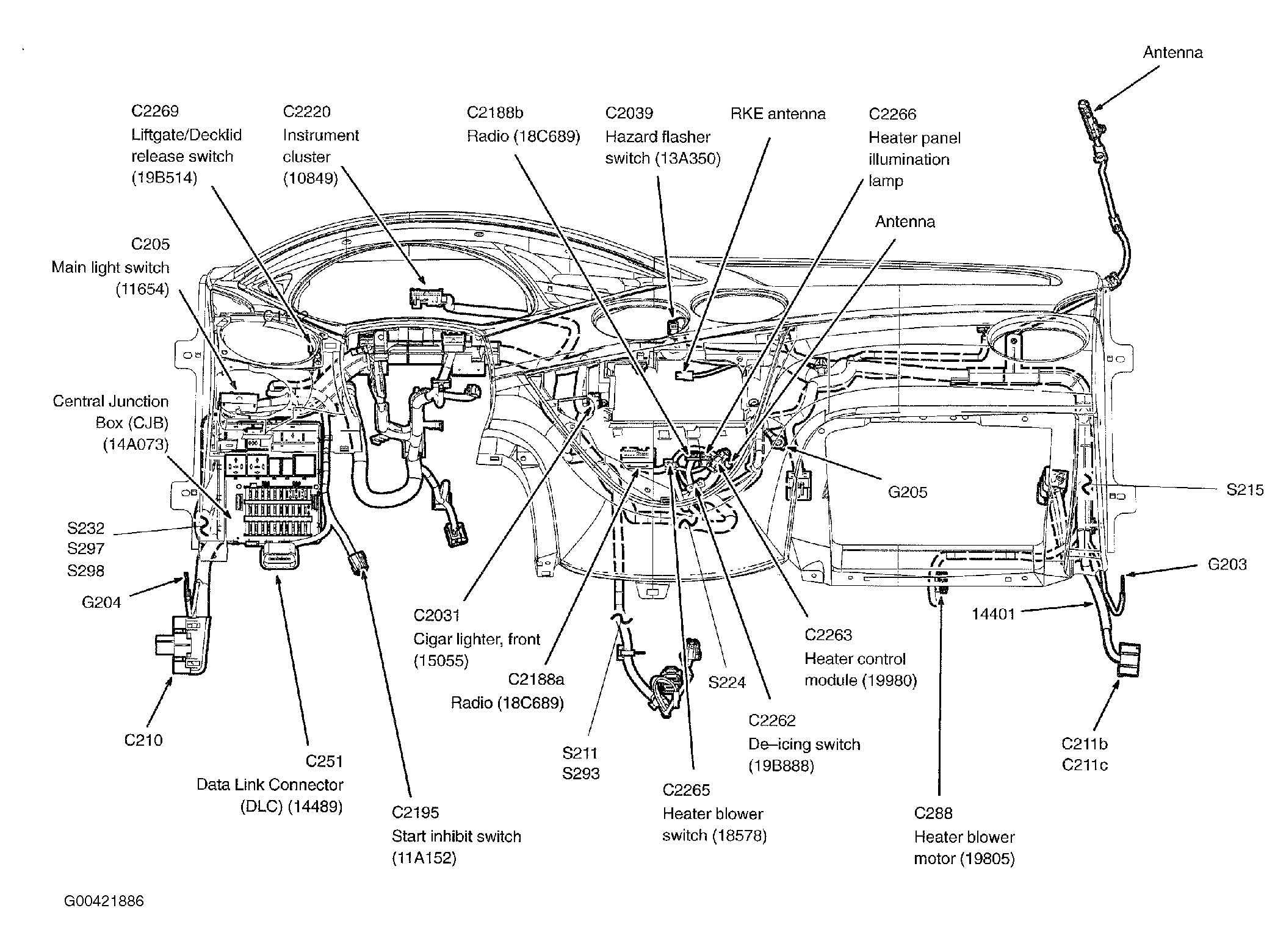

Central Junction Box (CJB) Behind left side of dash. See Figure.
