Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

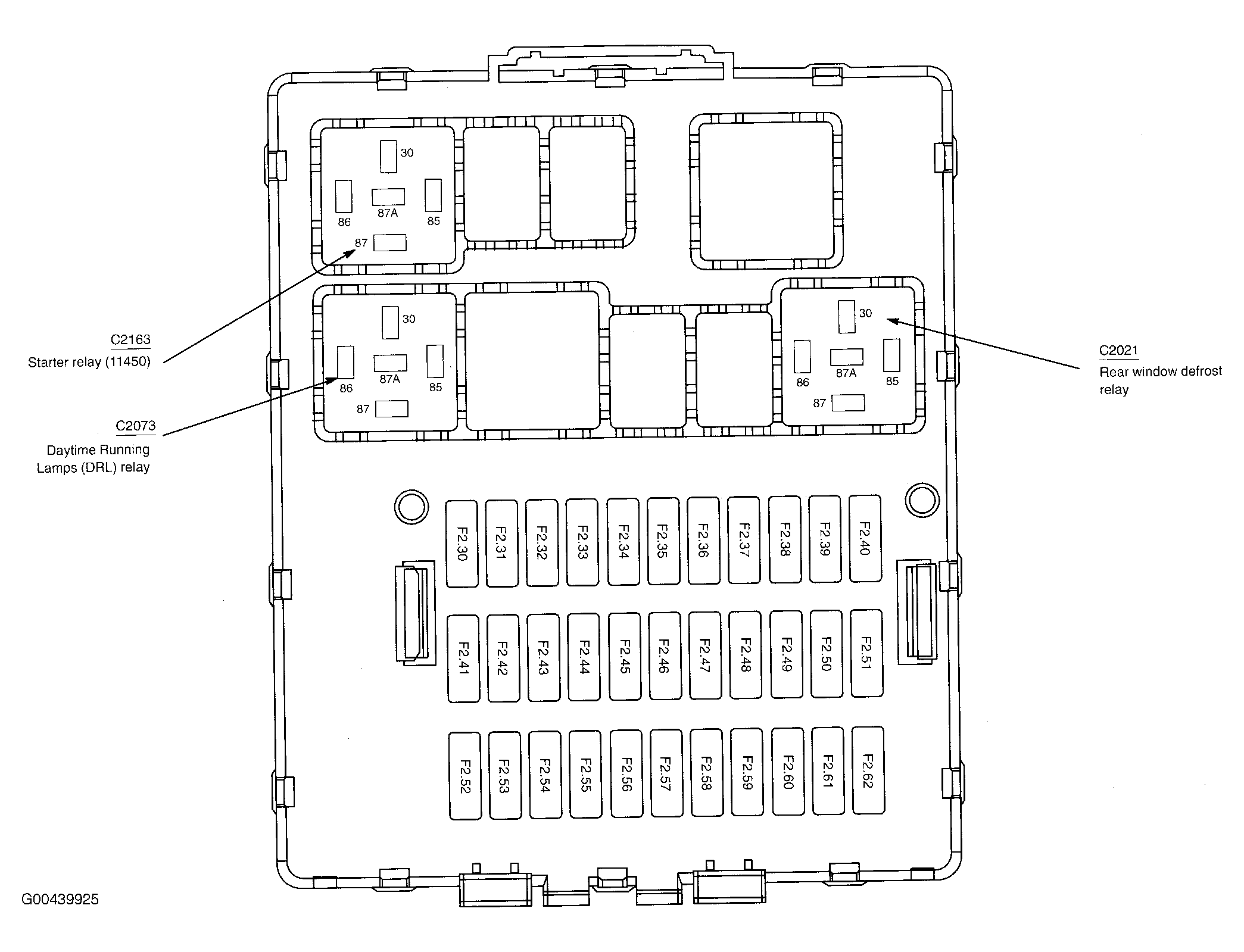

Fig 1: Central Junction Box (CJB)

G00439925

Courtesy of FORD MOTOR CO.

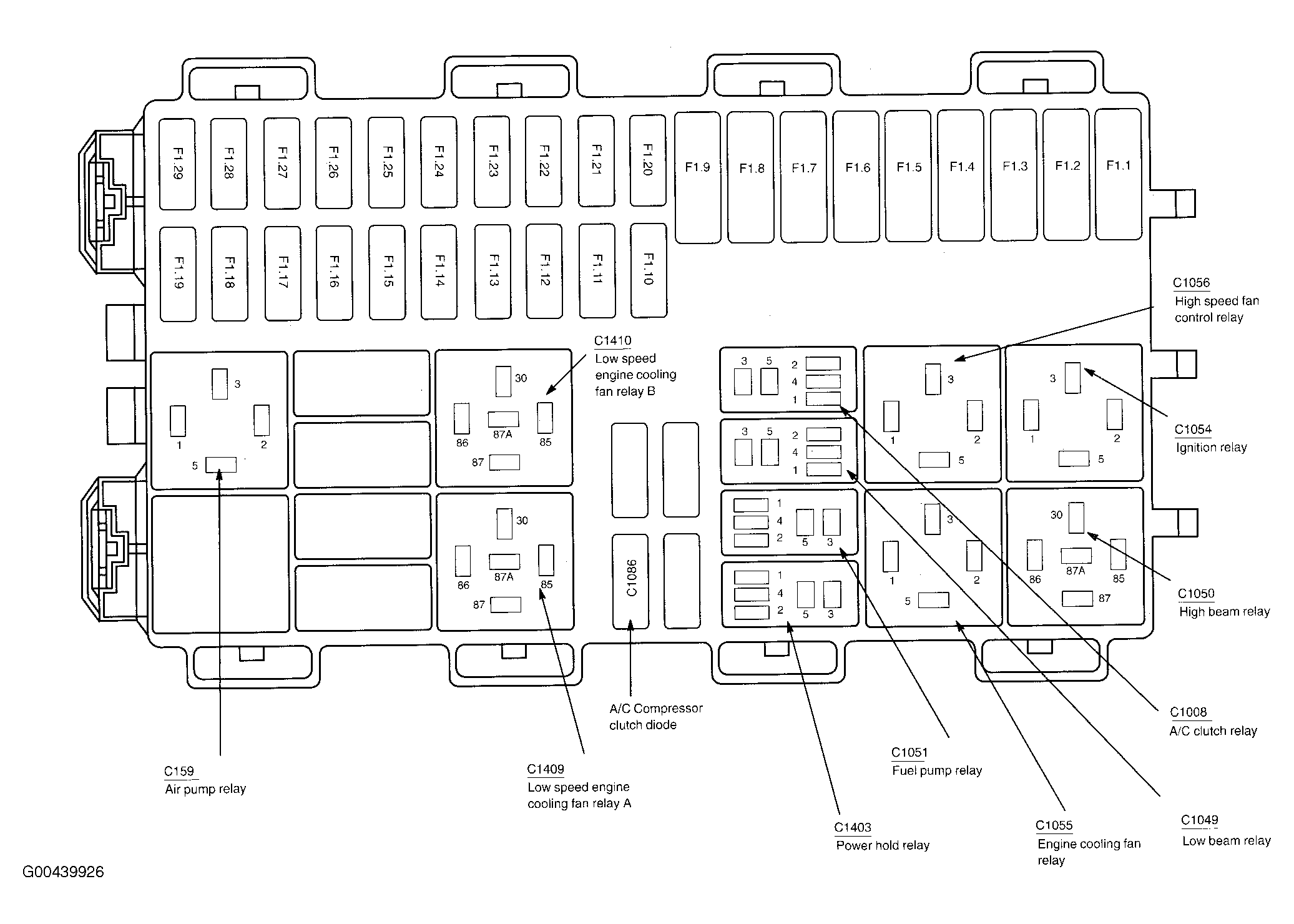

Fig 2: Battery Junction Box (BJB)

G00439926

Courtesy of FORD MOTOR CO.

Fig 3: Engine Compartment

G00421869

Courtesy of FORD MOTOR CO.

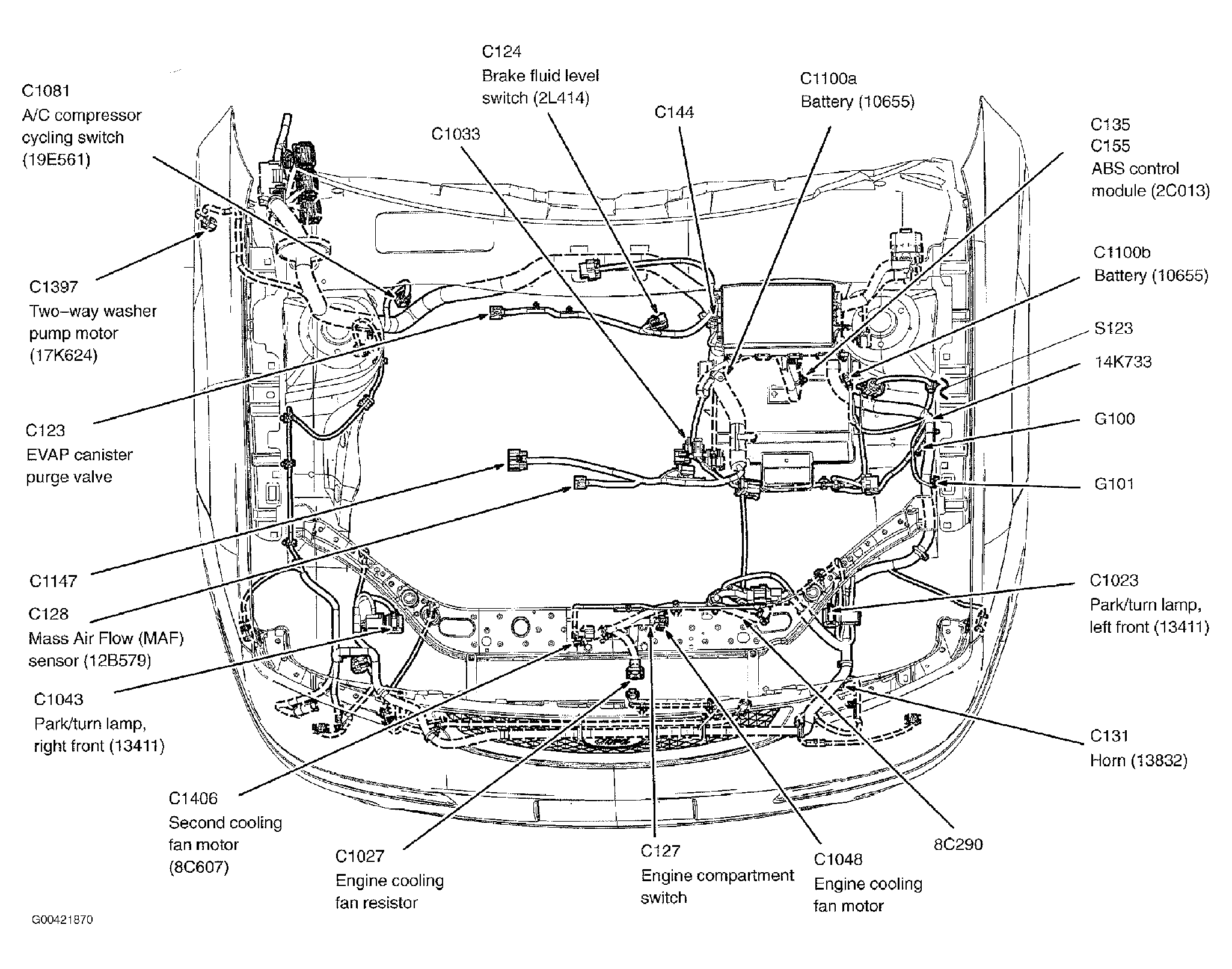

Fig 4: Engine Compartment

G00421870

Courtesy of FORD MOTOR CO.

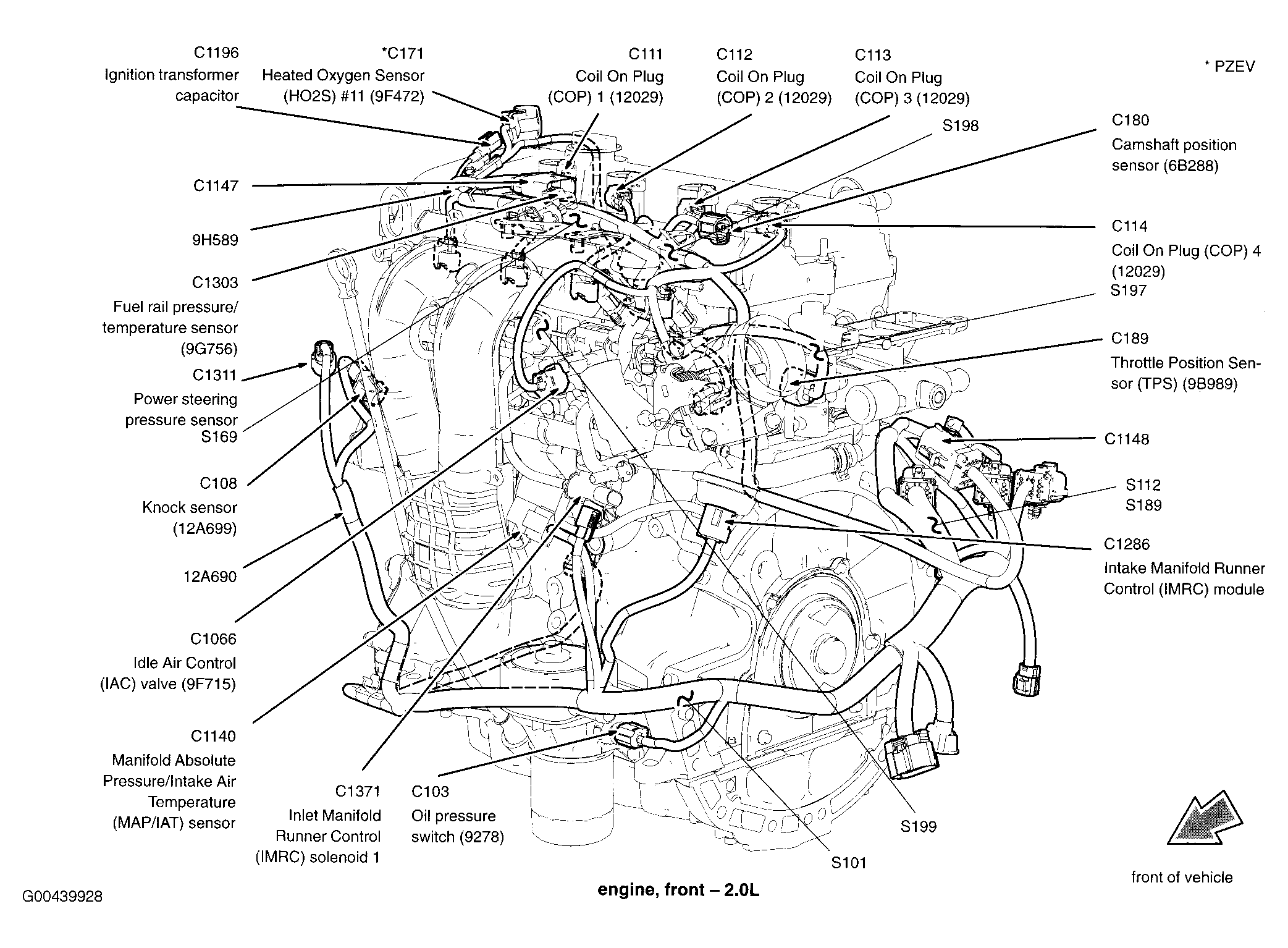

Fig 5: Left Rear Of Engine (2.0L)

G00439928

Courtesy of FORD MOTOR CO.

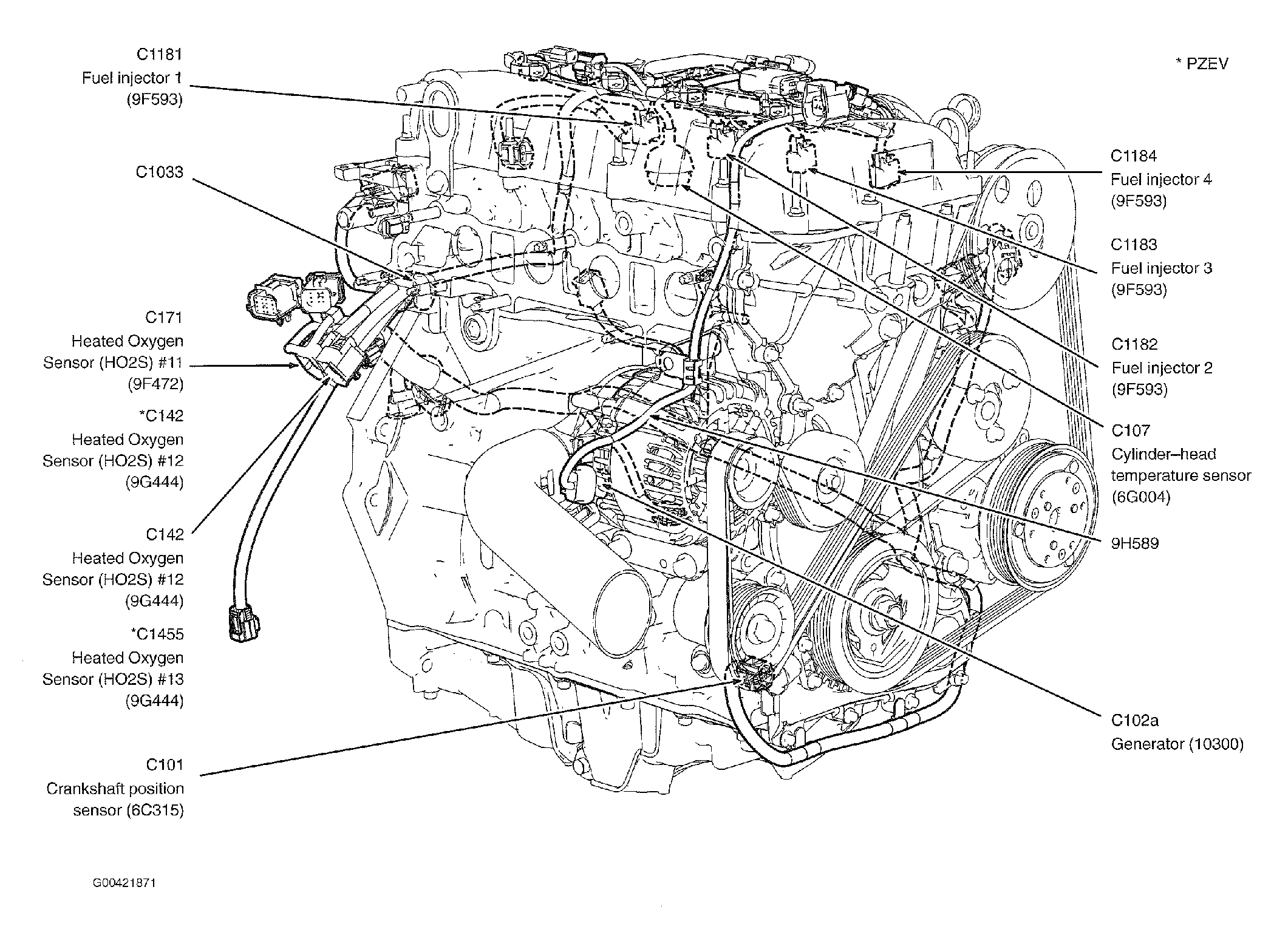

Fig 6: Right Front Of Engine (2.0L)

G00421871

Courtesy of FORD MOTOR CO.

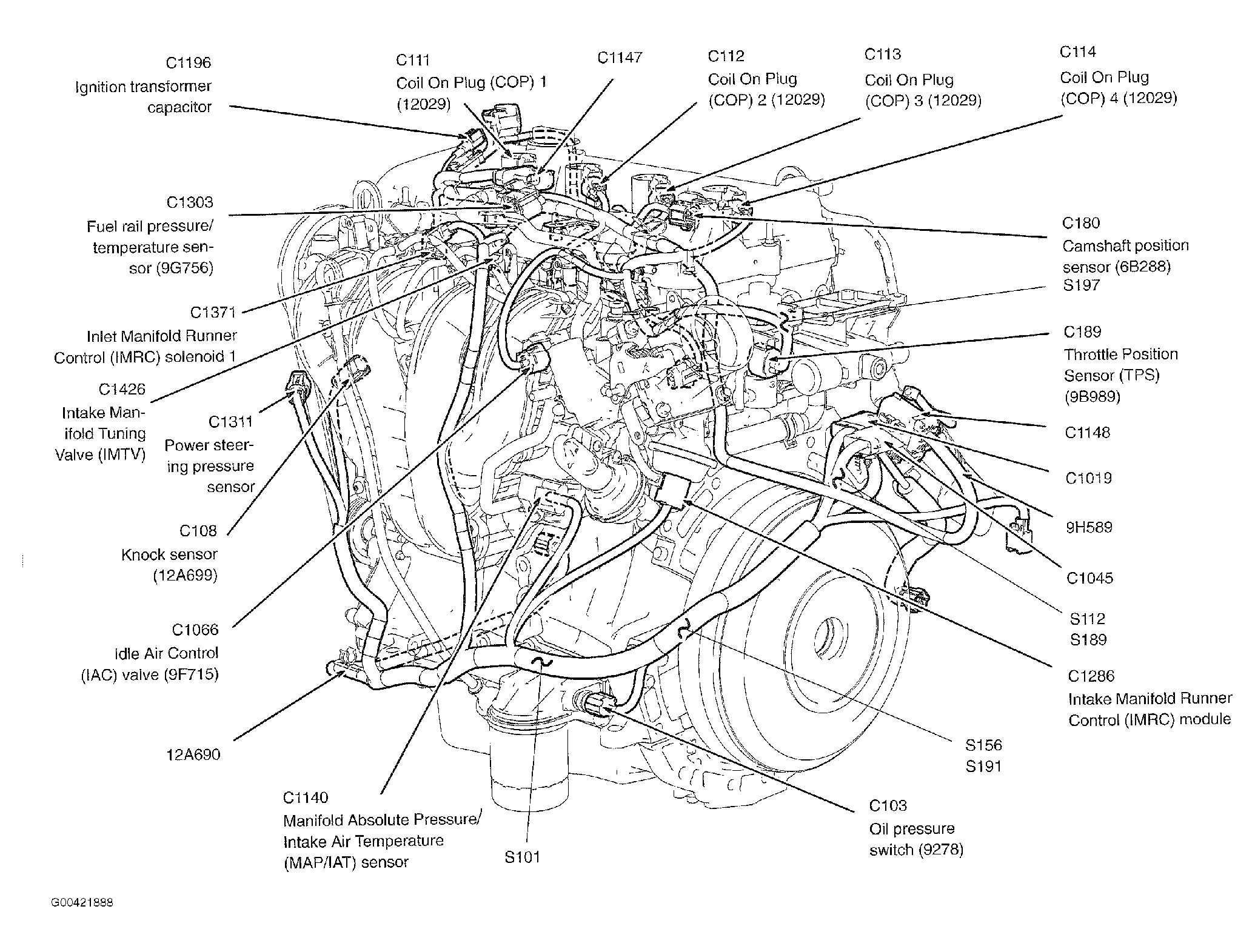

Fig 7: Left Rear Of Engine (2.3L)

G00421888

Courtesy of FORD MOTOR CO.

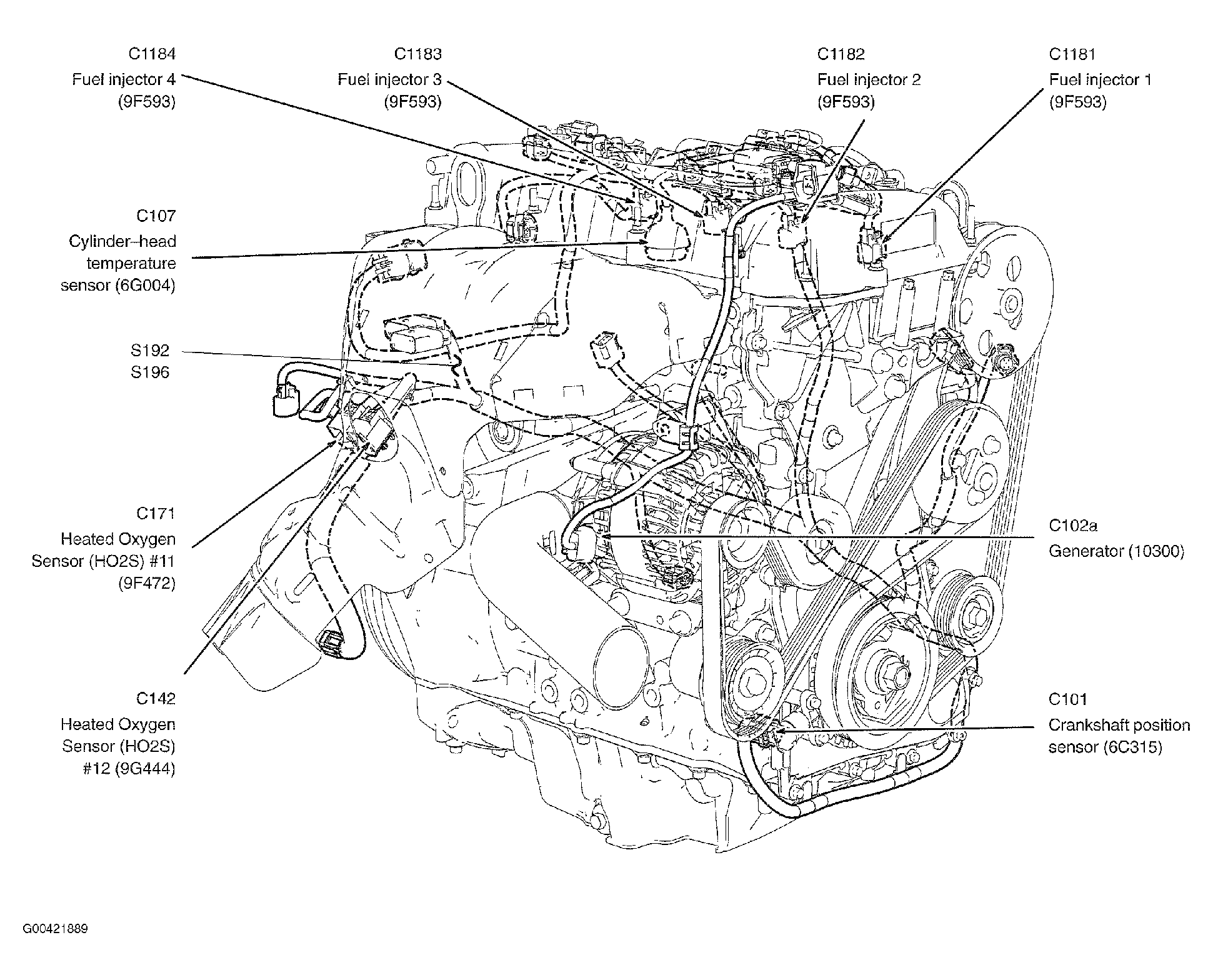

Fig 8: Right Front Of Engine (2.3L)

G00421889

Courtesy of FORD MOTOR CO.

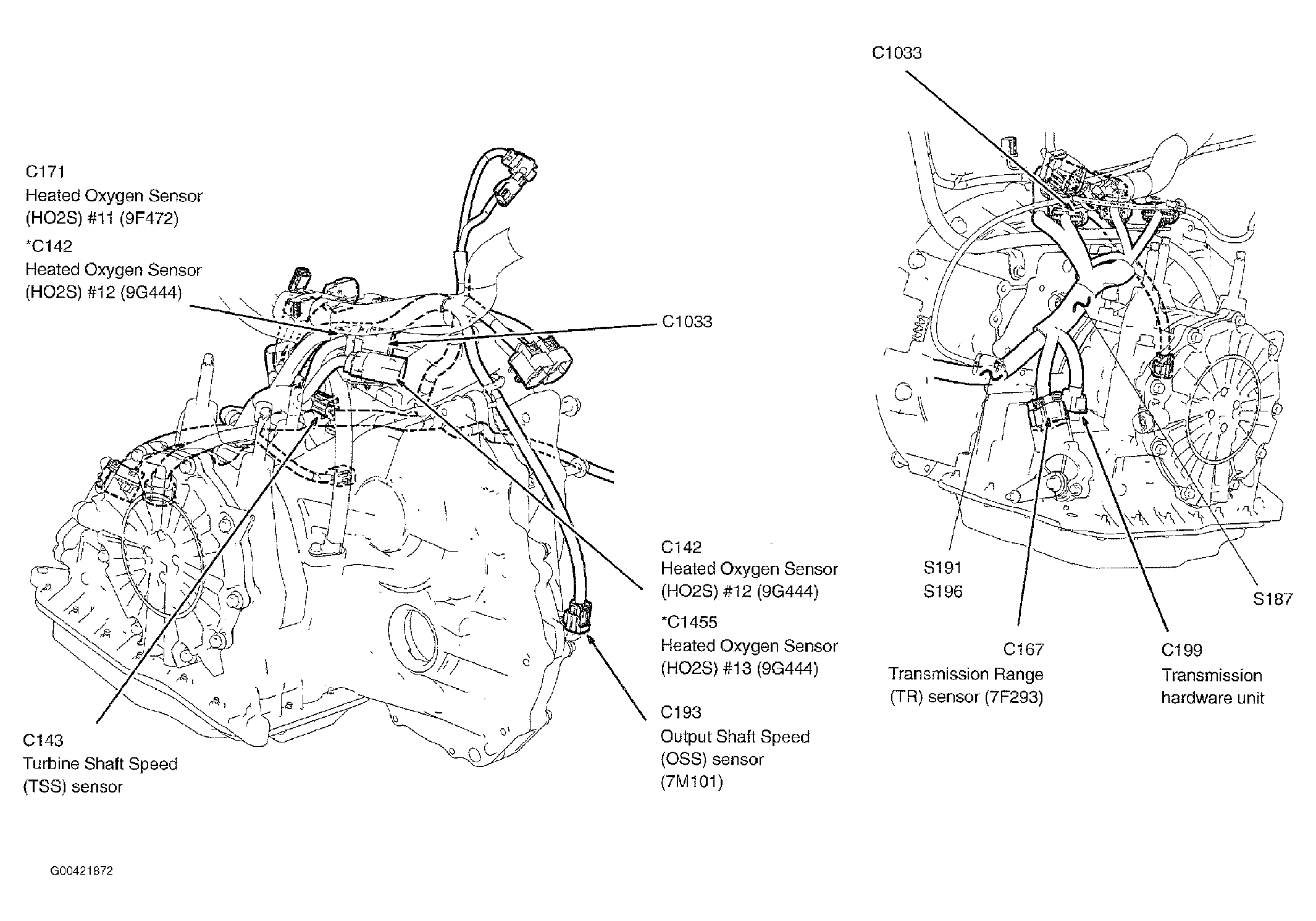

Fig 9: Automatic Transmission

G00421872

Courtesy of FORD MOTOR CO.

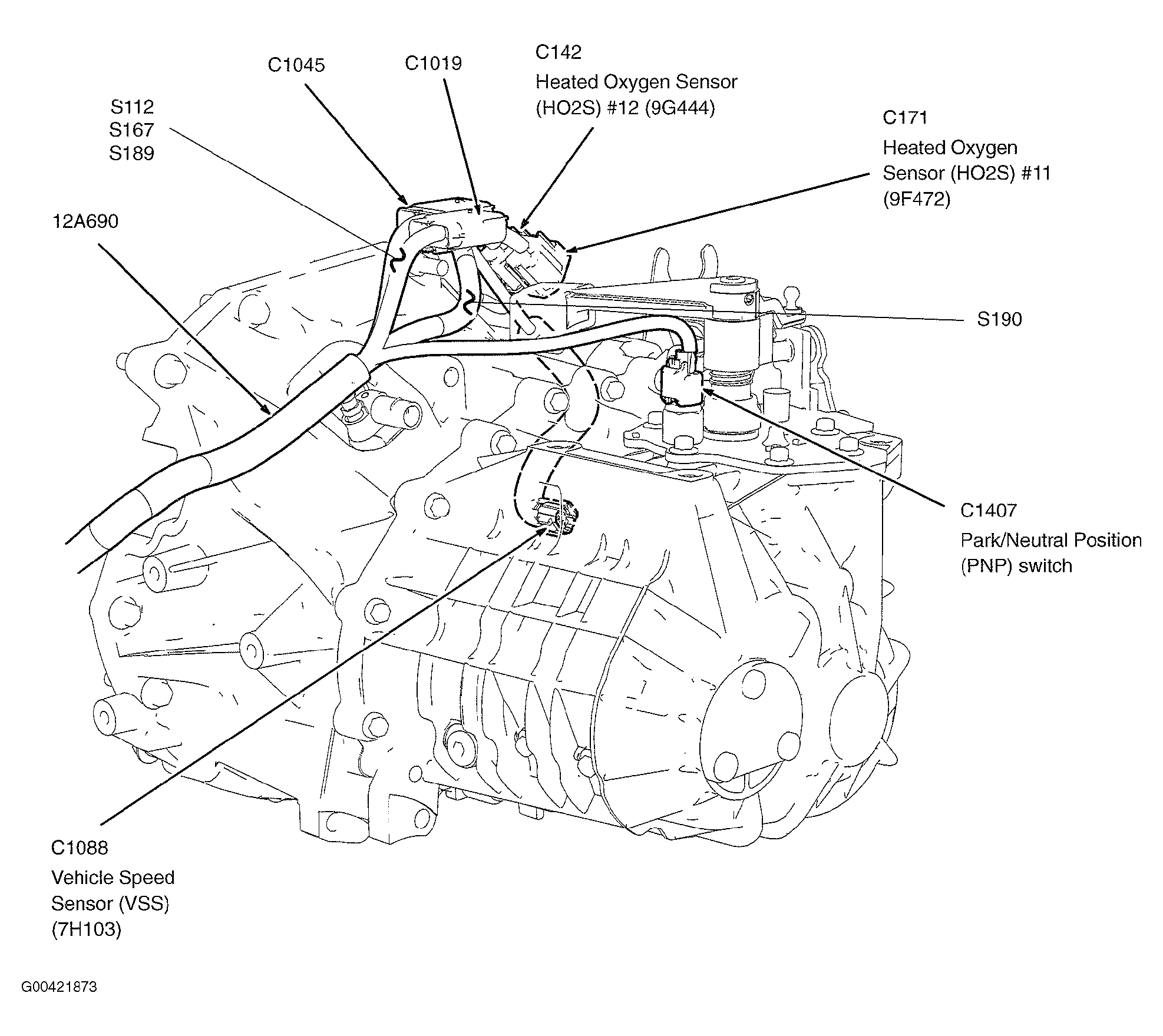

Fig 10: Manual Transmission

G00421873

Courtesy of FORD MOTOR CO.

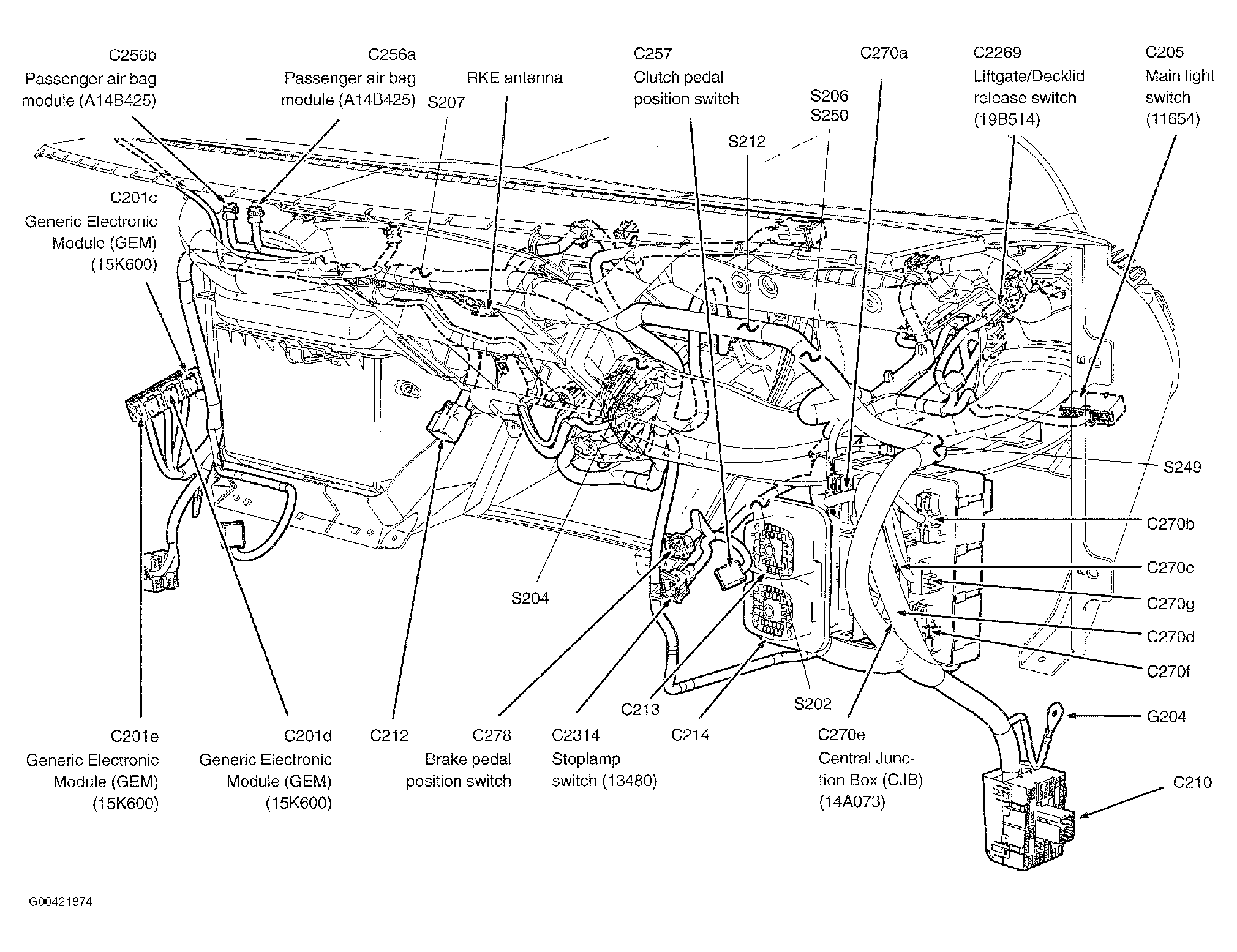

Fig 11: Rear Of Dash

G00421874

Courtesy of FORD MOTOR CO.

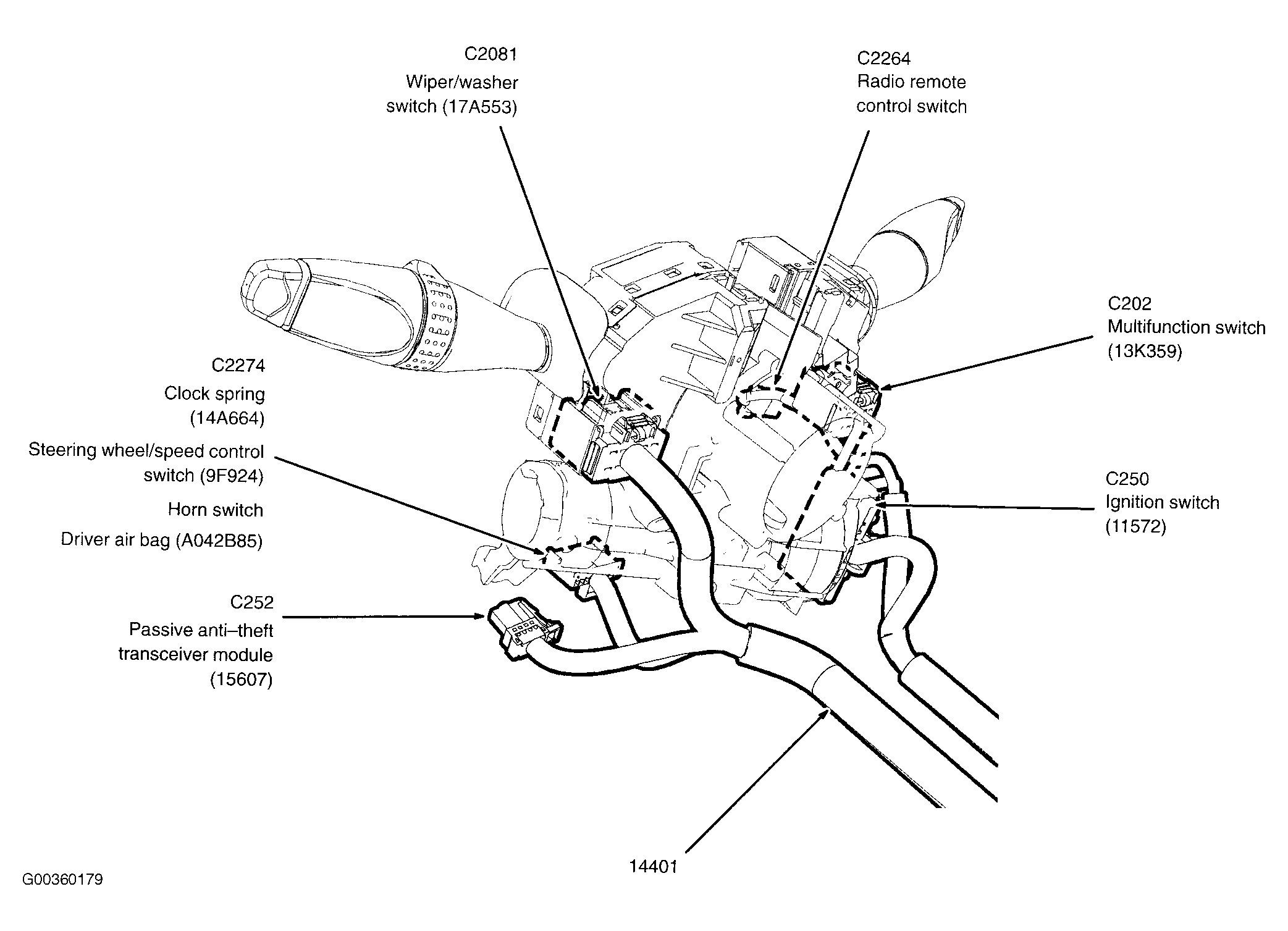

Fig 12: Steering Column

G00360179

Courtesy of FORD MOTOR CO.

Fig 13: Left "A" Pillar

G00421875

Courtesy of FORD MOTOR CO.

Fig 14: Right "A" Pillar

G00439937

Courtesy of FORD MOTOR CO.

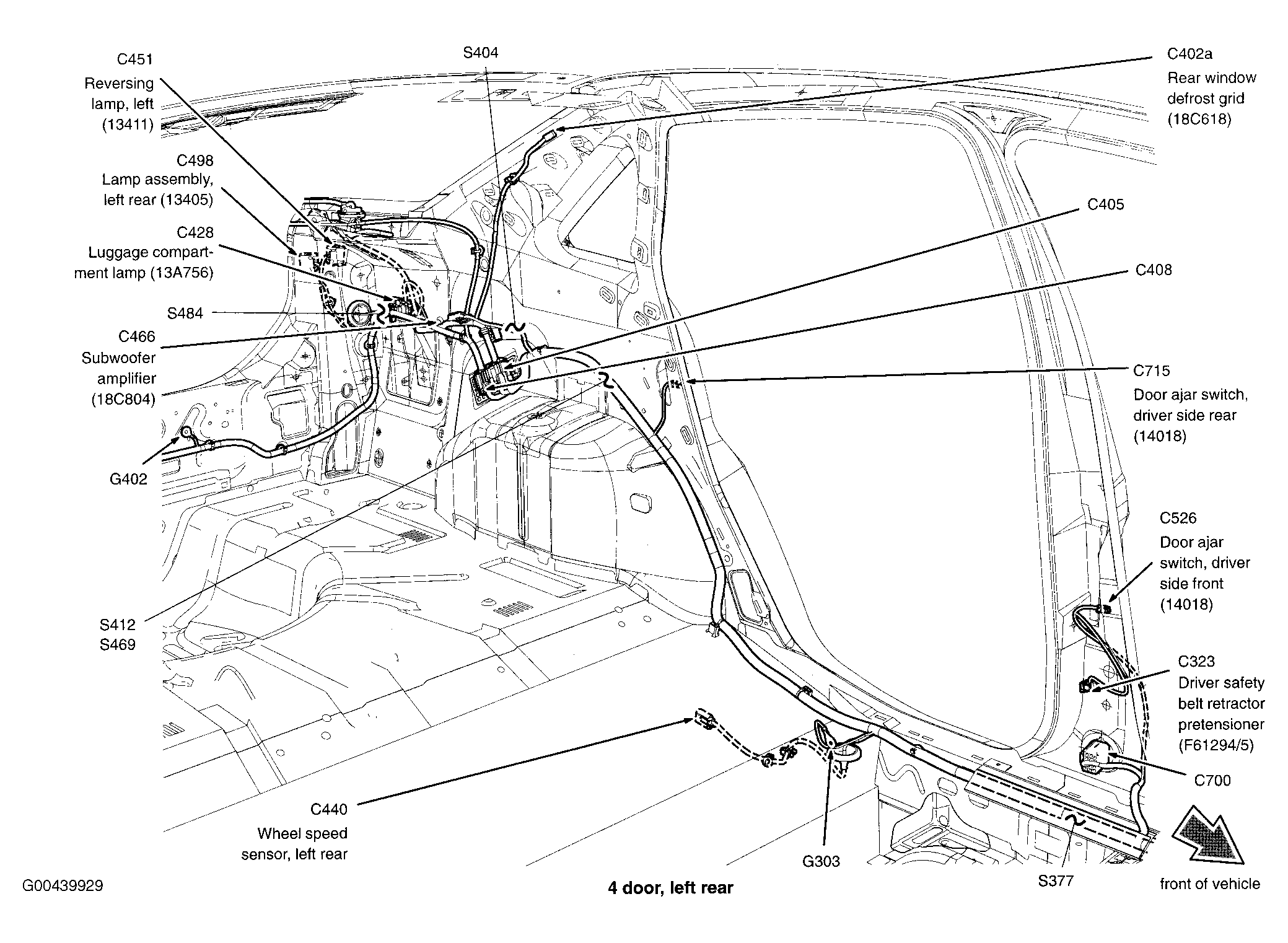

Fig 15: Left Rear Of Vehicle (4 Door)

G00439929

Courtesy of FORD MOTOR CO.

Fig 16: Right Rear Of Vehicle (4 Door)

G00421878

Courtesy of FORD MOTOR CO.

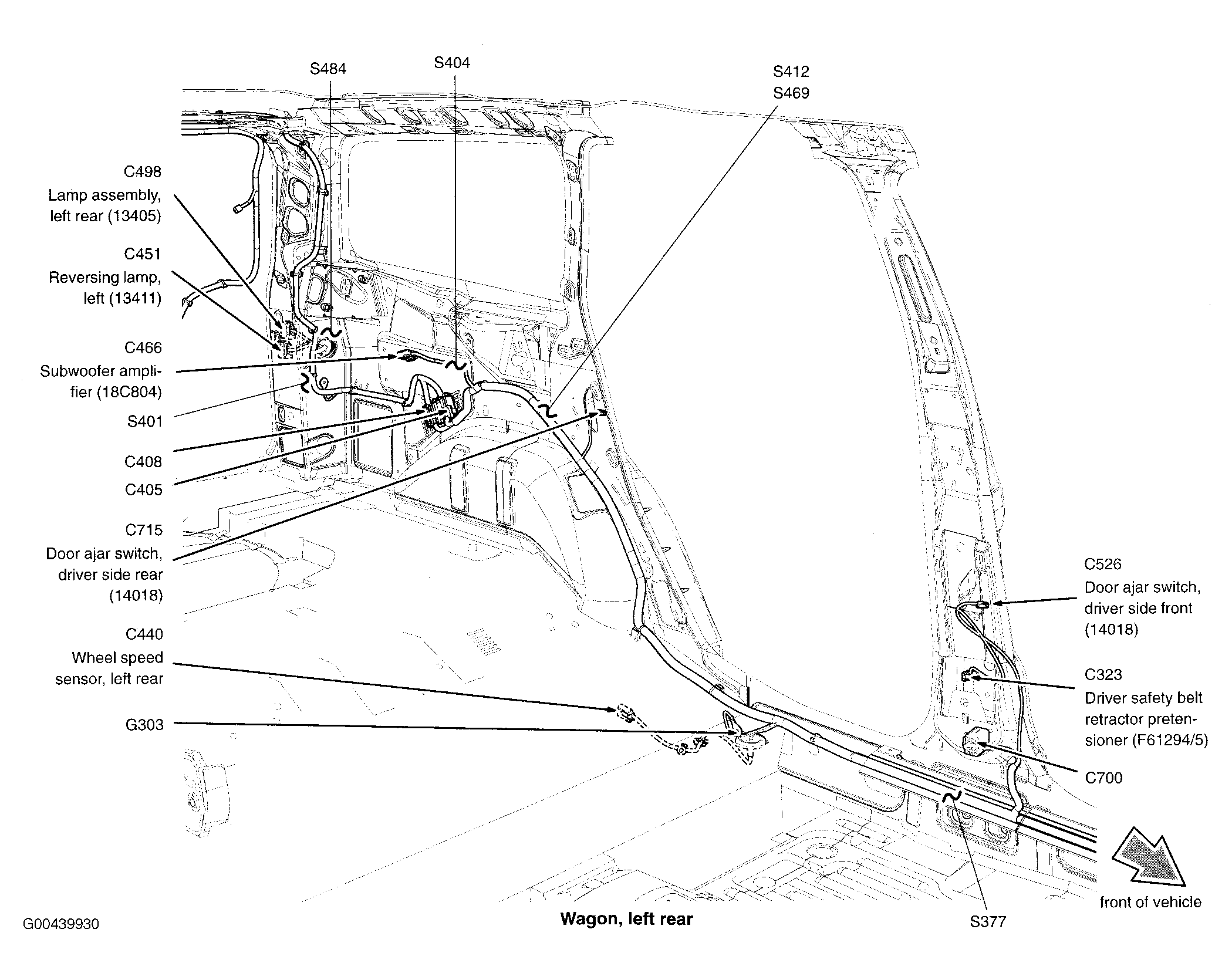

Fig 17: Left Rear Of Vehicle (Wagon)

G00439930

Courtesy of FORD MOTOR CO.

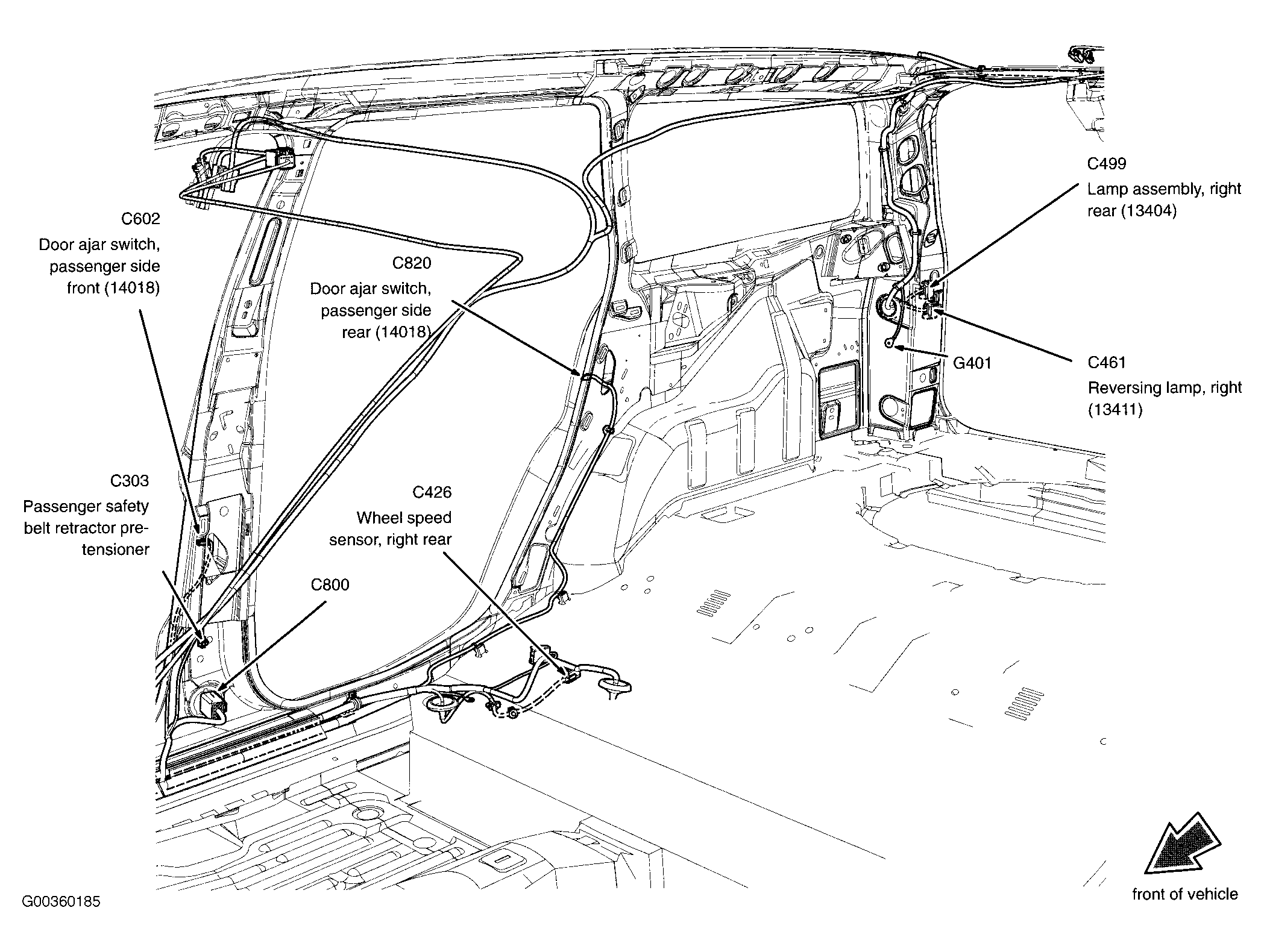

Fig 18: Right Rear Of Vehicle (Wagon)

G00360185

Courtesy of FORD MOTOR CO.

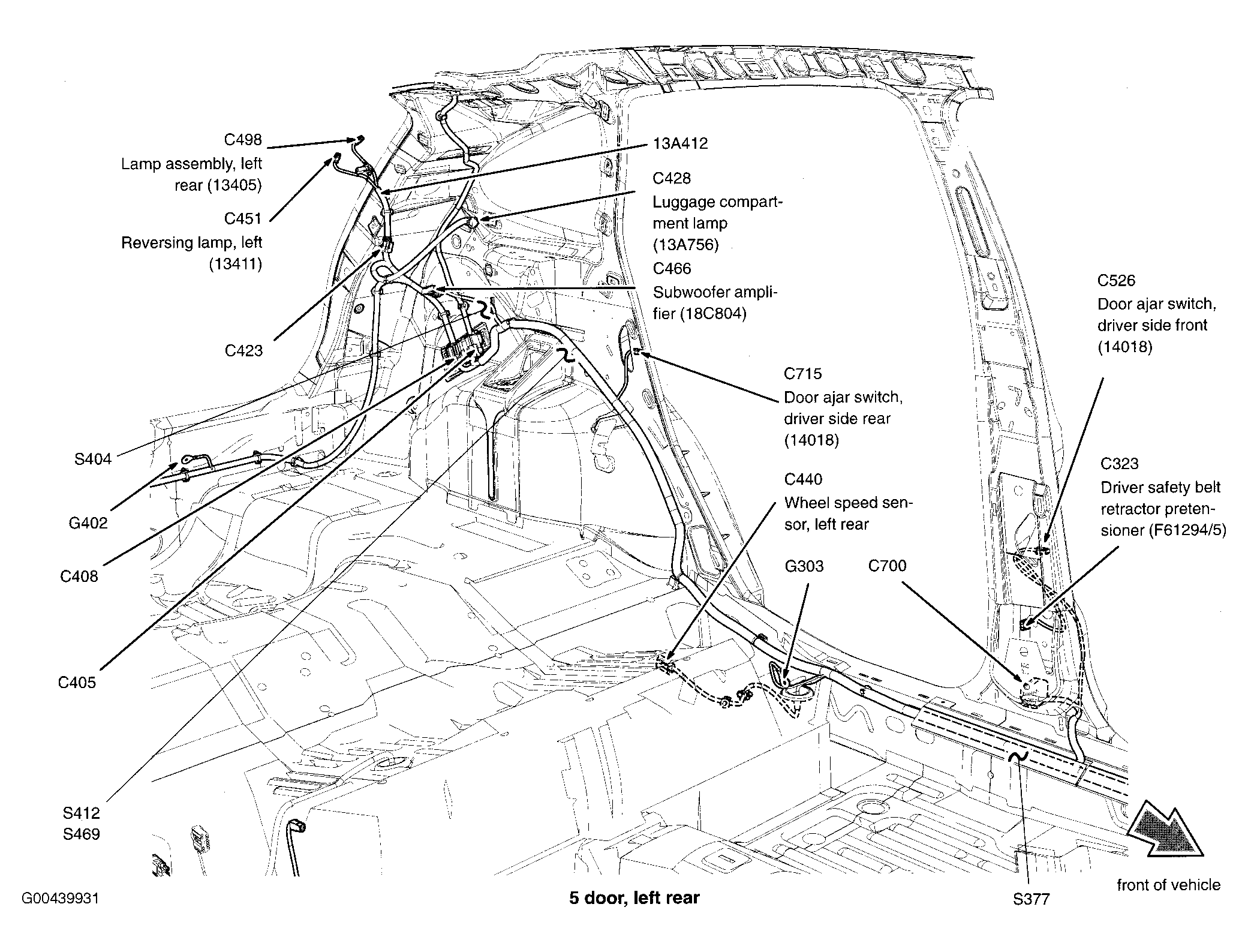

Fig 19: Left Rear Of Vehicle (5 Door)

G00439931

Courtesy of FORD MOTOR CO.

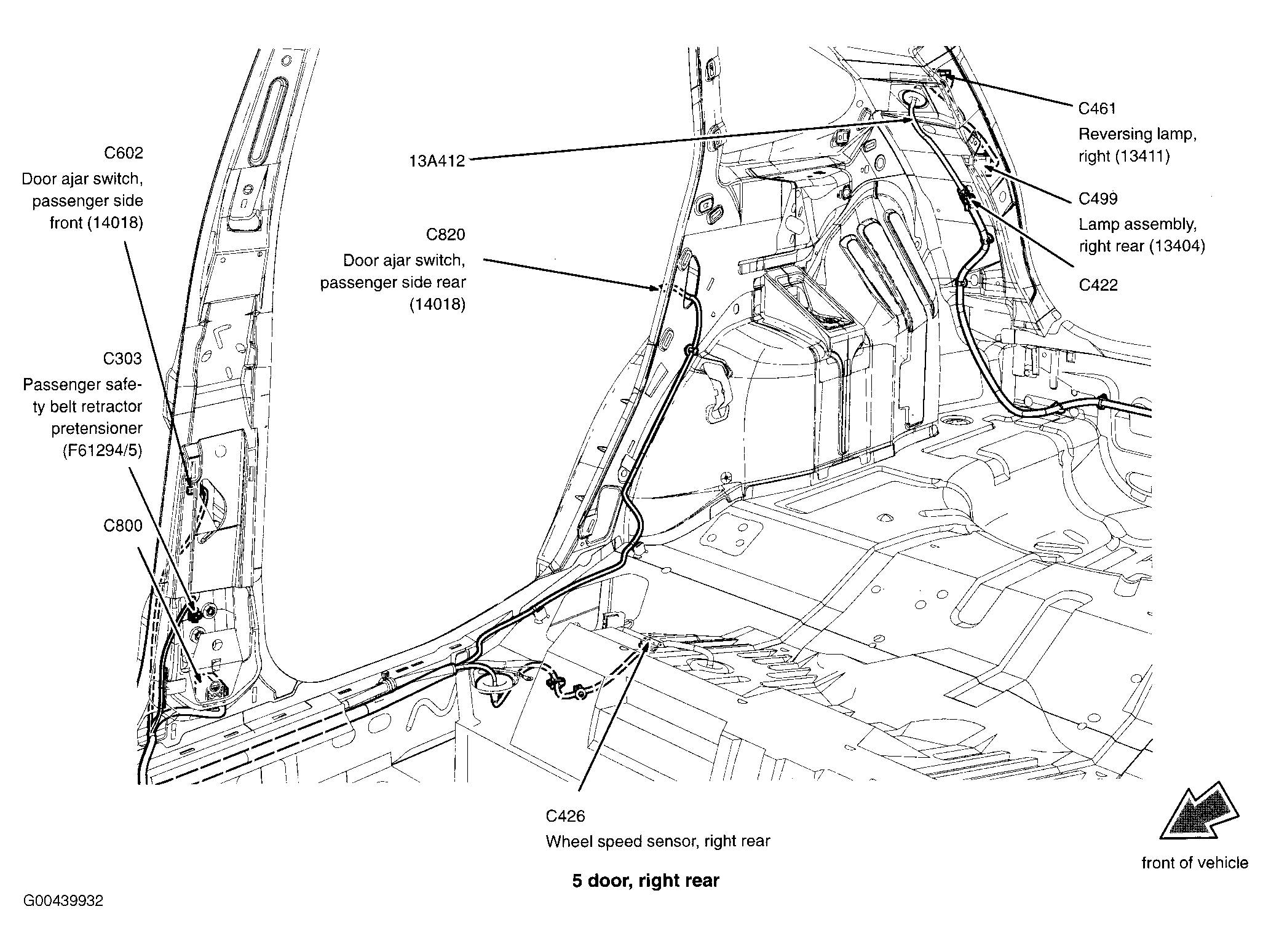

Fig 20: Right Rear Of Vehicle (5 Door)

G00439932

Courtesy of FORD MOTOR CO.

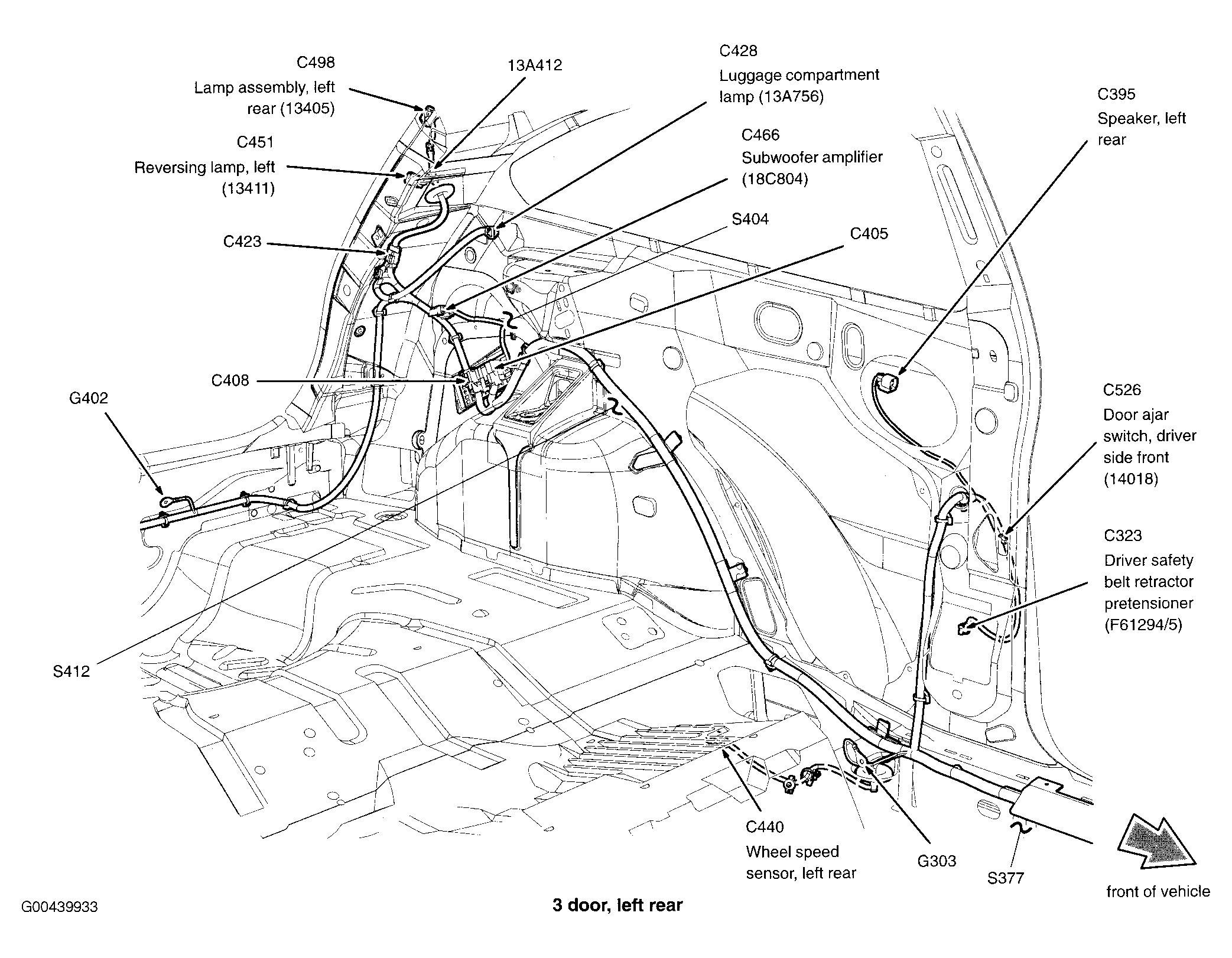

Fig 21: Left Rear Of Vehicle (3 Door)

G00439933

Courtesy of FORD MOTOR CO.

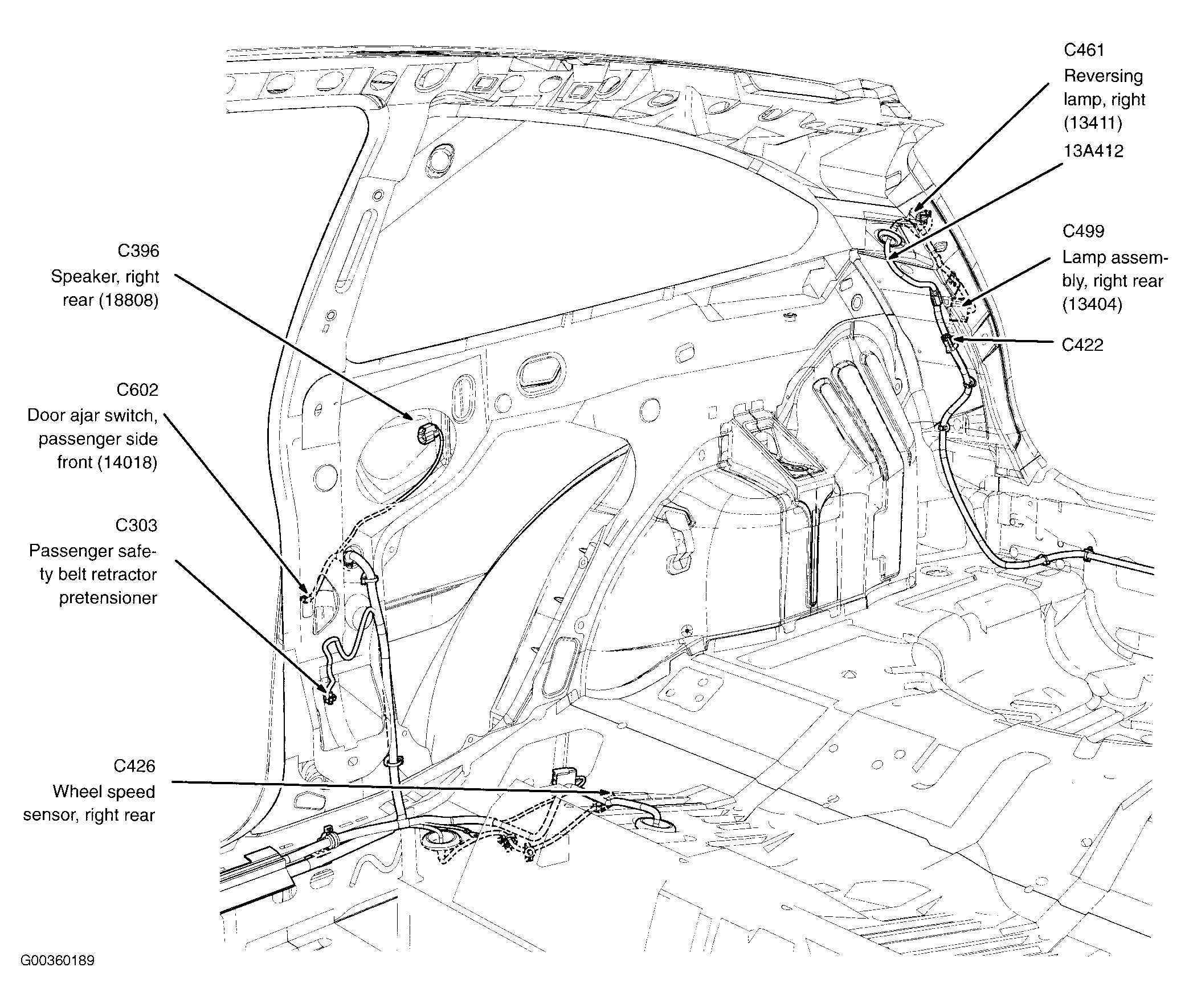

Fig 22: Right Rear Of Vehicle (3 Door)

G00360189

Courtesy of FORD MOTOR CO.

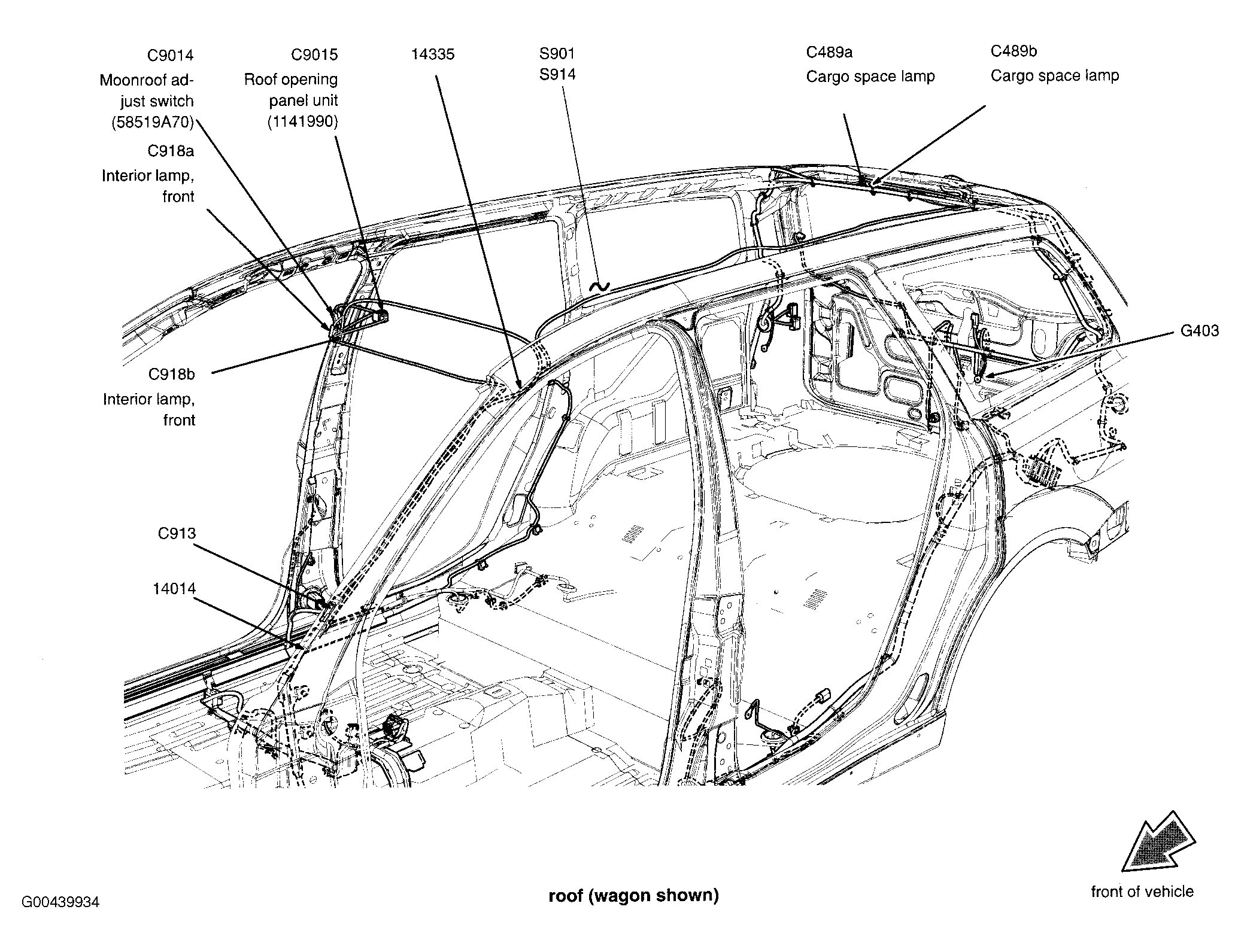

Fig 23: Roof (Wagon Shown)

G00439934

Courtesy of FORD MOTOR CO.

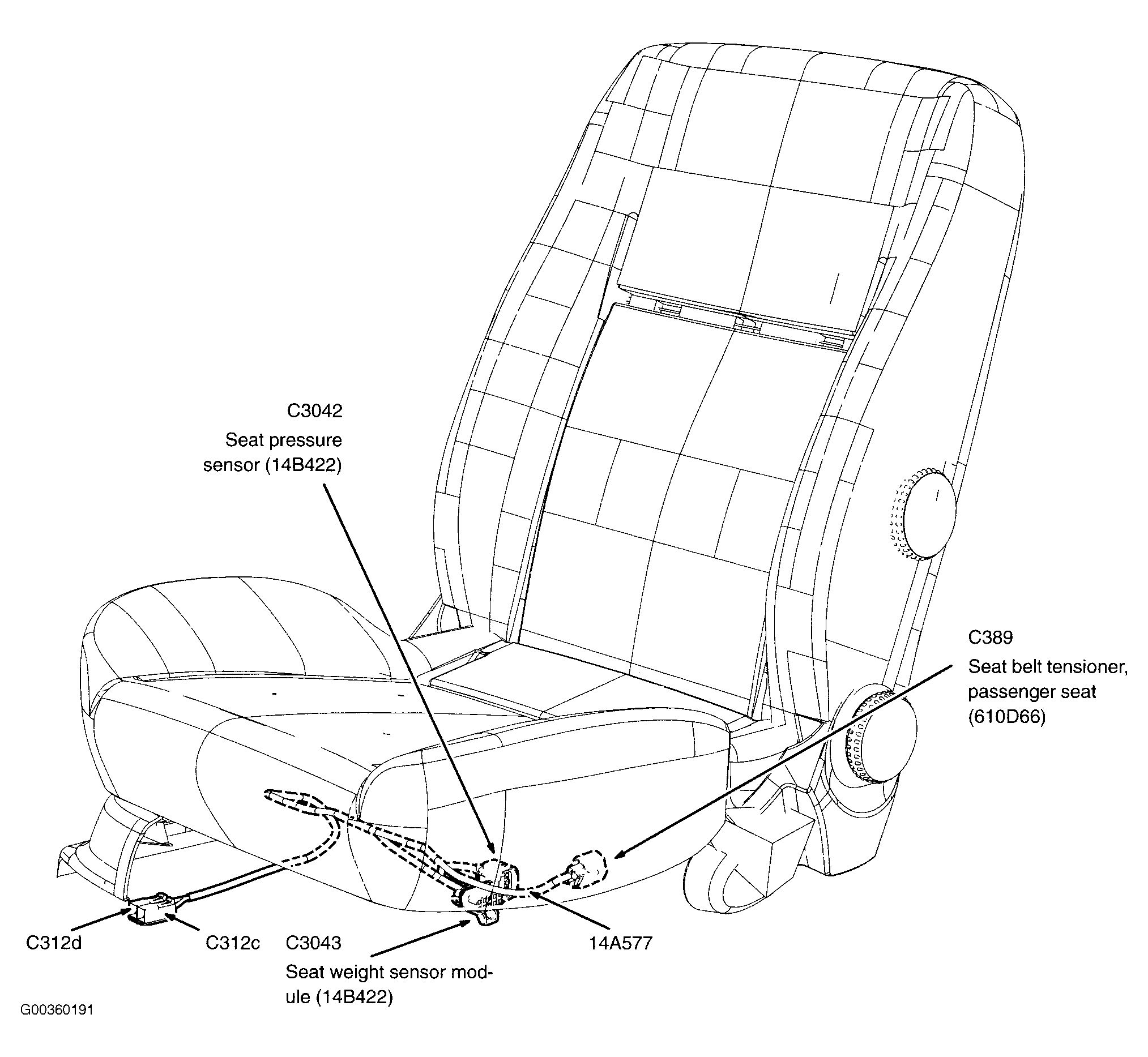

Fig 24: Passenger's Seat

G00360191

Courtesy of FORD MOTOR CO.

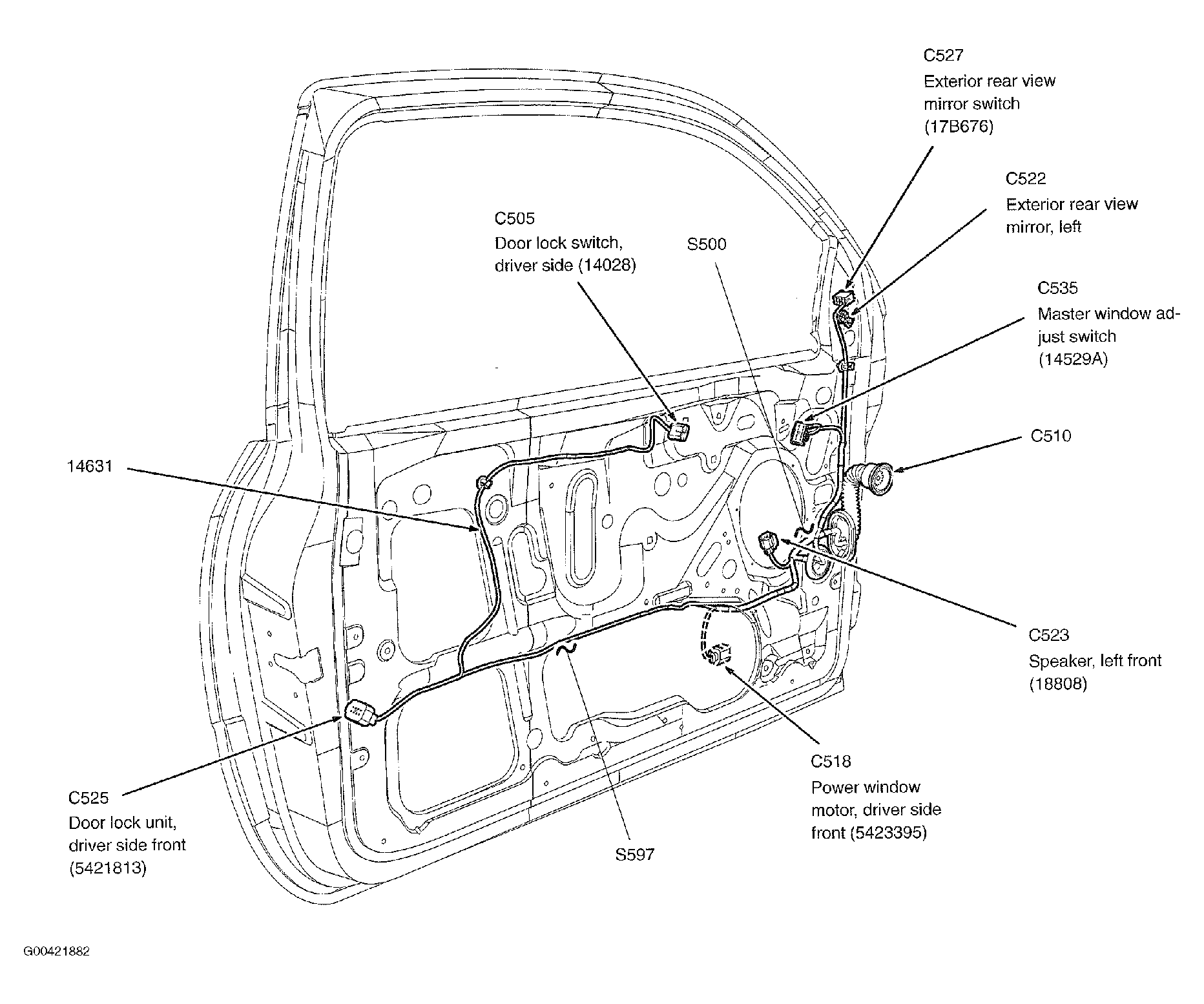

Fig 25: Driver's Door (3 Door)

G00421882

Courtesy of FORD MOTOR CO.

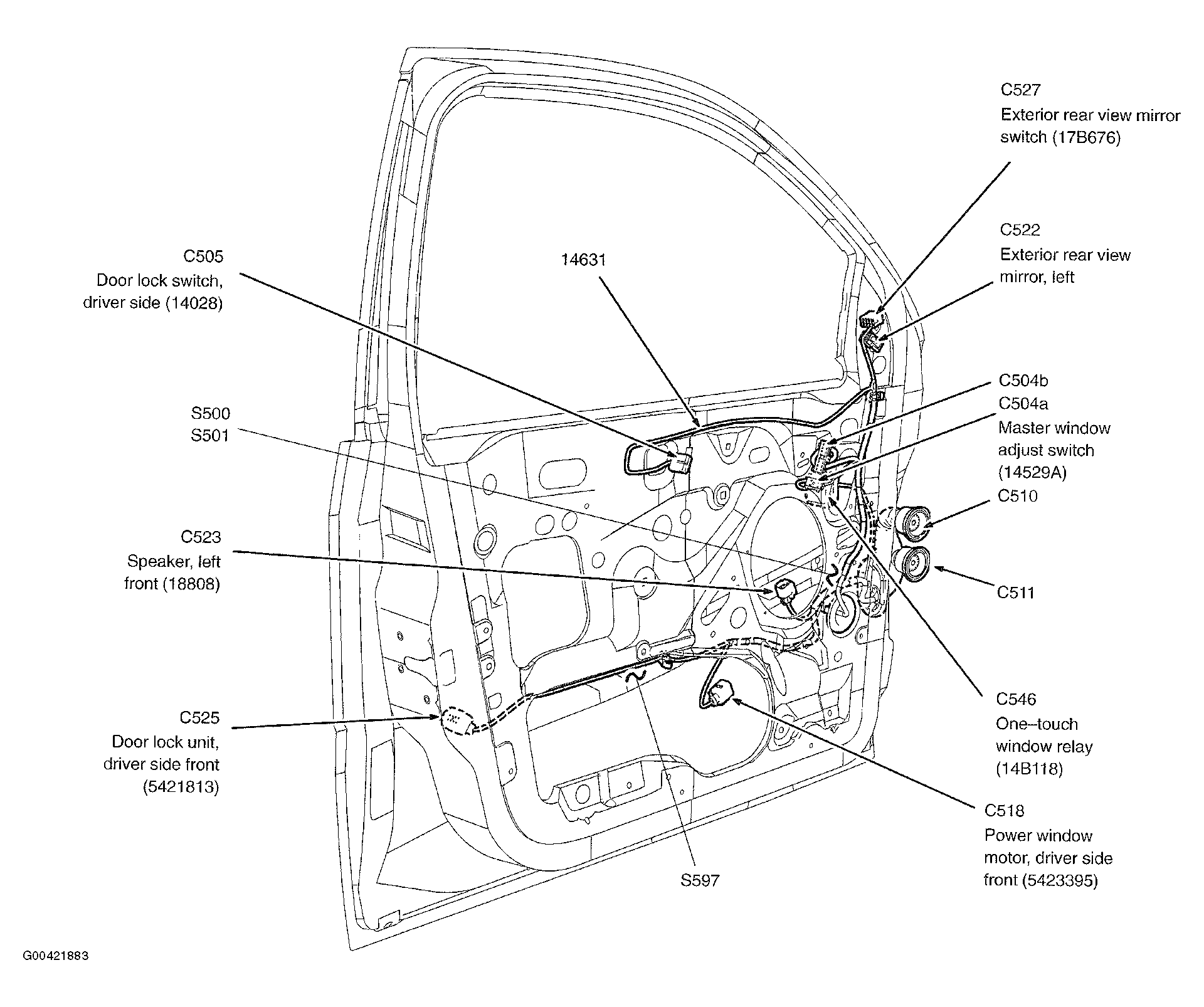

Fig 26: Driver's Door (4 Door, 5 Door & Wagon)

G00421883

Courtesy of FORD MOTOR CO.

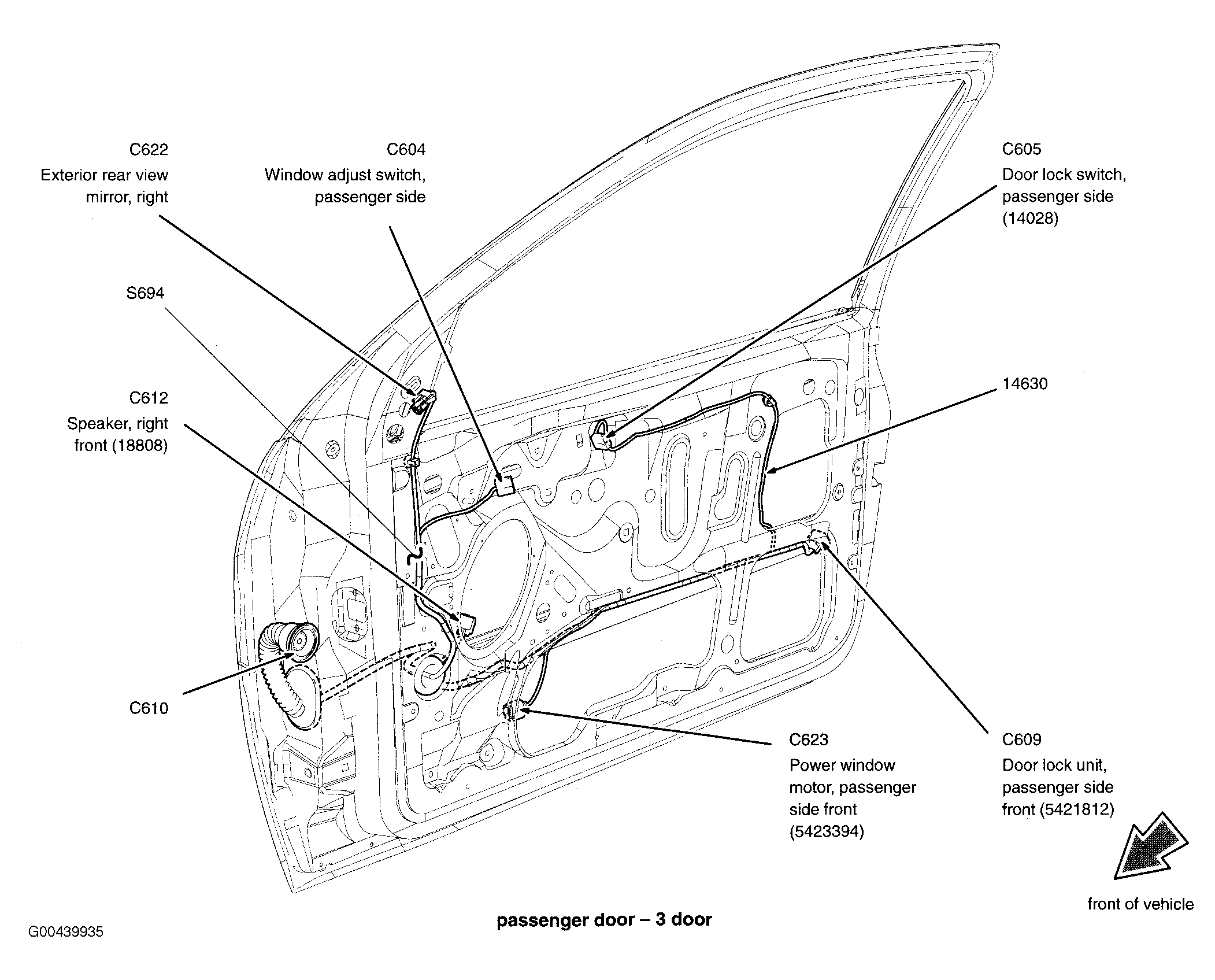

Fig 27: Passenger's Door (3 Door)

G00439935

Courtesy of FORD MOTOR CO.

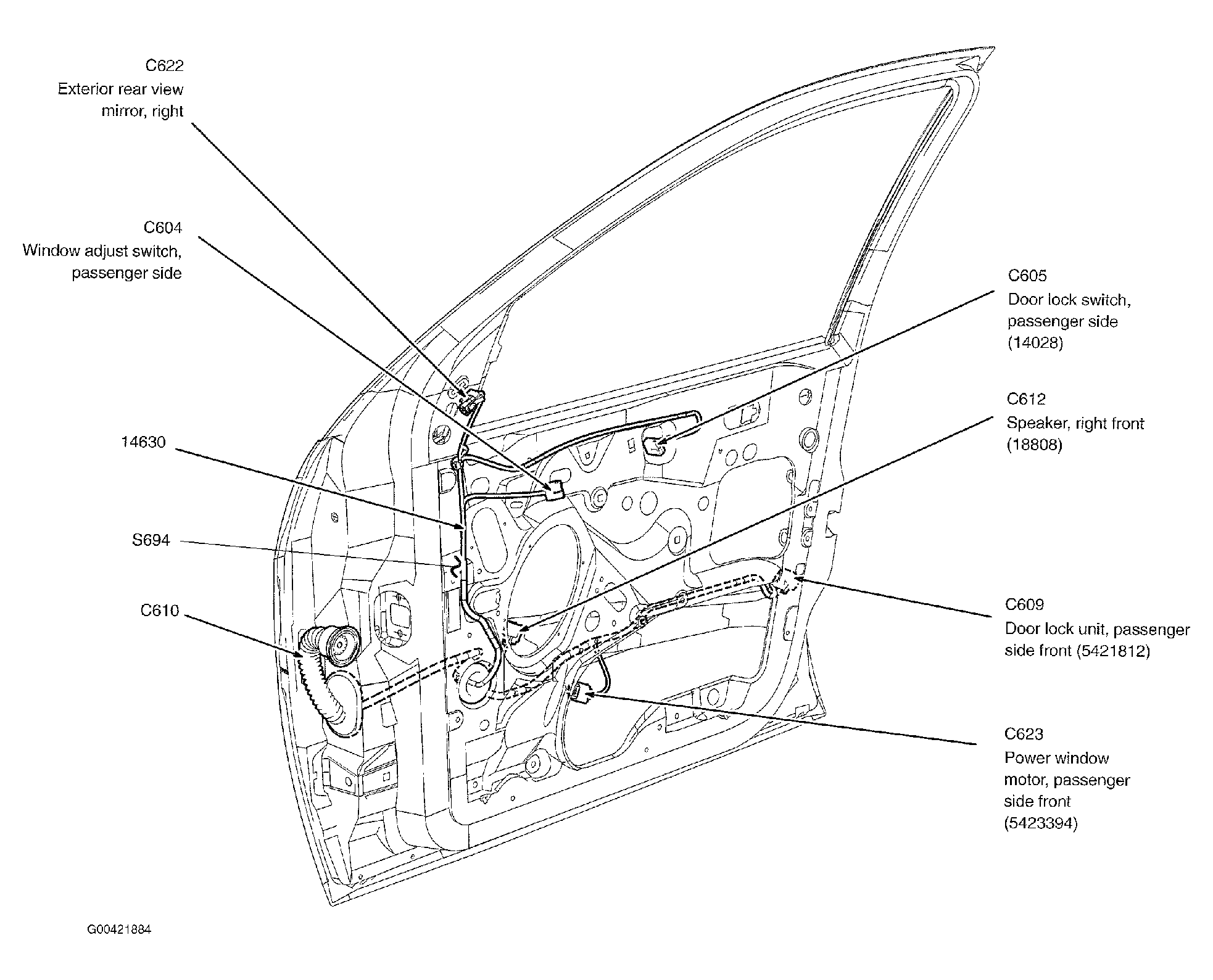

Fig 28: Passenger's Door (4 Door, 5 Door & Wagon)

G00421884

Courtesy of FORD MOTOR CO.

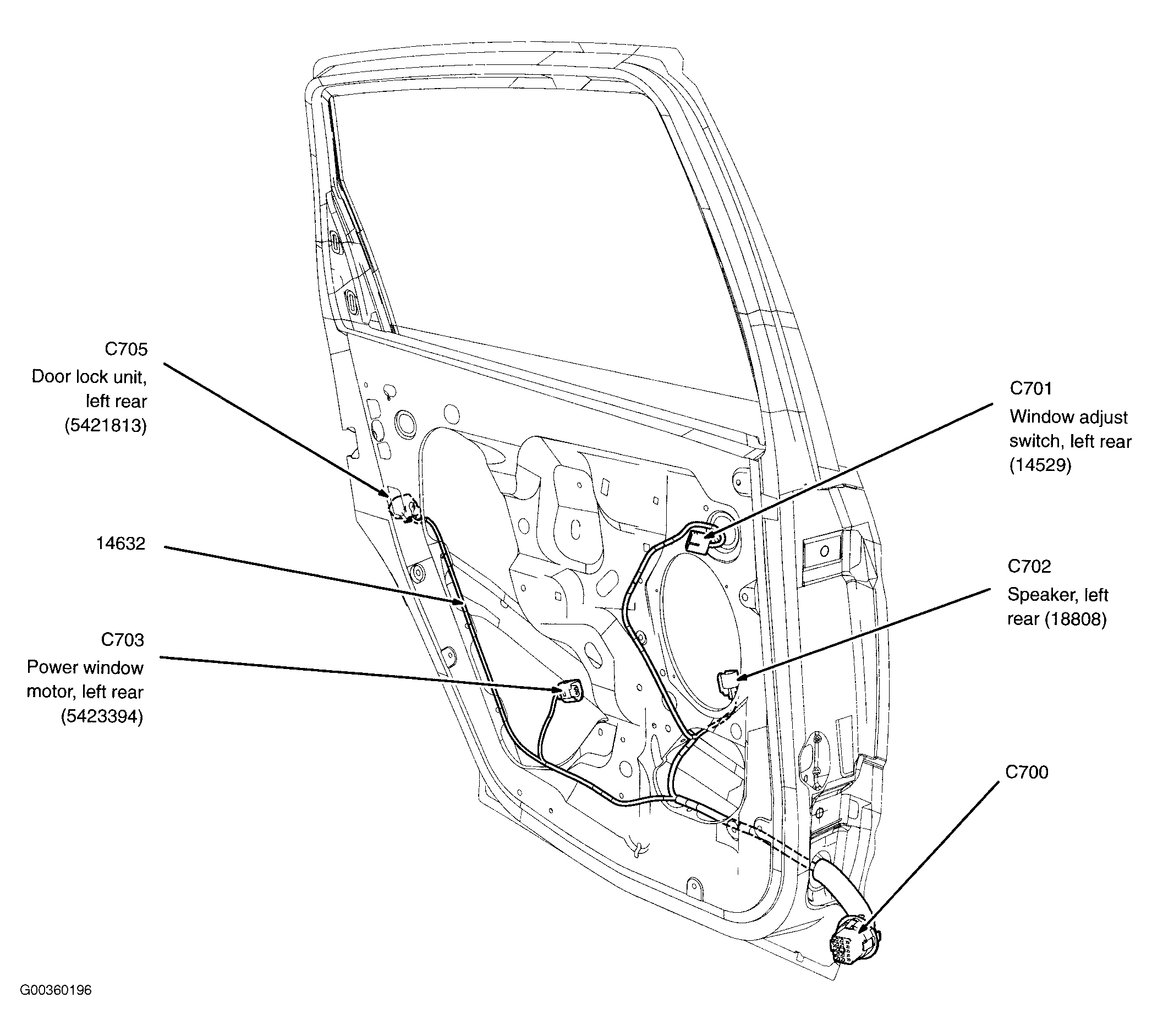

Fig 29: Left Rear Door

G00360196

Courtesy of FORD MOTOR CO.

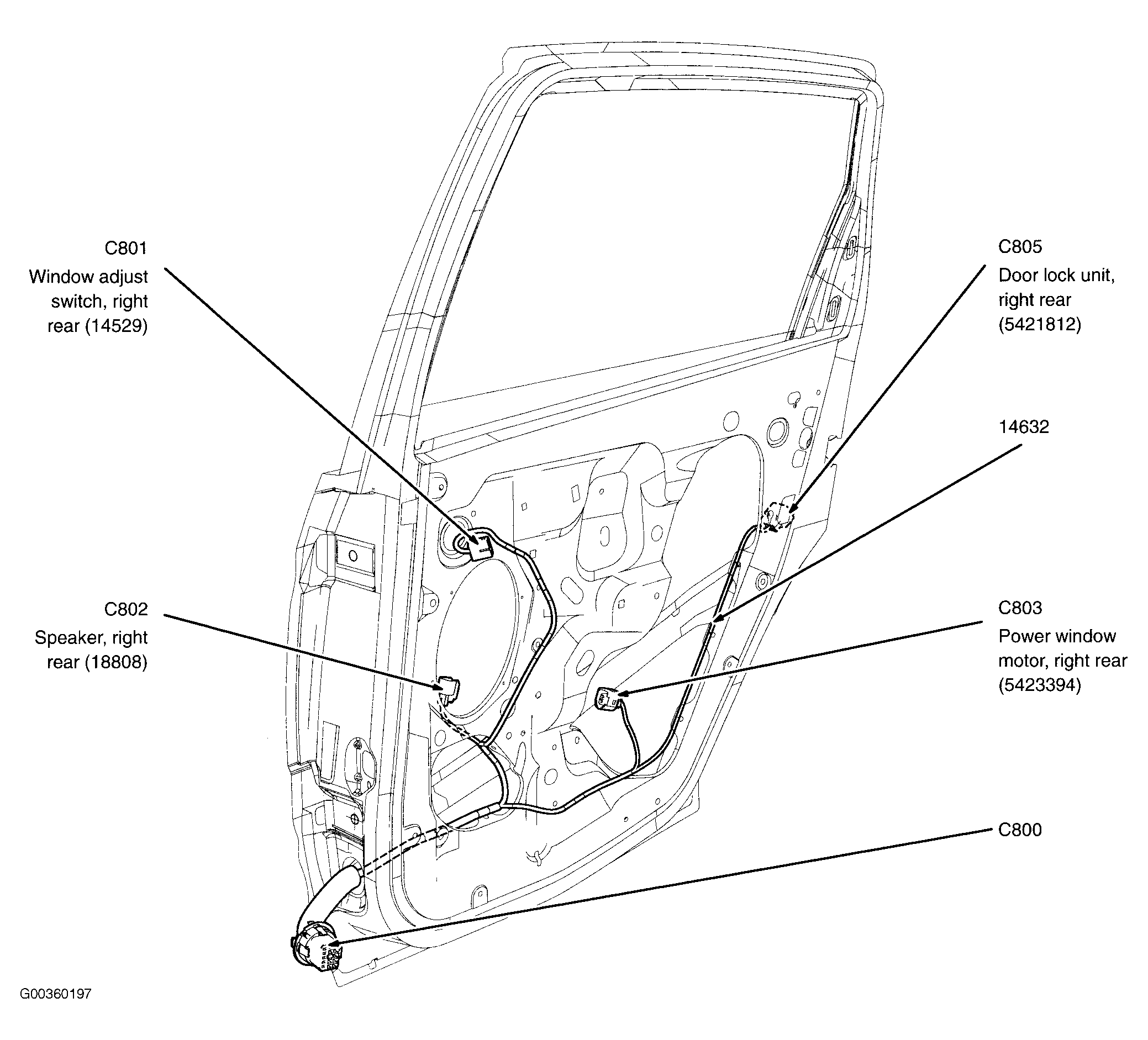

Fig 30: Right Rear Door

G00360197

Courtesy of FORD MOTOR CO.

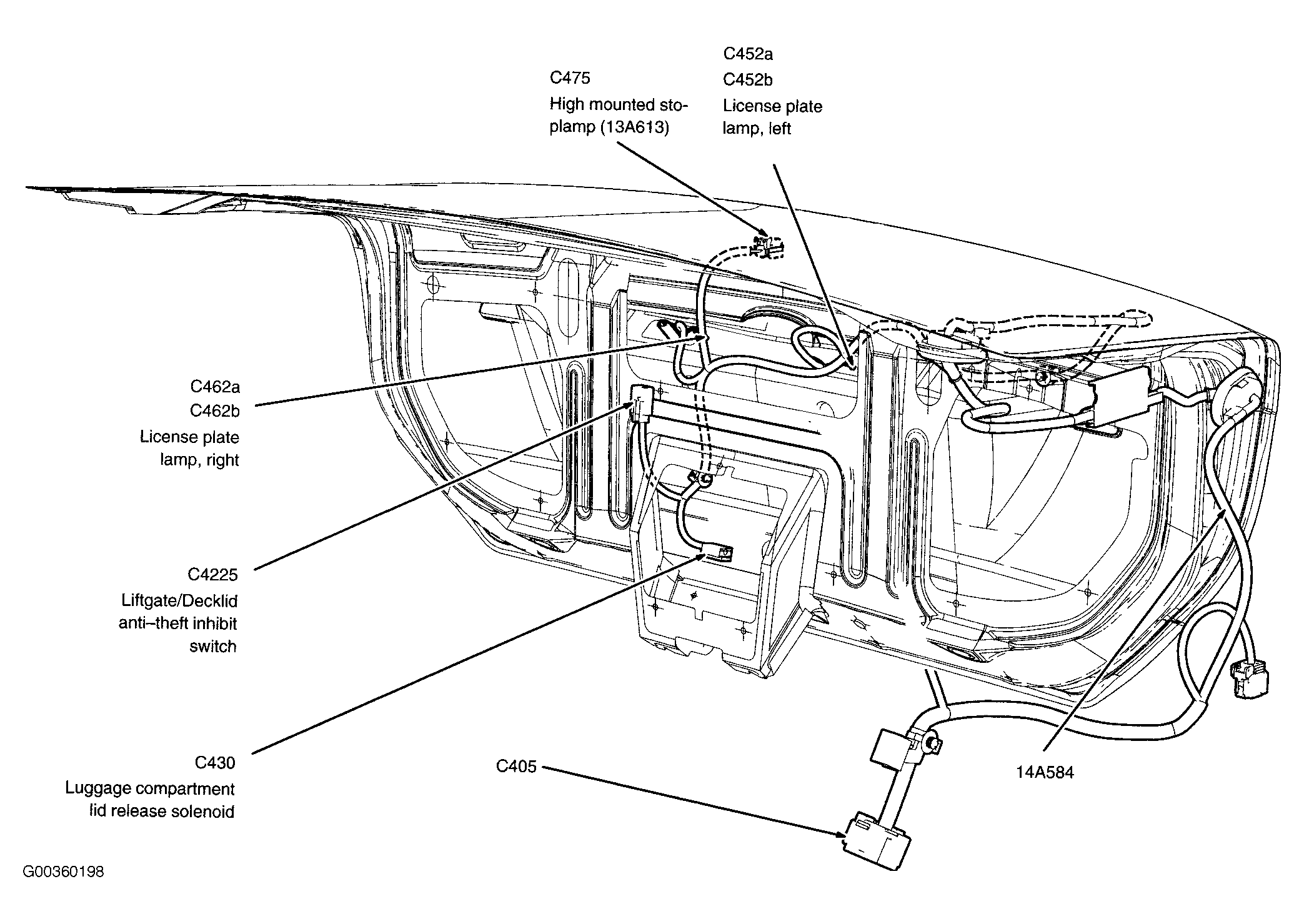

Fig 31: Deck Lid (4 Door)

G00360198

Courtesy of FORD MOTOR CO.

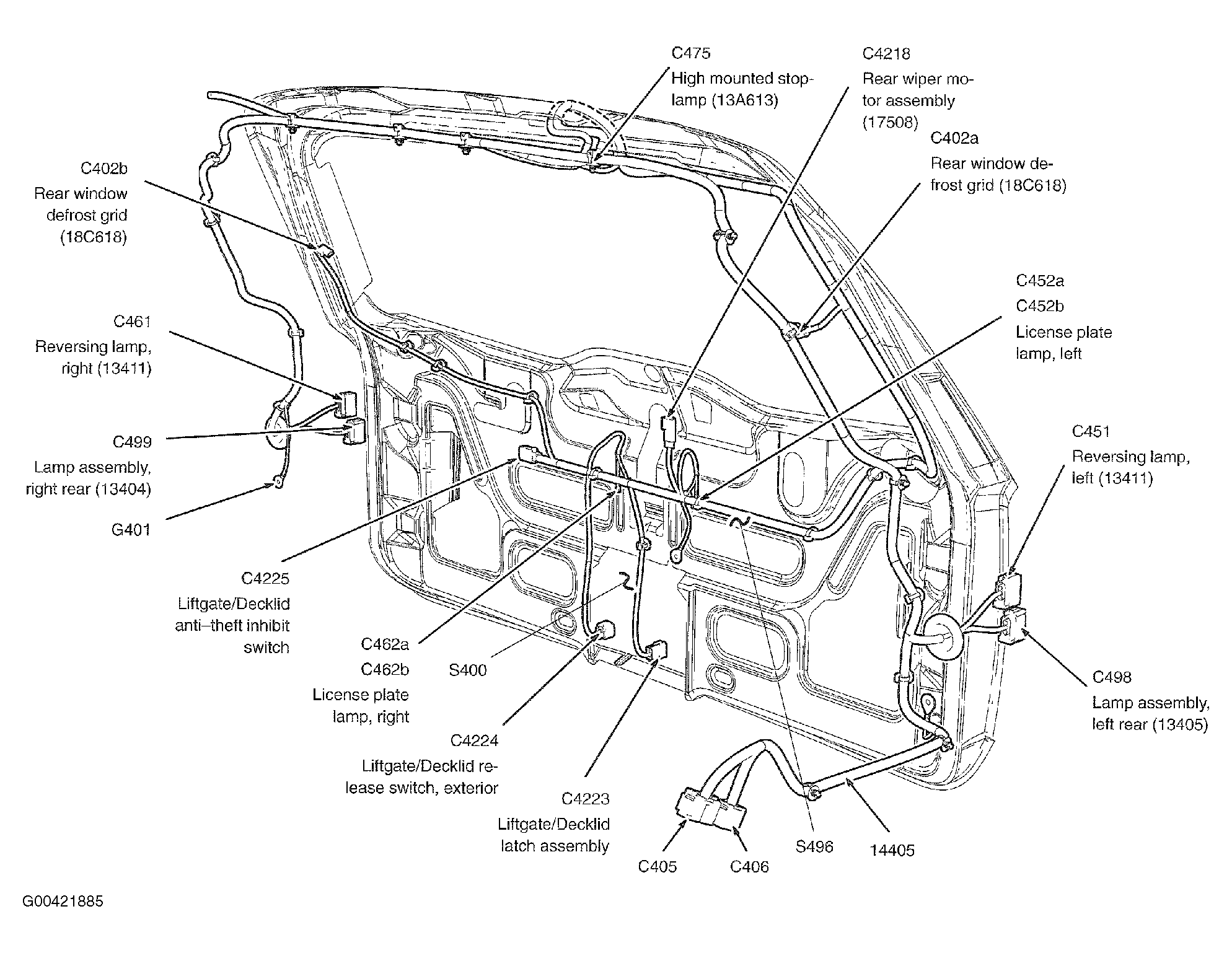

Fig 32: Liftgate (Wagon)

G00421885

Courtesy of FORD MOTOR CO.

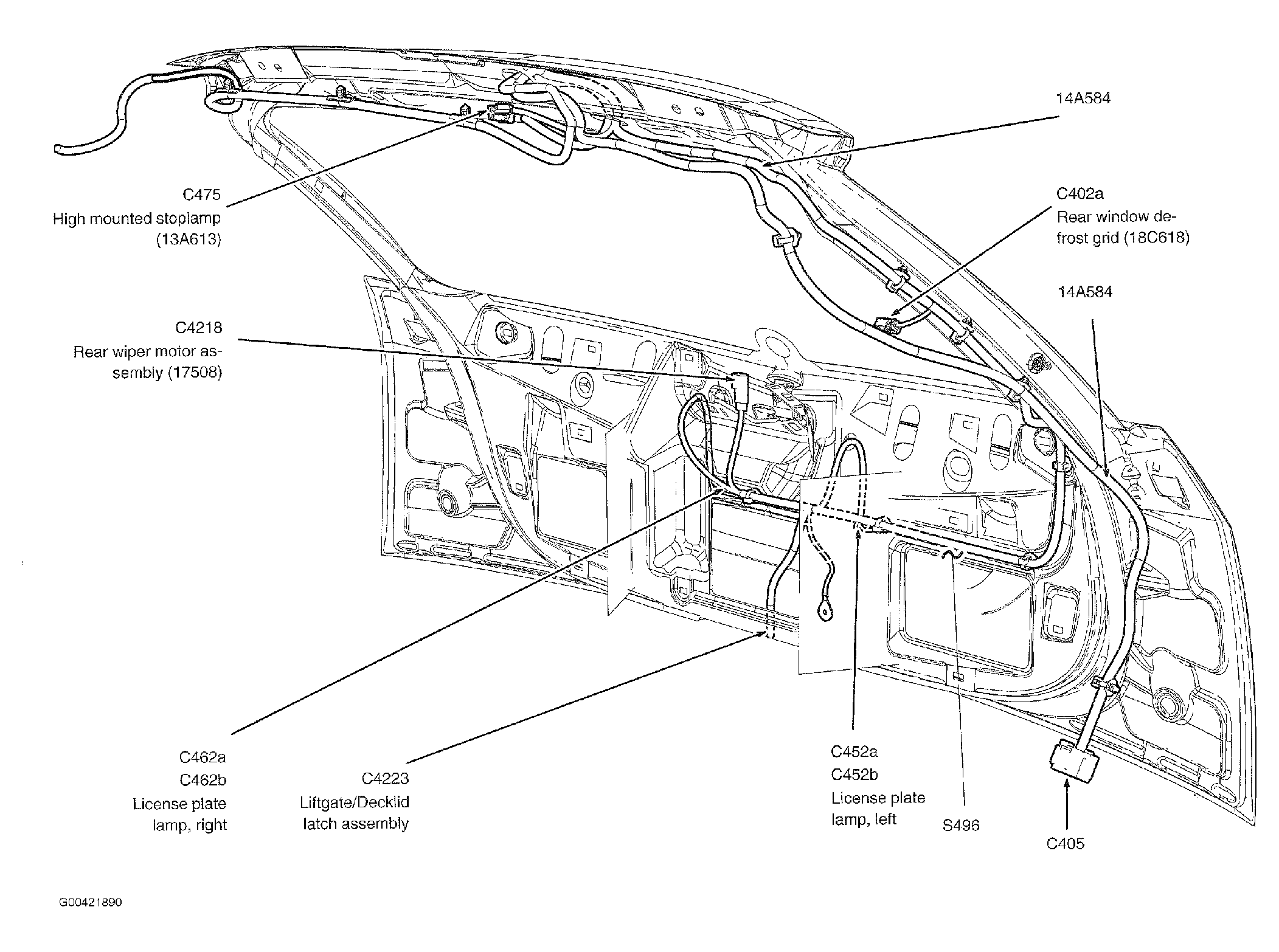

Fig 33: Liftgate (3 Door & 5 Door)

G00421890

Courtesy of FORD MOTOR CO.

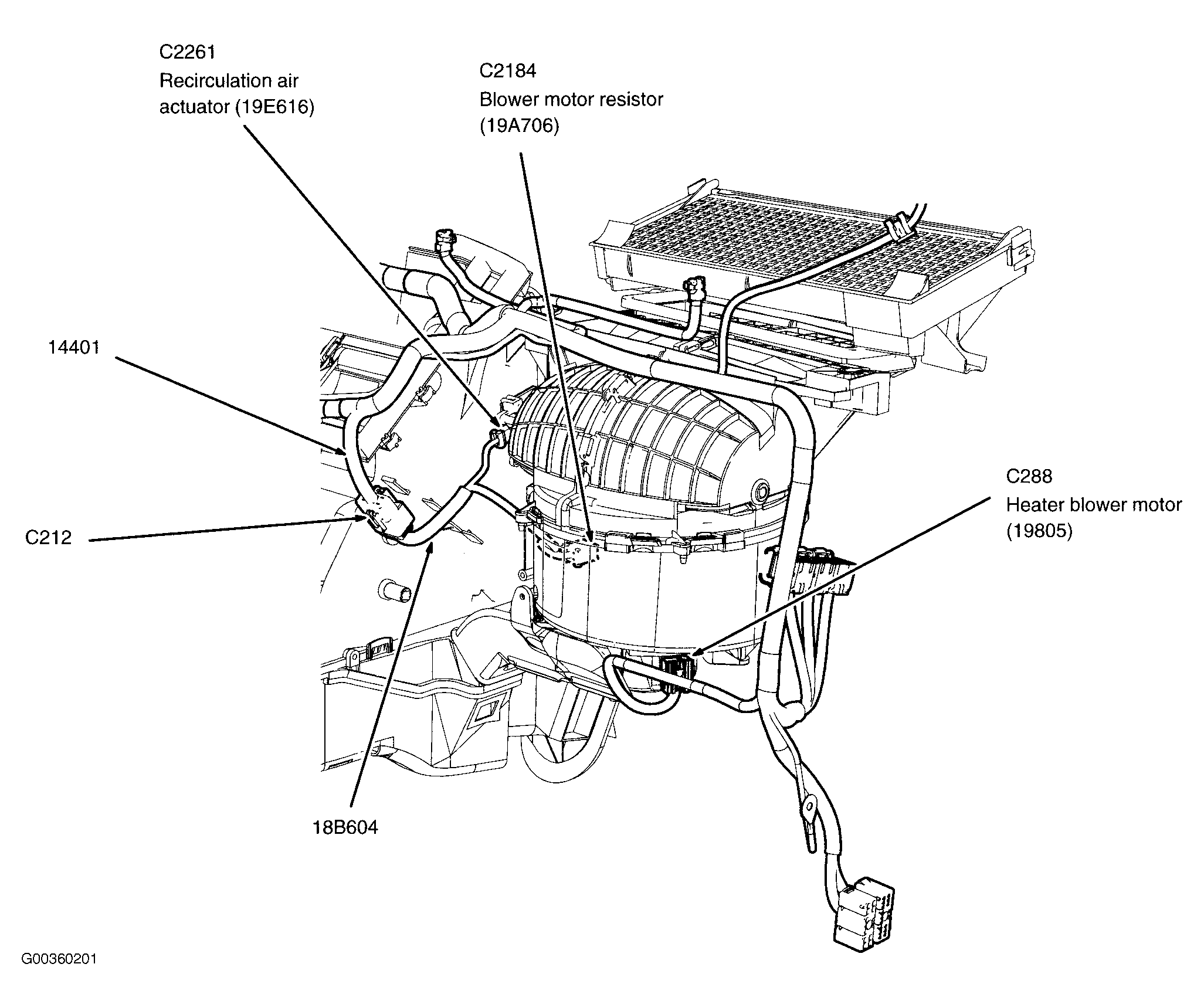

Fig 34: Heater Unit

G00360201

Courtesy of FORD MOTOR CO.

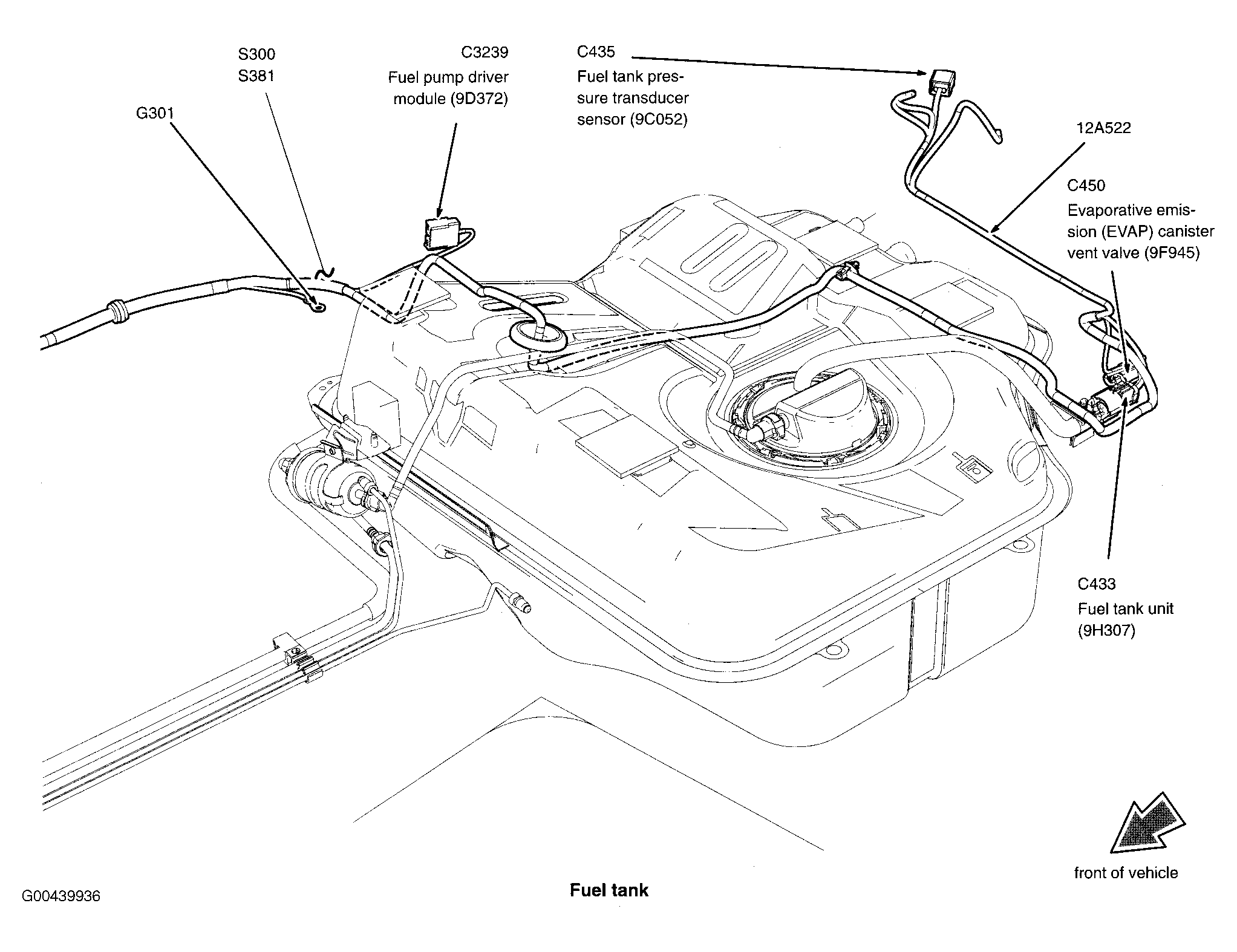

Fig 35: Fuel Tank

G00439936

Courtesy of FORD MOTOR CO.

Fig 36: Dash

G00421886

Courtesy of FORD MOTOR CO.

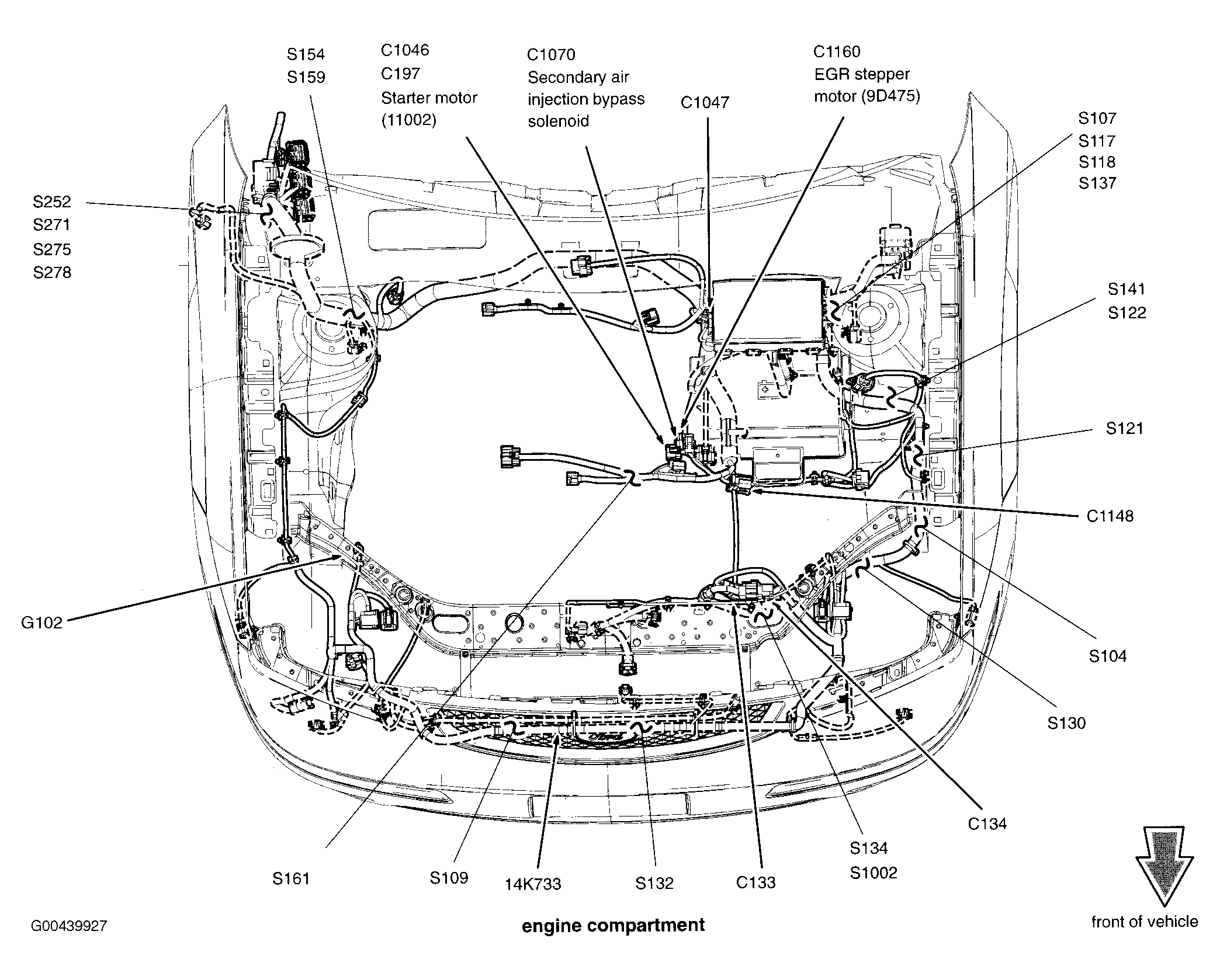

Fig 37: Engine Compartment

G00439927

Courtesy of FORD MOTOR CO.
