Engine Lubrication Components - Exploded View

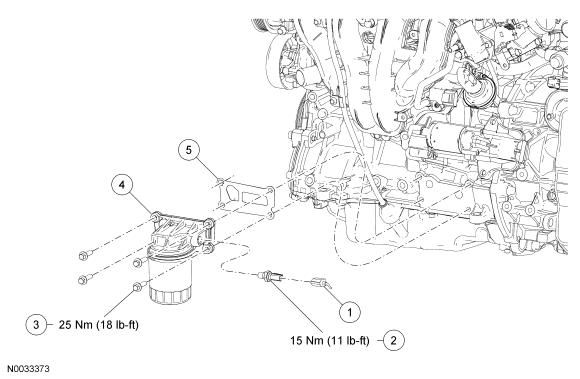

Fig 1: Exploded View Of Oil Filter Adapter and Oil Pressure Sender With Torque Specifications
GF0024095Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Oil pressure sender electrical connector (part of 12 B637)
2 9278 Oil pressure sender
3 W500225 Oil filter adapter bolt (4 required)
4 6881 Oil filter adapter
5 6840 Oil filter adapter gasket
NOTE: Automatic transmission shown, manual transmission similar.

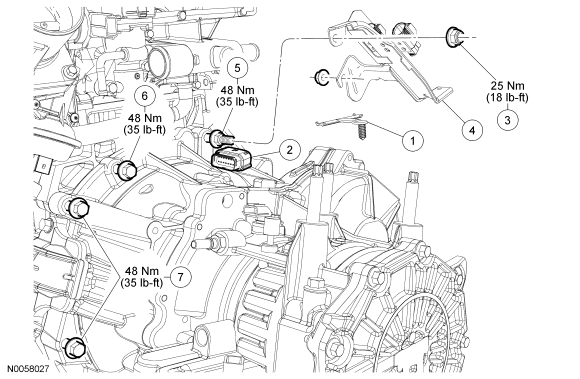

Fig 2: Exploded View Of Engine Lubrication Components (2 Of 4) With Torque Specifications
GF0039280Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Positive battery cable pin-type retainer (2 required)
2 14A464 Transmission wire harness connector
3 W520103 Heated oxygen sensor (HO2S) and catalyst monitor sensor wire connector bracket nut (2 required)
4 14301 HO2S and catalyst monitor sensor wire connector bracket
5 W500124 Upper bellhousing-to-engine stud bolt
6 W500121 Upper bellhousing-to-engine bolt
7 W500125 Front lower bellhousing-to-engine bolts (3 required for manual transmission) (2 required for automatic transmission)

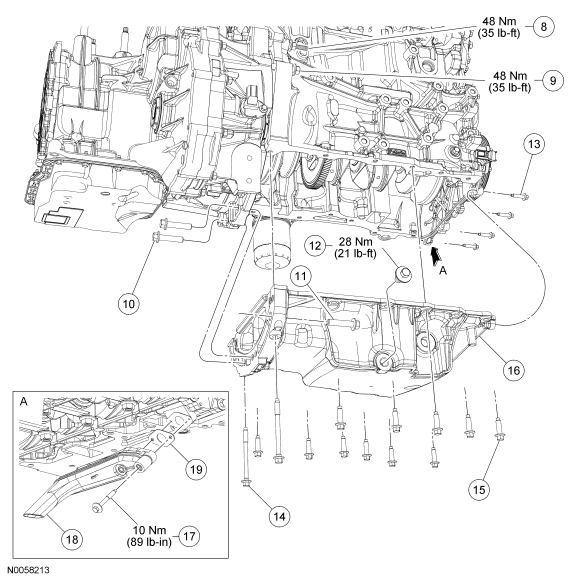

Fig 3: Exploded View Of Engine Lubrication Components (3 Of 4) With Torque Specifications
GF0039281Courtesy of FORD MOTOR CO.
Item Part Number Description
8 W500124 Rear lower engine-to-bellhousing stud bolt
9 W500120 Rear lower engine-to-bellhousing bolt
10 W500121 Bellhousing-to-oil pan bolt (2 required)
11 W500121 Oil pan-to-bellhousing bolt (2 required)
12 6730 Oil pan drain plug
13 W500215 Engine front cover-to-oil pan bolt (4 required)
14 W706284 Oil pan bolt (2 required)
15 W500224 Oil pan bolt (11 required)
16 6675 Oil pan
17 W706282 Oil pump screen and pickup tube bolt (2 required)
18 6622 Oil pump screen and pickup tube
19 6625 Oil pump screen and pickup tube gasket

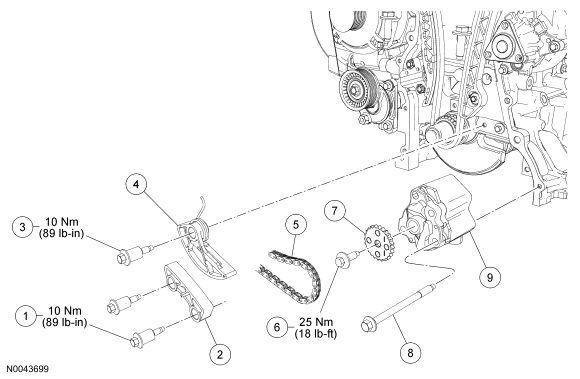

Fig 4: Exploded View Of Oil Pump With Torque Specifications
GF0024099Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W703651 Oil pump drive chain guide shoulder bolt (2 required) (late build)
2 6M256 Oil pump drive chain guide (late build)
3 W703651 Oil pump drive chain tensioner shoulder bolt
4 6C271 Oil pump drive chain tensioner
5 6A895 Oil pump drive chain
6 W704397 Oil pump sprocket bolt
7 6652 Oil pump sprocket
8 W703647 Oil pump bolt (4 required)
9 6600 Oil pump
  1. For additional information, refer to the appropriate procedures.
