Intake Manifold: Notes

Material

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent		 WSS-M2C930-A

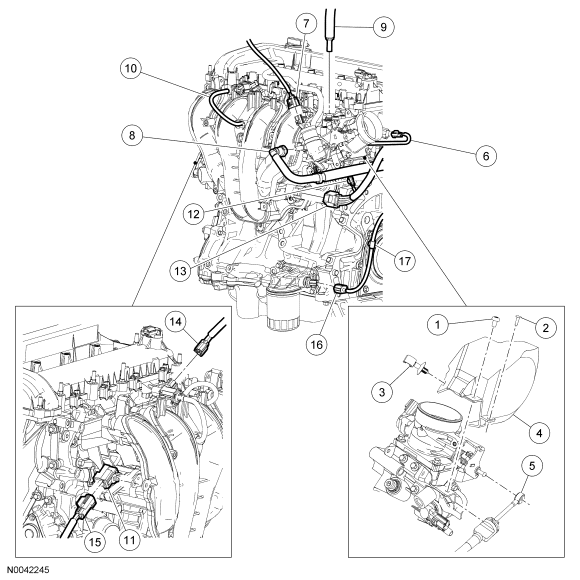

Fig 1: Identifying Intake Manifold Components (1 Of 2)
GF0039239Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W504692 Snow shield mounting screw
2 W709419 Snow shield pushpin
3 - Evaporative emissions hose pin-type retainer
4 9E766 Snow shield
5 9A758 Accelerator cable assembly
6 14A464 Throttle position (TP) sensor electrical connector
7 14A464 Idle air control (IAC) motor electrical connector (part of 12B637)
8 9D289 Fuel vapor return hose
9 19D848 Power brake booster vacuum supply hose
10 9D430 Fuel rail pressure and temperature vacuum tube
11 14A464 Pin-type retainer (part of 12B637)
12 14A464 Intake manifold runner control (IMRC) electrical connector
13 14A464 Manifold absolute pressure (MAP) sensor electrical connector (part of 12B637)
14 14A464 Swirl control valve electrical connector (part of 12B637)
15 14A464 Knock sensor (KS) electrical connector (part of 12B637)
16 14A464 Oil pressure sender electrical connector (part of 12B637)
17 12B637 Engine control wiring harness retainer

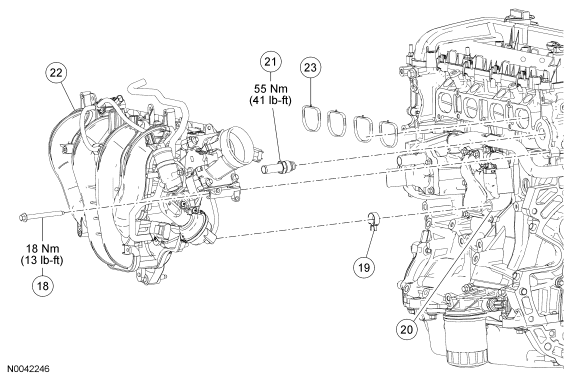

Fig 2: Intake Manifold Replacement Components (2 Of 2) With Torque Specifications
GF0039240Courtesy of FORD MOTOR CO.
Item Part Number Description
18 W500311 Intake manifold bolt (8 required)
19 - Crankcase vent hose clamp (part of 6758)
20 6758 Positive crankcase ventilation (PCV) hose
21 9E470 Exhaust gas recirculation (EGR) tube
22 9424 Intake manifold
23 9461 Intake manifold gasket
