Valve Train Components - Exploded View

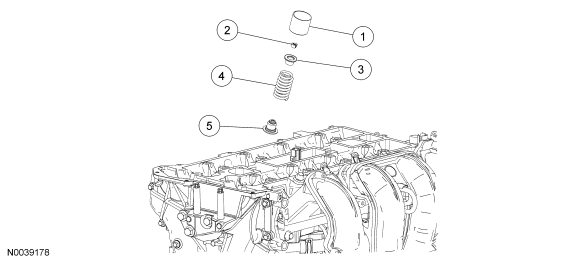

Fig 1: Exploded View Of Valve Train Components
GF0039268Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6500 Valve tappet (16 required)
2 6518 Valve collet (16 required)
3 6514 Valve spring retainer (16 required)
4 6513 Valve spring (16 required)
5 6517 Valve seal (16 required)
  1. For additional information, refer to the appropriate procedures.
