Powertrain Control Module (PCM): Removal

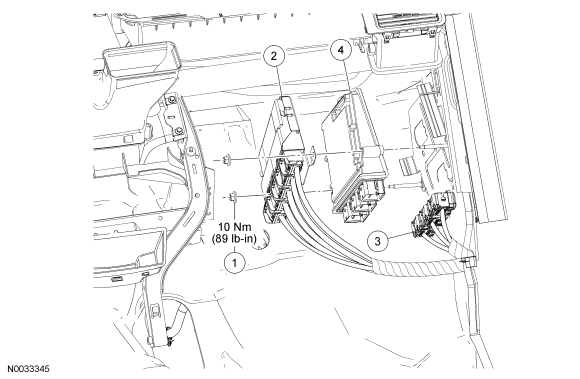

Fig 1: Powertrain Control Module (PCM) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W700101	Generic electronic module (GEM)/powertrain control module (PCM) retaining nut (2 required)
2	14B205	GEM module
3	14A464	PCM electrical connectors
4	12A650	PCM

NOTE: Any PCM replacement will require that ALL customer keys are available to be programmed at the time of installation. PCM replacement DOES NOT require new keys.

Retrieve the module configuration. Carry out the module configuration retrieval steps of the Programmable Module Installation procedure. For additional information, refer to MODULE CONFIGURATION article.
Remove the instrument panel side trim.

Fig 2: Removing Instrument Panel Side Trim

Courtesy of FORD MOTOR CO.

Remove the cowl side trim panel.

Fig 3: Locating Cowl Side Trim Panel

Courtesy of FORD MOTOR CO.

Remove the glove compartment.

Fig 4: Locating Glove Compartment Bolts

Courtesy of FORD MOTOR CO.

Remove the passenger side lower footwell trim panel.

Fig 5: Locating Passenger Side Lower Footwell Trim Panel

Courtesy of FORD MOTOR CO.

Remove the 2 generic electronic module (GEM) nuts and position aside.
Disconnect the PCM electrical connectors and remove the PCM.
