Selector Lever: Removal

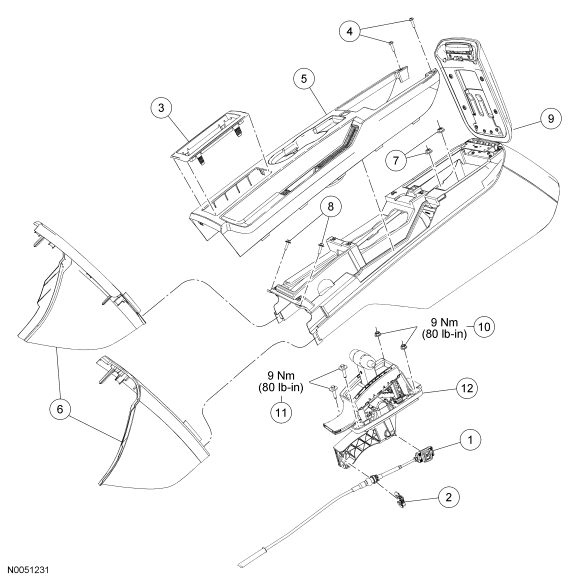

Fig 1: Exploded View Of Selector Lever With Torque Specifications
GF0000994Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7E395 Transmission selector lever cable
2 7H181 Transmission selector lever cable retaining clip
3 - Selector lever trim
4 - Center console finish panel screws
5 - Center console finish panel
6 - Center stack kick panels
7 - Center console nuts
8 - Center console screws
9 - Center console
10 N800942-S301A Transmission selector lever housing assembly nuts
11 N800947-S301A Transmission selector lever housing assembly screws
12 7210 Transmission selector lever
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the selector lever cable from the selector lever.
    3. Fig 2: Removing Selector Lever Cable From Selector Lever
    GF0015704Courtesy of FORD MOTOR CO.
  3. Remove the selector lever cable from the bracket and discard the clip.
    4. Fig 3: Locating Selector Lever Cable From Bracket And Discard Clip
    GF0015707Courtesy of FORD MOTOR CO.
  4. Remove the center console selector lever trim.
    5. Fig 4: Locating Console Shifter Bezel
    GF0014990Courtesy of FORD MOTOR CO.
  5. Remove the 2 screws and the center console top finish panel.
    6. Fig 5: Locating Center Console Top Finish Panel Screws
    GF0014991Courtesy of FORD MOTOR CO.
    NOTE: Passenger side center console kick panel shown, driver side similar.
  6. Remove the driver and passenger center console kick panels.
    7. Fig 6: Locating Driver And Passenger Center Console Kick Panels
    GF0014992Courtesy of FORD MOTOR CO.
  7. Remove the 2 screws in the bottom of the console bin.
    8. Fig 7: Locating Screws In Bottom Of Console Bin
    GF0015708Courtesy of FORD MOTOR CO.
  8. Remove the 2 screws from the front of the console.
    9. Fig 8: Locating Screws From Front Of Console
    GF0015709Courtesy of FORD MOTOR CO.
  9. Lift up the console, disconnect the power point electrical connector and remove the console.
    10. Fig 9: Locating Power Point Electrical Connector
    GF0015710Courtesy of FORD MOTOR CO.
  10. Disconnect the selector lever electrical connector.
    11. Fig 10: Locating Selector Lever Electrical Connector
    GF0015711Courtesy of FORD MOTOR CO.
  11. Remove the 2 nuts and the 2 screws and carefully lift the transmission selector lever assembly from the vehicle.
    12. Fig 11: Locating Transmission Selector Lever Nuts And Screws (1 Of 2)
    GF0015712Courtesy of FORD MOTOR CO.
