Safety Belt Retractor - Rear: Notes

NOTE: RH side shown, LH side similar.

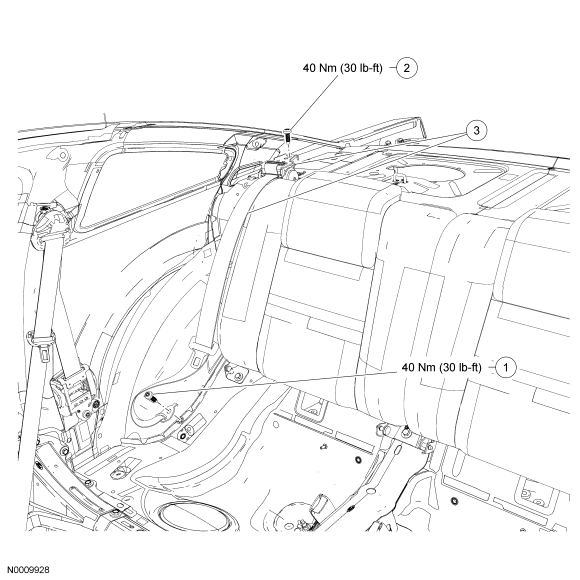

Fig 1: Rear Safety Belt Retractor With Torque Specifications
GF0014904Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Safety belt anchor bolt (part of 611B68 RH/611B69 LH)
2 - Safety belt retractor bolt (part of 611B68 RH/611B69 LH)
3 611B68/611B69 Safety belt retractor (RH/LH)
