Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Right Front Side Of Vehicle
Courtesy of FORD MOTOR CO.
Fig 2: Left Front Side Of Engine Compartment
Courtesy of FORD MOTOR CO.
Fig 3: Left Front Side Of Engine Compartment
Courtesy of FORD MOTOR CO.

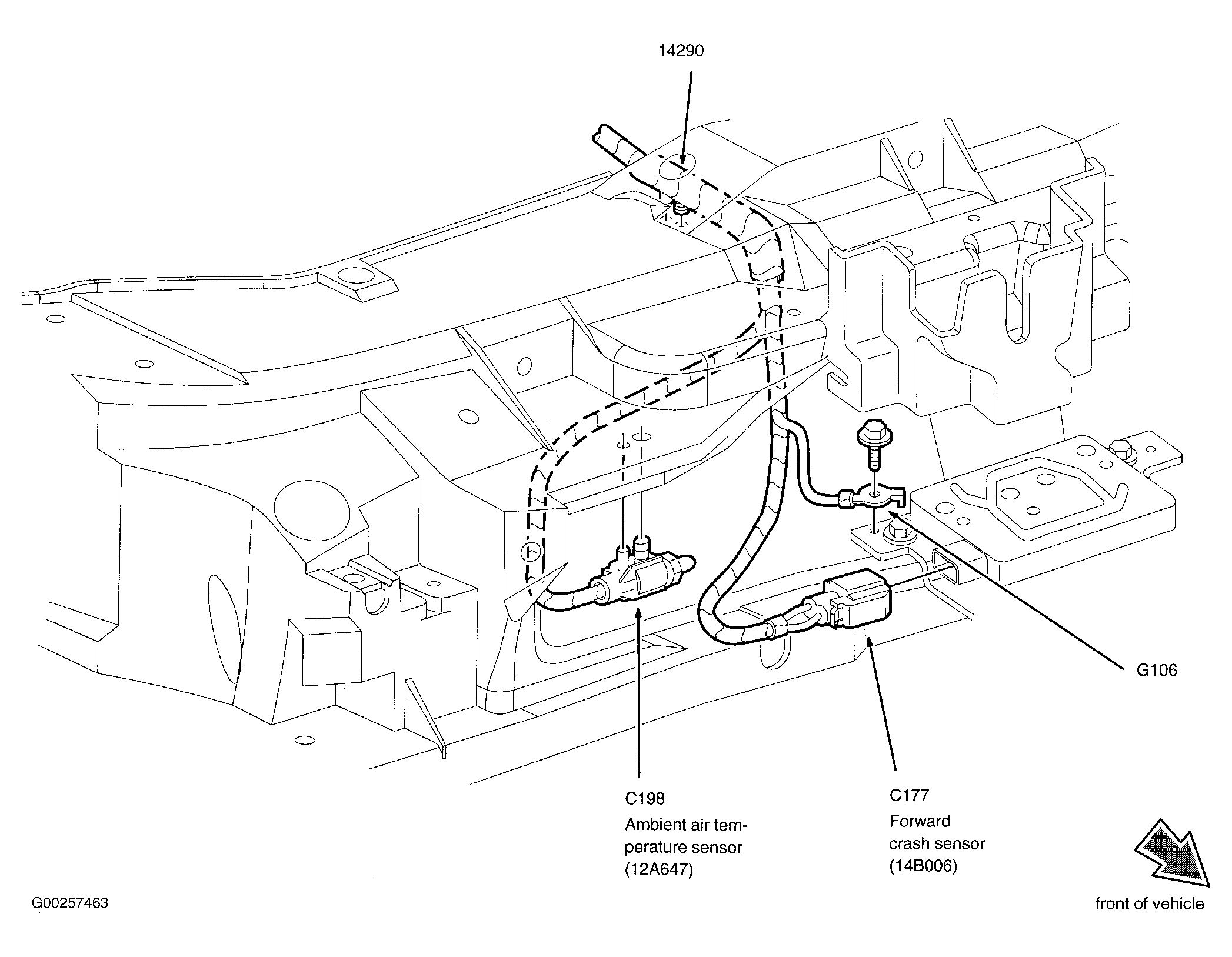

Fig 4: Bottom Front Center Of Engine Compartment
Courtesy of FORD MOTOR CO.

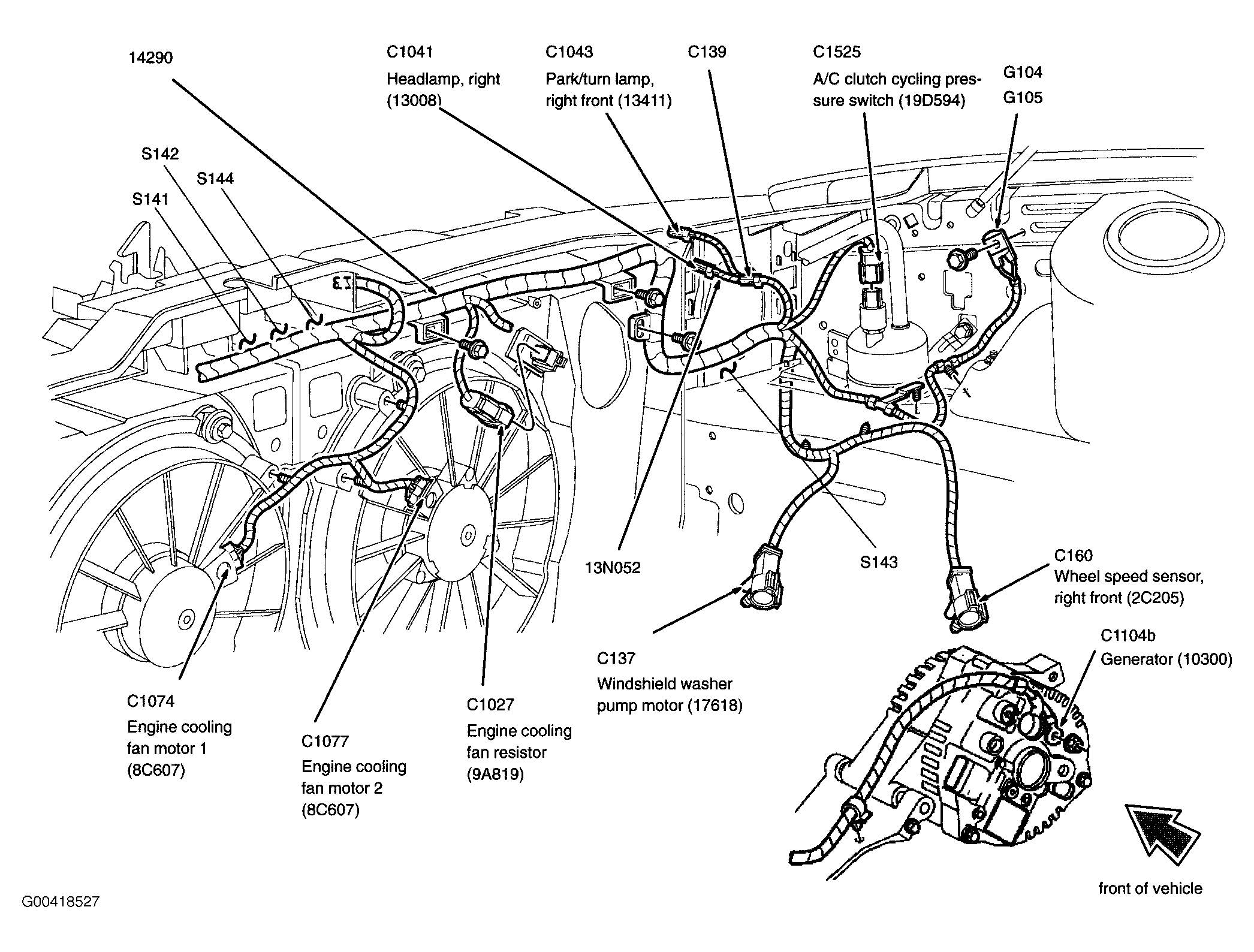

Fig 5: Right Front Side Of Engine Compartment
Courtesy of FORD MOTOR CO.
Fig 6: Top Left Side Of Engine
Courtesy of FORD MOTOR CO.

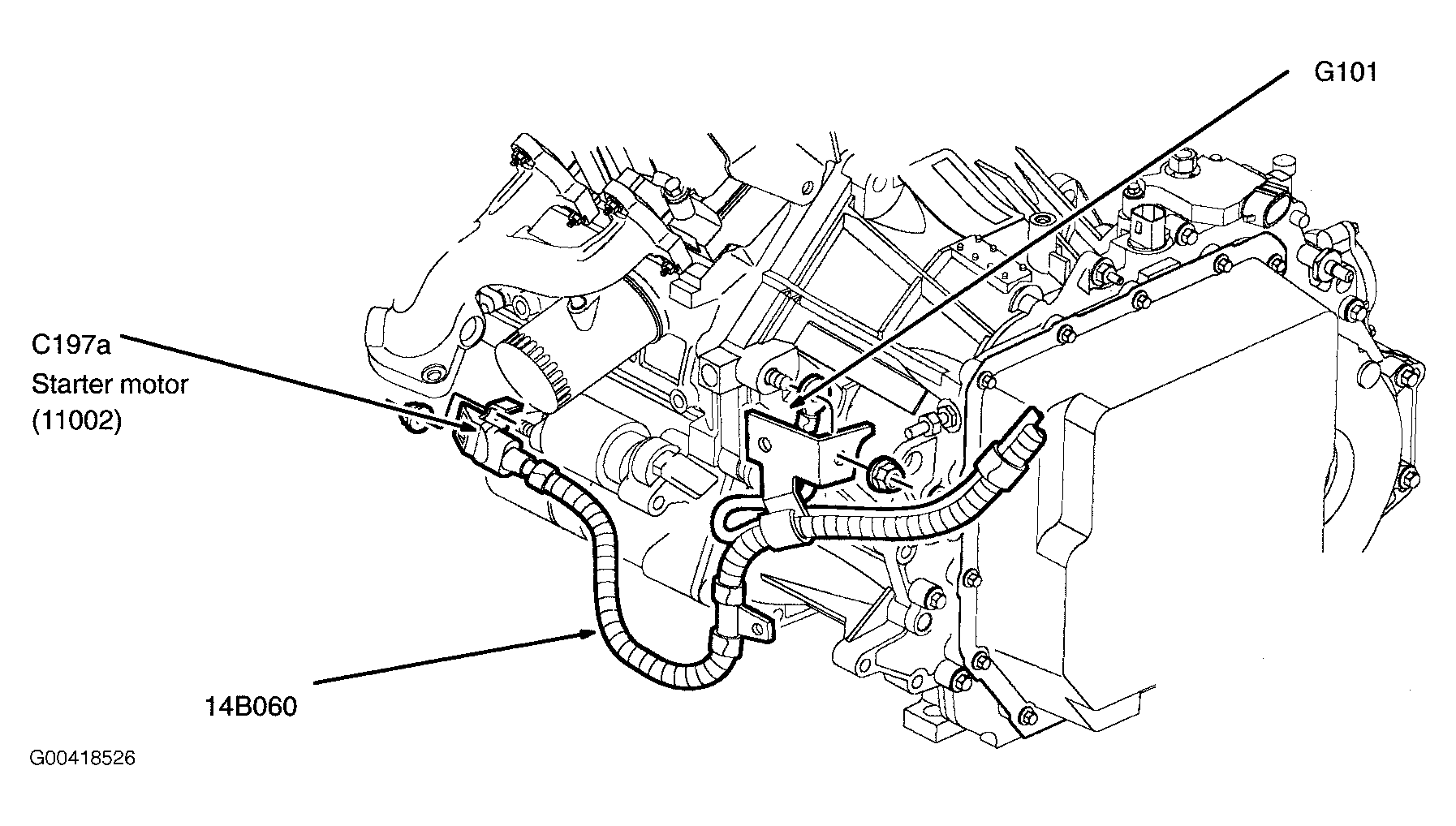

Fig 7: Right Side Of Engine
Courtesy of FORD MOTOR CO.
Fig 8: Right Rear Of Engine Compartment
Courtesy of FORD MOTOR CO.

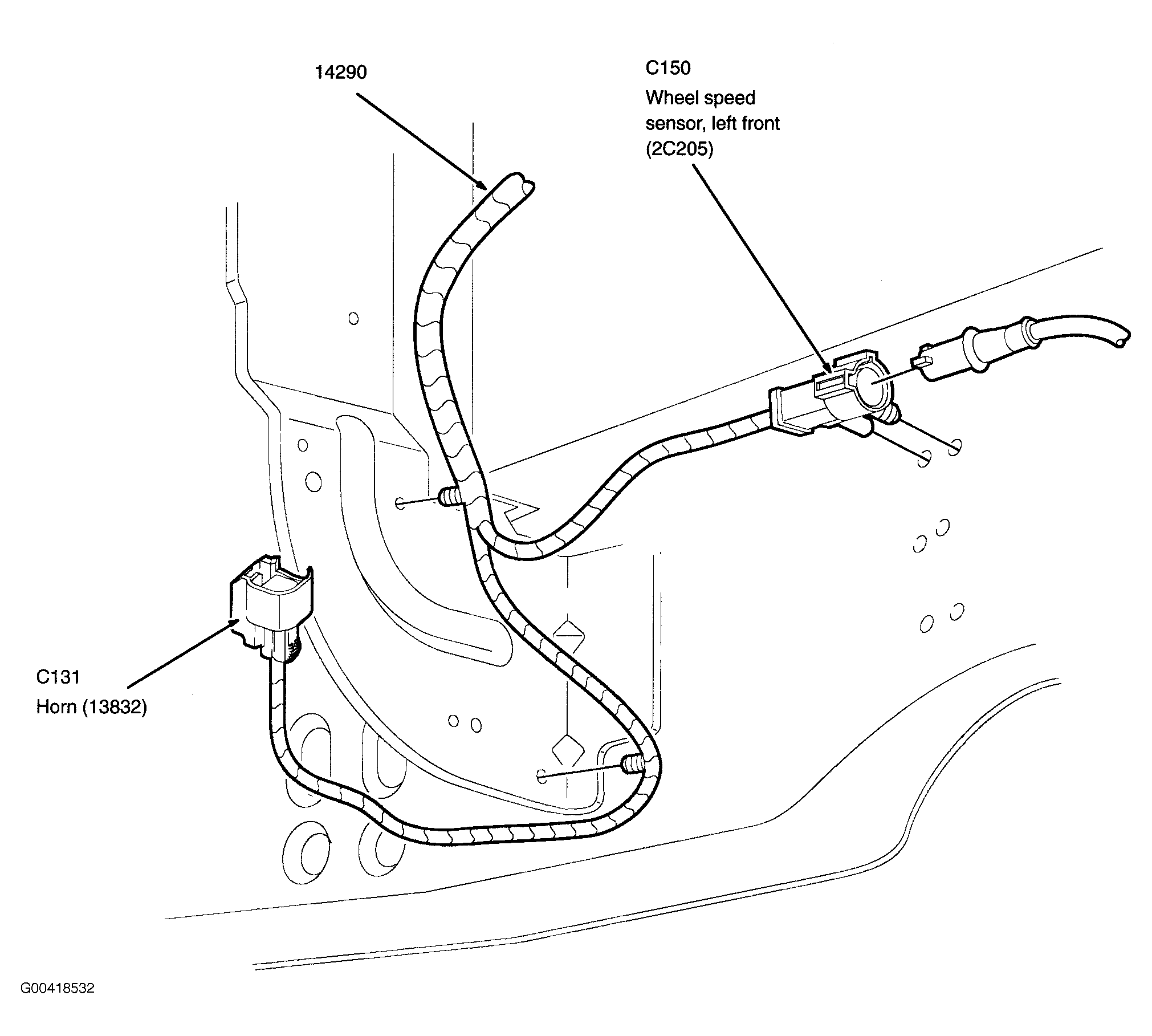

Fig 9: Left Front Of Engine Compartment
Courtesy of FORD MOTOR CO.
Fig 10: Under Left Side Of Dash
Courtesy of FORD MOTOR CO.

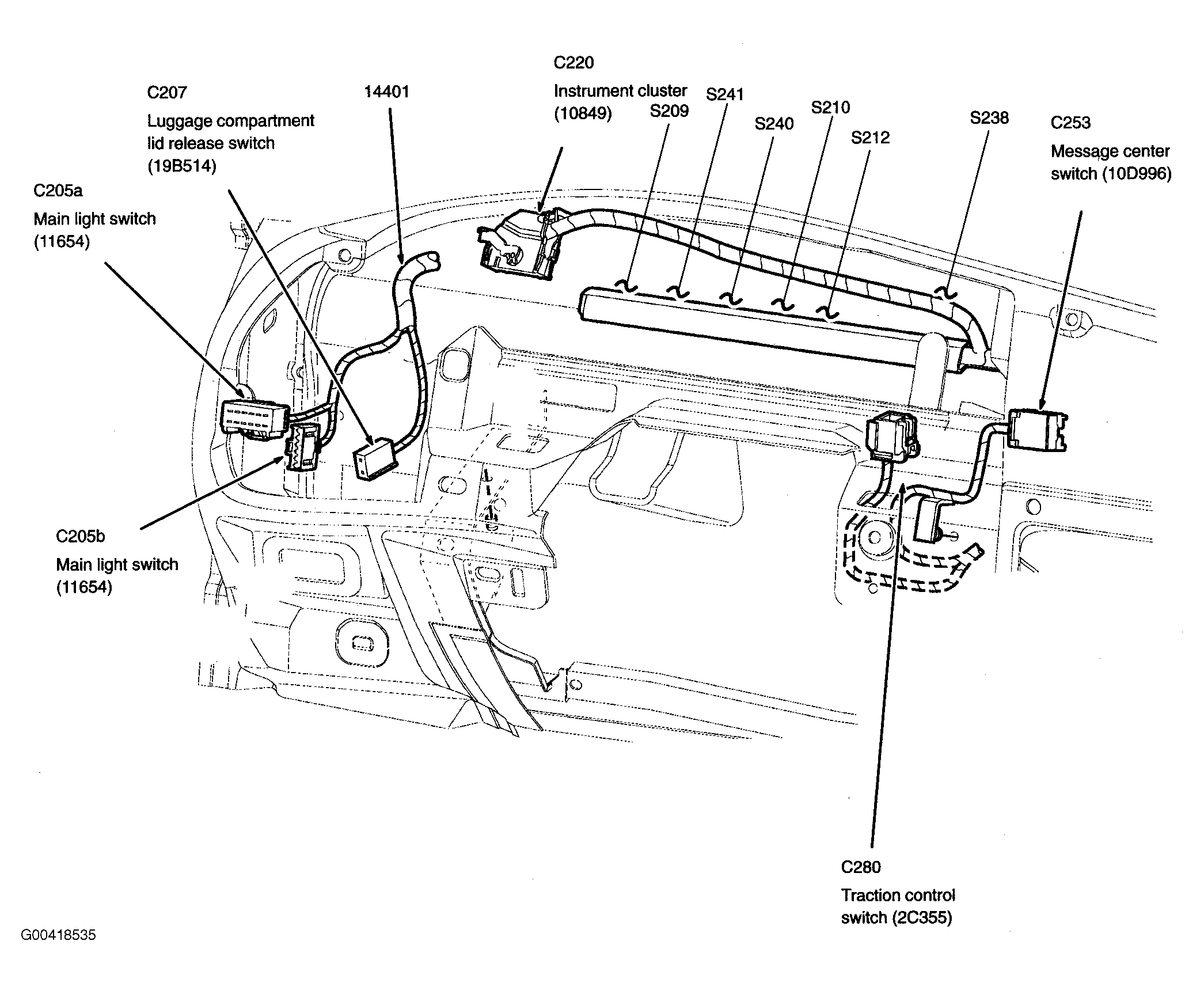

Fig 11: Behind Left Side Of Dash
Courtesy of FORD MOTOR CO.

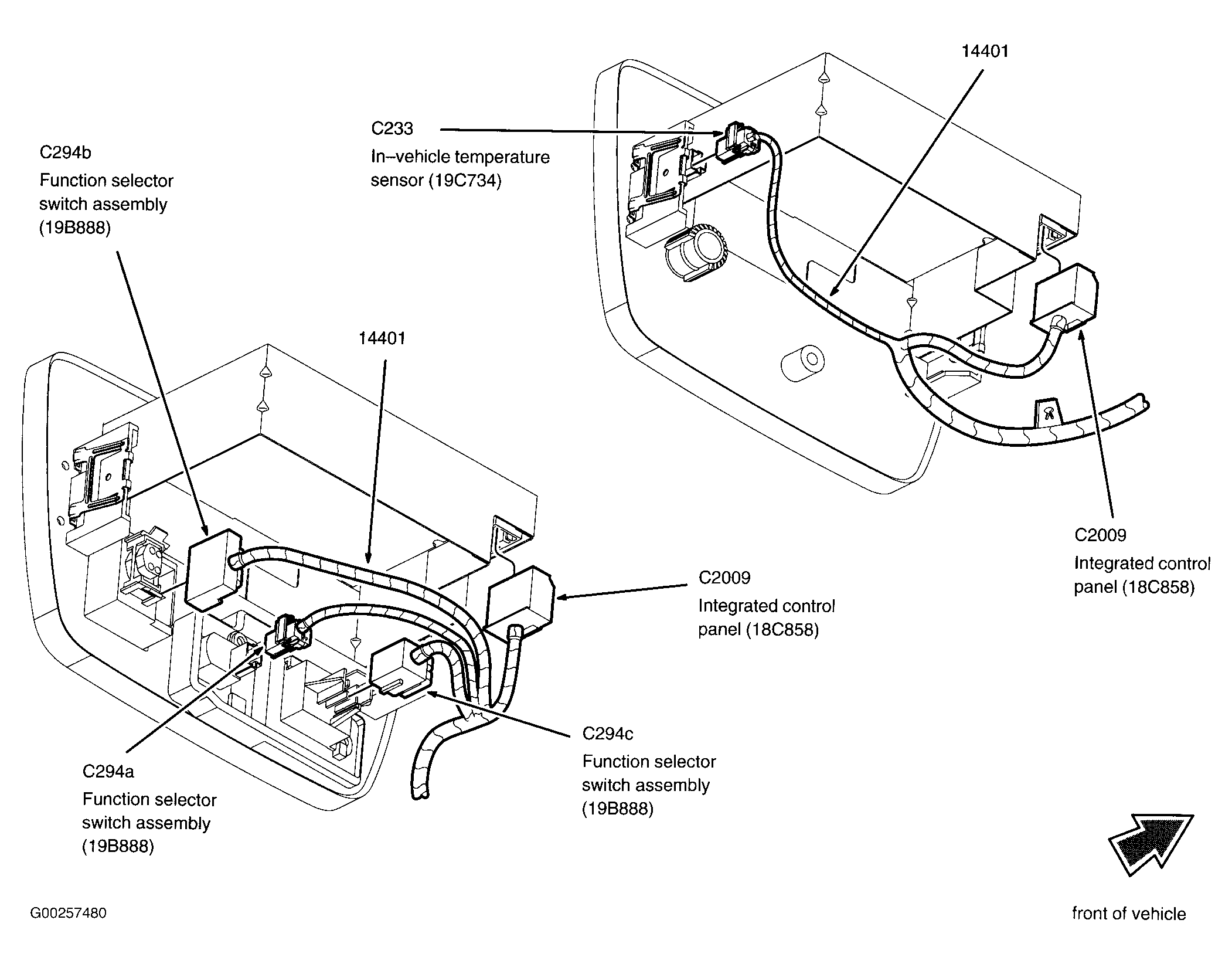

Fig 12: Center Of Dash
Courtesy of FORD MOTOR CO.
Fig 13: Behind Right Side Of Dash
Courtesy of FORD MOTOR CO.
Fig 14: Steering Column
Courtesy of FORD MOTOR CO.
Fig 15: Under Driver Seat
Courtesy of FORD MOTOR CO.

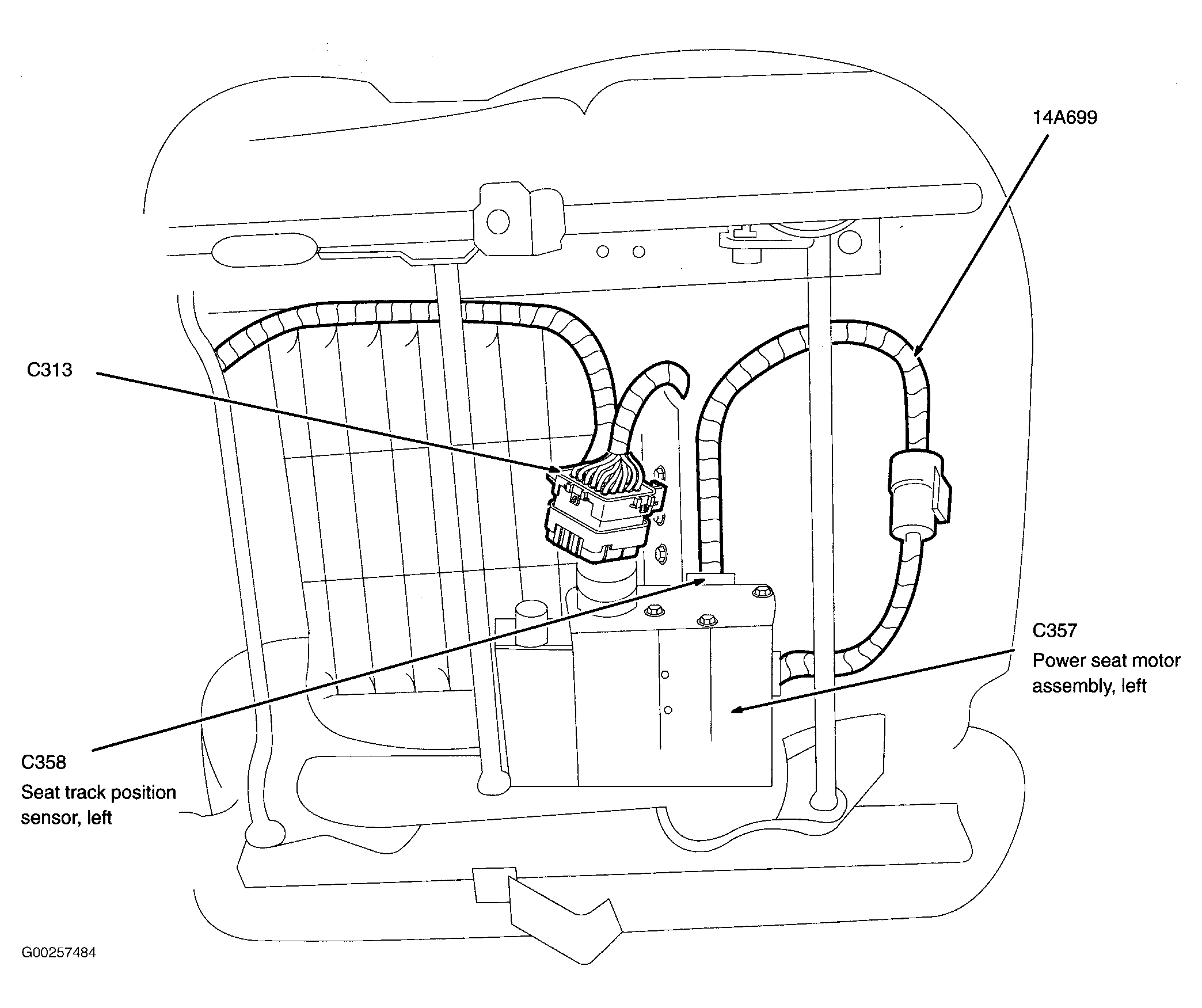

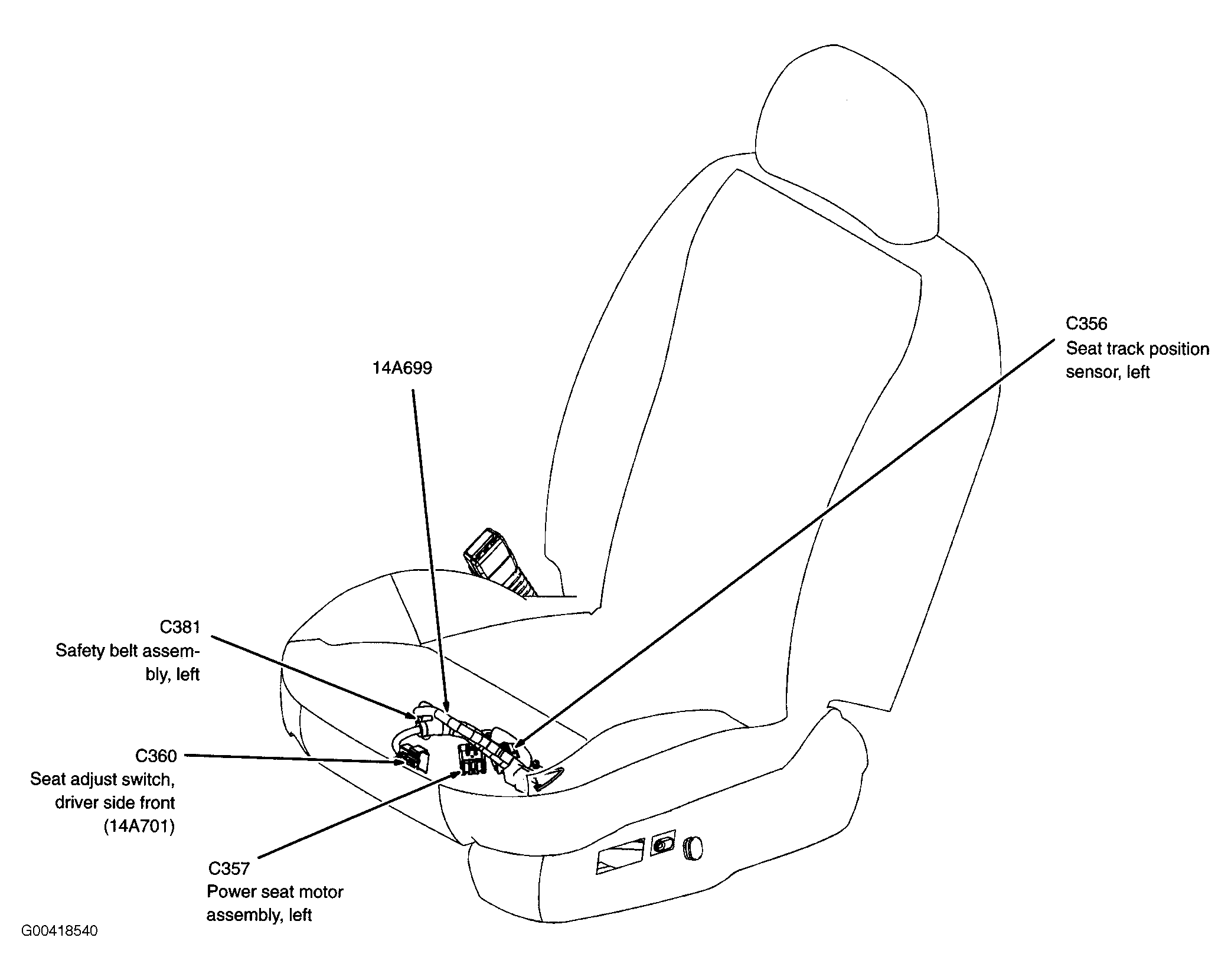

Fig 16: Driver Seat (Power)
Courtesy of FORD MOTOR CO.
Fig 17: Under Passenger Seat (Manual)
Courtesy of FORD MOTOR CO.

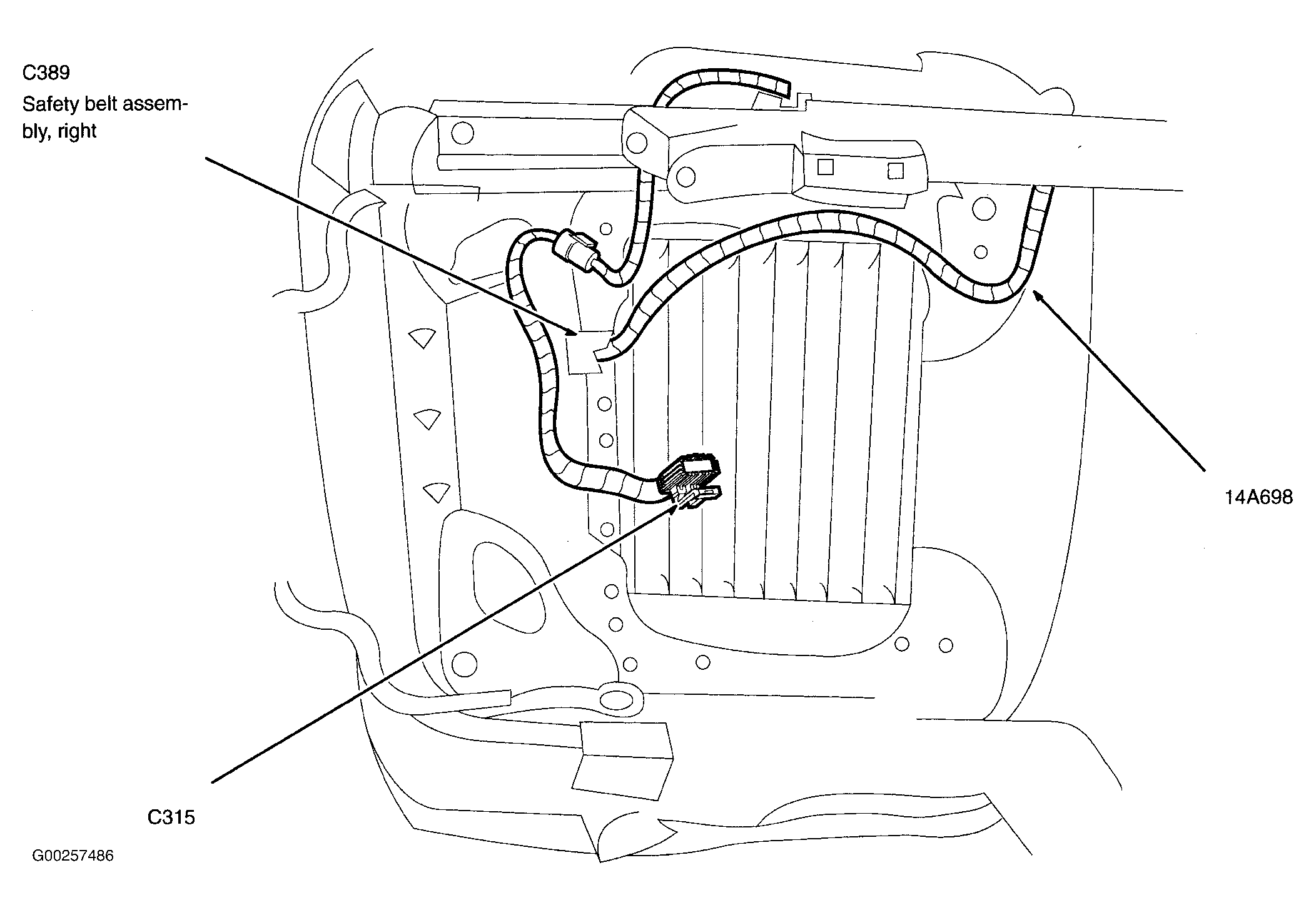

Fig 18: Passenger Seat (Power)
Courtesy of FORD MOTOR CO.
Fig 19: Left Side Of Vehicle Floor
Courtesy of FORD MOTOR CO.
Fig 20: Right Side Of Vehicle Floor
Courtesy of FORD MOTOR CO.
Fig 21: Right "A" Pillar & Right "C" Pillar
Courtesy of FORD MOTOR CO.

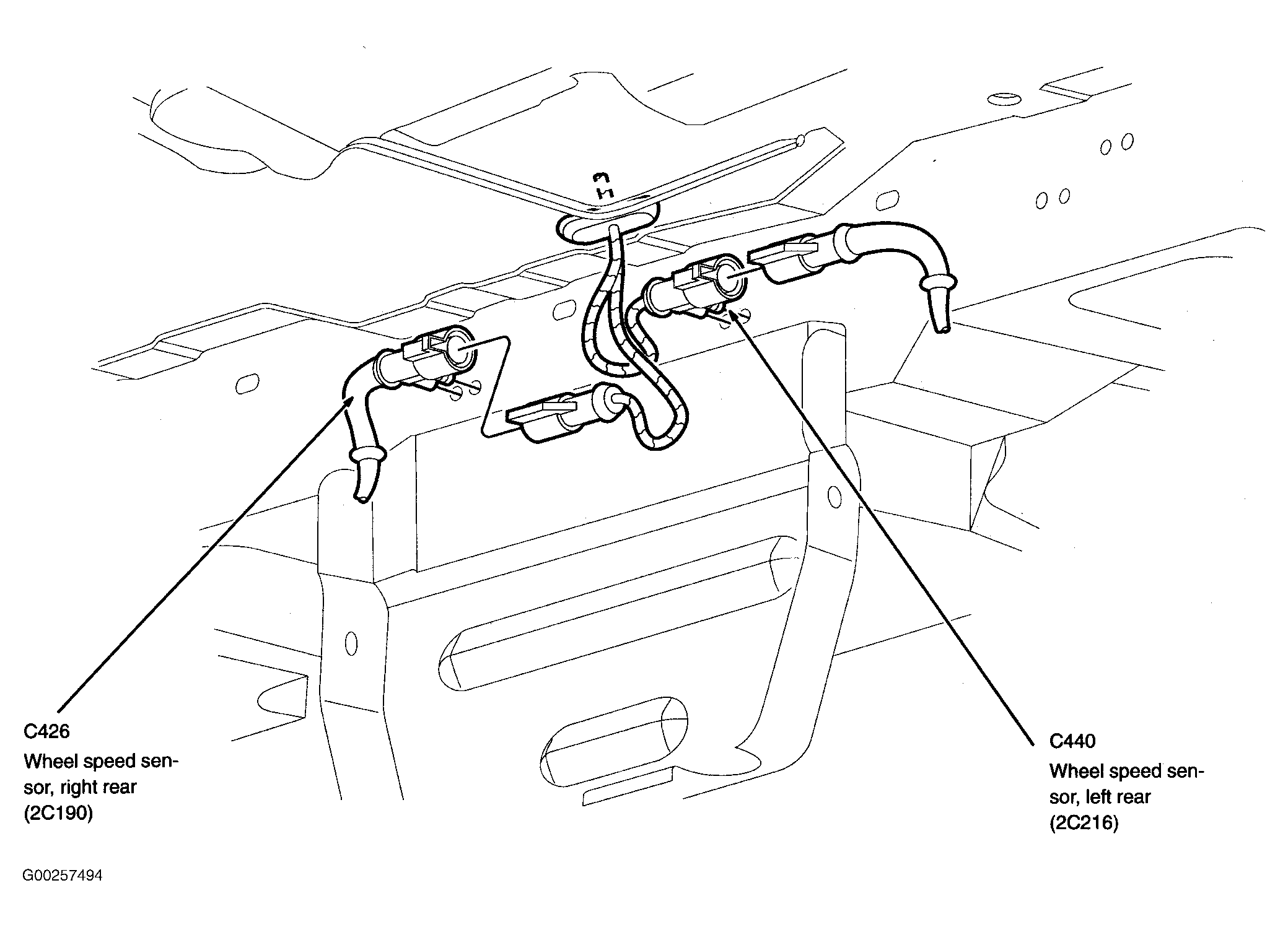

Fig 22: Behind Center Of Rear Seats Underbody
Courtesy of FORD MOTOR CO.

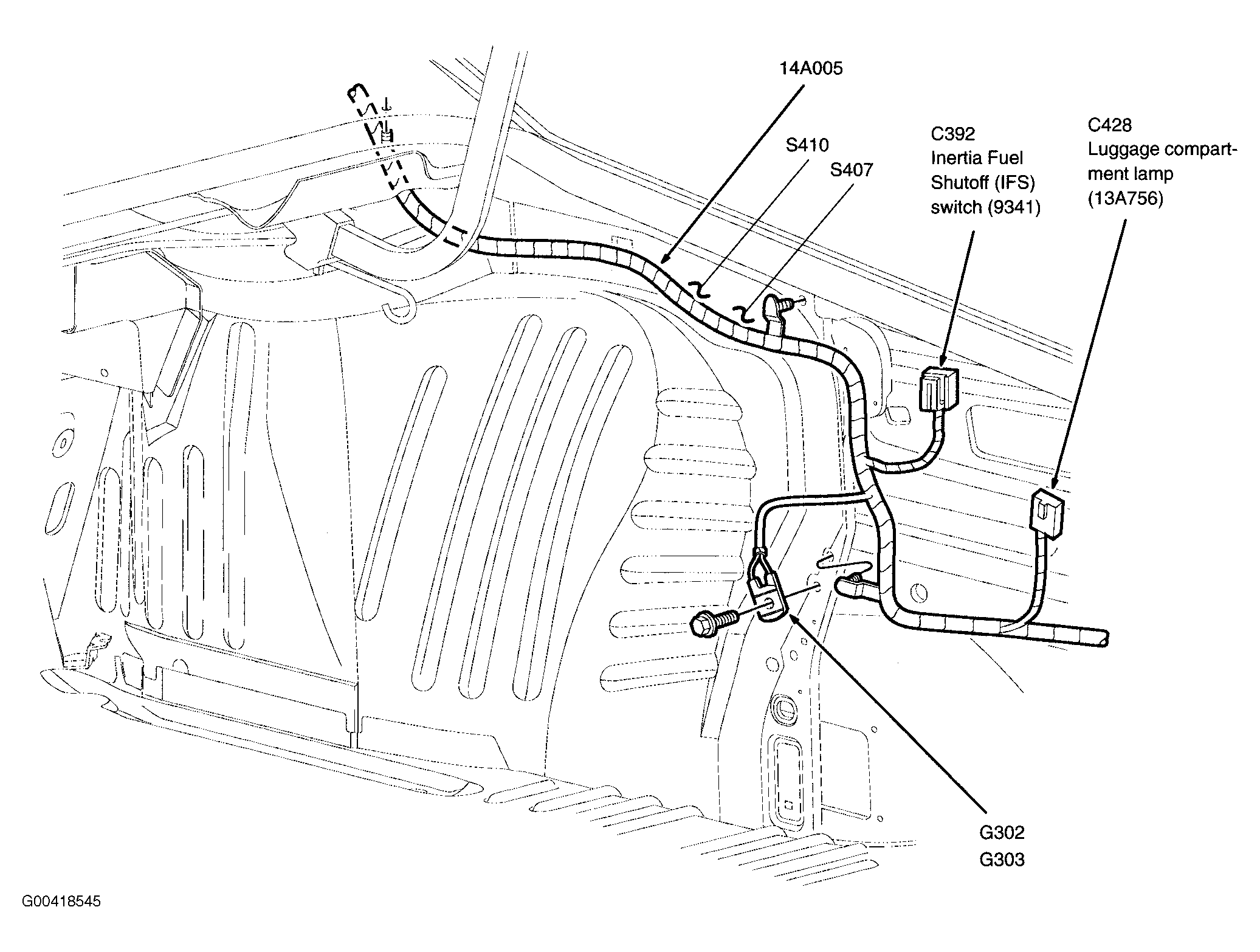

Fig 23: Left Side Of Luggage Compartment
Courtesy of FORD MOTOR CO.

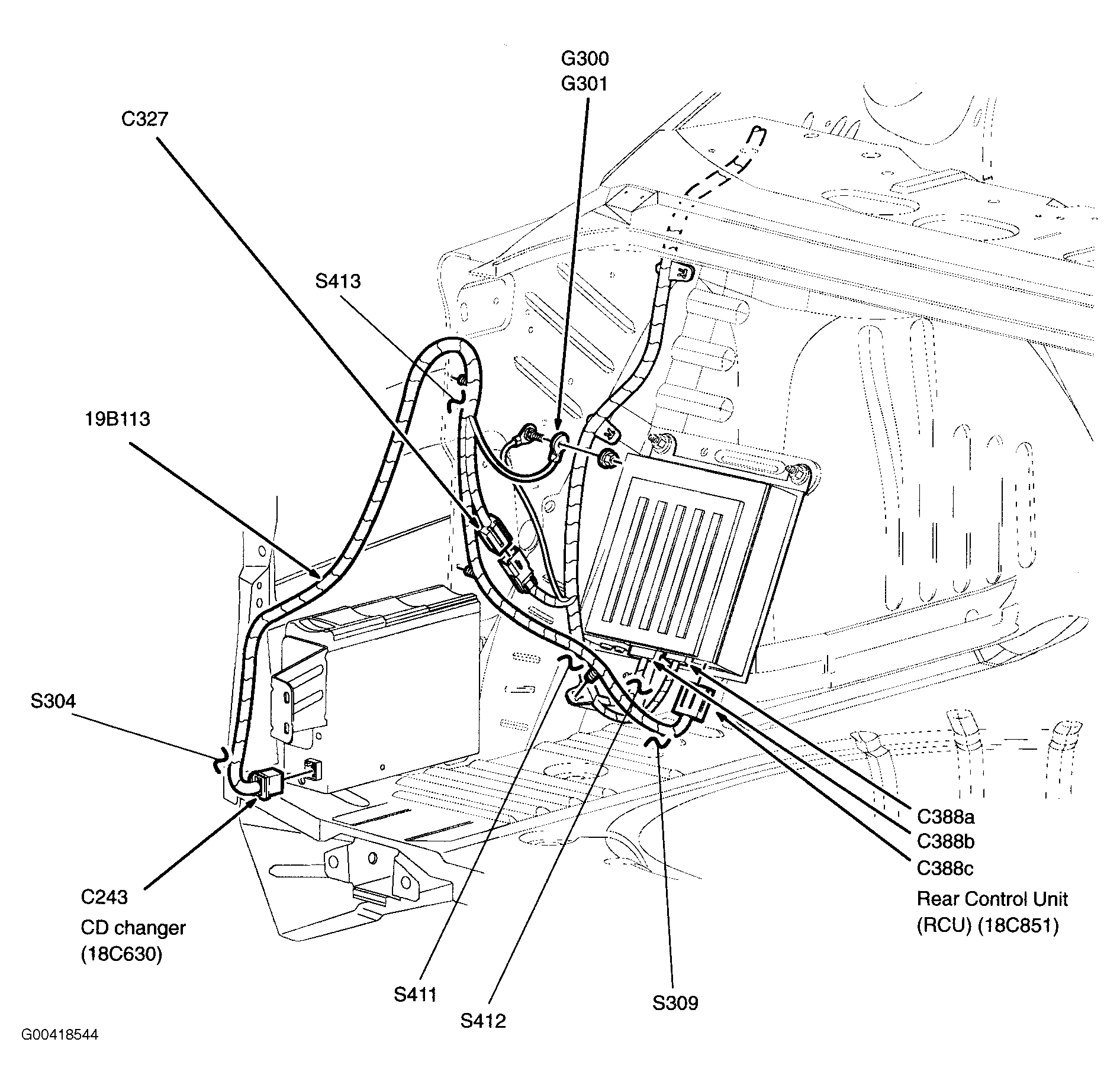

Fig 24: Top Right Side Of Luggage Compartment
Courtesy of FORD MOTOR CO.

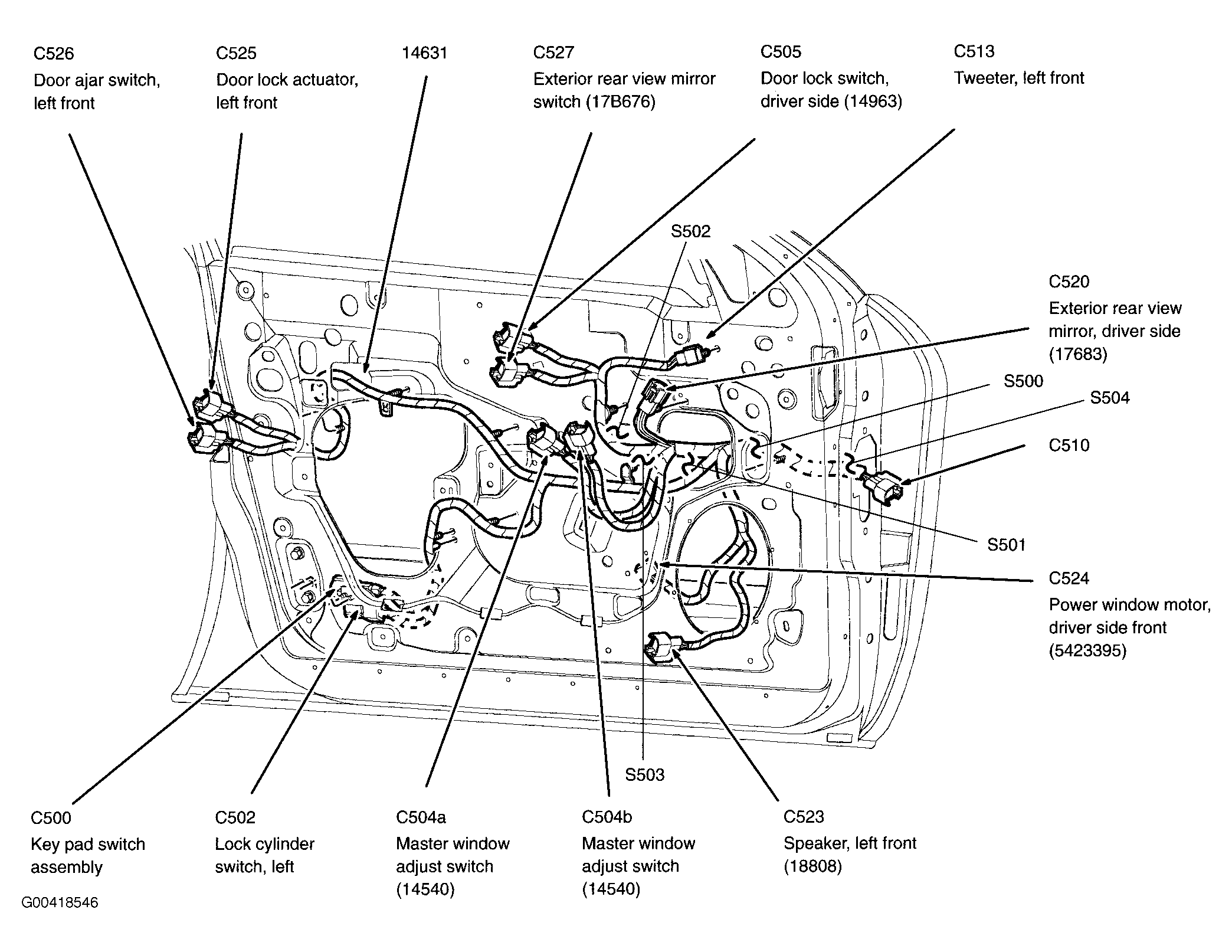

Fig 25: Left Front Door
Courtesy of FORD MOTOR CO.

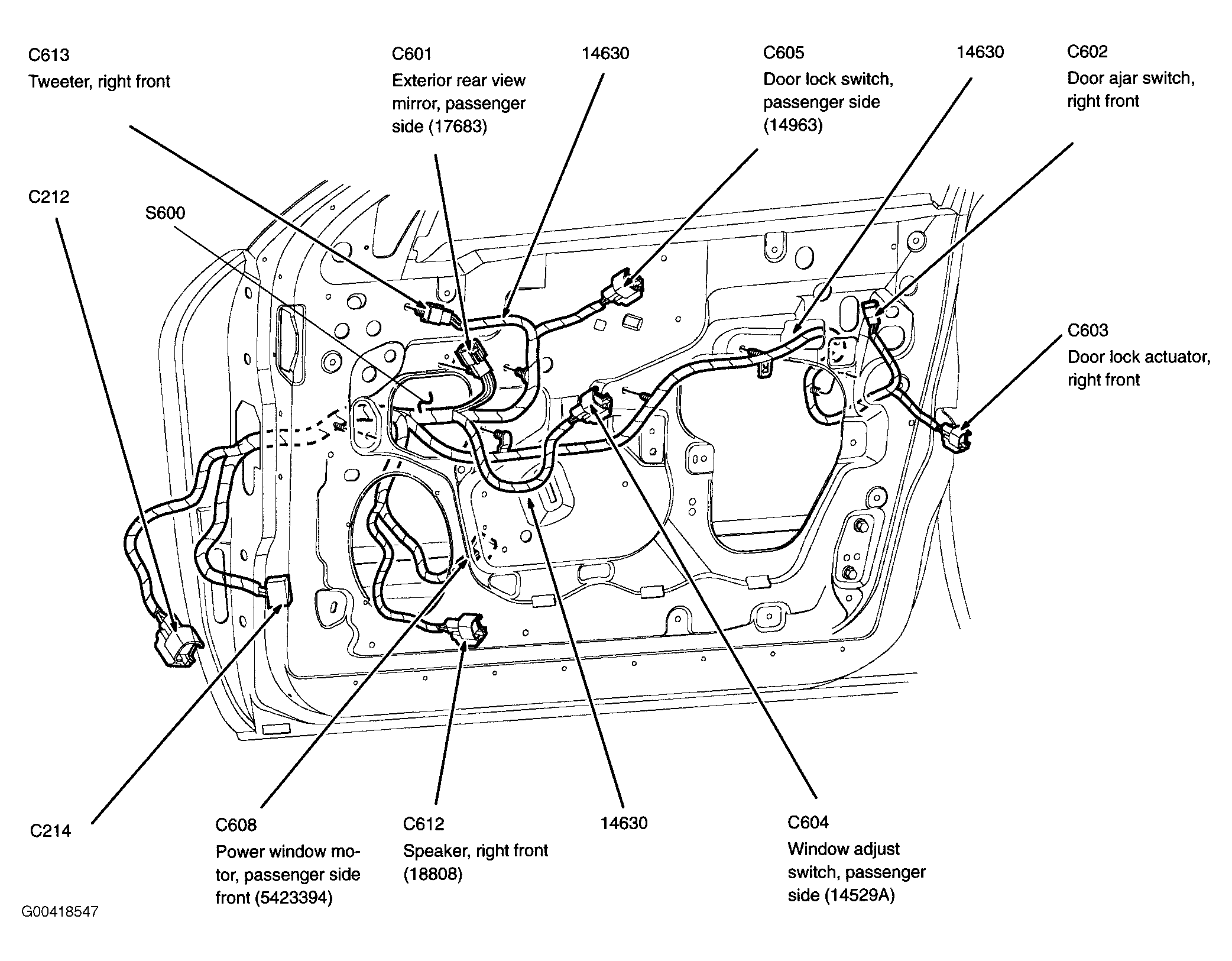

Fig 26: Right Front Door
Courtesy of FORD MOTOR CO.

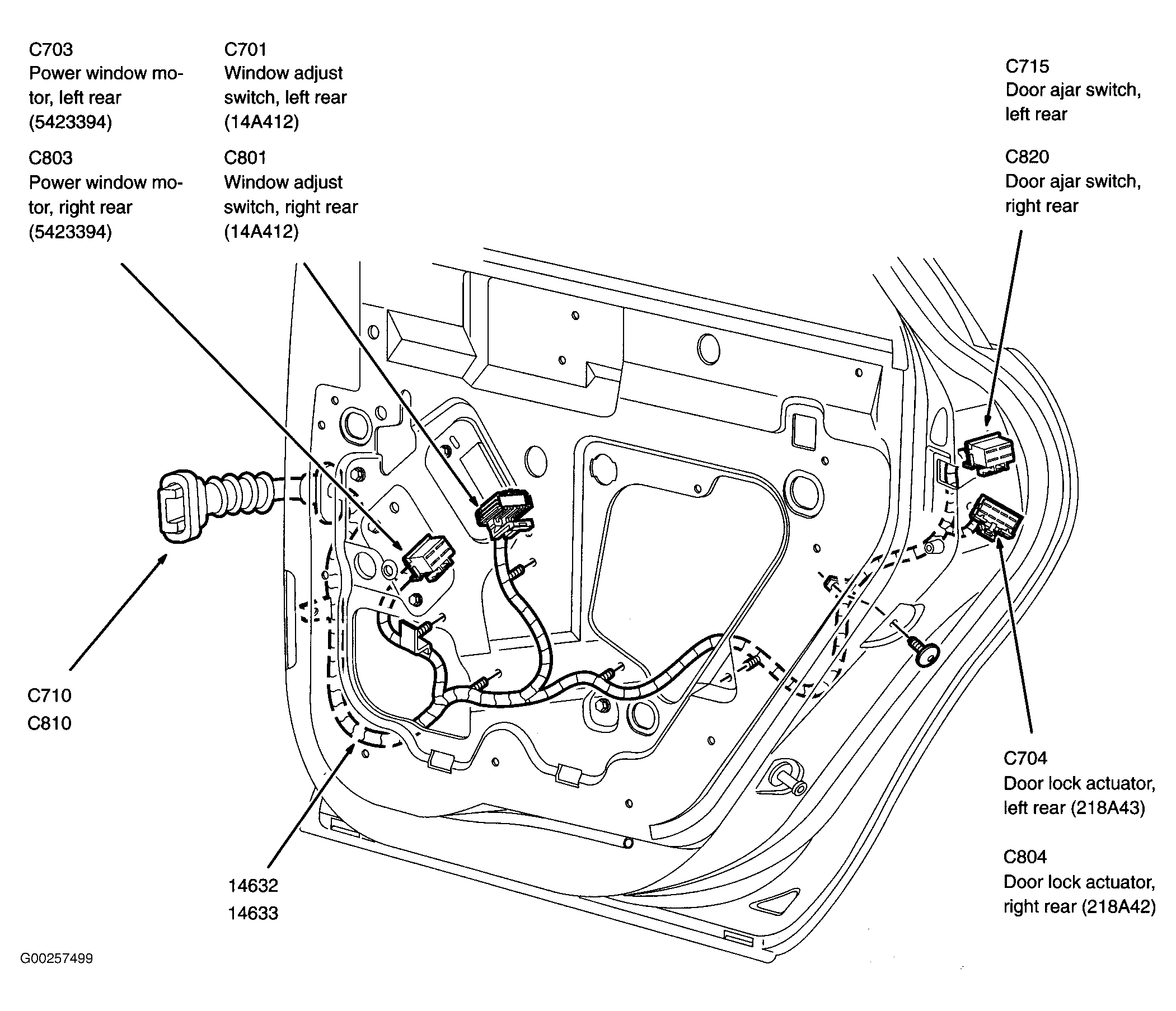

Fig 27: Rear Door
Courtesy of FORD MOTOR CO.

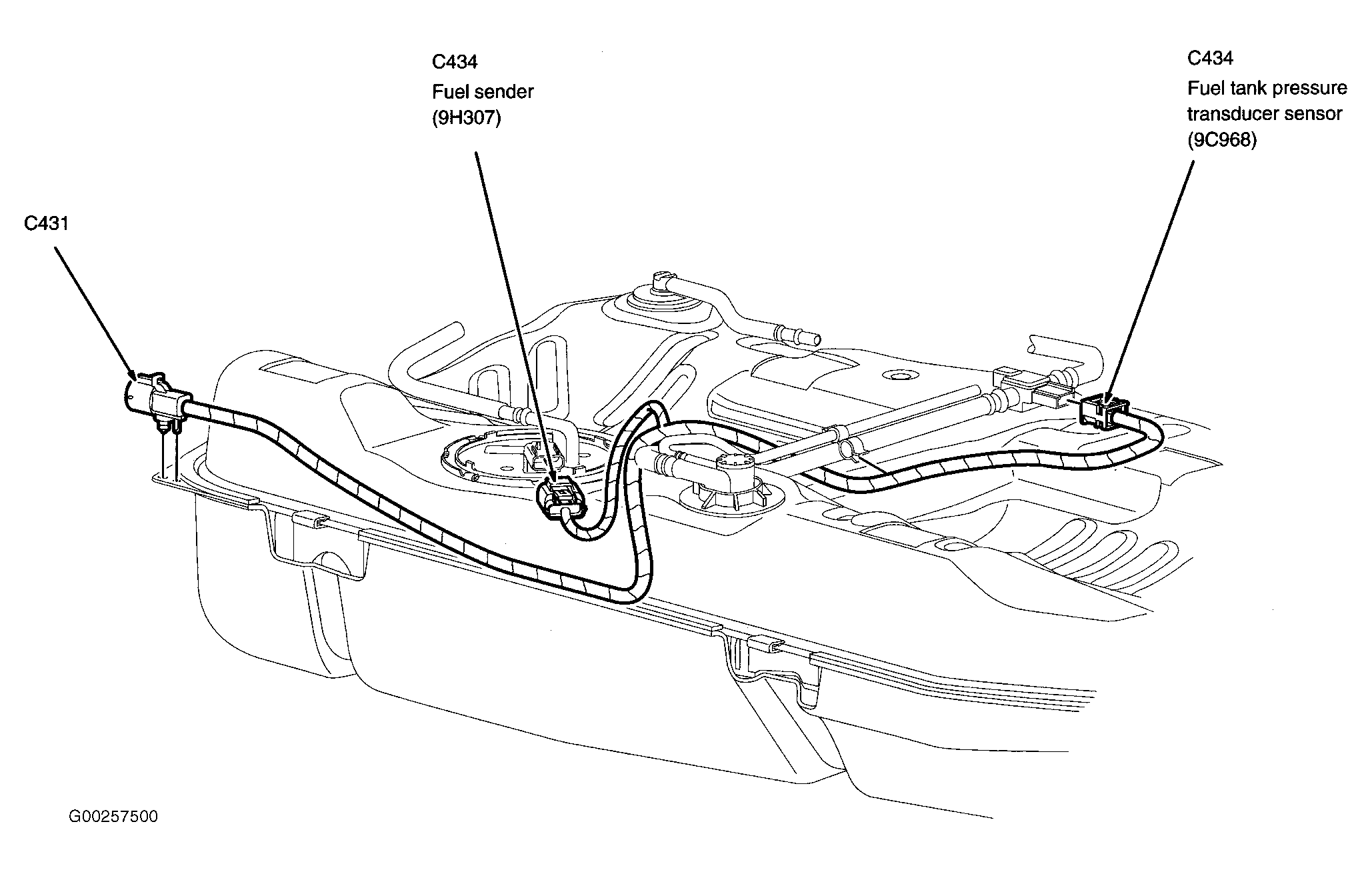

Fig 28: Fuel Tank
Courtesy of FORD MOTOR CO.

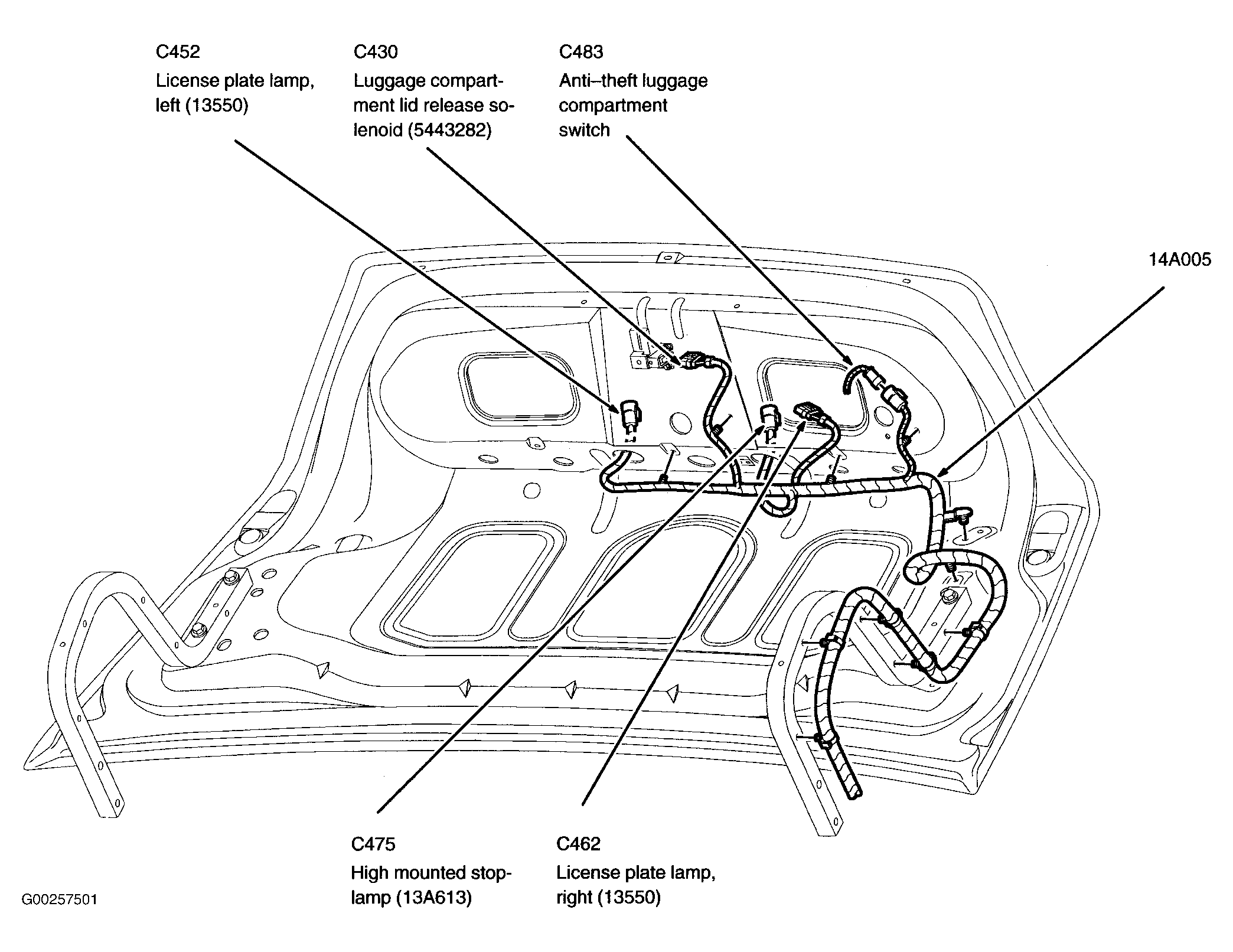

Fig 29: Decklid
Courtesy of FORD MOTOR CO.

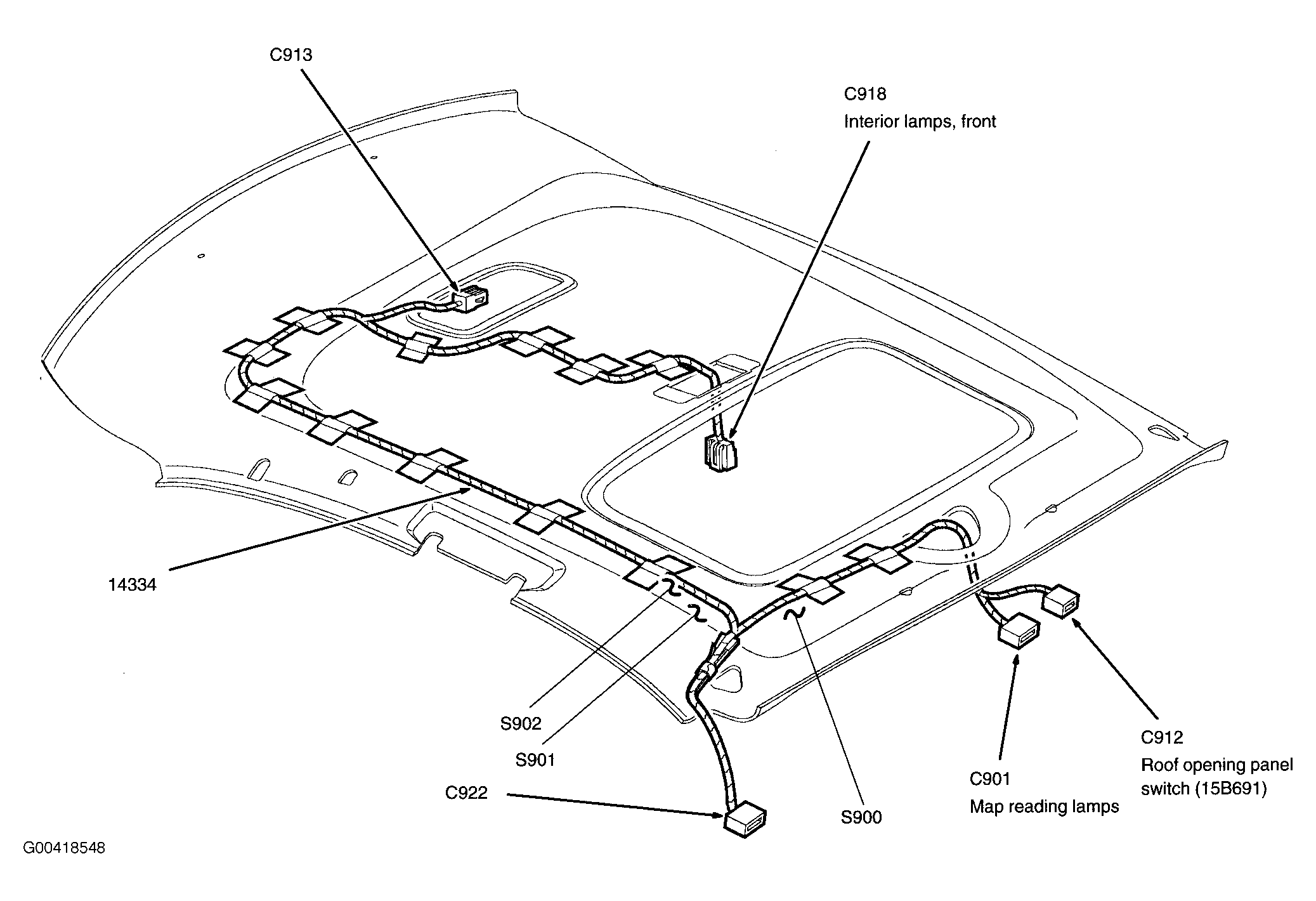

Fig 30: Roof
Courtesy of FORD MOTOR CO.

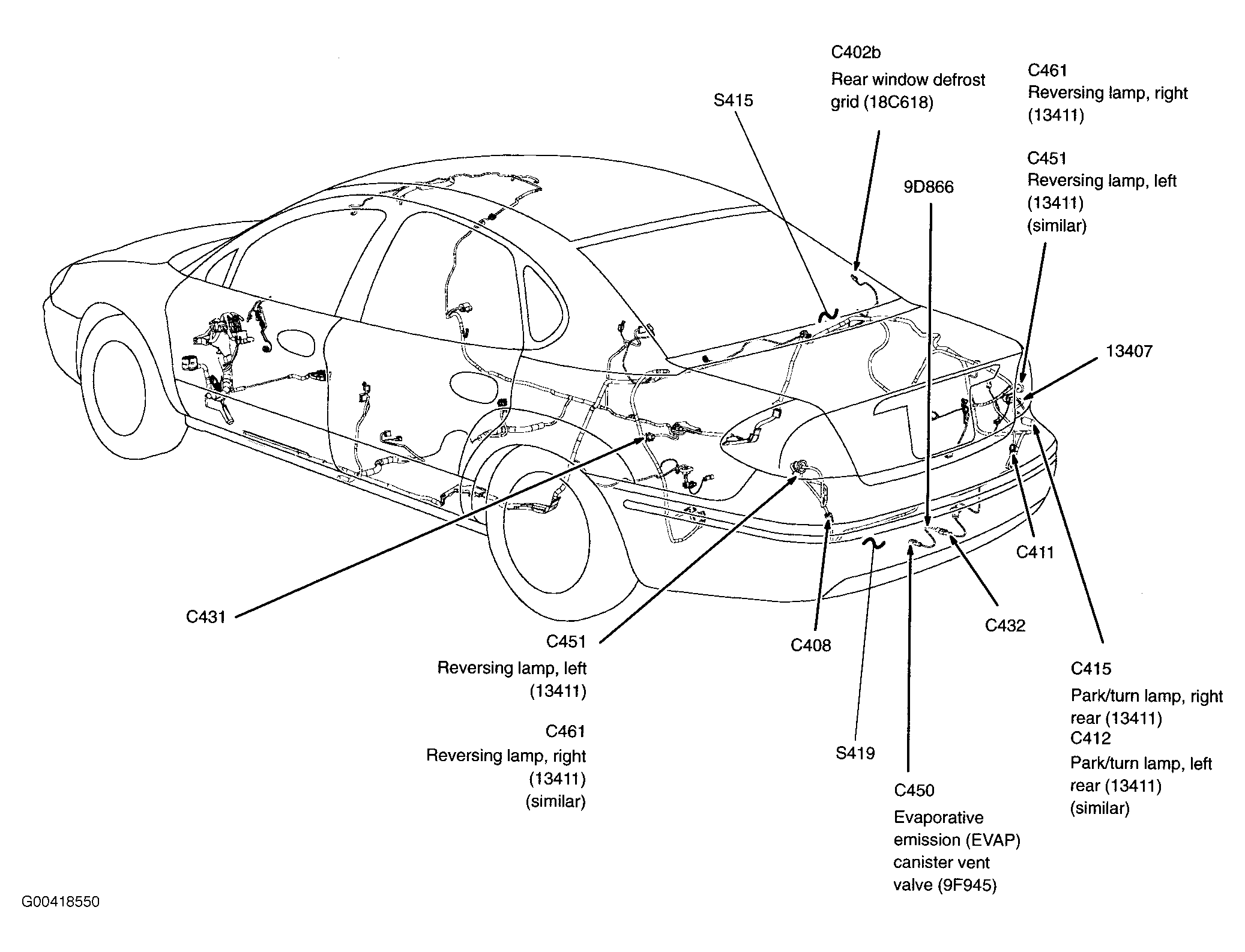

Fig 31: Vehicle Overview
Courtesy of FORD MOTOR CO.

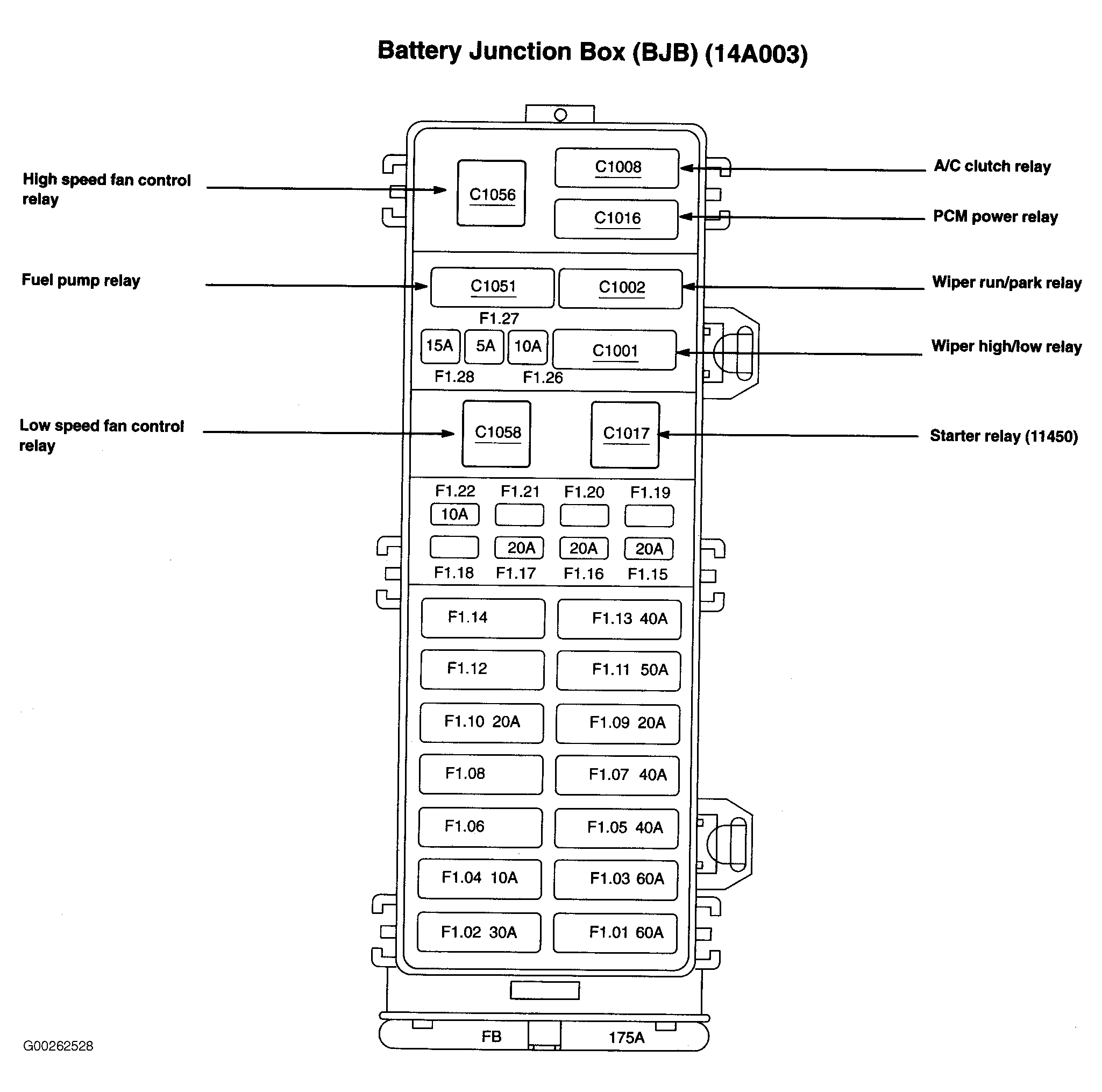

Fig 32: Battery Junction Box
Courtesy of FORD MOTOR CO.

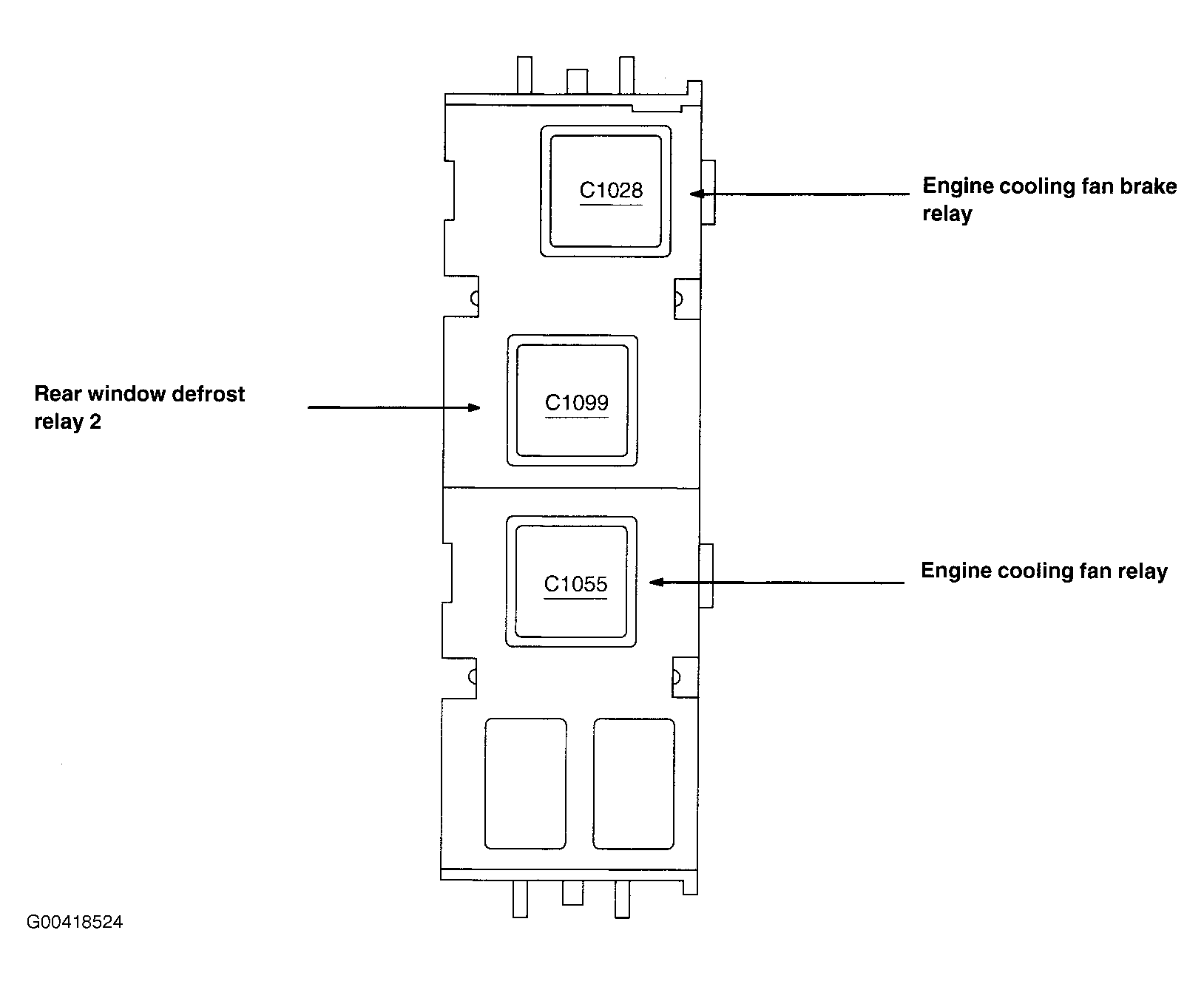

Fig 33: Relay Center Box 1
Courtesy of FORD MOTOR CO.

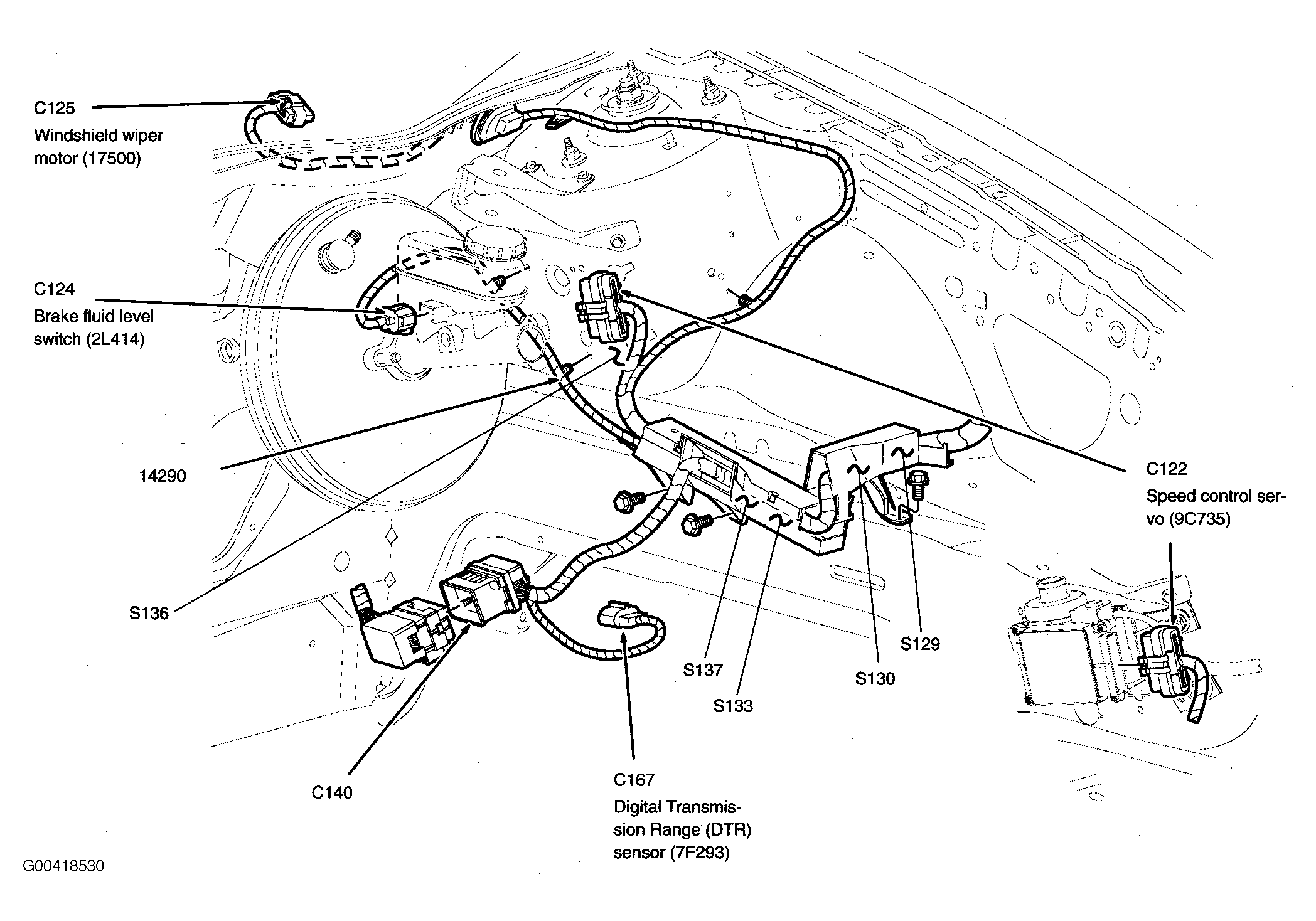

Fig 34: Left Rear Of Engine Compartment
Courtesy of FORD MOTOR CO.
Fig 35: Behind Left Side Of Dash
Courtesy of FORD MOTOR CO.

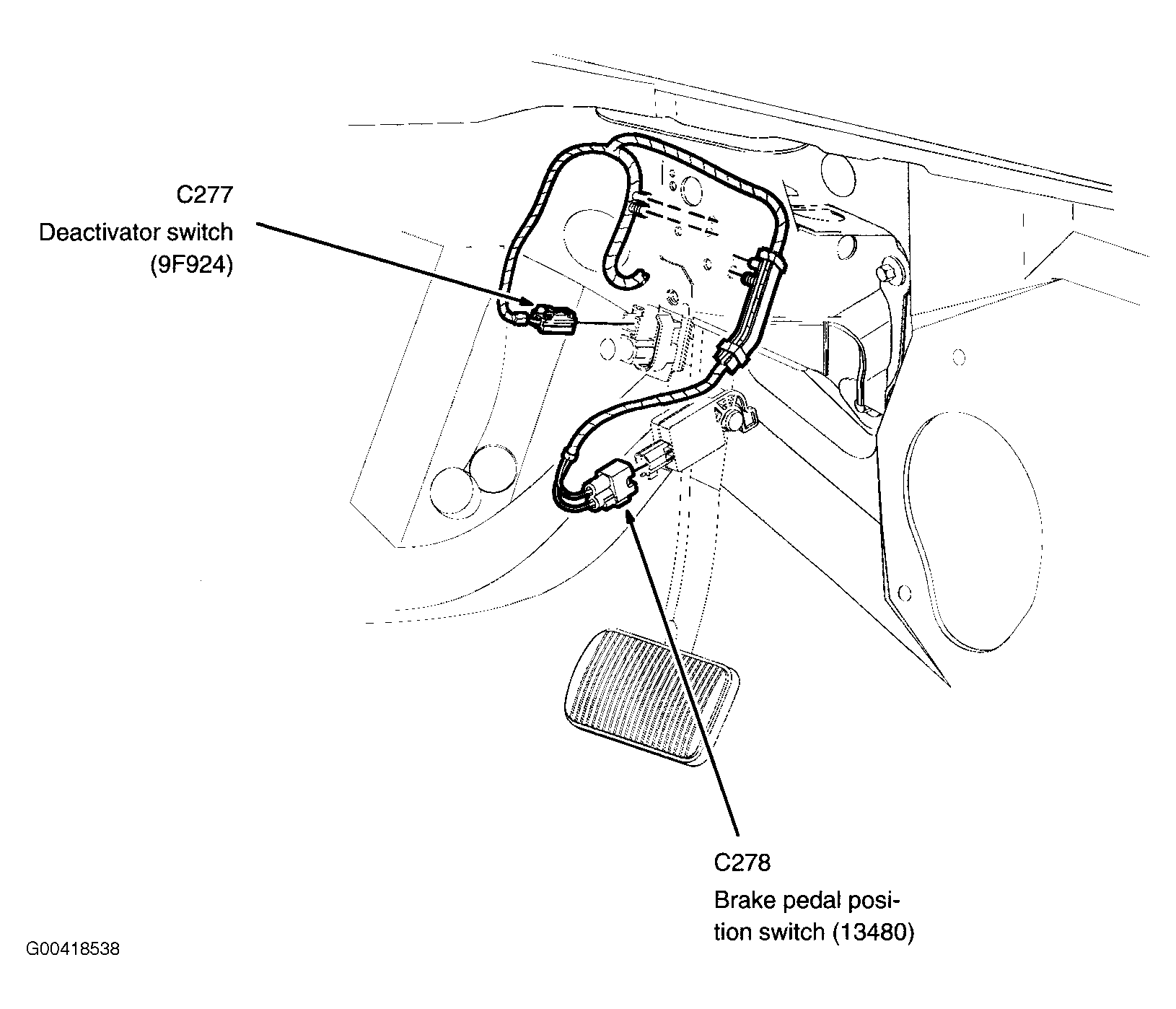

Fig 36: Brake Pedal Support
Courtesy of FORD MOTOR CO.

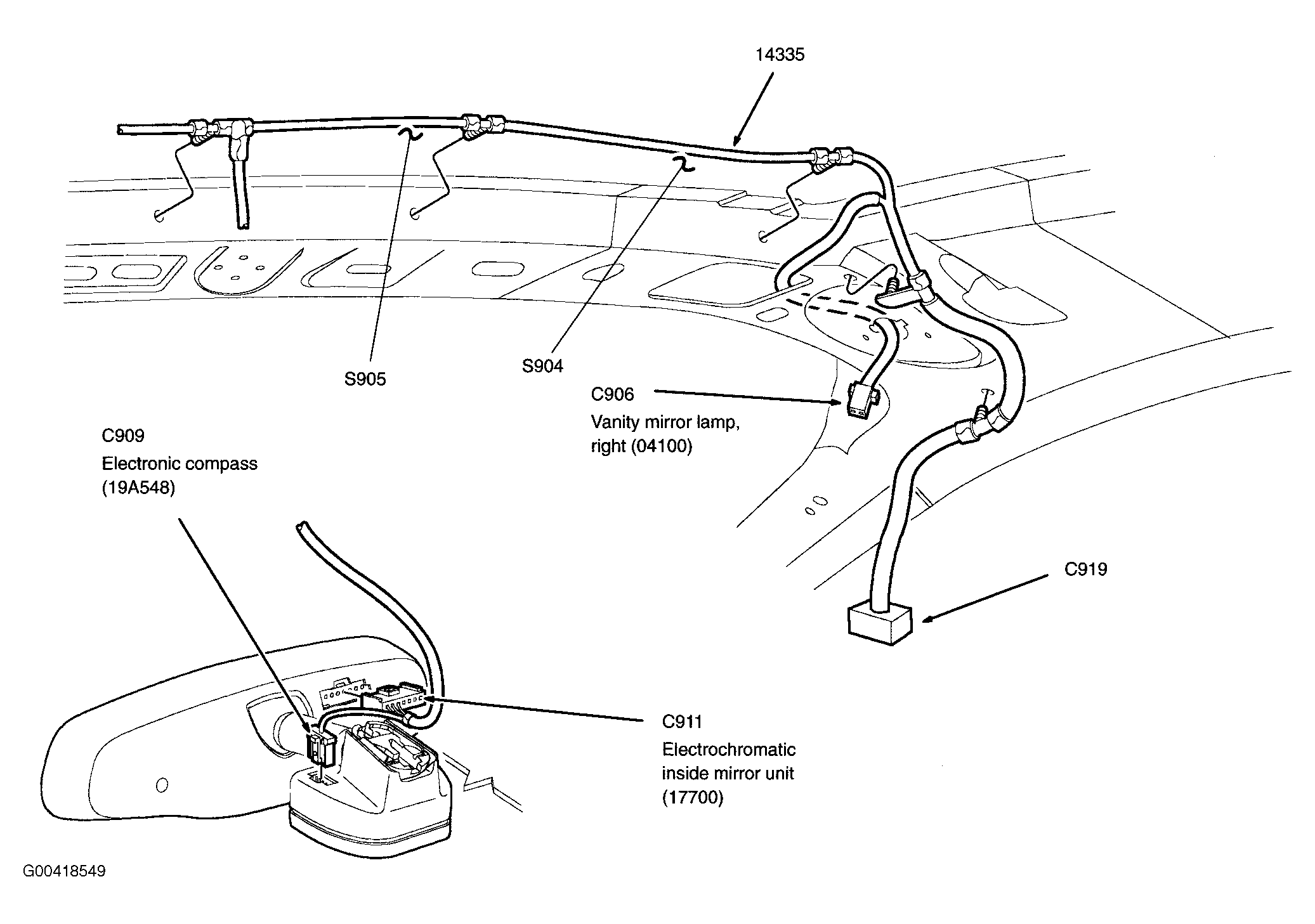

Fig 37: Right Front Of Roof
Courtesy of FORD MOTOR CO.
