Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Left front of engine compartment, below battery. See Figure. |

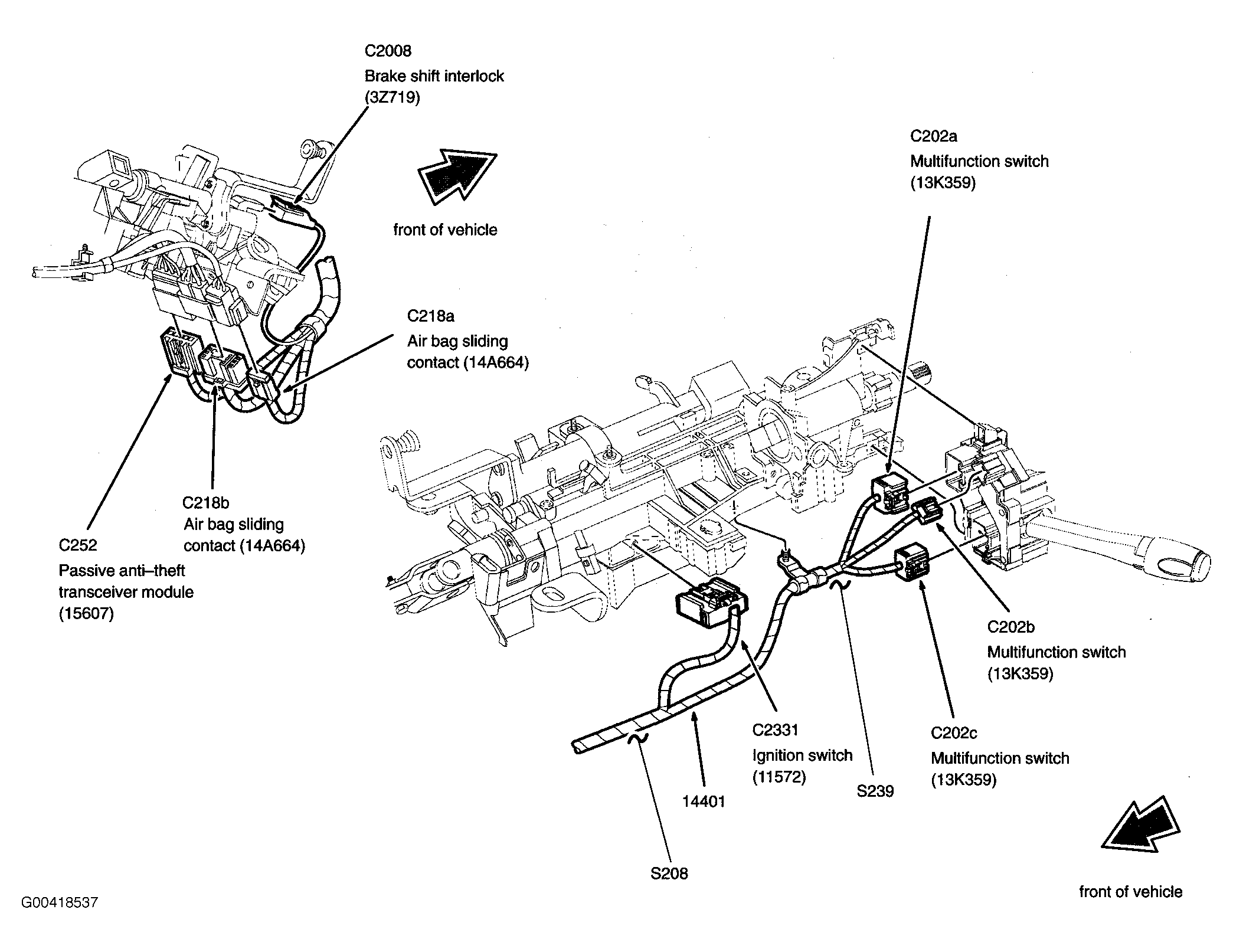

| Brake Shift Interlock | Near bottom of steering column. See Figure. |
| Flexible Fuel Sensor Module | Behind center of dash, near instrument cluster. See Figure. |

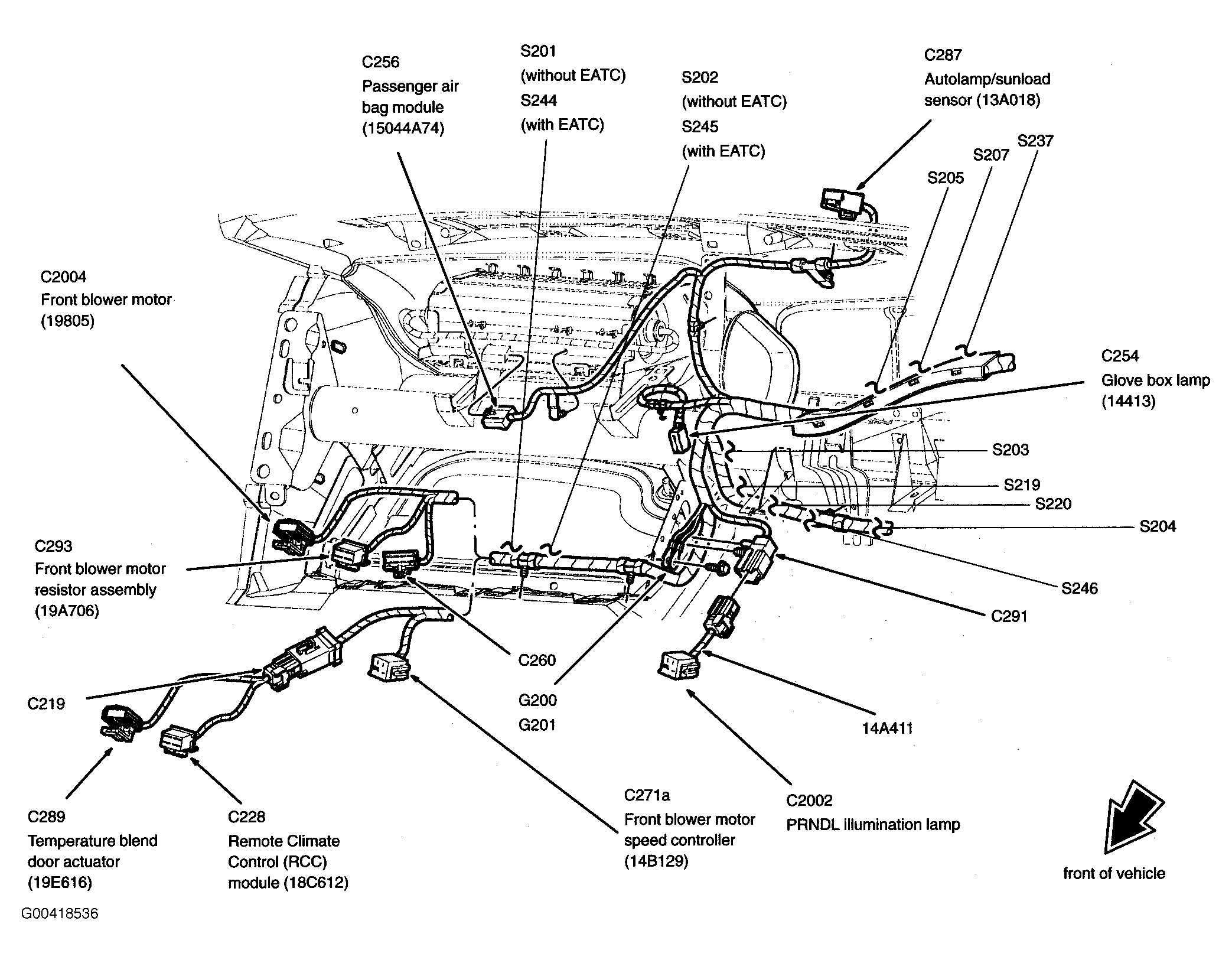

| Front Blower Motor Speed Controller | Behind center of dash, near HVAC unit. See Figure. |

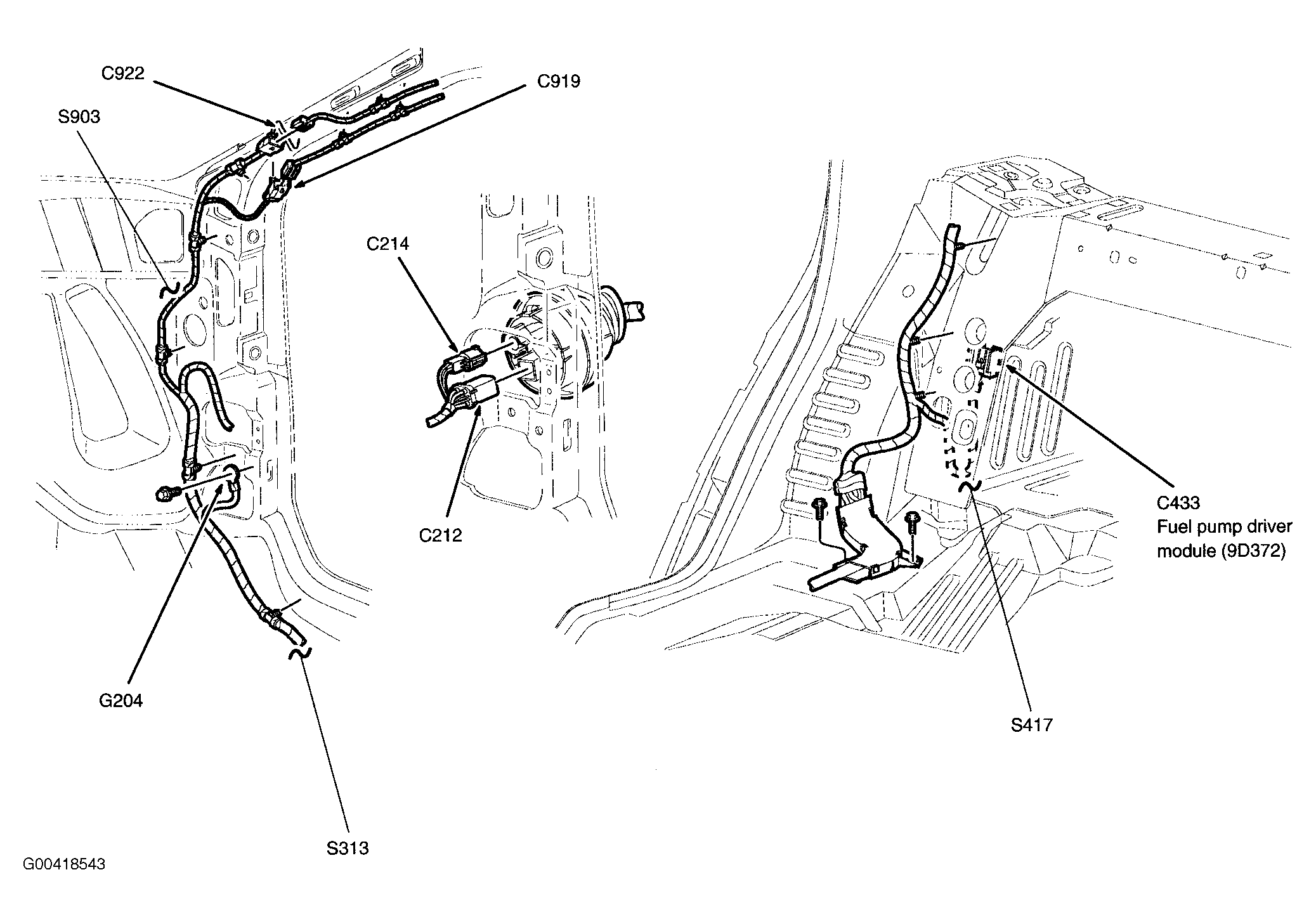

| Fuel Pump Driver Module | Behind right side luggage compartment trim panel. See Figure. |

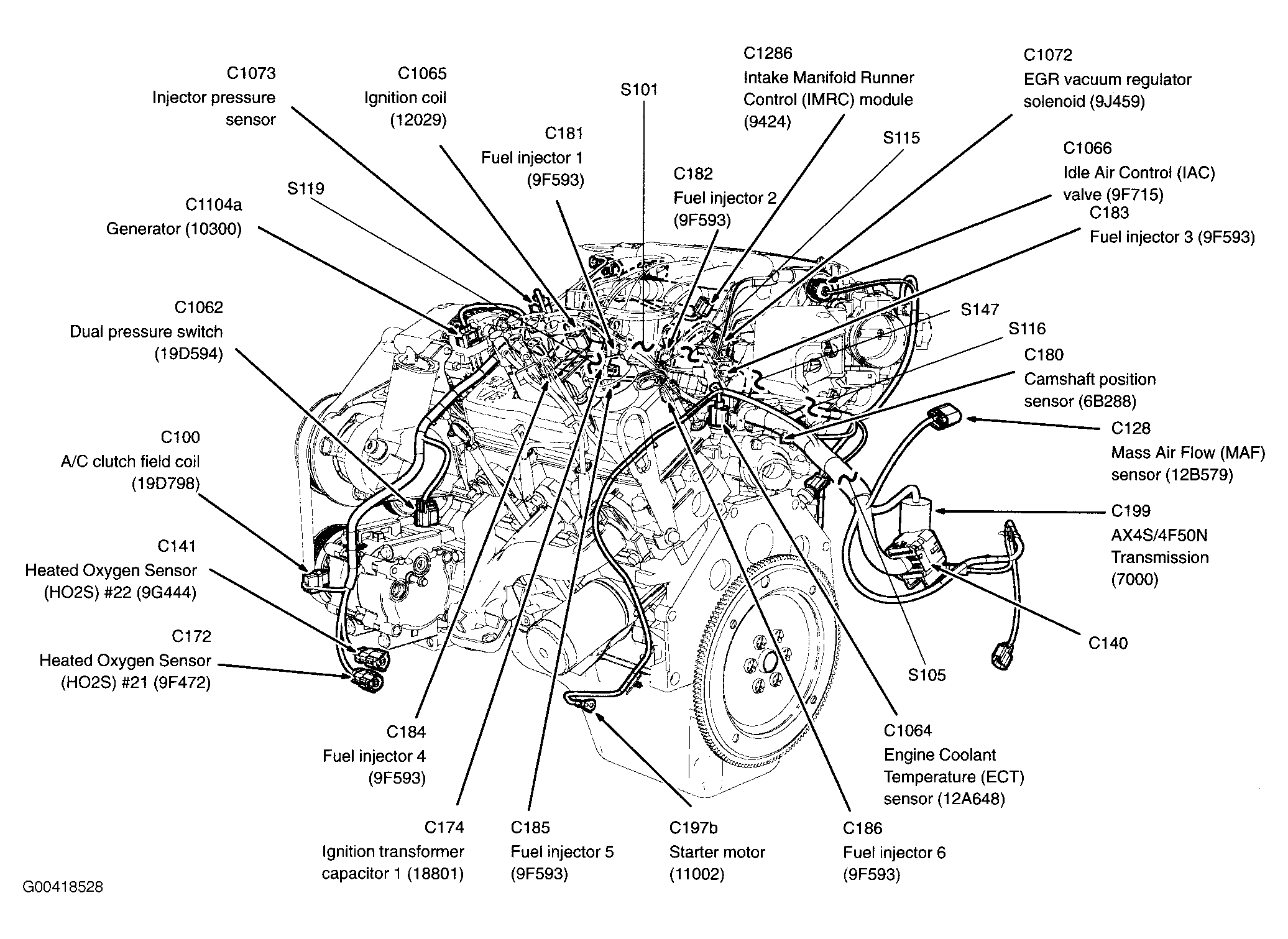

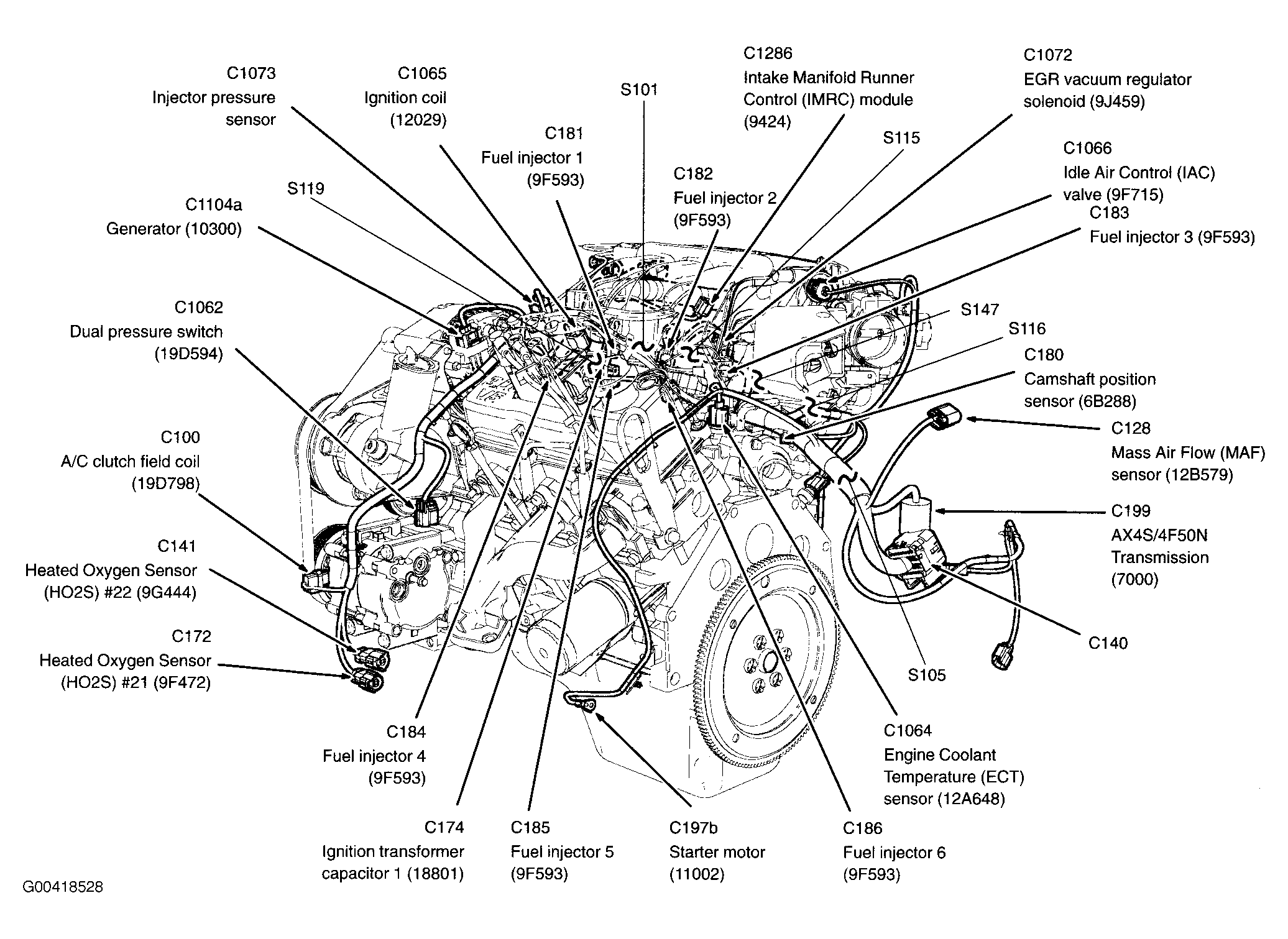

| Intake Manifold Runner Control (IMRC) Module | Top rear of engine. See Figure. |
| Passenger's Air Bag Module | Behind right side of dash, near glove box. See Figure. |
| Passive Anti-Theft System Transceiver Module | On steering column, near ignition switch. See Figure. |

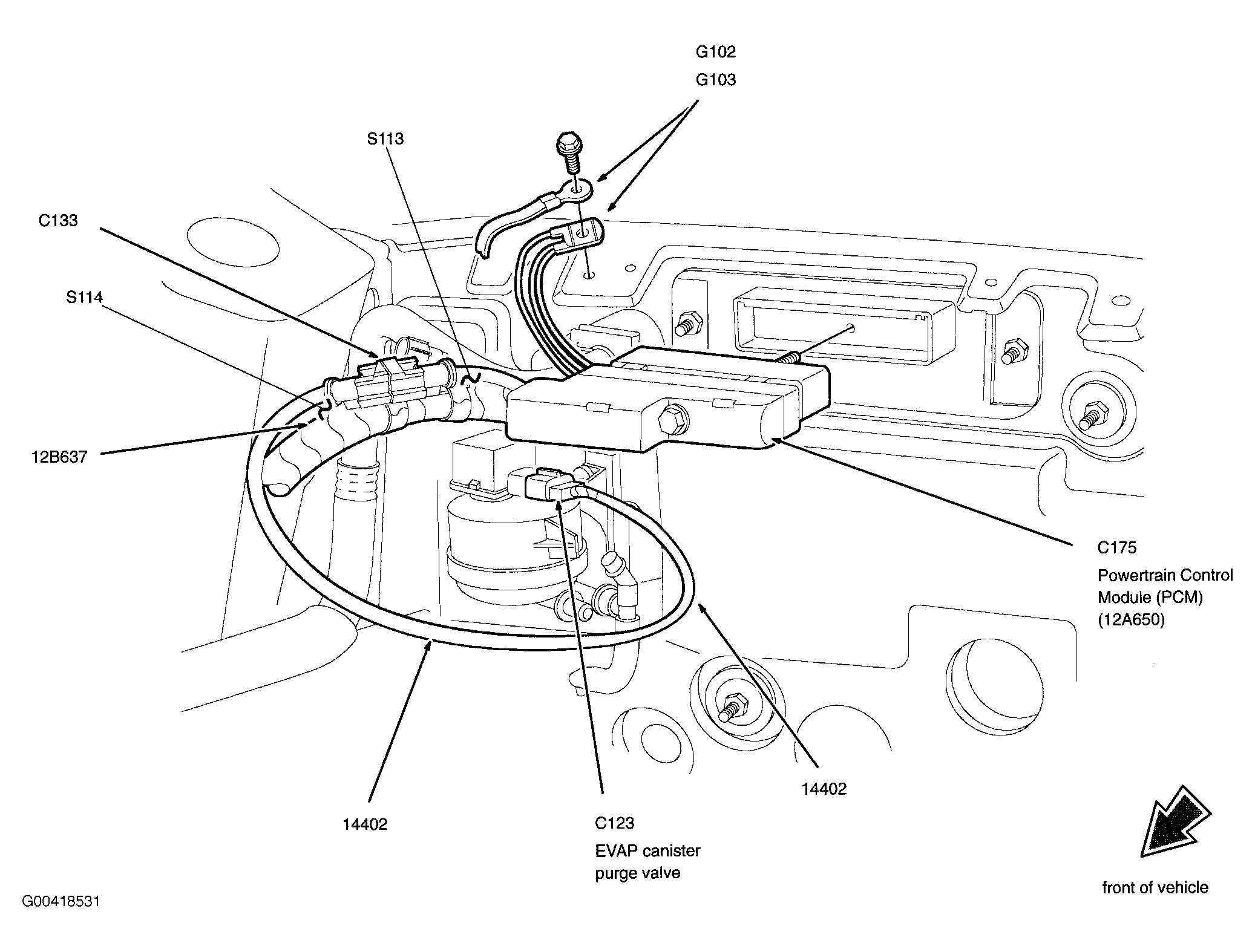

| Powertrain Control Module | Right rear corner of engine compartment. See Figure. |
| Remote Climate Control (RCC) Module | Behind center of dash, near glove box. See Figure. |

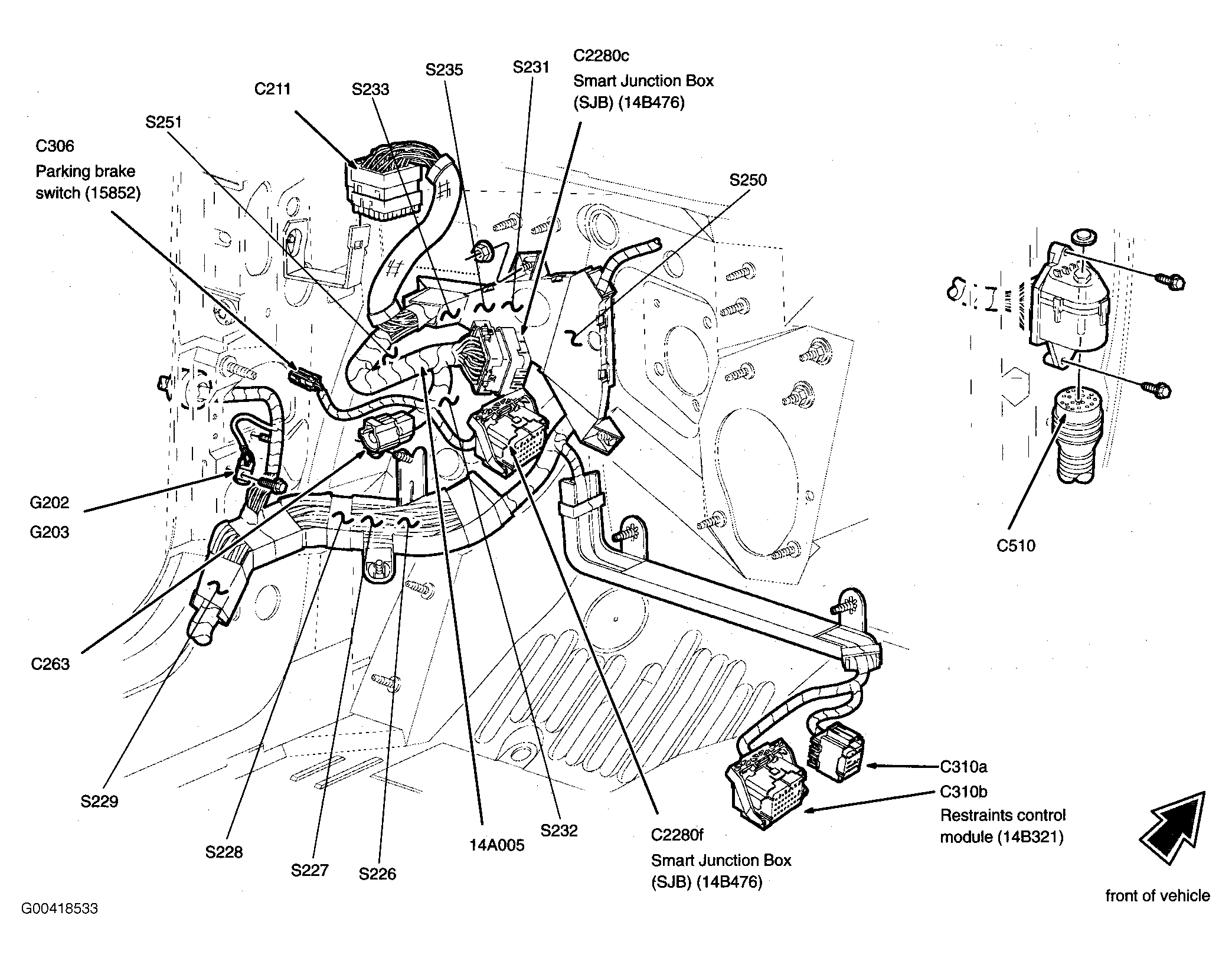

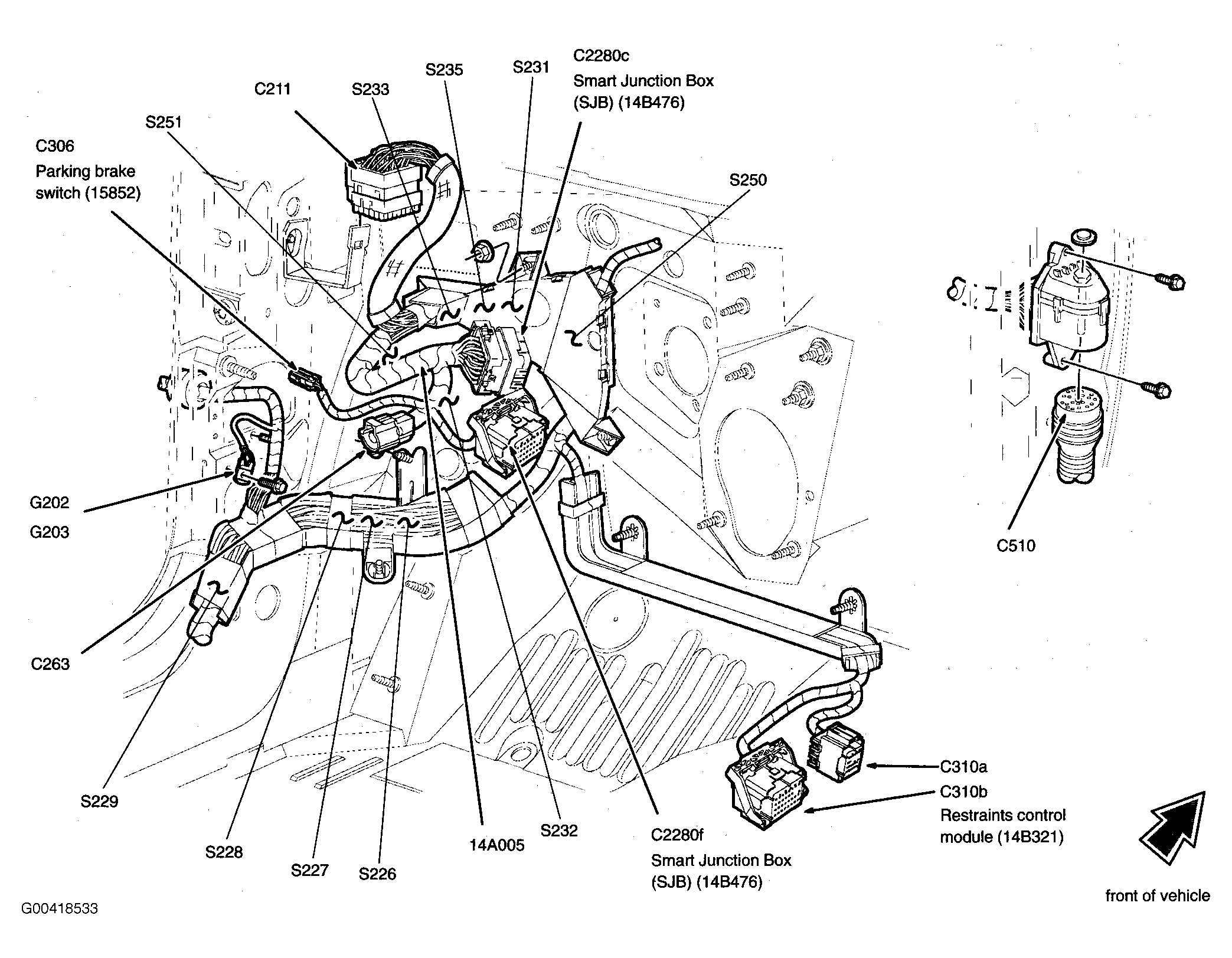

| Restraints Control Module | Under center of dash. See Figure. |

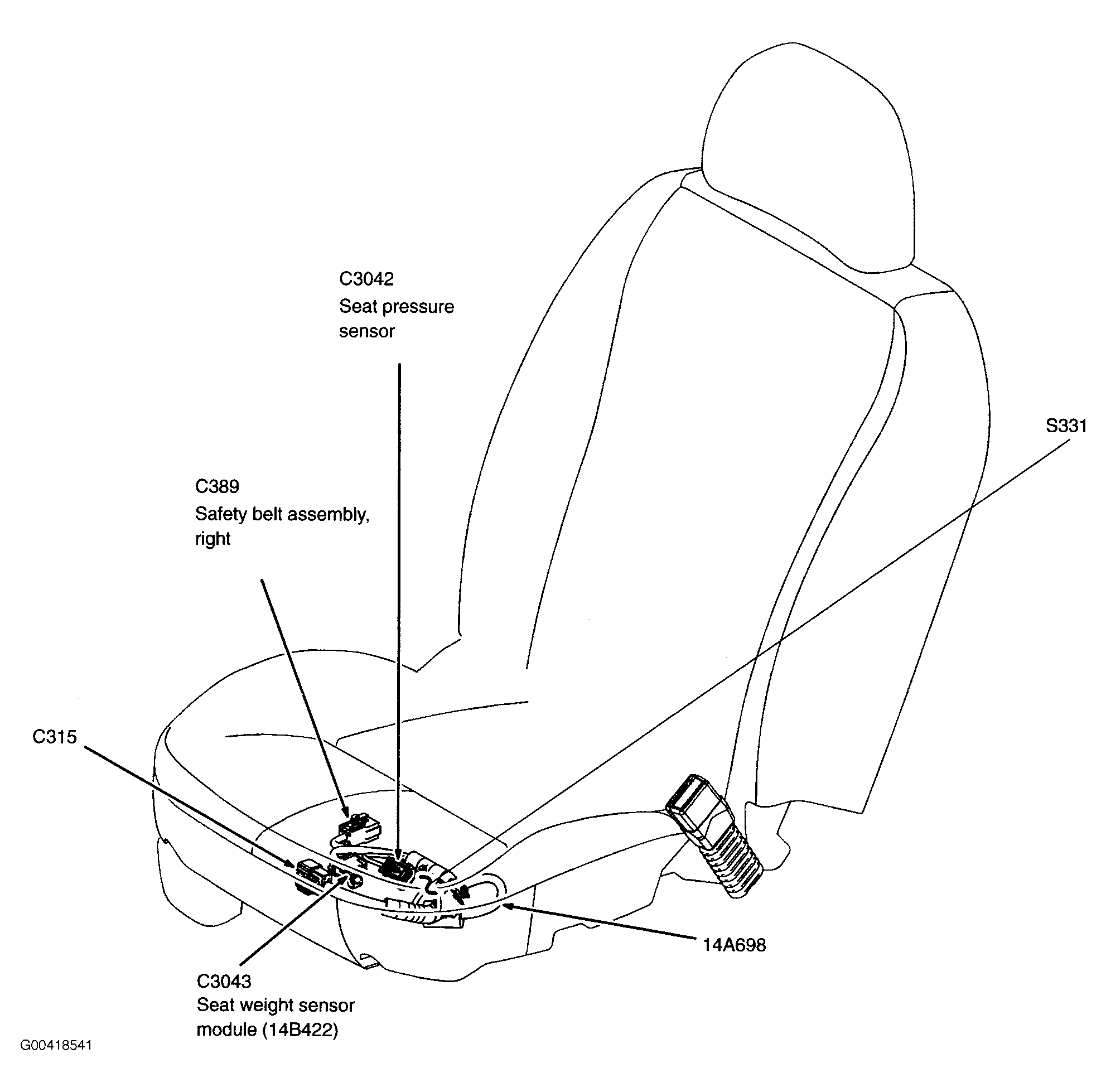

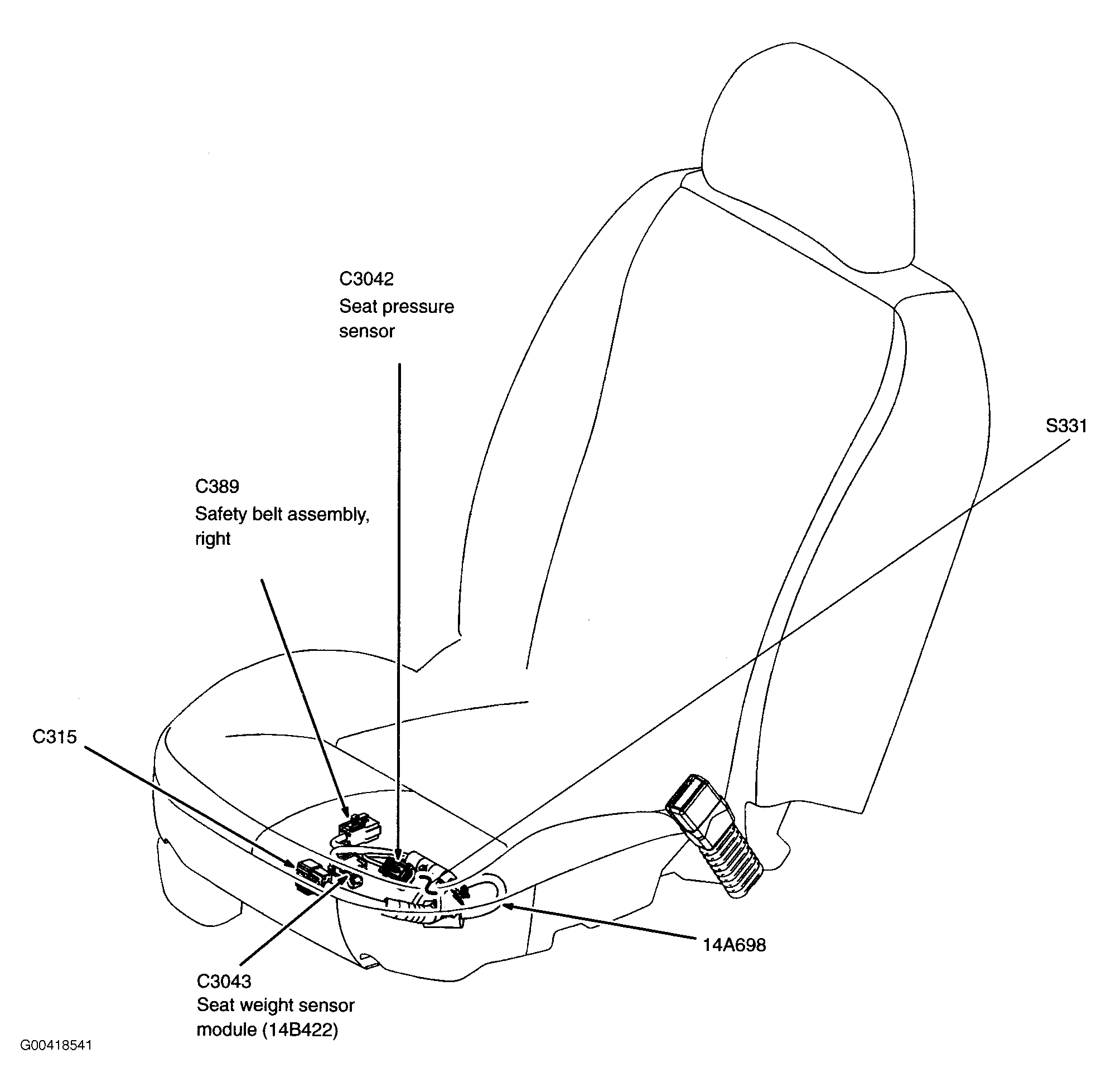

| Seat Weight Sensor Module | Under front passenger's seat. See Figure. |

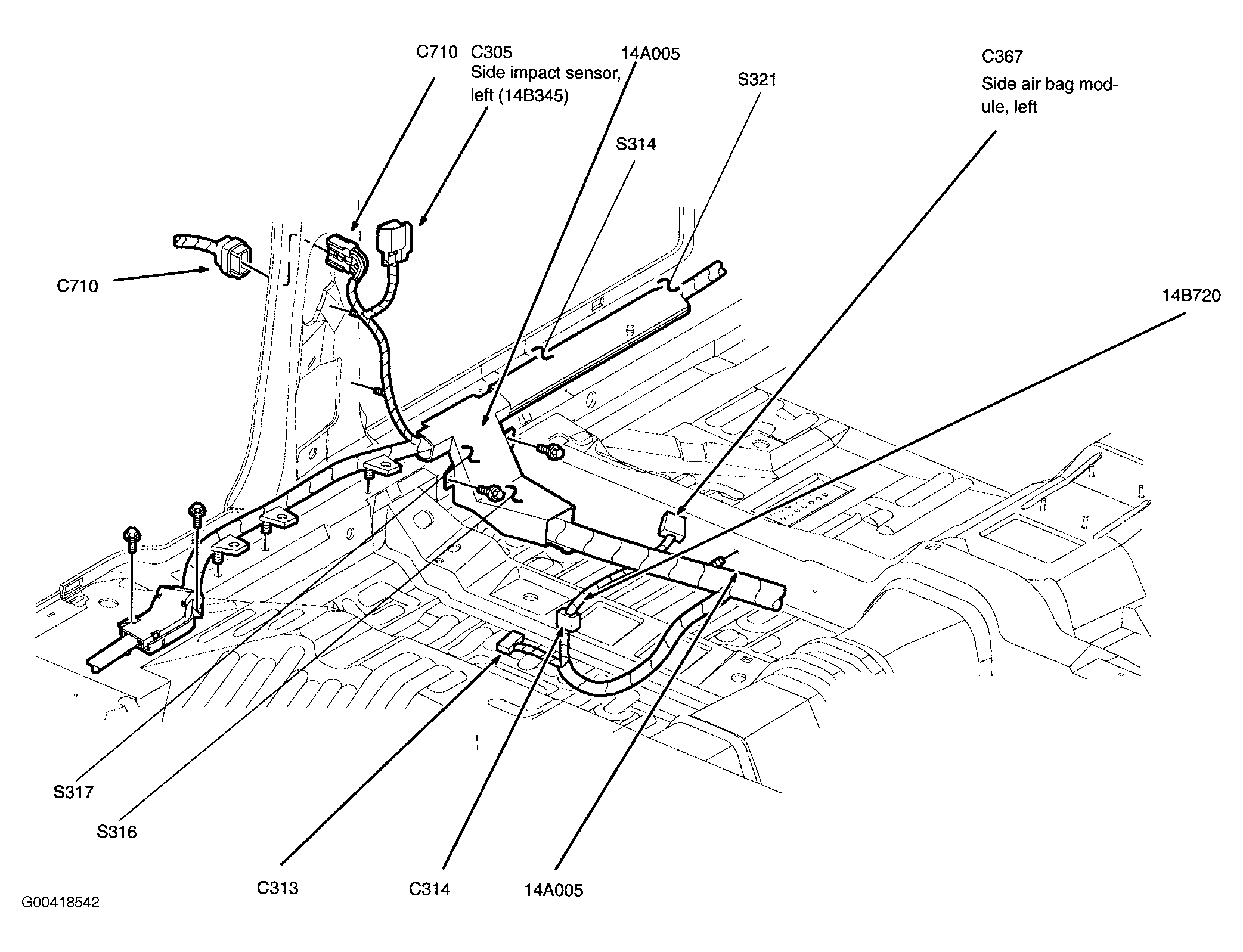

| Side Air Bag Module, Left | Inside outer portion of left front seat back. See Figure. |

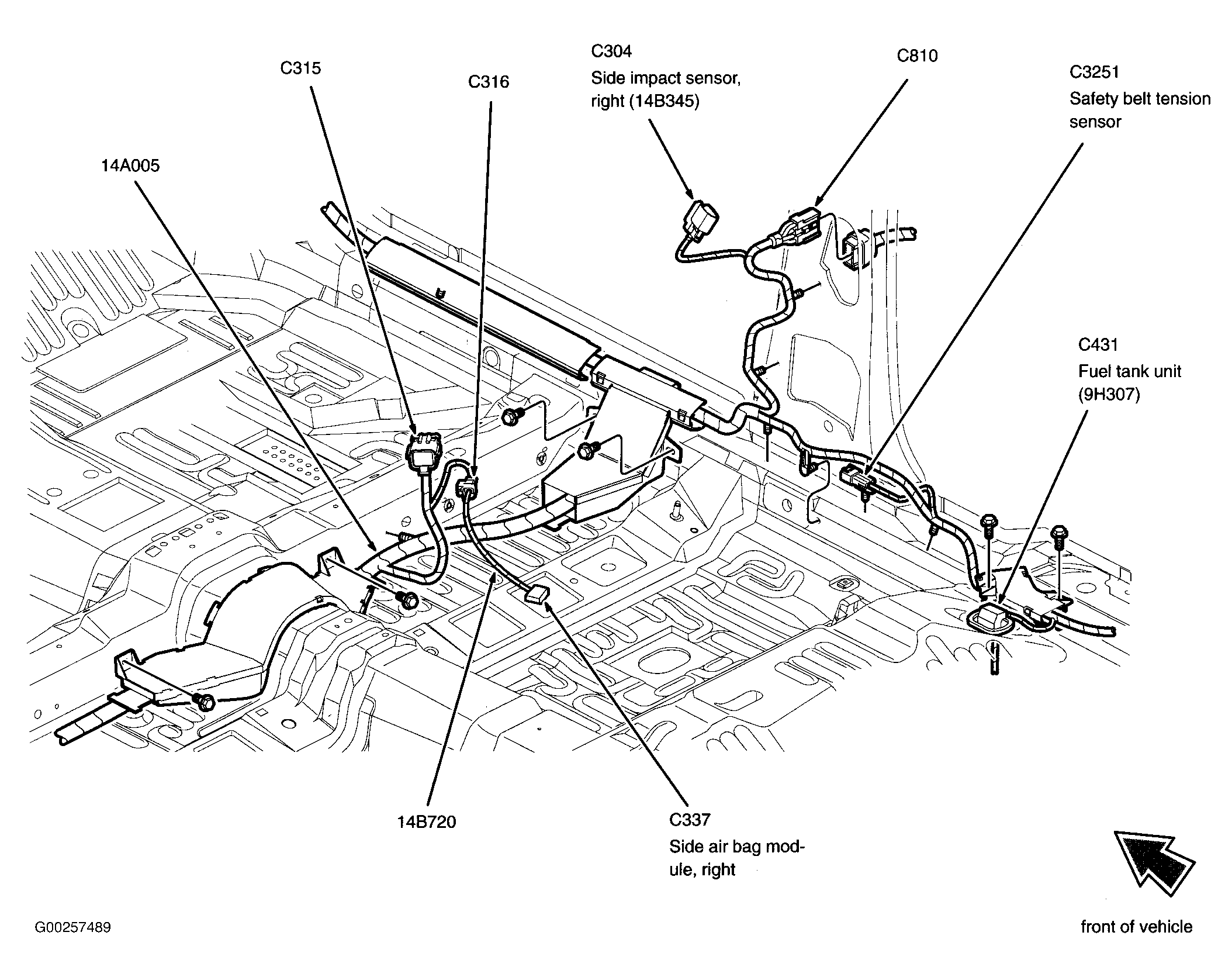

| Side Air Bag Module, Right | Inside outer portion of right front seat back. See Figure. |
