Disassembly And Assembly Of Subassemblies: Piston: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Service Set, Piston Pin	303-S024 (T68P-6135-A)

Material

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Synthetic Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

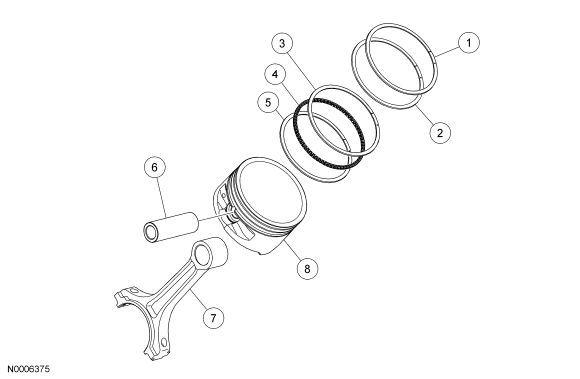

Fig 1: Exploded View Of Piston Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6150	Piston compression upper ring
2	6152	Piston compression lower ring
3	6159	Piston oil control upper segment ring
4	6161	Piston oil control spacer
5	6159	Piston oil control lower segment ring
6	6135	Piston pin
7	6200	Connecting rod
8	6110	Piston
