Cylinder Head - LH: Notes

Material

Item Specification
Motorcraft Metal Surface Prep
ZC-31		 -
Silicone Gasket Remover
ZC-30		 -

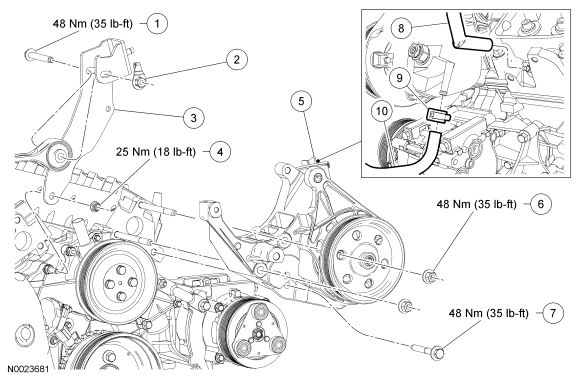

Fig 1: Exploded View Of Engine Front Components With Torque Specifications
GF0019583Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W500725 Engine roll restrictor bolt
2 W706191 Engine roll restrictor nut
3 6F055 Engine roll restrictor bracket
4 W520102 Engine roll restrictor bracket nut
5 3C511 Power steering pump bracket assembly
6 N621942 Power steering pump bracket nut (2 required)
7 N807240 Power steering pump bracket bolt
8 12286 Spark plug wire
9 8287 Power steering return hose clamp
10 3493 Power steering return hose

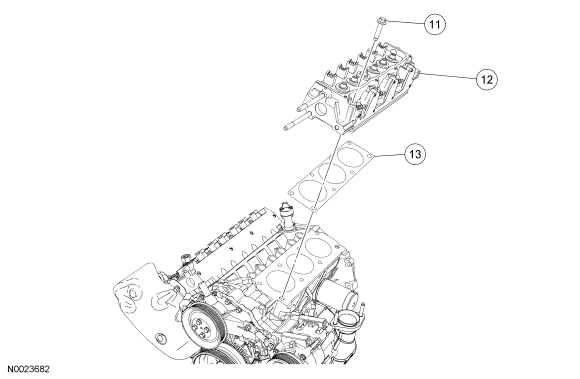

Fig 2: Exploded View Of Left Cylinder Head With Torque Specifications
GF0019584Courtesy of FORD MOTOR CO.
Item Part Number Description
11 W705608 Cylinder head bolt (8 required)
12 6050 LH cylinder head
13 6083 Cylinder head gasket
