Engine Front Cover: Notes

Material

Item Specification
Thread Sealant with PTFE
TA-24		 WSK-M2G350-A2

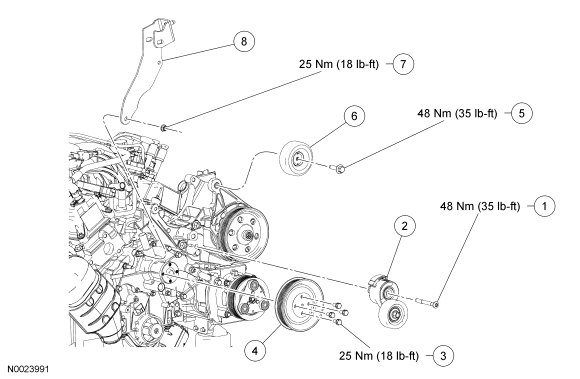

Fig 1: Exploded View Of Engine Front Components With Torque Specifications
GF0019563Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W500325 Accessory drive belt tensioner bolt
2 6B209 Accessory drive belt tensioner
3 N806282 Coolant pump pulley bolt (4 required)
4 8A528 Coolant pump pulley
5 - Accessory drive belt idler pulley bolt (part of 6C348)
6 6C348 Accessory drive belt idler pulley
7 W520102 Generator support bracket nut
8 6F055 Generator support bracket

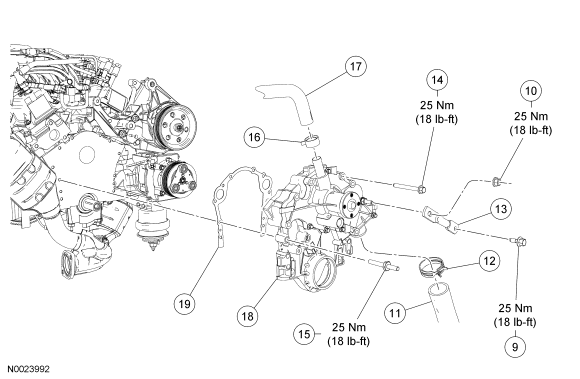

Fig 2: Exploded View Of Engine Front Cover With Torque Specifications
GF0019564Courtesy of FORD MOTOR CO.
Item Part Number Description
9 N807916 A/C compressor bracket bolt
10 N621939 A/C compressor bracket nut
11 8B273 Lower radiator hose
12 15161 Lower radiator hose clamp
13 19N589 A/C compressor bracket
14 N811375 Engine front cover bolt (5 required)
15 N804215 Engine front cover stud bolt (5 required)
16 8287 Heater hose clamp
17 8548 Heater hose
18 6C086 Engine front cover
19 6D081 Engine front cover gasket
