Engine Support Insulators: Notes

Special Tools

Illustration	Tool Name	Tool Number
	3 Bar Engine Support Kit	303-F072
	Lifting Brackets, Engine	303-D050 (D70P-6000) equivalent

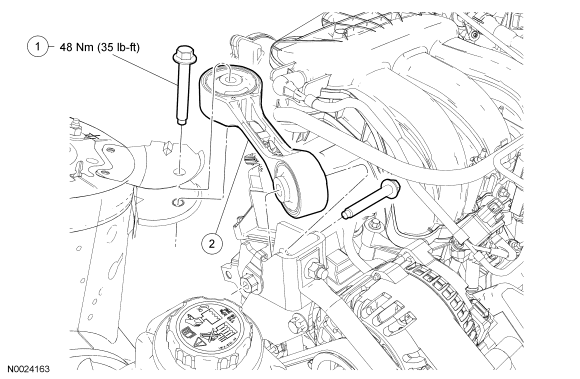

Fig 1: Exploded View Of Engine Roll Restrictor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500725	Engine roll restrictor bolt (2 required)
2	6F050	Engine roll restrictor

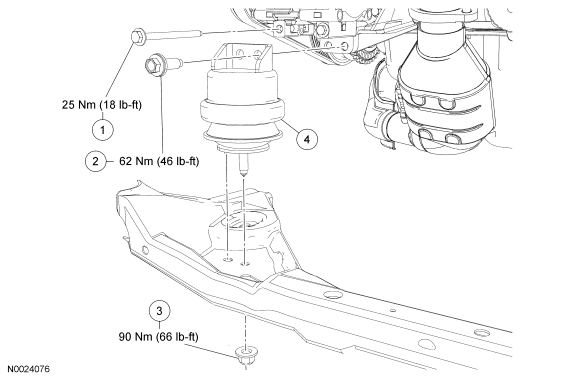

Fig 2: Exploded View Of Left Engine Support Insulator With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N806699	A/C compressor bolt
2	W706481	LH engine support insulator bolt (2 required)
3	N802978	LH engine support insulator-to-crossmember nut
4	6038	LH engine support insulator

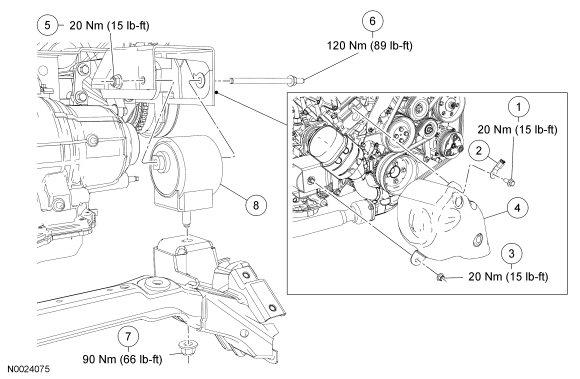

Fig 3: Exploded View Of Right Engine Support Insulator With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N605799	Catalytic converter heat shield bolt
2	-	Ground wire
3	N520103	Catalytic converter heat shield nut (2 required)
4	5K282	Catalytic converter heat shield
5	N520103	RH engine support insulator heat shield nut
6	W706762	RH engine support insulator bolt
7	N802978	RH engine support insulator-to-crossmember nut
8	6068	RH engine support insulator
