Upper Intake Manifold: Notes

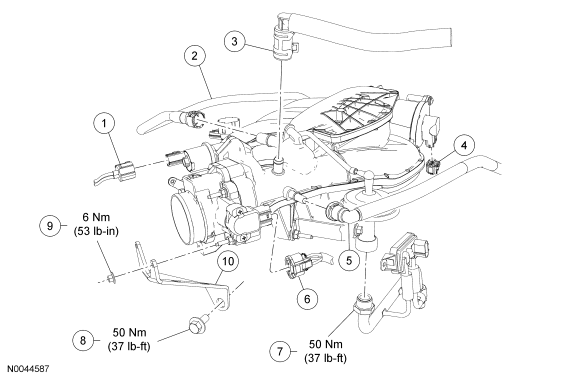

Fig 1: Exploded View Of Upper Intake Manifold Components With Torque Specifications
GF0019548Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Intake air control (IAC) valve electrical connector (part of 12B637)
2 6C324 Positive crankcase ventilation (PCV) tube
3 9C482 Brake booster vacuum hose
4 14A464 Intake manifold runner control (IMRC) electrical connector (part of 12B637)
5 9G271 Evaporative emissions (EVAP) return tube
6 14A464 Throttle position (TP) sensor electrical connector (part of 12B637)
7 - Exhaust gas recirculation (EGR) tube-to-EGR valve fitting (part of 9D477)
8 N602741 Upper intake manifold support bracket bolt
9 N808338 Upper intake manifold support bracket nut (2 required)
10 9J444 Upper intake manifold support bracket

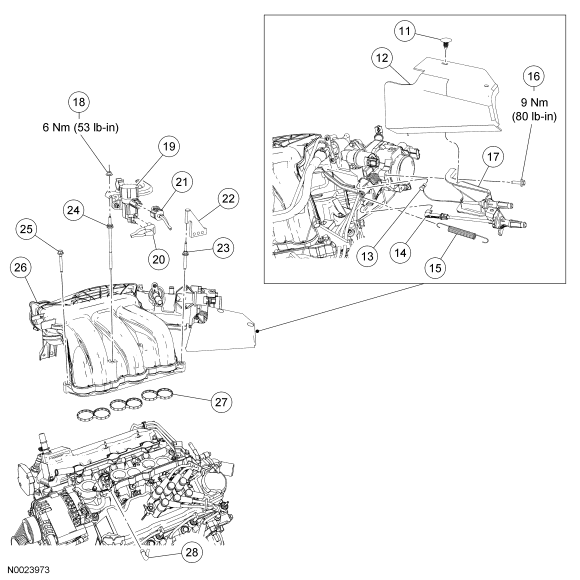

Fig 2: Exploded View Of Upper Intake Manifold With Torque Specifications
GF0019549Courtesy of FORD MOTOR CO.
Item Part Number Description
11 - Pin-type retainer (2 required)
12 9E766 Accelerator control splash shield
13 9A758 Accelerator cable
14 9A825 Speed control actuator cable
15 9E894 Throttle return spring
16 N605891 Accelerator cable bracket bolt (2 required)
17 92728 Accelerator cable bracket
18 N808338 EGR vacuum regulator bracket nut (2 required)
19 9J459 EGR vacuum regulator and bracket
20 - Vacuum tube fitting (part of 9E498)
21 14A464 EGR vacuum regulator electrical connector (part of 12B637)
22 12297 Spark plug wire retainer
23 W707272 Upper intake manifold stud bolt
24 W708250 Upper intake manifold stud bolt (part of 12B637)
25 W706376 Upper intake manifold bolt
26 9824 Upper intake manifold
27 - Upper intake manifold gasket (3 required)
28 - Vacuum tube fitting (part of 9E498)
