Accelerator Control System Components - Exploded View

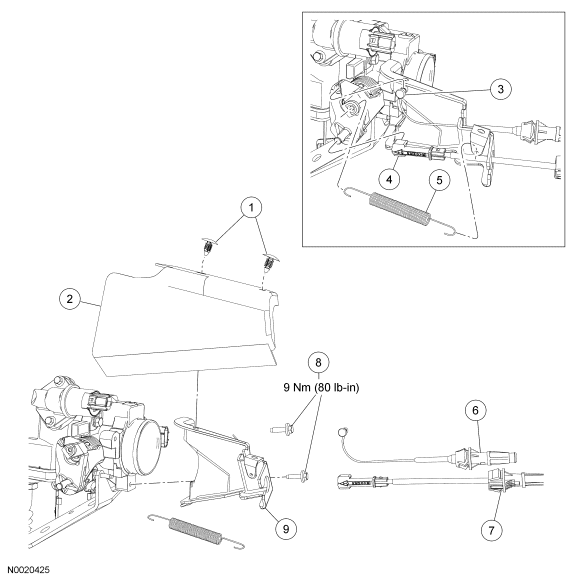

Fig 1: Exploded View Of Accelerator Control System Components With Torque Specification (1 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9E776B	Accelerator control splash shield pin-type retainers (2 required)
2	9E776B	Accelerator control splash shield
3	-	Accelerator cable slug (part of 9A758)
4	-	Speed control cable clip (part of 9A825C)
5	9E894A	Throttle return spring
6	-	Accelerator cable grommet (part of 9A758)
7	9A825C	Speed control cable grommet (part of 9A825)
8	N605891	Accelerator cable bracket bolts (2 required)
9	9728B	Accelerator cable bracket

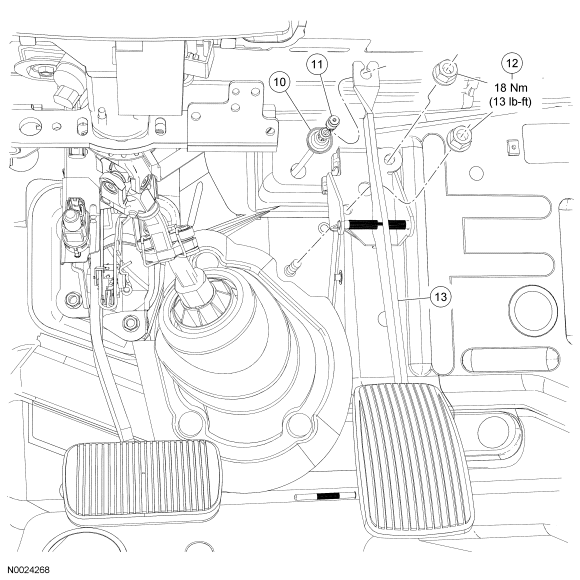

Fig 2: Exploded View Of Accelerator Control System Components With Torque Specification (2 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
10	-	Accelerator cable grommet (part of 9A758)
11	-	Accelerator cable slug (part of 9A758)
12	N805624	Accelerator pedal retaining nuts (2 required)
13	9726A	Accelerator pedal

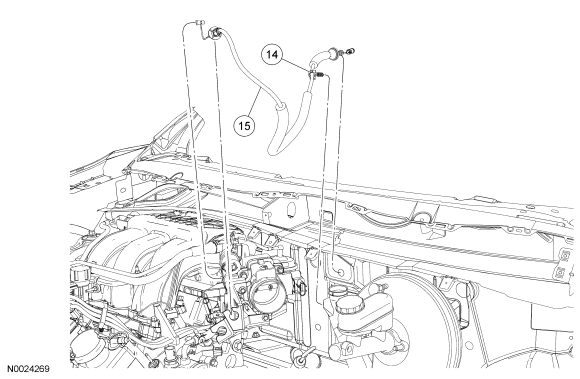

Fig 3: Exploded View Of Accelerator Control System Components (3 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
14	-	Accelerator cable pin-type retainer
15	9A758	Accelerator cable

1. For additional information, refer to the appropriate procedures.
