Powertrain Control Module (PCM): Notes

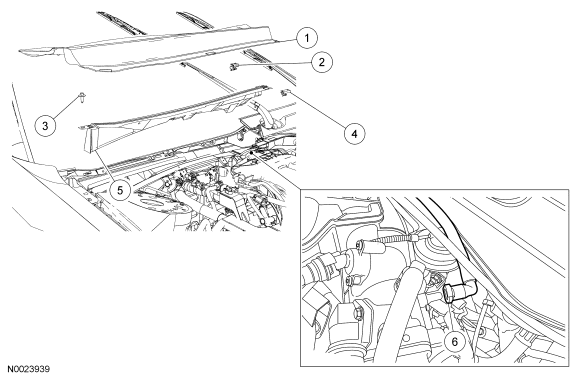

Fig 1: Exploded View Of Cowl Grille Panel With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	54018A14	Cowl grille panel
2	90447	Cowl grille panel clip (3 required)
3	N606676	Cowl extension panel screw (3 required)
4	90447	Cowl extension panel clip
5	46000044	Cowl extension panel
6	9G271	Evaporative emission (EVAP) canister purge valve return tube

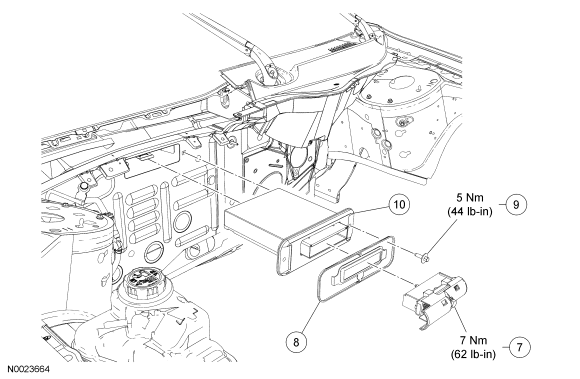

Fig 2: Exploded View Of Powertrain Control Module PCM With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
7	12B637	Powertrain control module (PCM) electrical connector
8	-	PCM gasket
9	N606676	PCM bolt (2 required)
10	031400	PCM
