Safety Belt Retractor - Rear, Center: Notes

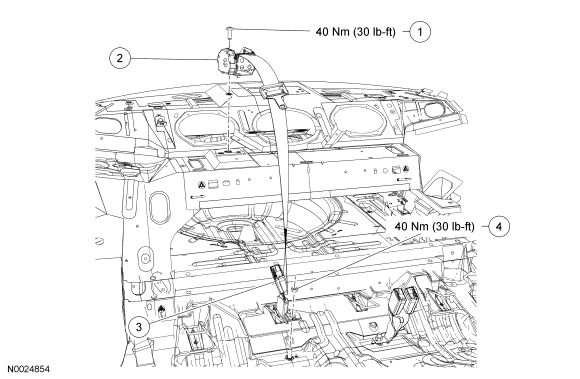

Fig 1: Rear, Center Safety Belt Retractor Replacement Components With Torque Specifications
GF0019405Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Bolt, safety belt retractor (part of 600A38)
2 600A38 Center safety belt retractor assembly
3 - Safety belt buckle (part of 600A38)
4 N800937 Nut, safety belt retractor anchor
