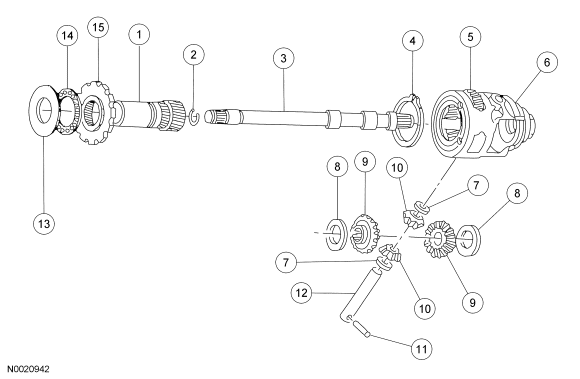

Final Drive: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | 7G193 | Final drive sun gear |
| 2 | N803200-S | Ring |
| 3 | 7060 | Output shaft |
| 4 | N803202-S | Ring |
| 5 | 7F342 | Sun gear assembly |
| 6 | 7F465 | Differential case |
| 7 | 4230 | Differential pinion thrust washers |
| 8 | 4228 | Differential side gear thrust washers |
| 9 | 4236 | Differential side gears |
| 10 | 4211 | Differential pinion gears |
| 11 | 67847-S | Roll pin |
| 12 | 4211 | Differential pinion shaft |
| 13 | 7F451 | Thrust washer - No. 16 |
| 14 | 7F405 | Bearing - No. 16 |
| 15 | 7A233 | Park gear |
