Transaxle Support Insulator: Notes

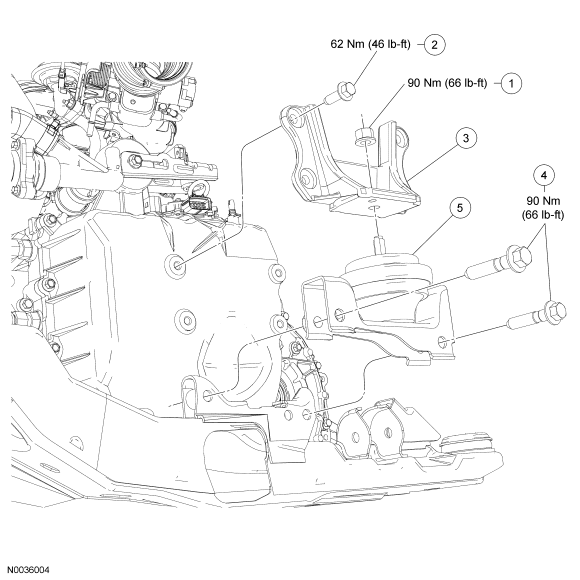

Fig 1: Exploded View Of Transaxle Support Insulator With Torque Specifications
GF0020157Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N602483-S Insulator nut
2 N605919 Insulator bracket bolt (4 required)
3 6A025 Insulator bracket
4 N804749 Insulator bolts
5 6F063 Transmission support insulator
