Anti-Lock Brake System (ABS) Module: Notes

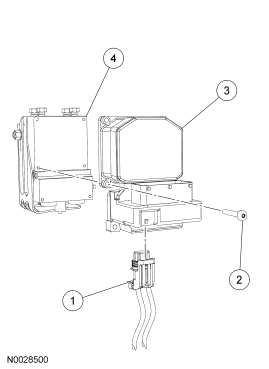

Fig 1: Identifying Anti-Lock Brake System (ABS) Module Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Anti-lock brake system (ABS) module electrical connector
2	-	ABS module-to-hydraulic control unit (HCU) screws (6 required)
3	2C219	ABS module
4	2C353	HCU
