Safety Belt Shoulder Height Adjuster: Notes

NOTE: RH side shown, LH side similar.

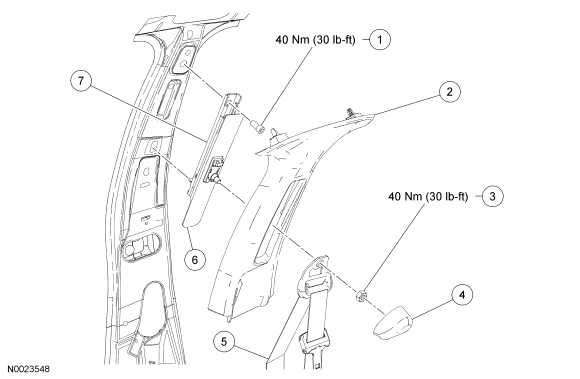

Fig 1: Safety Belt Shoulder Height Adjuster Replacement Components With Torque Specifications
GF0019410Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Bolt, safety belt shoulder height adjuster (part of 602B82)
2 - Upper B-pillar trim panel
3 N806773 Nut, D-ring
4 60262 D-ring cover
5 611B08 RH/ 611B09 LH Safety belt and retractor assembly
6 602B90 Safety belt shoulder height adjuster cover
7 602B82 Safety belt shoulder height adjuster
