Control Module: Service and Repair

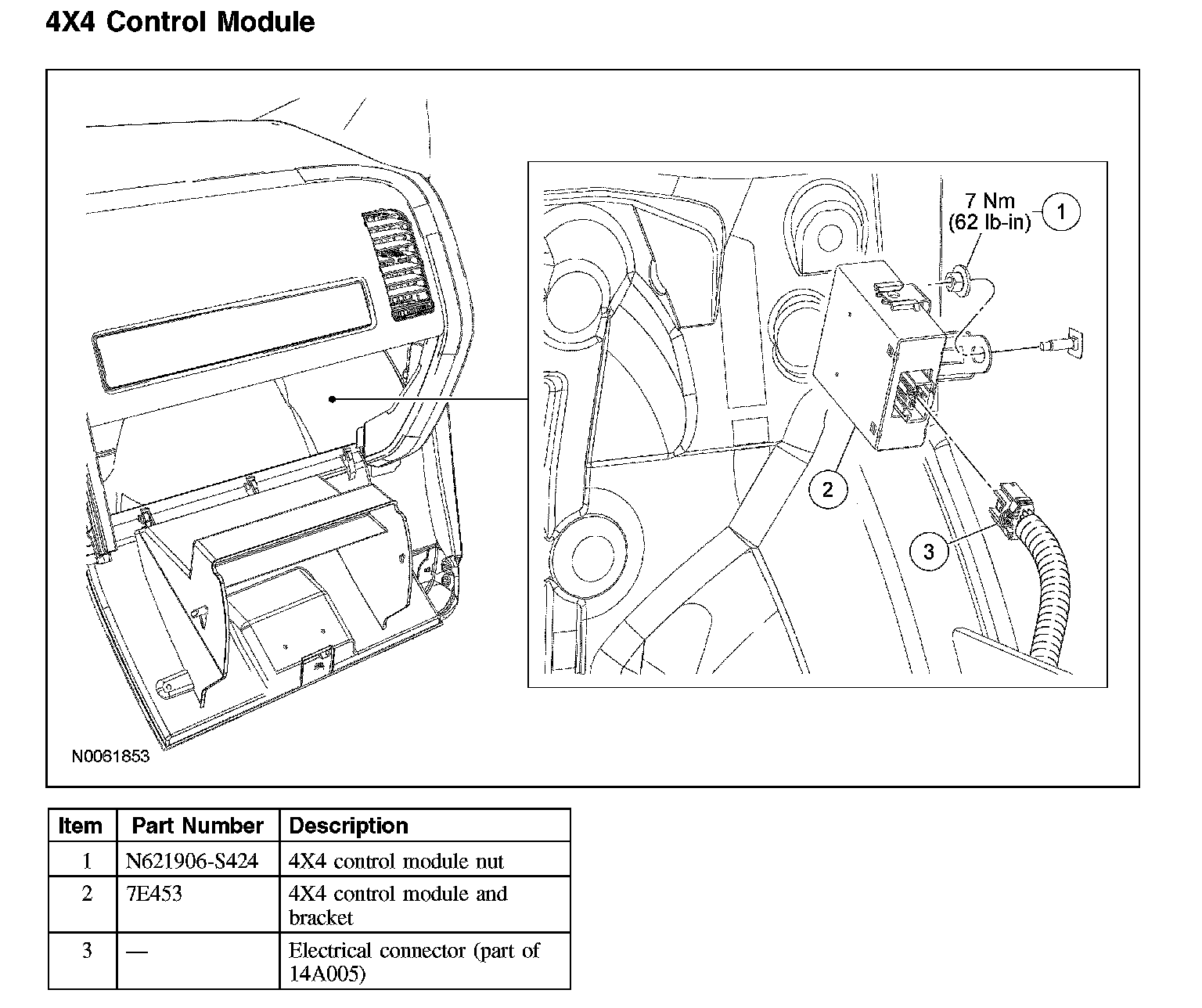

4X4 Control Module

4X4 Control Module:

Removal and Installation
1. From below the RH side instrument panel, remove the hush panel.
2. Disconnect the 4X4 control module harness connector.
3. Remove the 4X4 control module nut.
^ To install, tighten to 7 Nm (62 lb-in).
4. Remove the 4X4 control module and bracket.
5. To install, reverse the removal procedure.
