Flex Plate

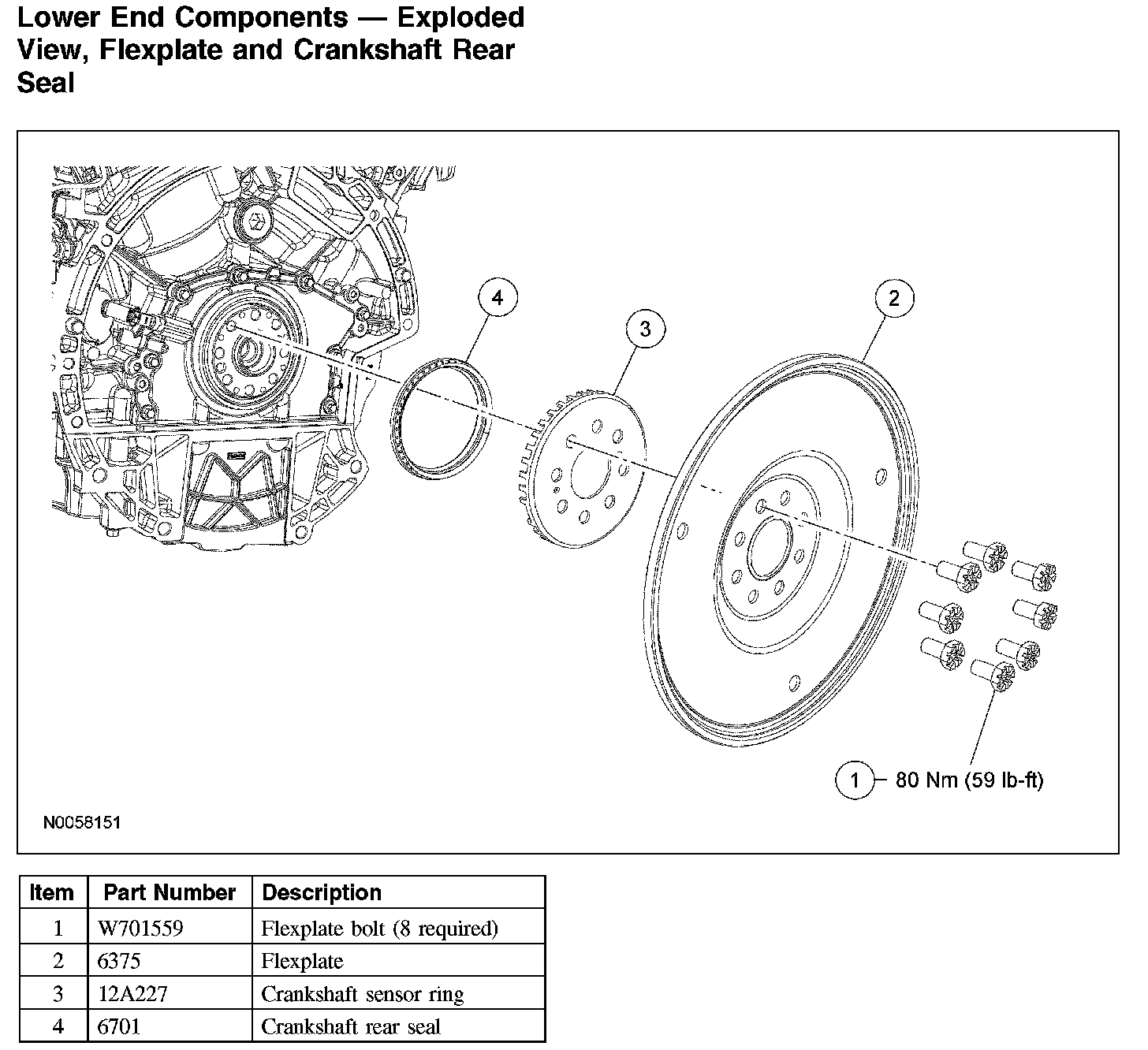

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal

Lower End Components - Exploded View, Flexplate and Crankshaft RearSeal:
