Control Assembly: Service and Repair

HEATING VENTILATION AIR CONDITIONING (HVAC) MODULE







Removal and Installation

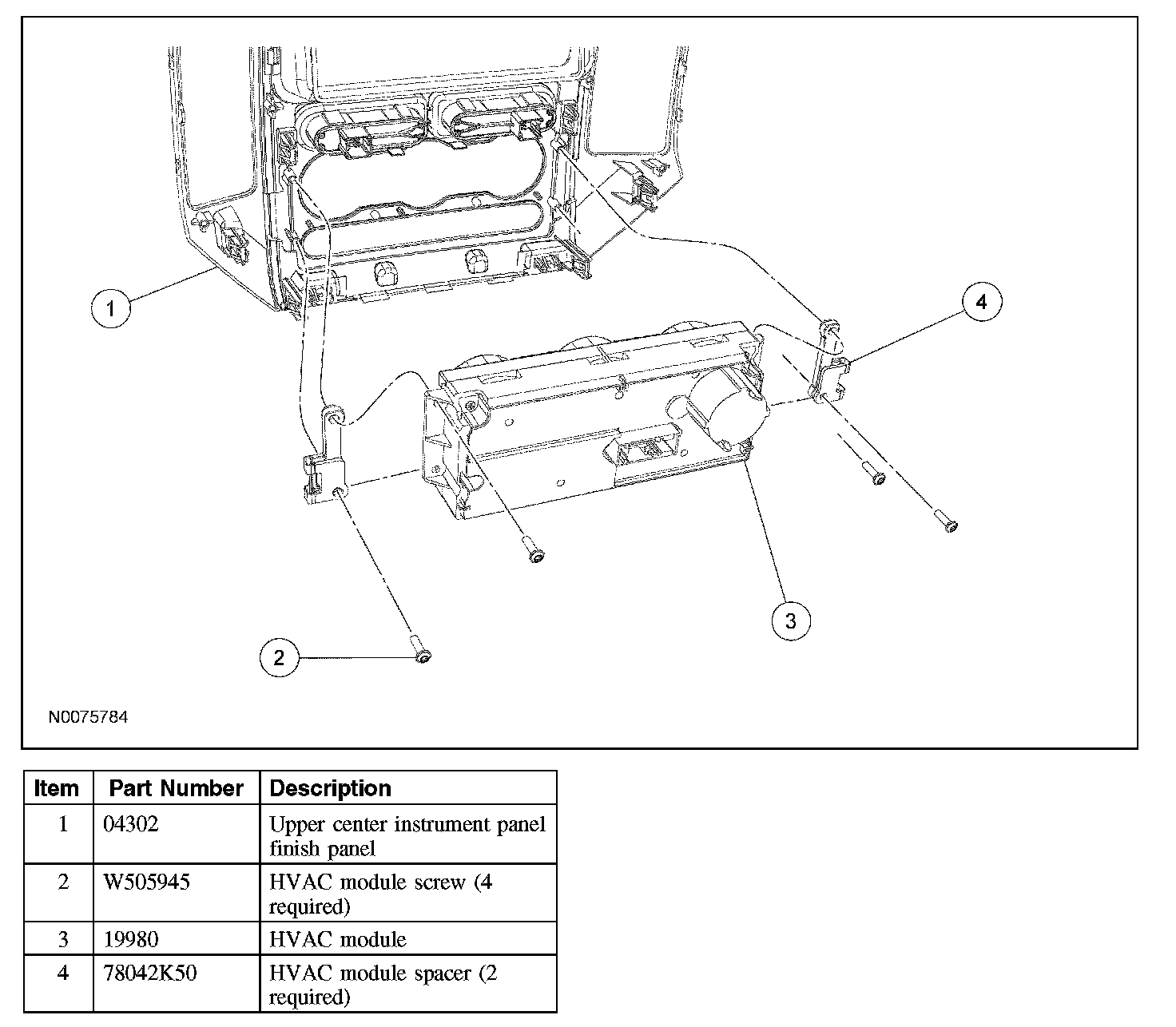

1. Using a suitable tool, gently pry out the upper center instrument panel finish panel to disengage the clips and remove the panel.
- Disconnect the electrical connectors.

2. Remove the 4 HVAC module screws.
3. Remove the HVAC module.

4. NOTE: Be sure the HVAC module spacers are correctly positioned before installing the HVAC module.

To install, reverse the removal procedure.
