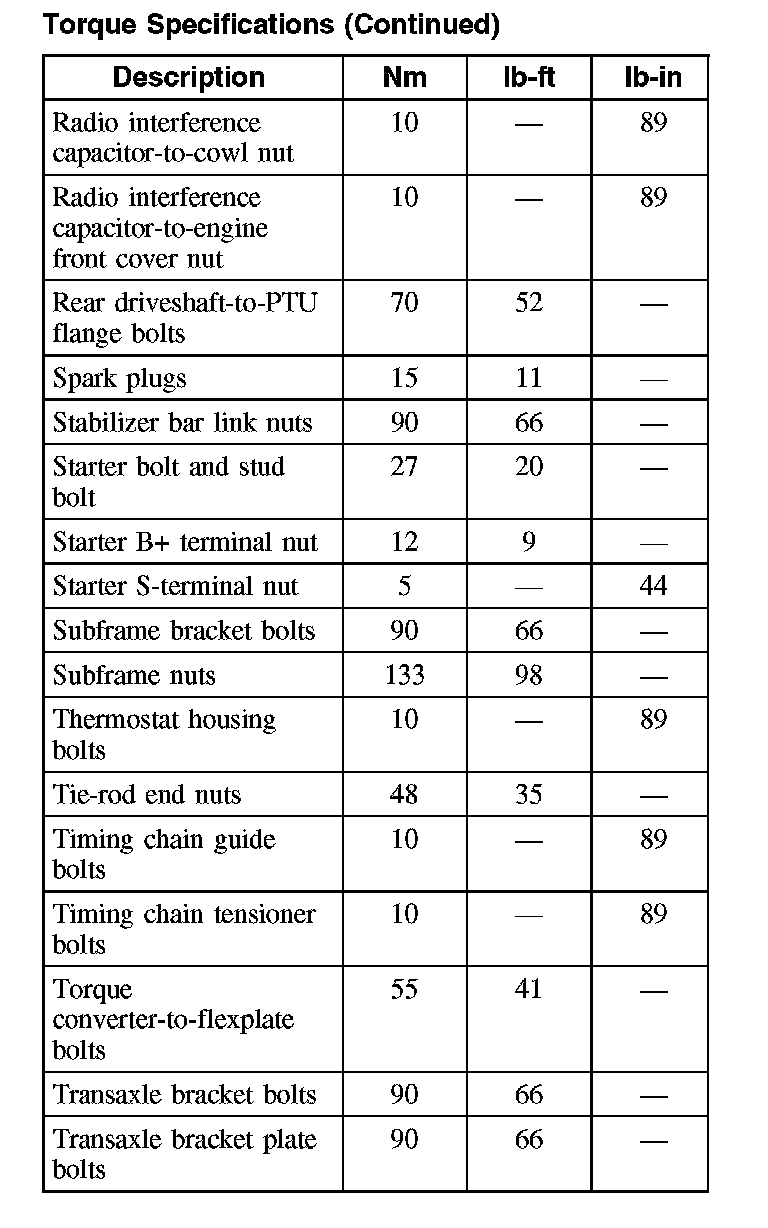

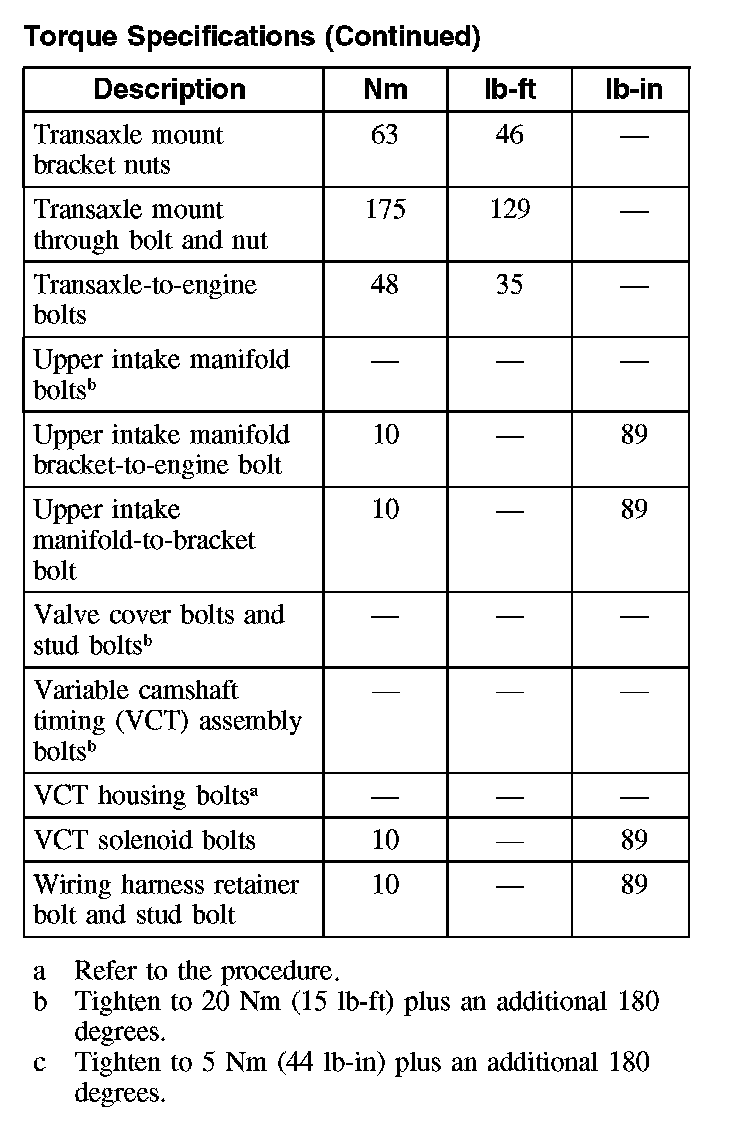

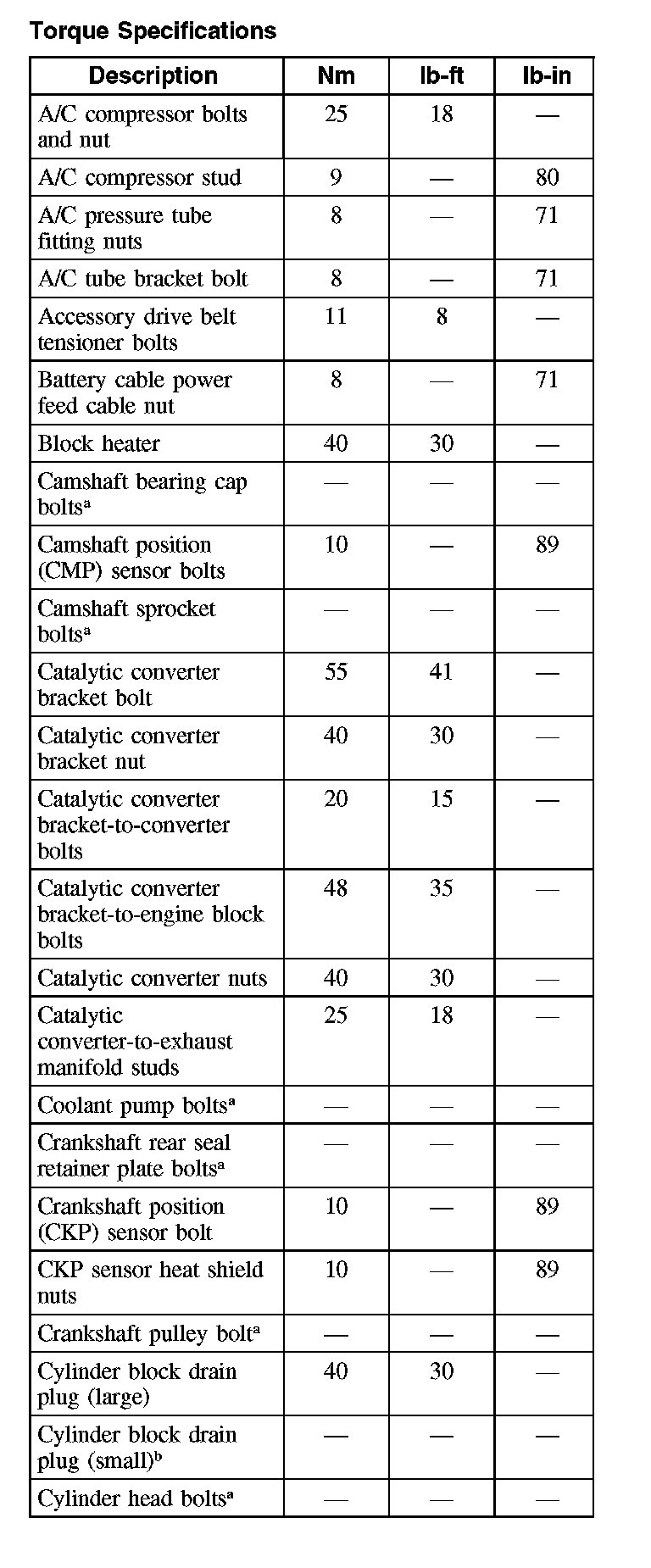

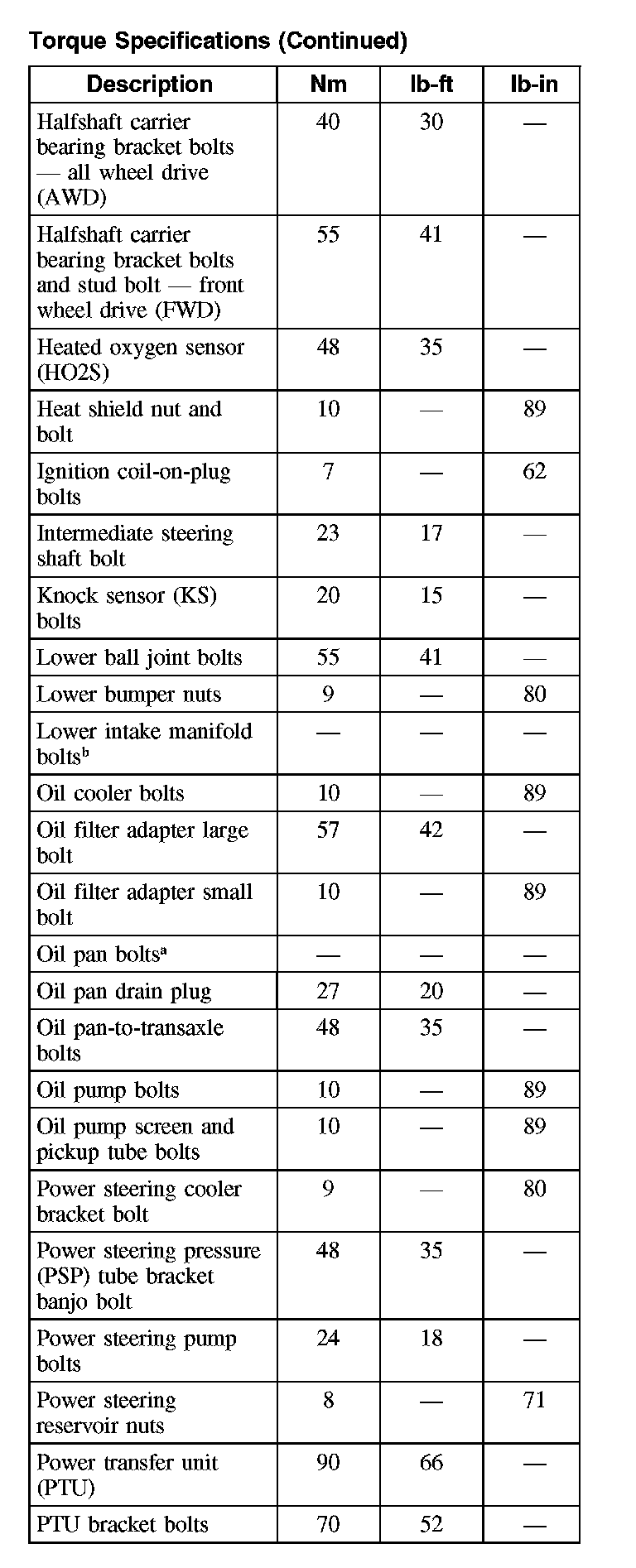

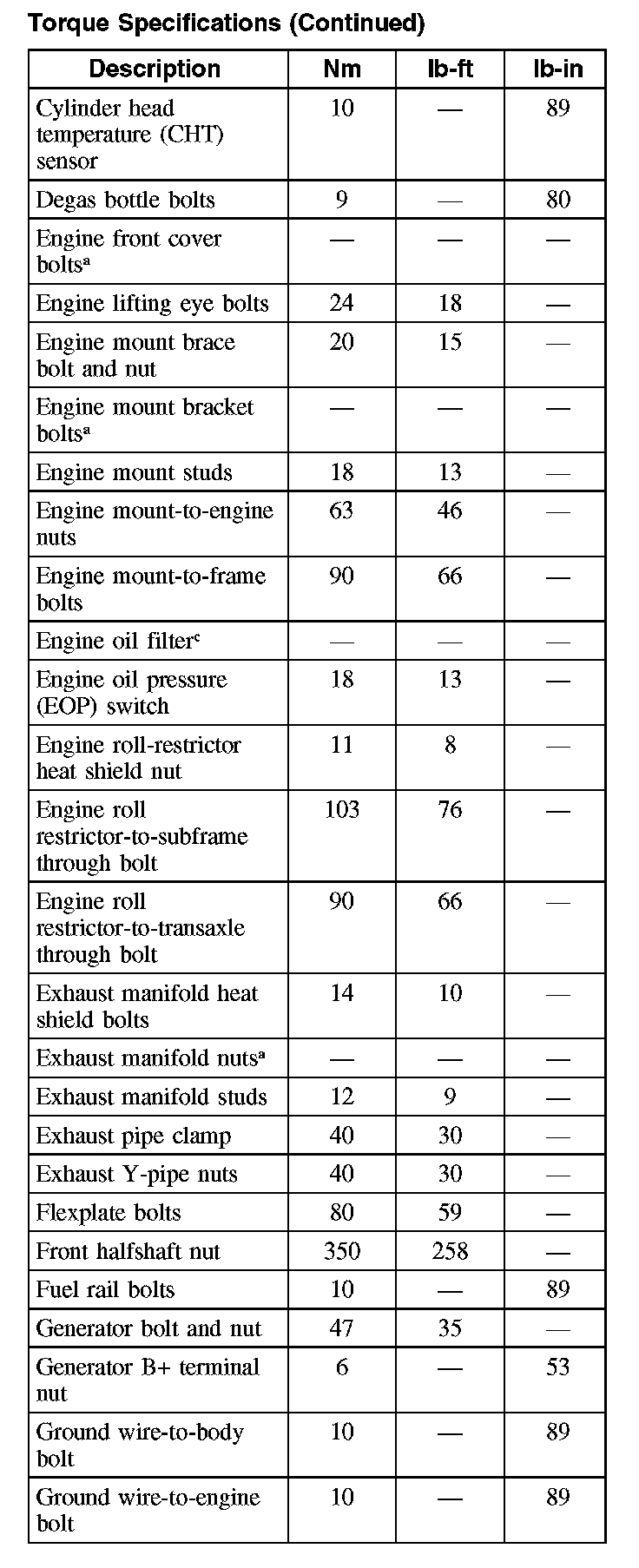

Torque Specifications

Torque Specifications

General Specifications (Part 6):

General Specifications (Part 7):

General Specifications (Part 8):

General Specifications (Part 9):

General Specifications (Part 10):

Cylinder Head Bolts

NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.
