Powertrain Control Module (PCM): Notes

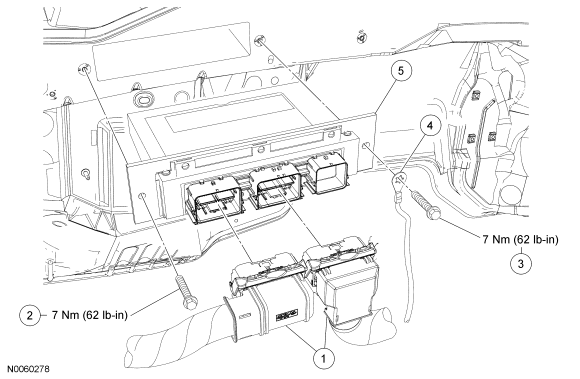

Fig 1: Exploded View Of Powertrain Control Module PCM With Torque Specifications
GF0022123Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 PCM electrical connectors (2 required)
2 W505428 PCM bolt
3 W505428 PCM bolt
4 W505428 Ground cable
5 AAA1001 PCM
