Engine Ignition Components - Exploded View

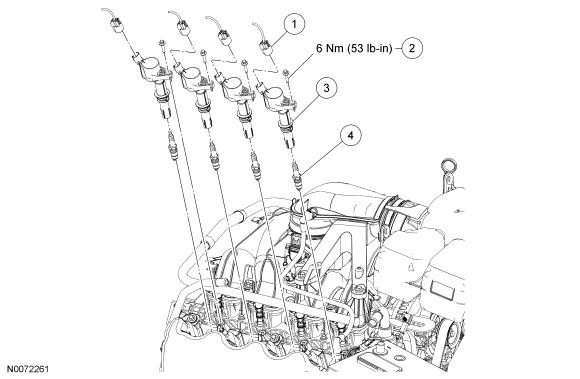

Fig 1: Exploded View Of RH Engine Ignition With Torque Specification
GF0046879Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 RH ignition coil electrical connectors (4 required)
2 W706175 RH ignition coil retaining bolts (4 required)
3 12A366 RH ignition coils (4 required)
4 12405 RH spark plugs (4 required)

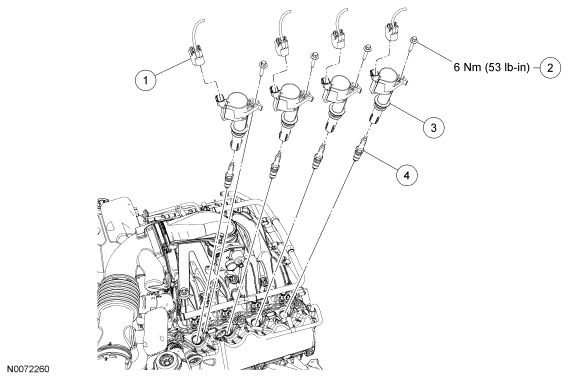

Fig 2: Exploded View Of LH Engine Ignition With Torque Specification
GF0046880Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 LH ignition coil electrical connectors (4 required)
2 W706175 LH ignition coil retaining bolts (4 required)
3 12A366 LH ignition coils (4 required)
4 12405 LH spark plugs (4 required)
  1. For additional information, refer to the procedures.
