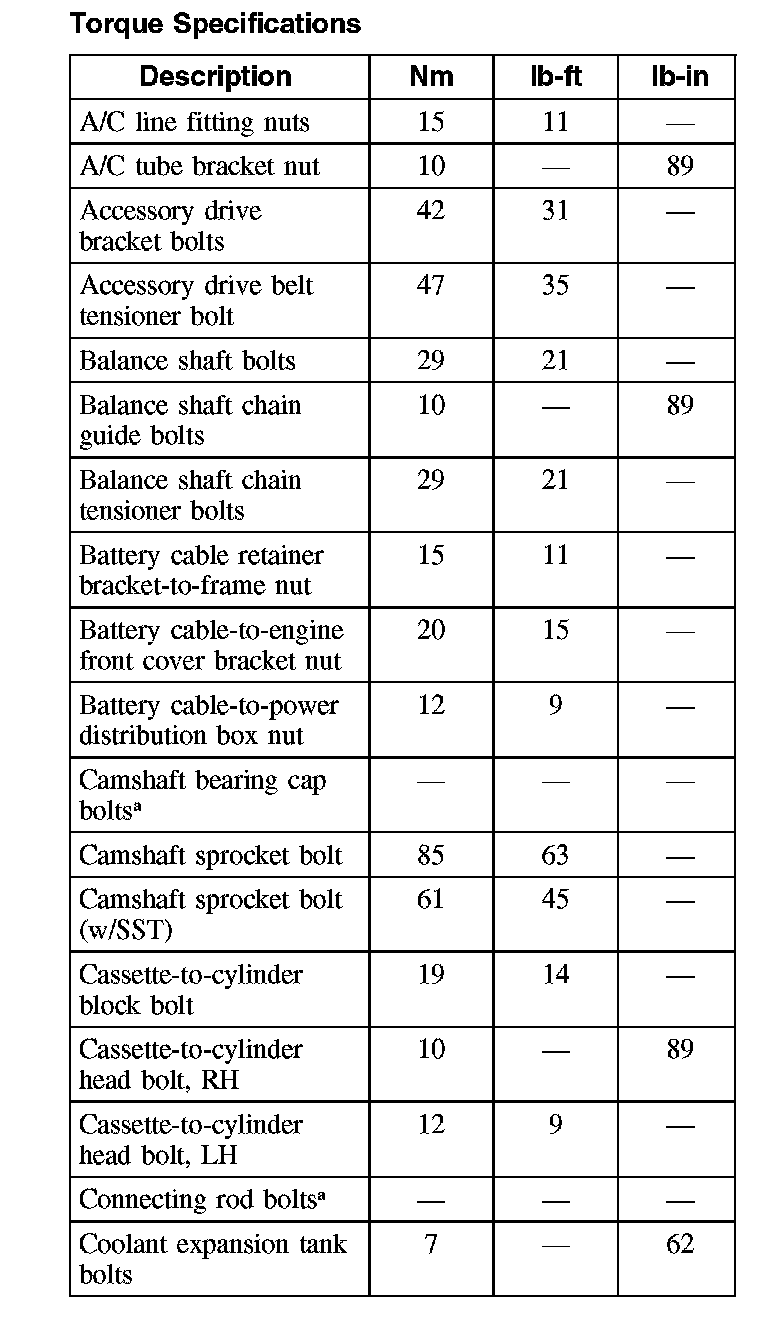

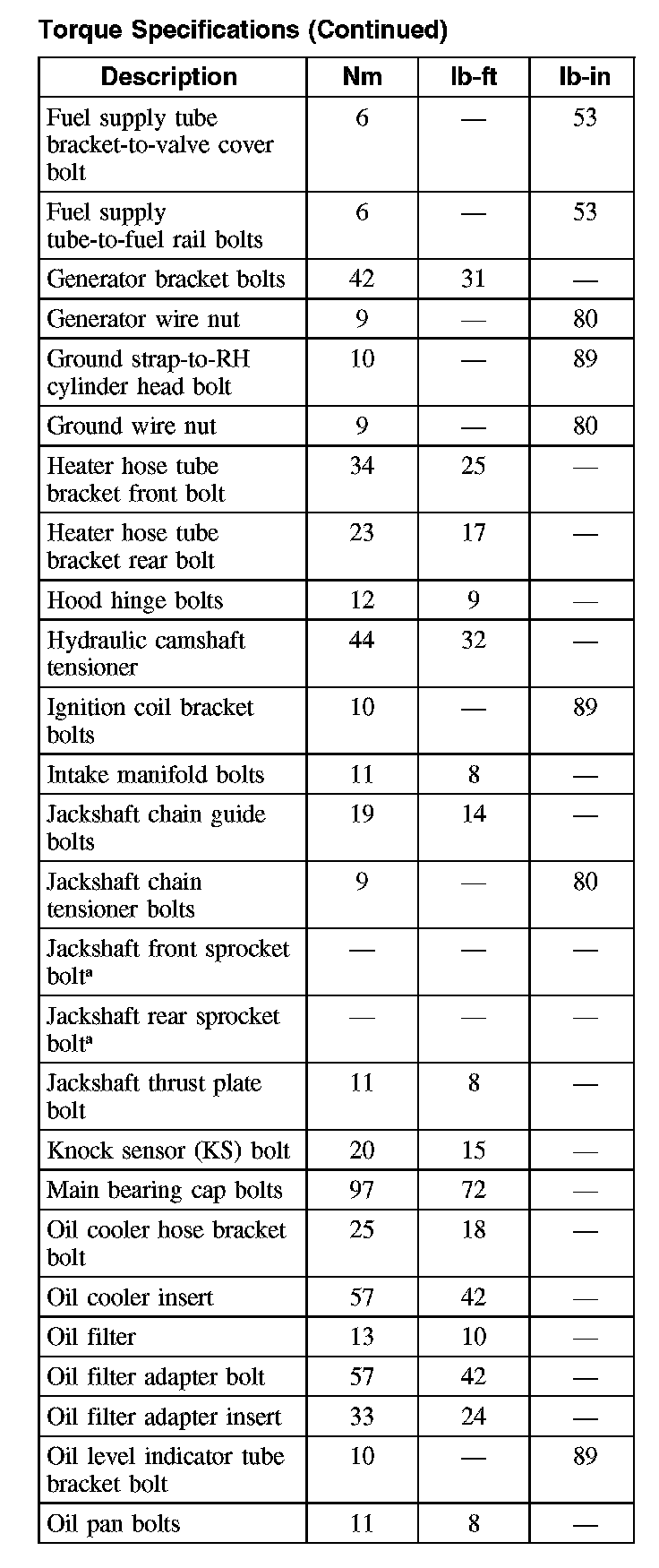

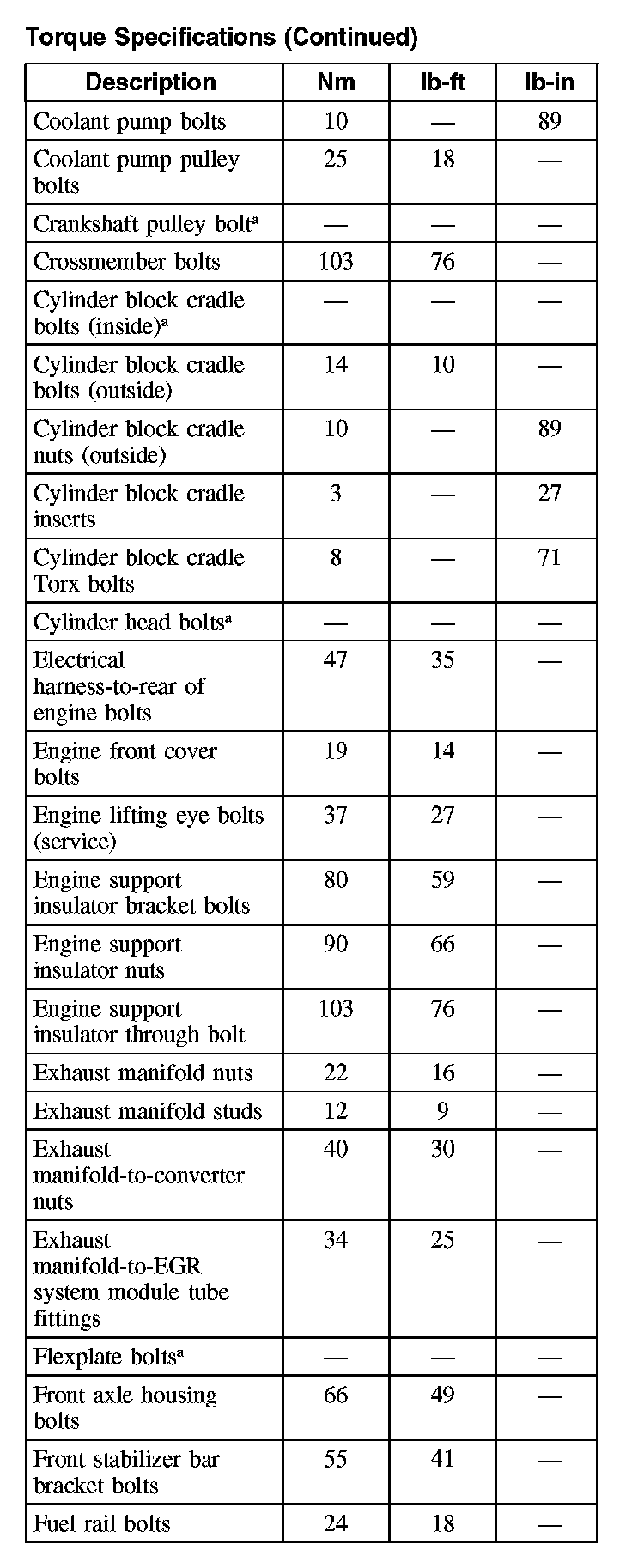

Torque Specifications

Torque Specifications














Cylinder Head Bolts

NOTE: New cylinder head bolts must be installed. They are a torque-to-yield design and cannot be reused.
