Connector Views

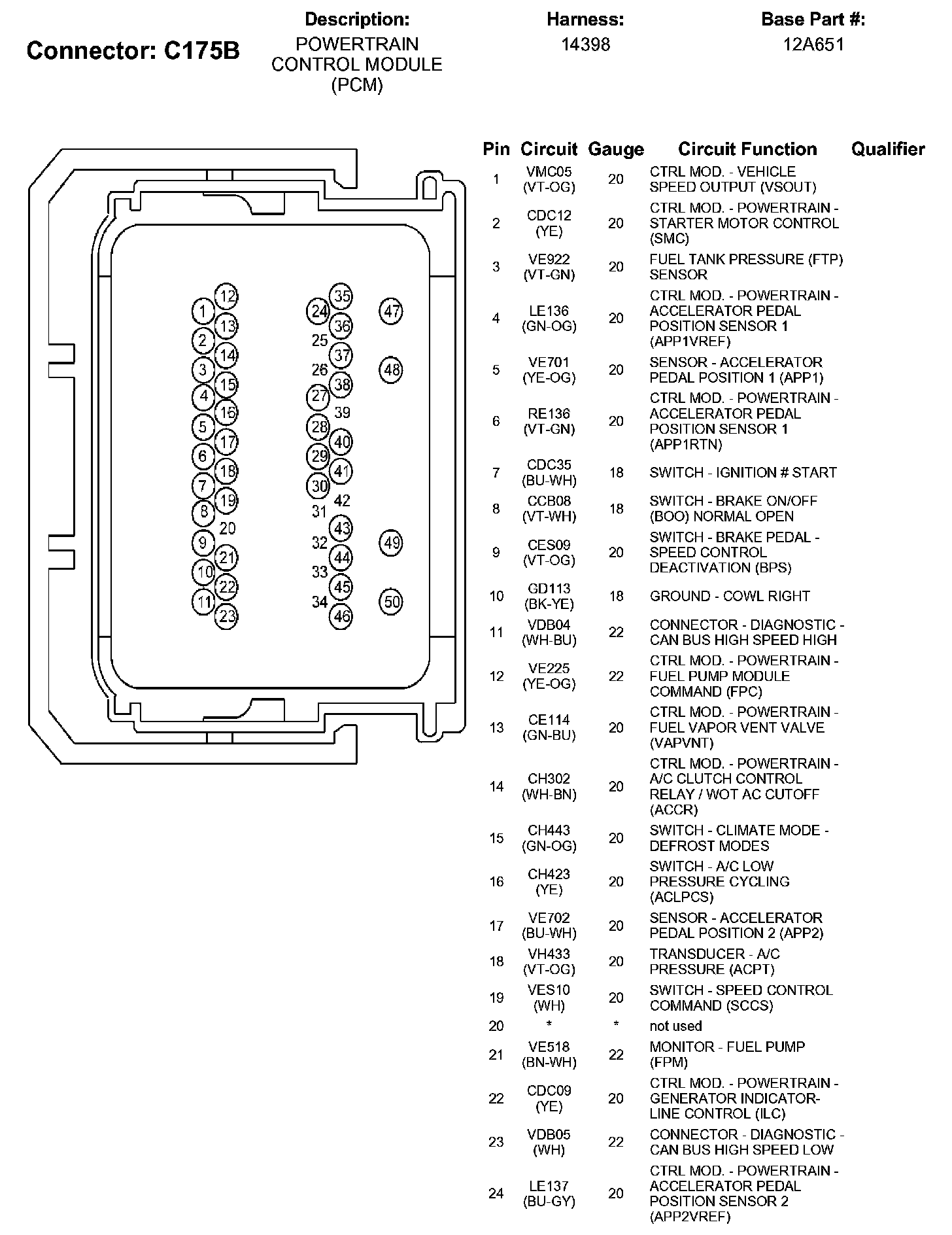

C175B (Part 1):
C175B (Part 2):

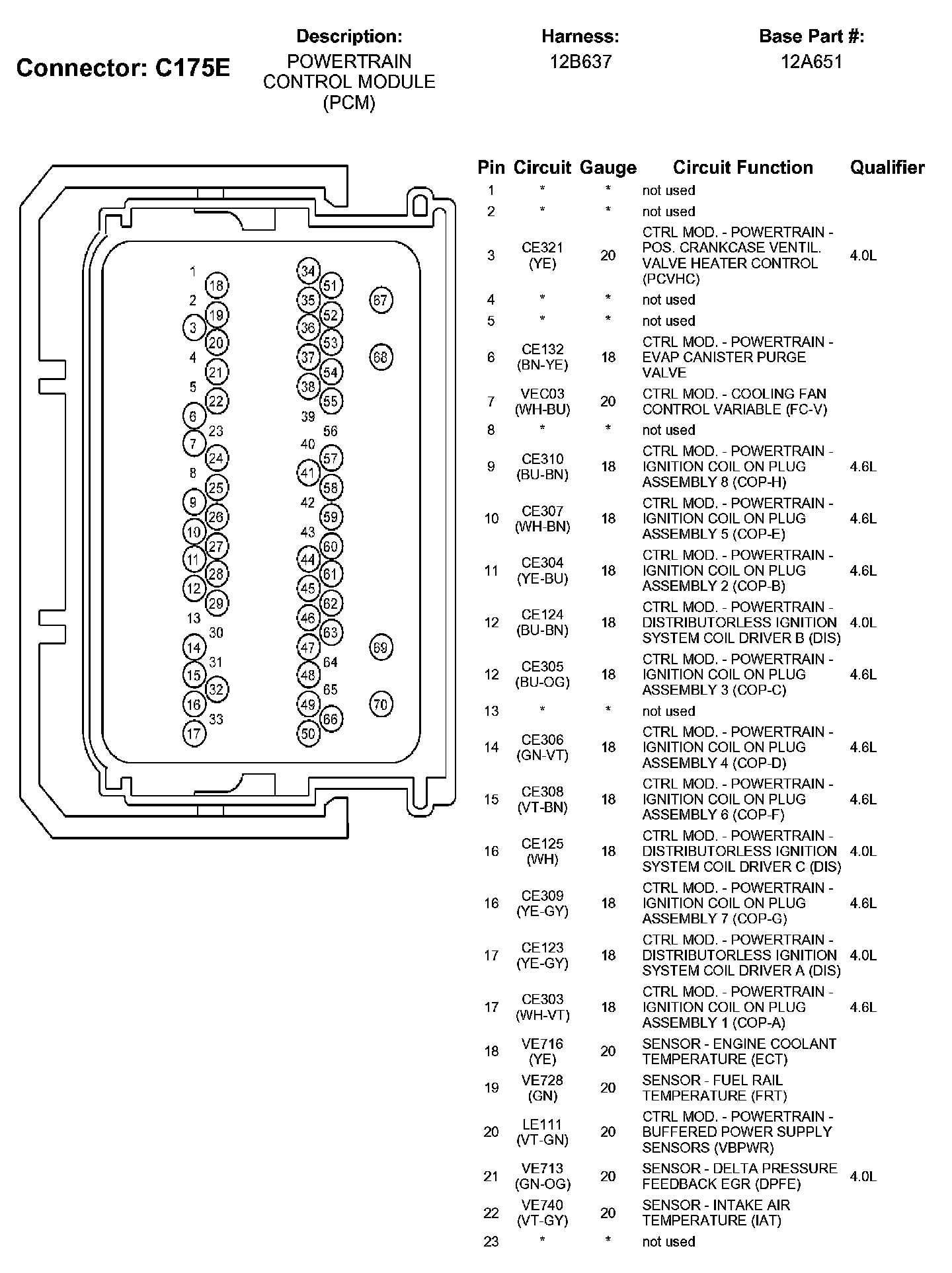

C175E (Part 1):

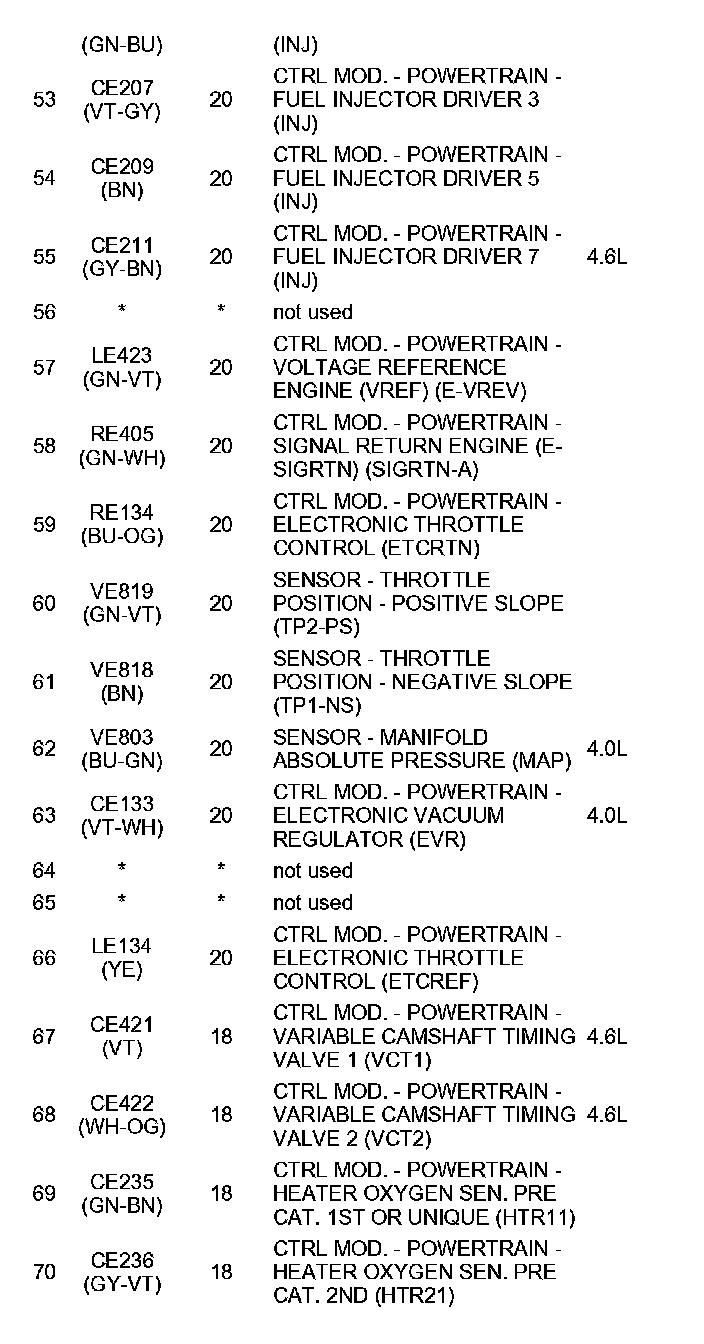

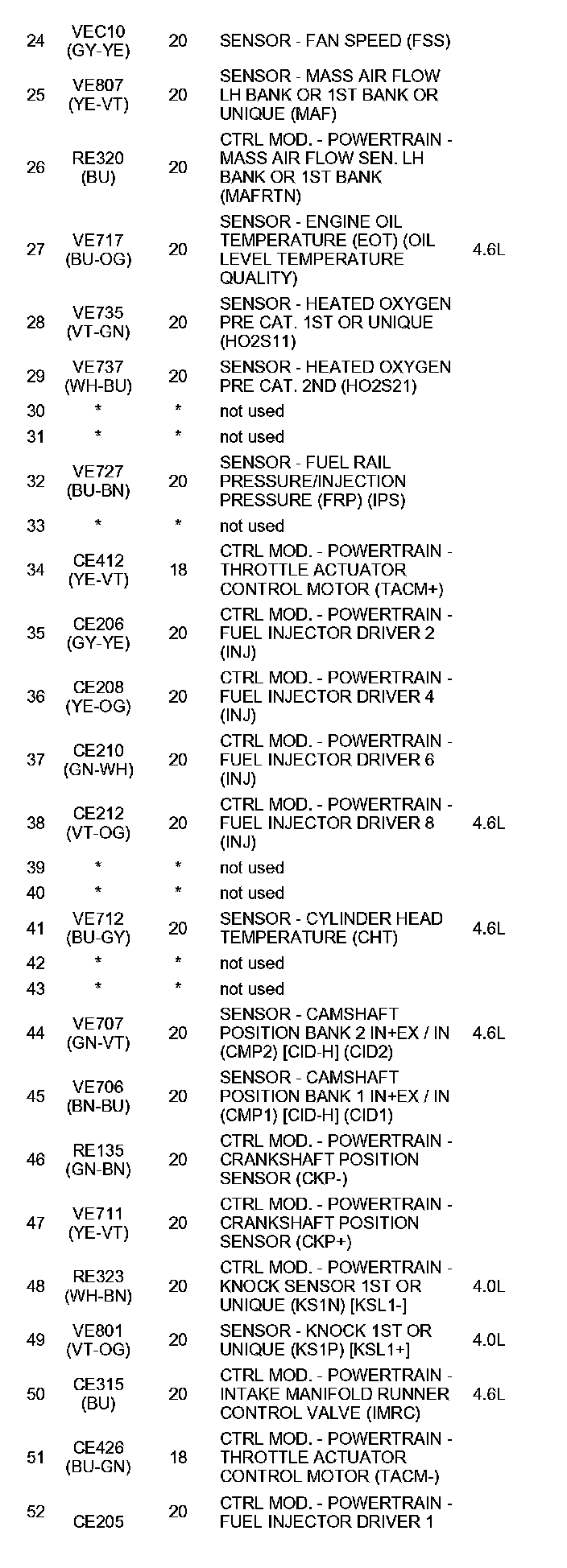

C175E (Part 2):
C175E (Part 3):

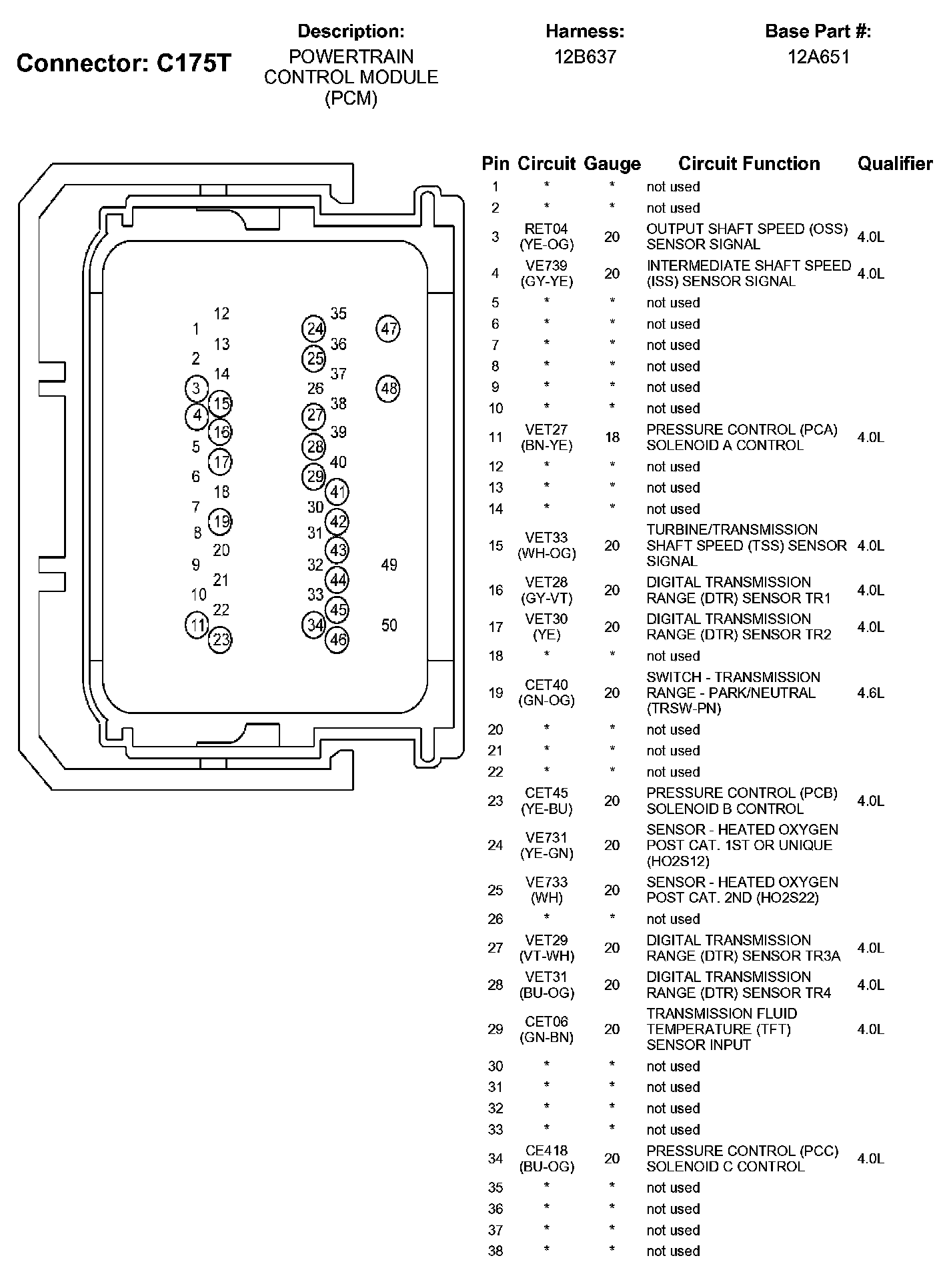

C175T (Part 1):

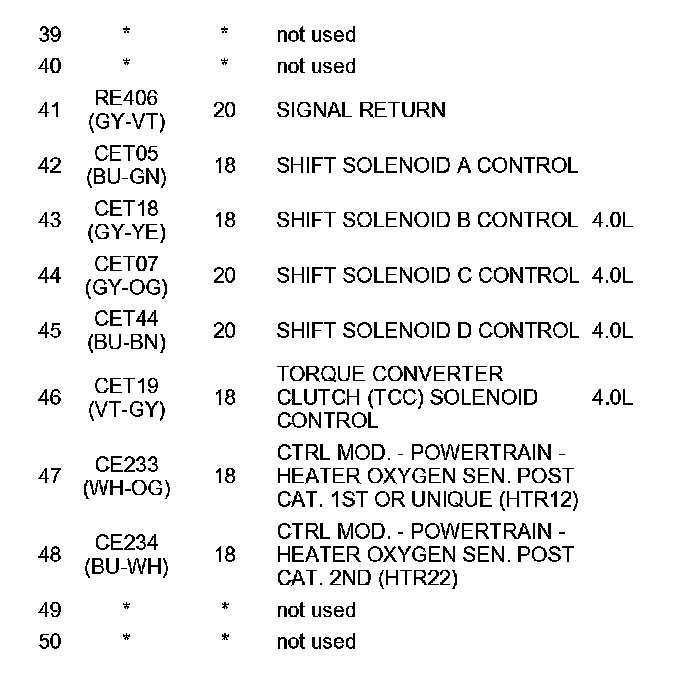

C175T (Part 2):
