Battery Tray

BATTERY TRAY

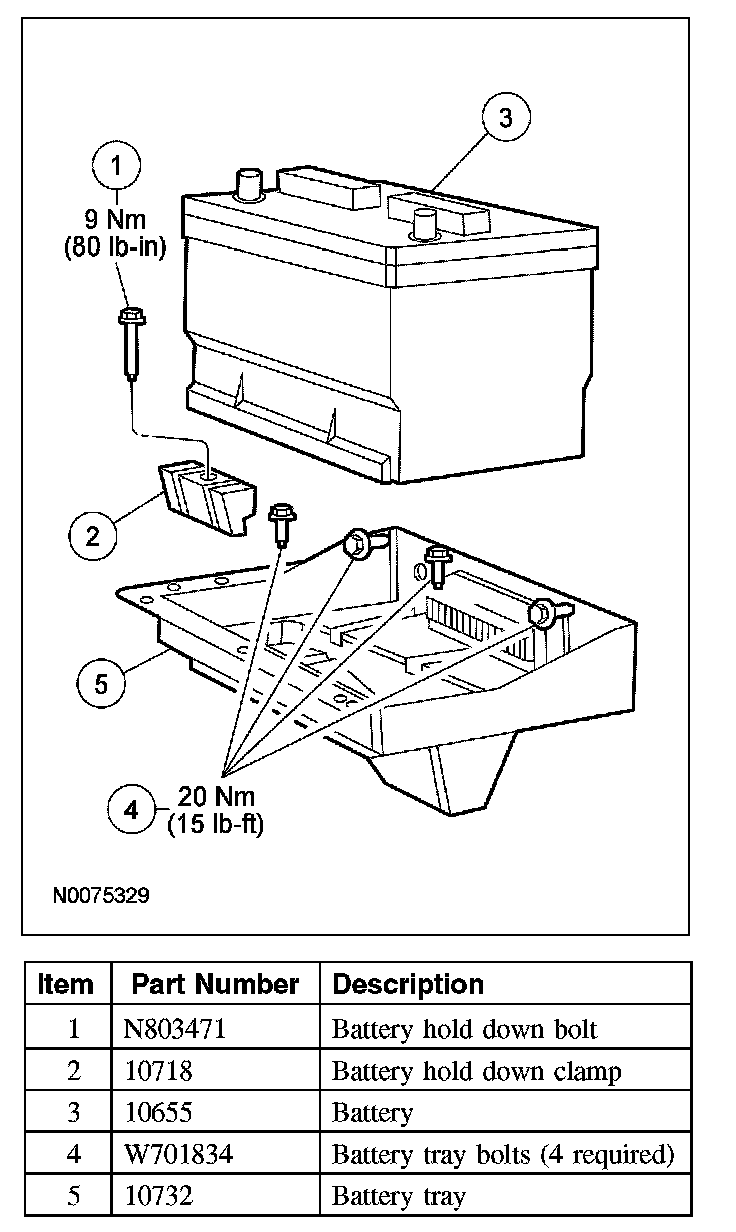

Exploded View

Removal and Installation

WARNING: Always lift a plastic-cased battery with a battery carrier or with hands on opposite corners. Excessive pressure on the battery end walls may cause acid to flow through the vent caps, resulting in personal injury and/or damage to the vehicle or battery.

1. Remove the battery.
2. Remove the 4 battery tray bolts.
- To install, tighten to 20 Nm (15 lb-ft).

3. Remove the battery tray.
- Release the battery cable harness locators.

4. To install, reverse the removal procedure.
