Drive Belt

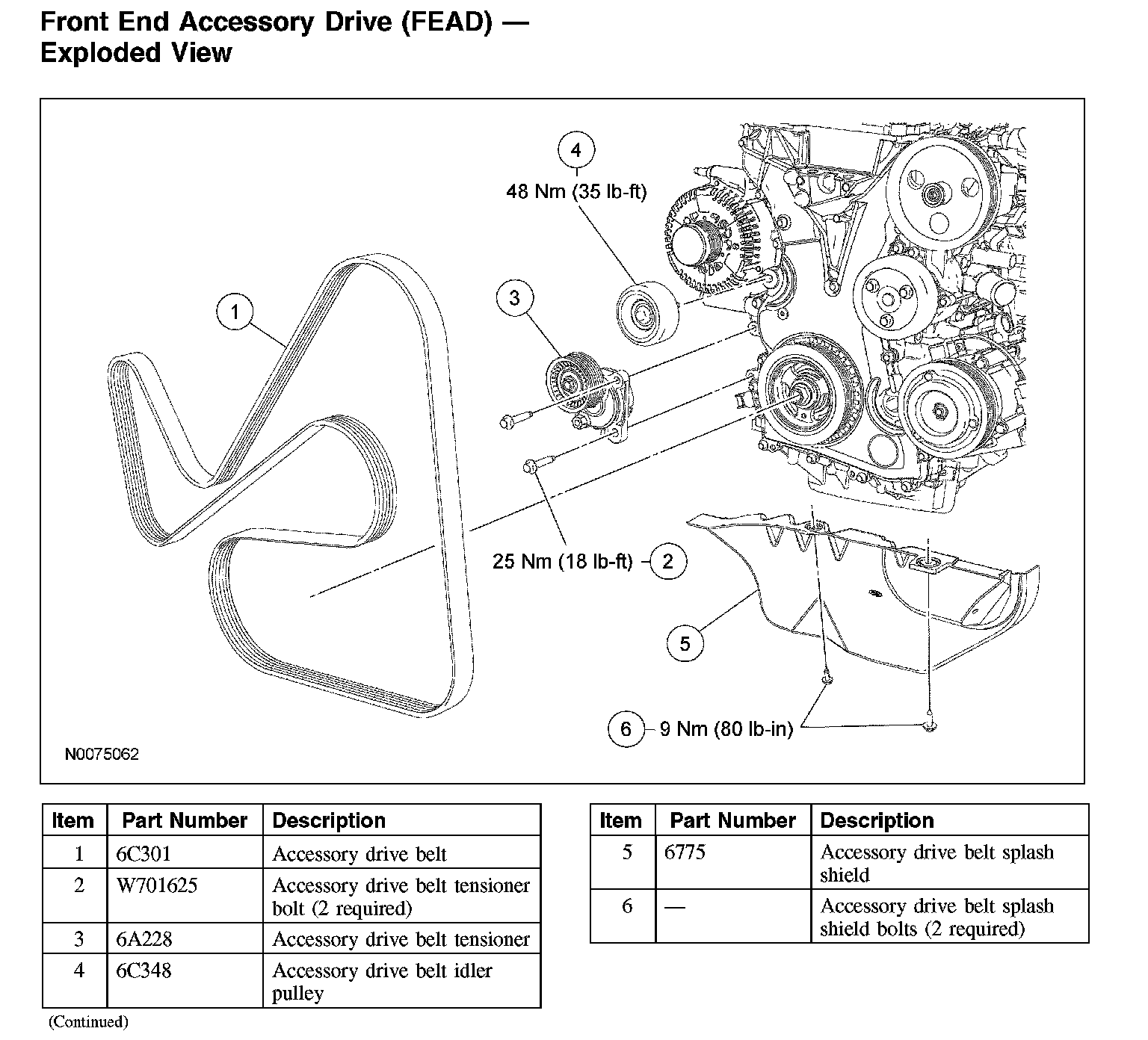

Front End Accessory Drive (FEAD) Exploded View

Front End Accessory Drive (FEAD) - Exploded View:
