System Diagram

Lower End Components - Exploded View

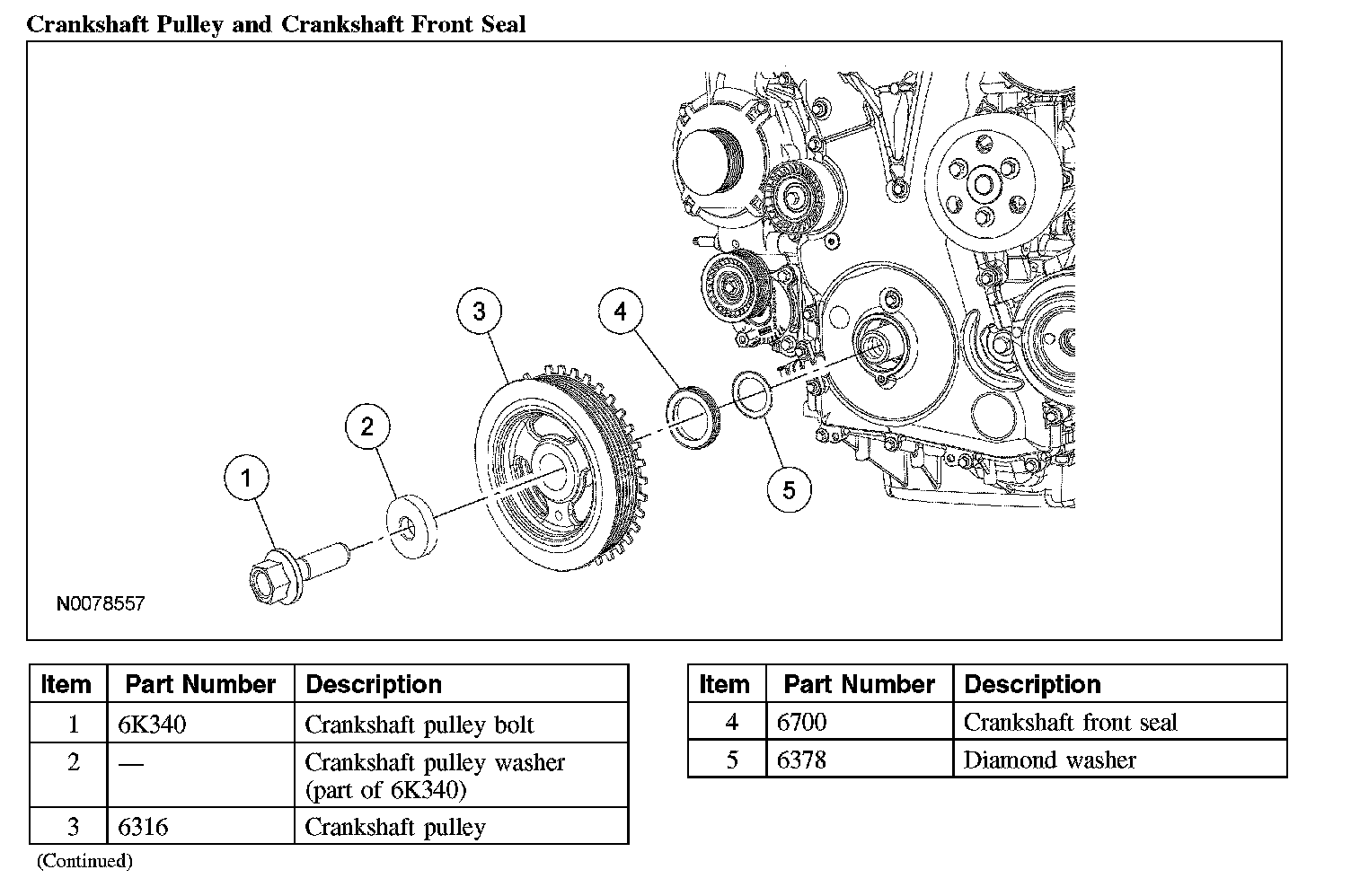

Crankshaft Pulley and Crankshaft Front Seal:

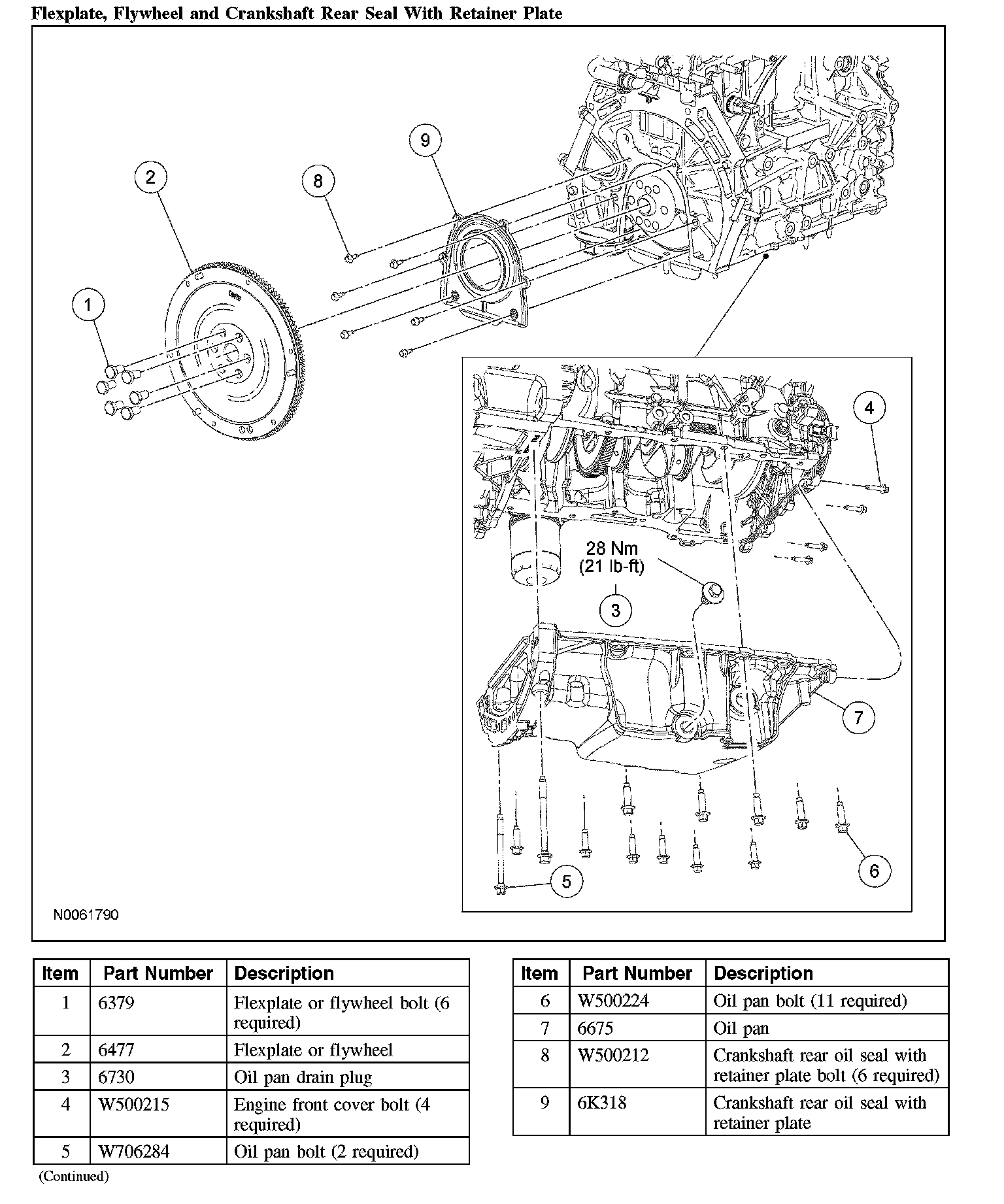

Flexplate, Flywheel and Crankshaft Rear Seal With Retainer Plate:
