Exhaust System

Exhaust System - Exploded View

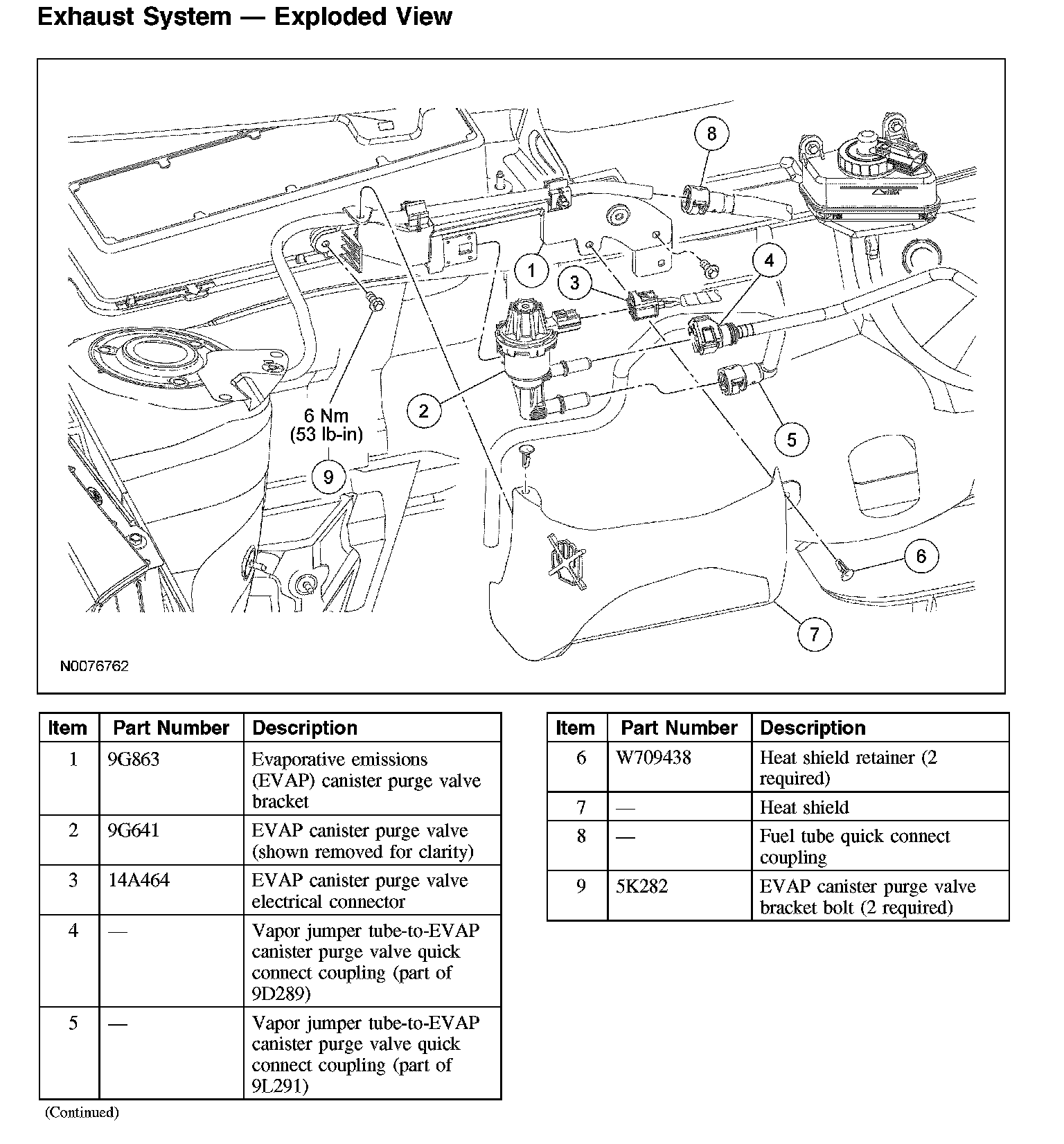

Exhaust System - Exploded View (Part 1):

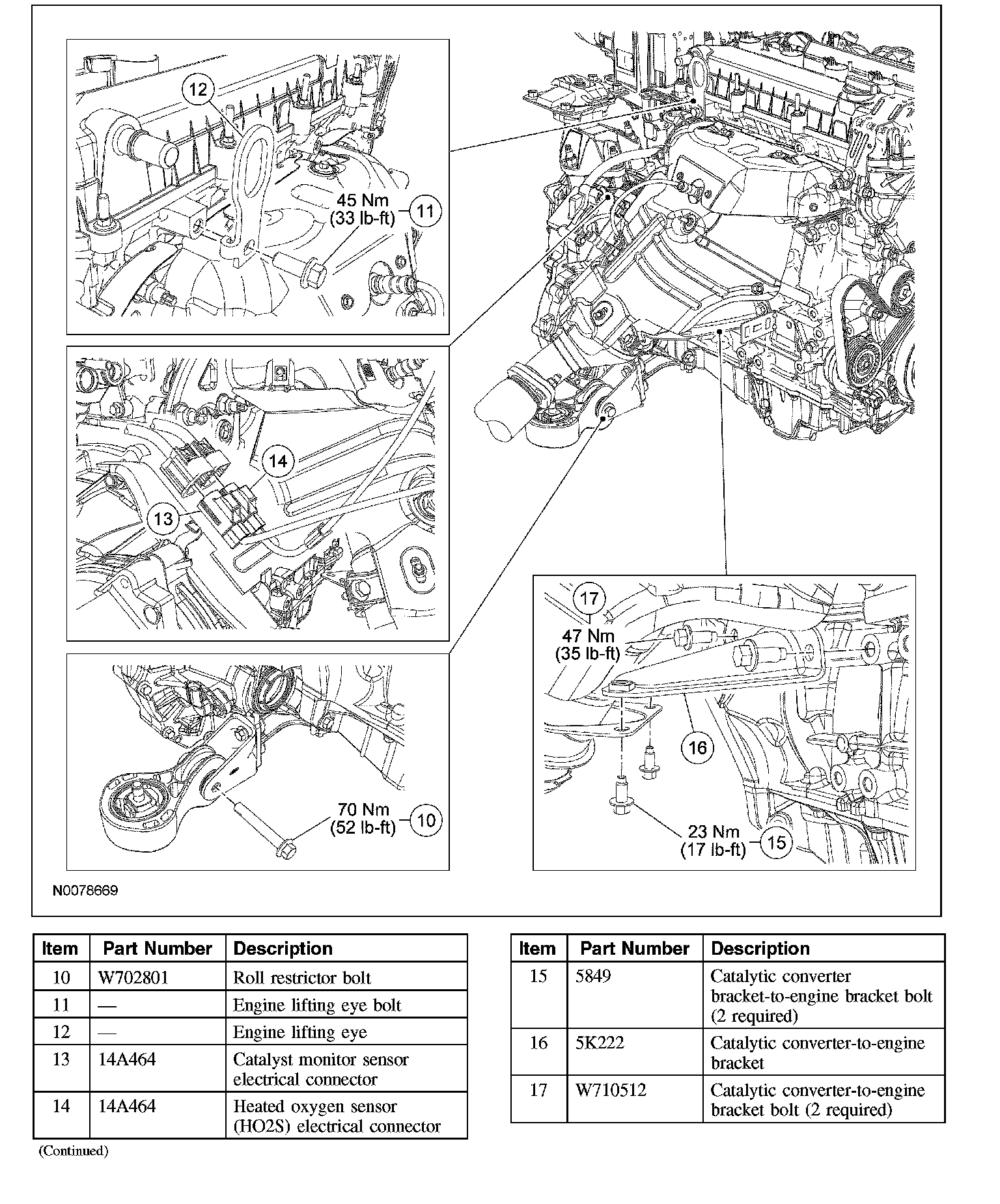

Exhaust System - Exploded View (Part 2):

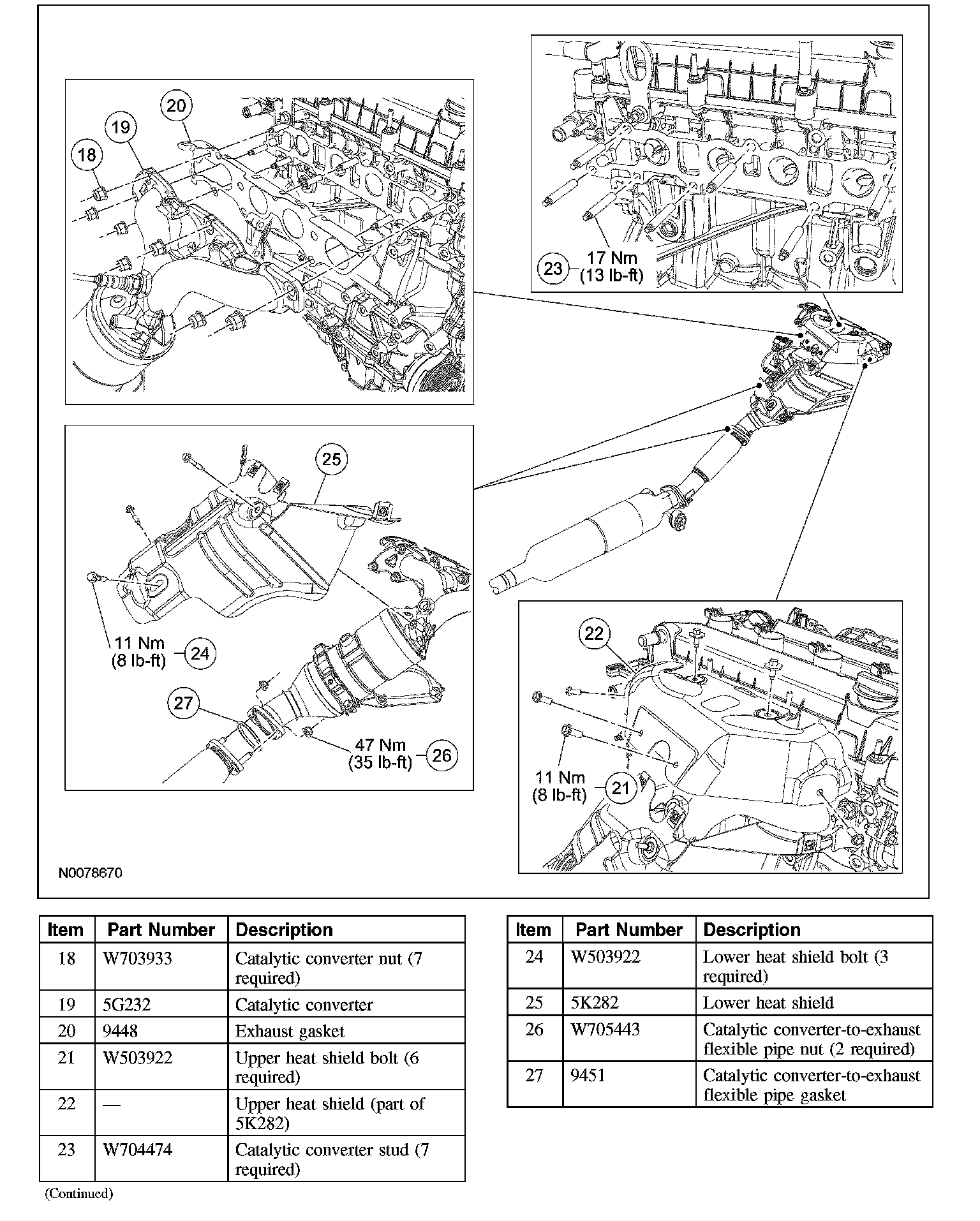

Exhaust System - Exploded View (Part 3):

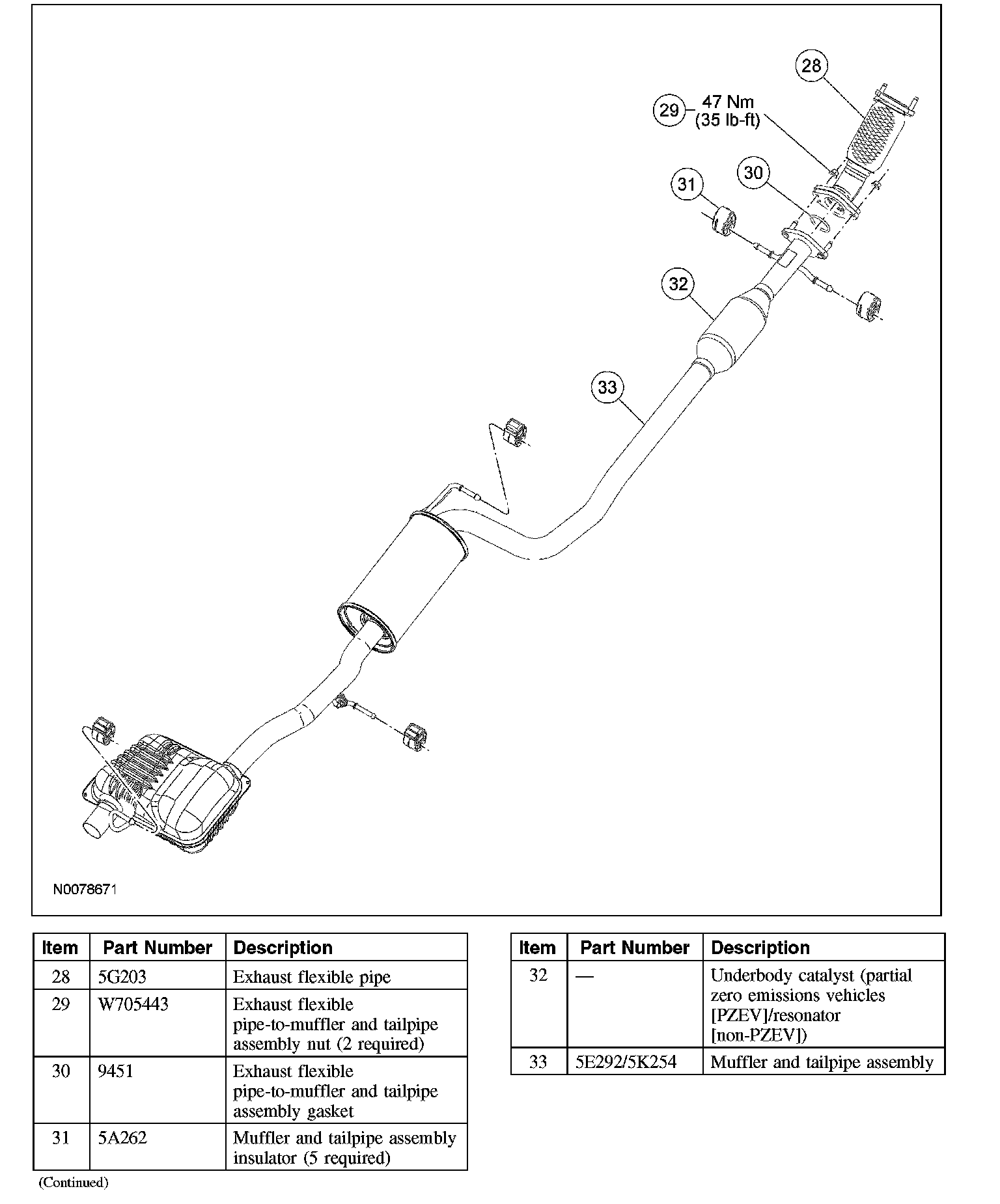

Exhaust System - Exploded View (Part 4):
