Engine Temperature Sensor: Service and Repair

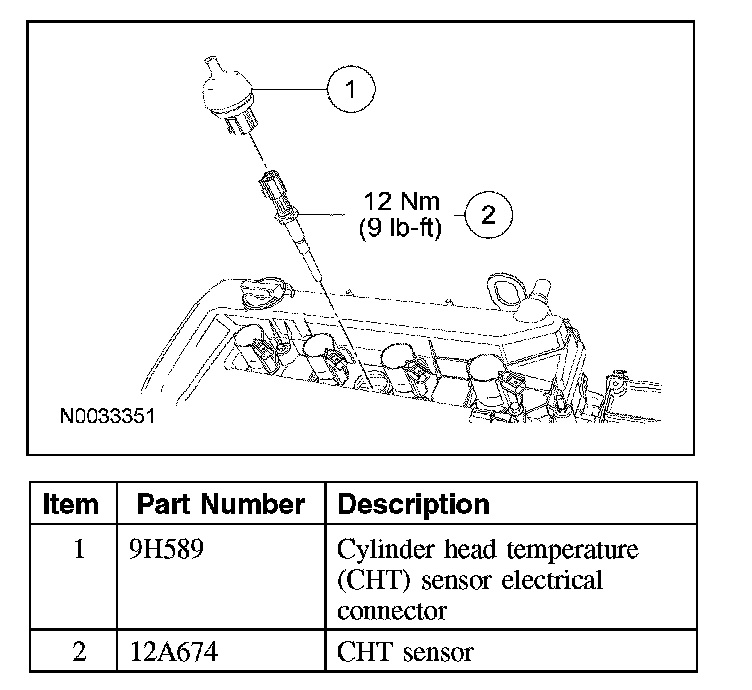

CYLINDER HEAD TEMPERATURE (CHT) SENSOR







Removal and Installation
1. Pull back the cylinder head temperature (CHT) sensor cover and disconnect the electrical connector.
2. Remove the CHT sensor.
- To install, tighten to 12 Nm (9 lb-ft).

3. To install, reverse the removal procedure.
