Battery Tray

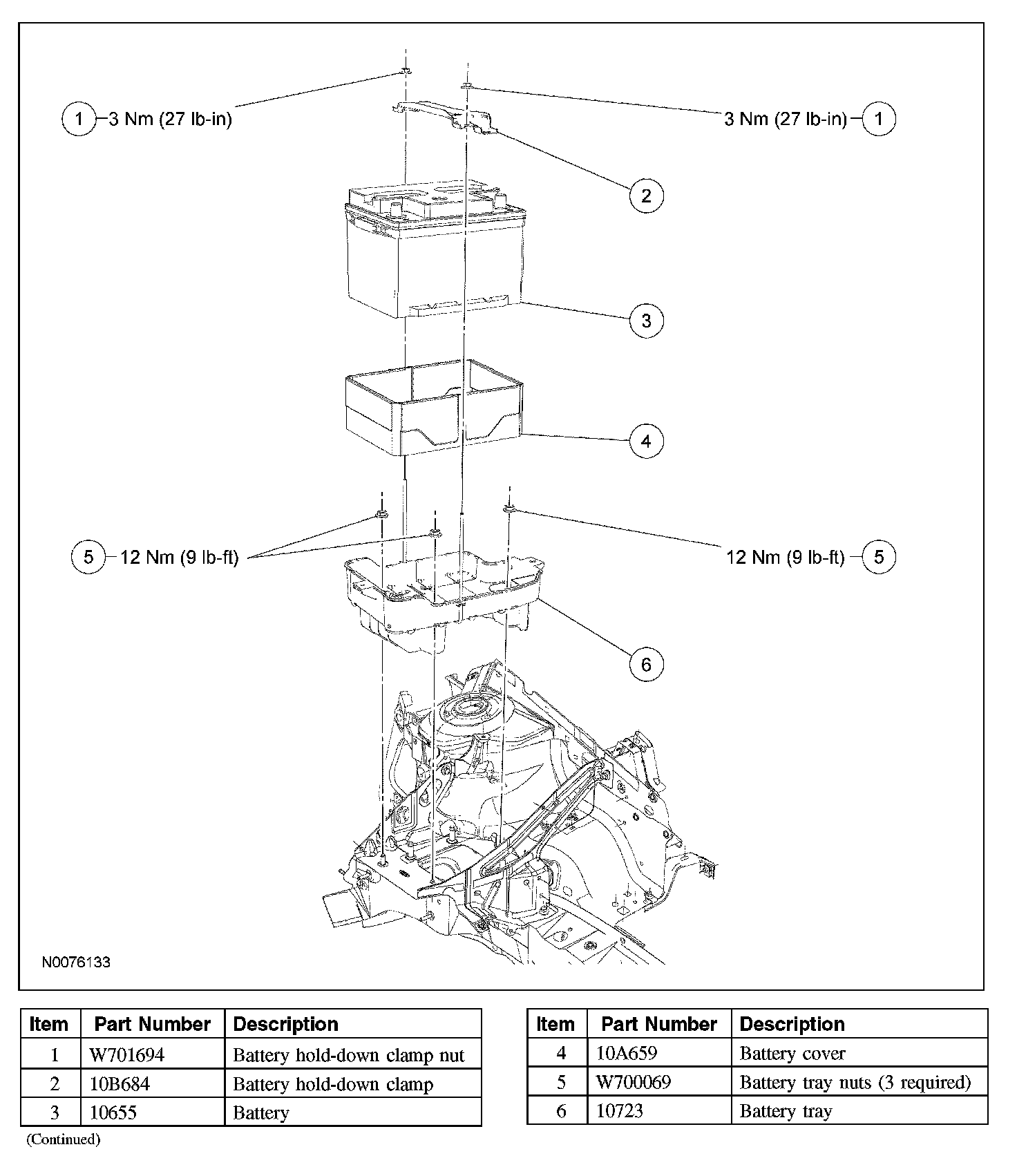

BATTERY TRAYExploded View
Removal and Installation
1. Remove the battery.
2. Remove the 3 nuts from the battery tray.
- To install, tighten to 12 Nm (9 lb-ft).
3. Remove the 4 wire harness pushpins from the battery tray and remove the tray.
4. To install, reverse the removal procedure.
