Grille: Service and Repair

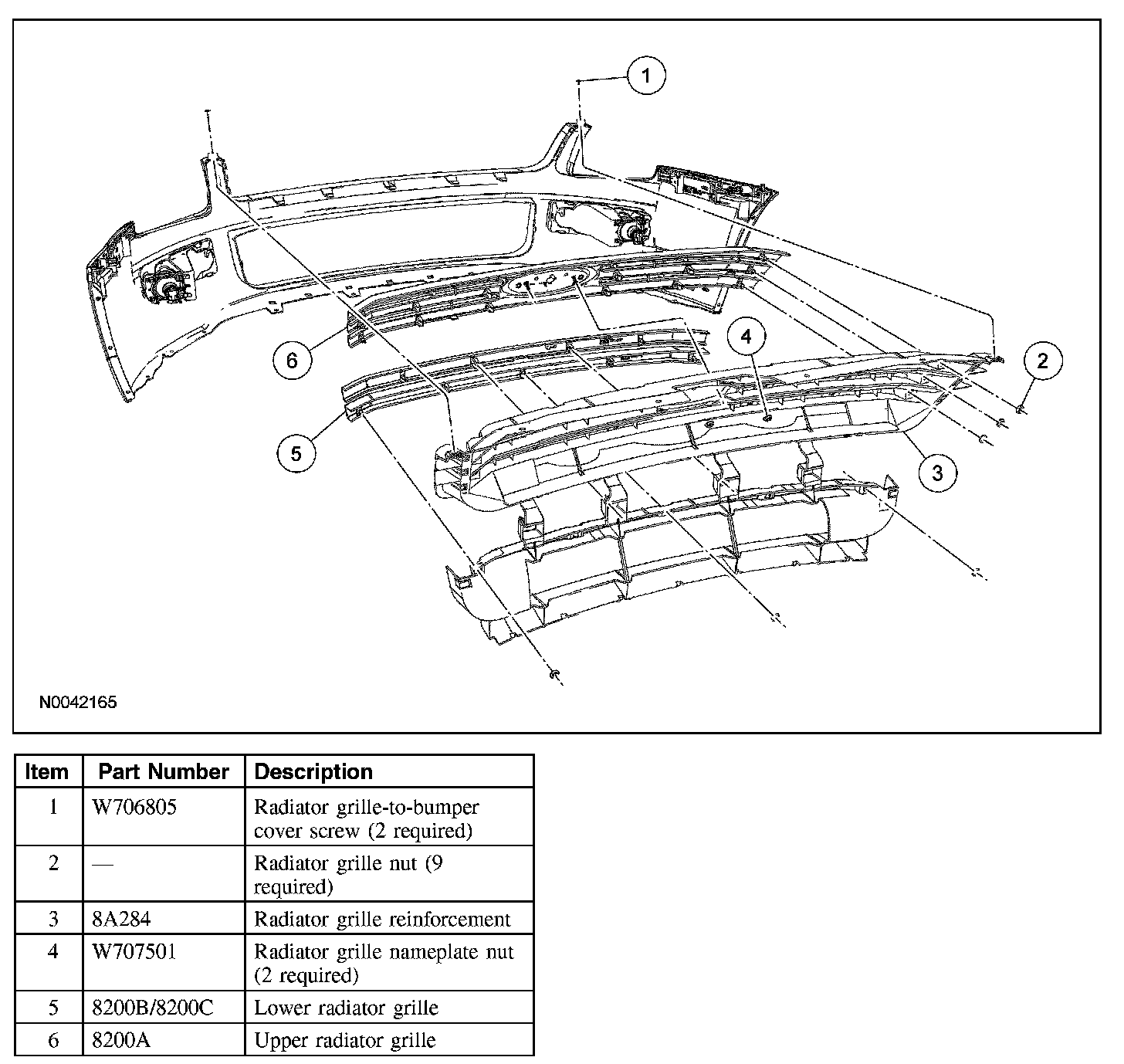

RADIATOR GRILLE







Removal and Installation
1. Remove the front bumper cover.
2. Remove the screws from the radiator grille-to-bumper cover.
3. Disengage the radiator grille from the clips on the bumper cover.
4. Remove the radiator grille.
5. To install, reverse the removal procedure.
