Heated Seat Module

HEATED SEAT MODULE

Exploded View

Front Seat Backrest without Fold-Flat (Part 1):

Front Seat Backrest without Fold-Flat (Part 2):

Front Seat Backrest with Fold-Flat (Part 1):

Front Seat Backrest with Fold-Flat (Part 2):

Driver Seat Cushion (Part 1):

Driver Seat Cushion (Part 2):

Passenger Seat Cushion (Part 1):

Passenger Seat Cushion (Part 2):

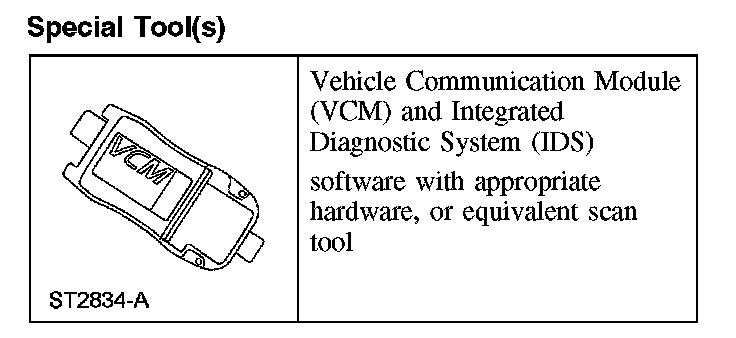

Special Tool(s)

Special Tool(s):

Removal and Installation

NOTE:
- The air bag warning lamp illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

1. Remove the front passenger seat.
2. Remove the heated seat module from the cushion electrical bracket.
- Disconnect the heated seat module electrical connector.
- Remove the rivet and heated seat module.

3. To install, reverse the removal procedure.
4. Install the front passenger seat and repower the SRS. Do not prove out the SRS at this time.
5. Carry out the Occupant Classification Sensor (OCS) System Zero Seat Weight Test.
