Main Relay (Computer/Fuel System): Locations
Battery Junction Box (BJB)
Early Production (Vehicles built before 09/04/2006)

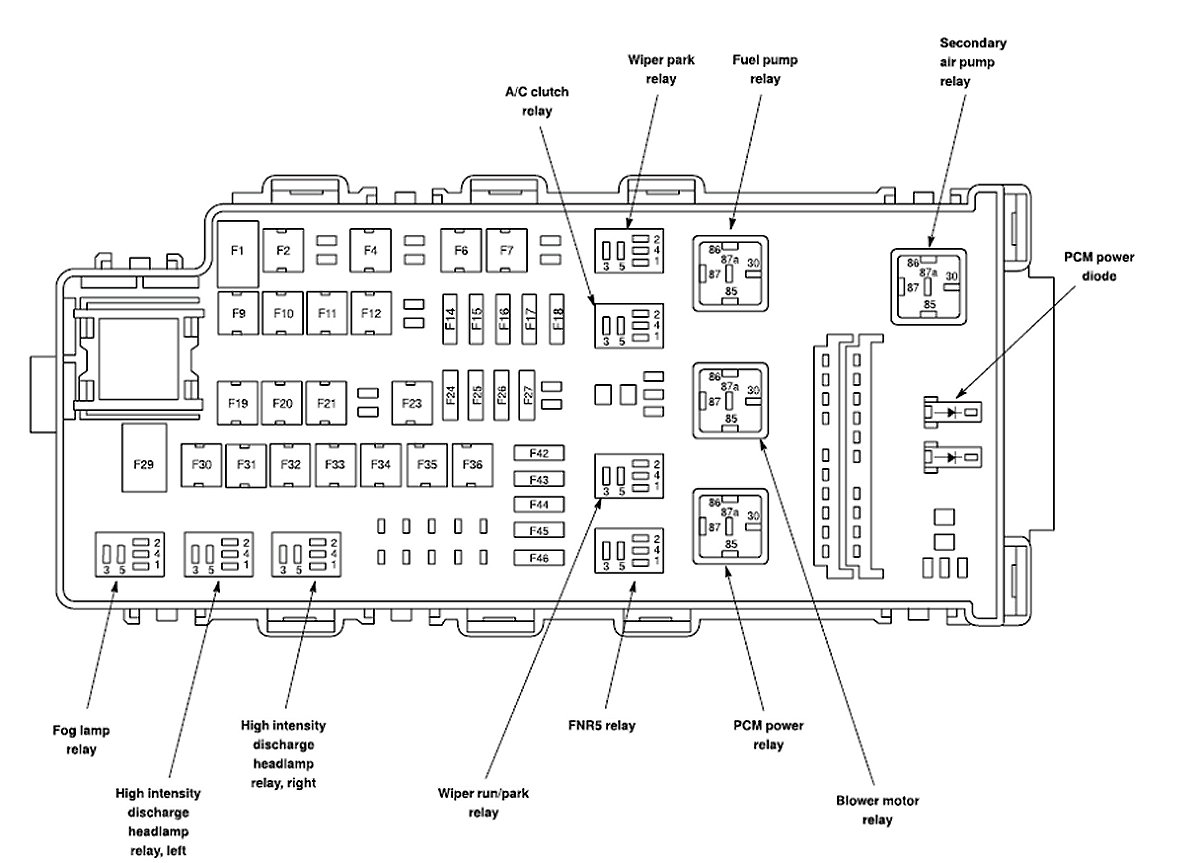

Battery Junction Box (1 Of 2):

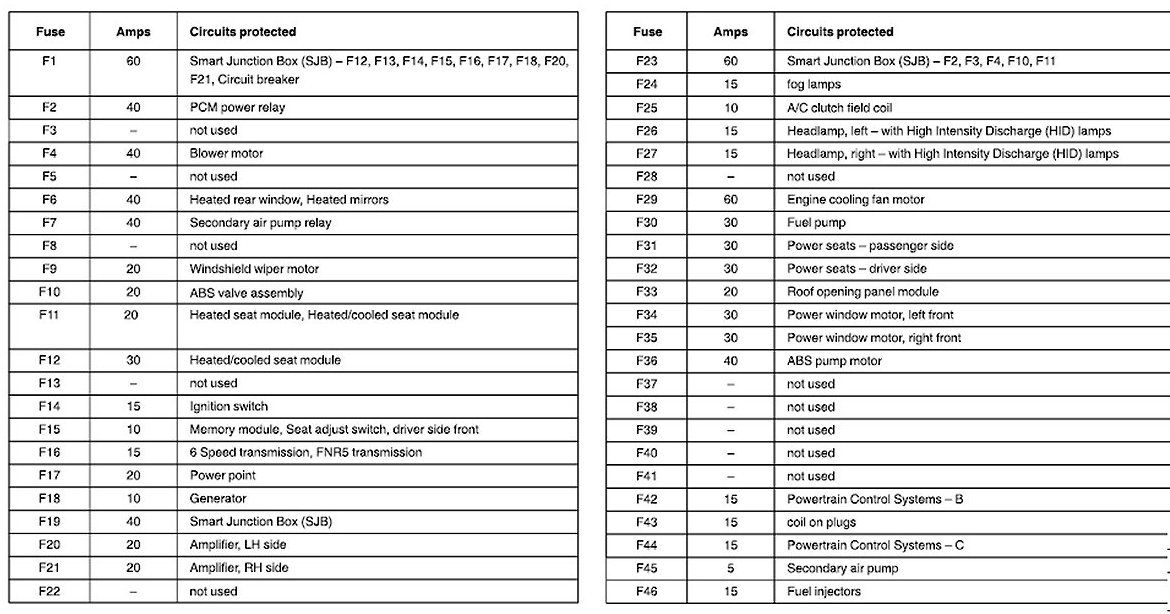

Battery Junction Box (2 Of 2):
Late Production (Vehicles built 09/04/2006 and later)

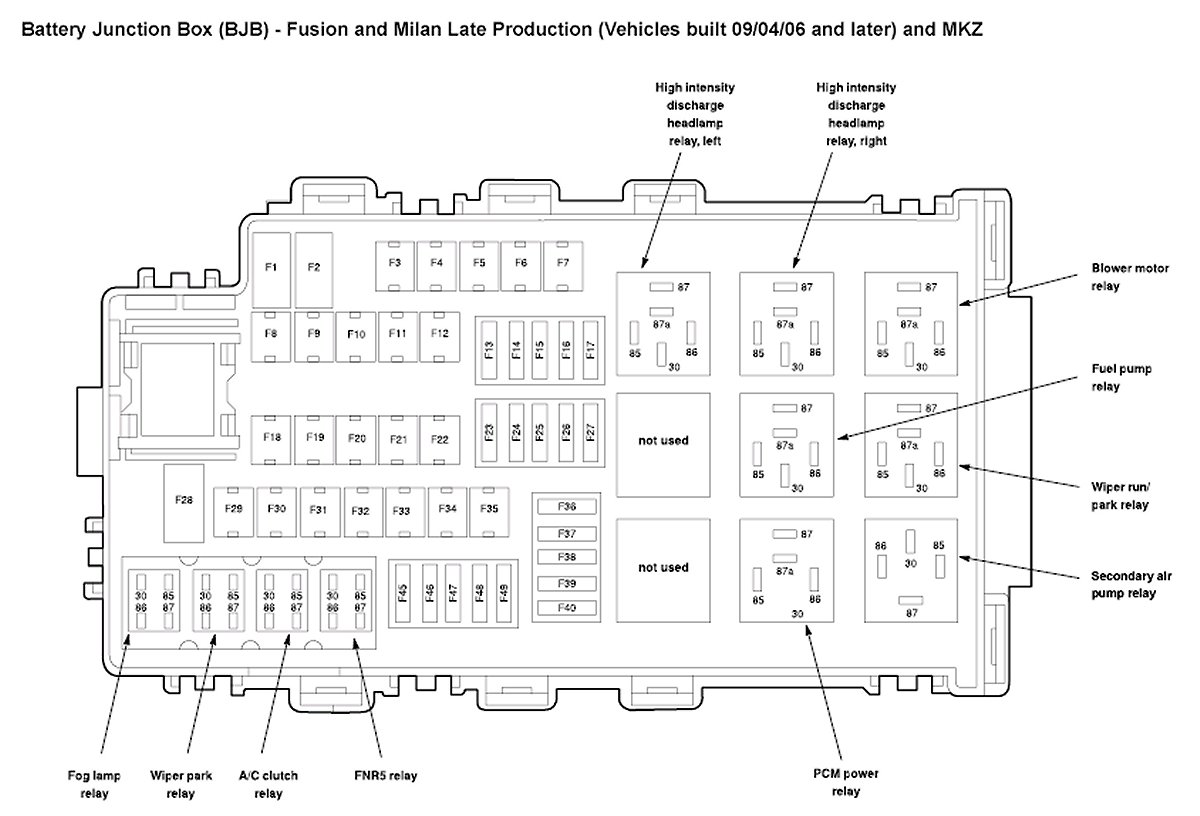

Battery Junction Box-Late Built (1 Of 2):

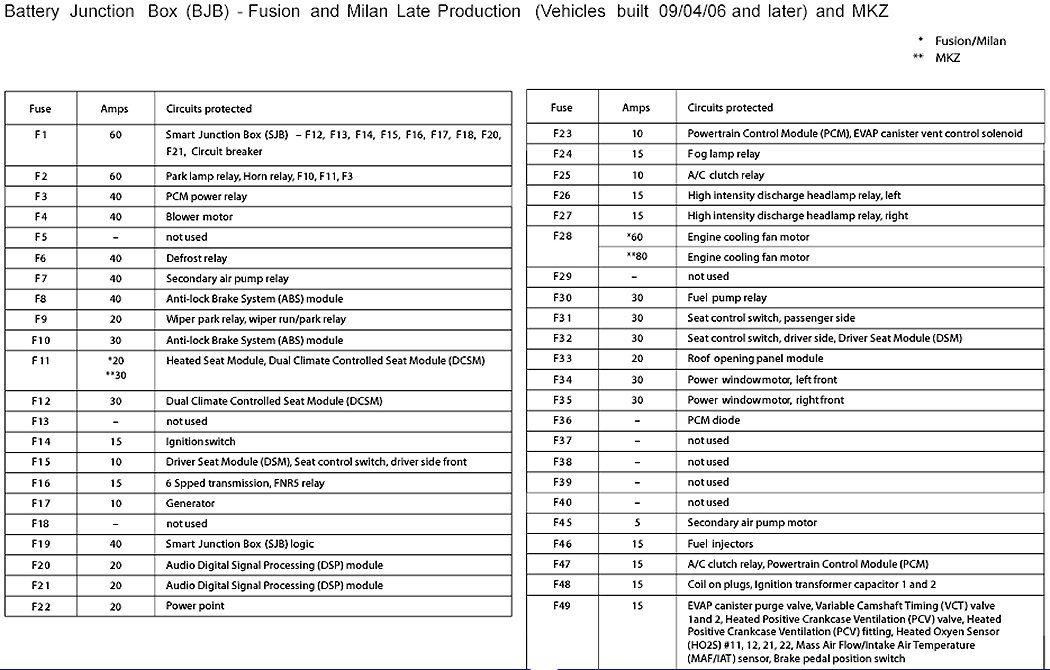

Battery Junction Box-Late Built (2 Of 2):
